MINI-CON-X® FIELD INSTALLABLE CONNECTORS

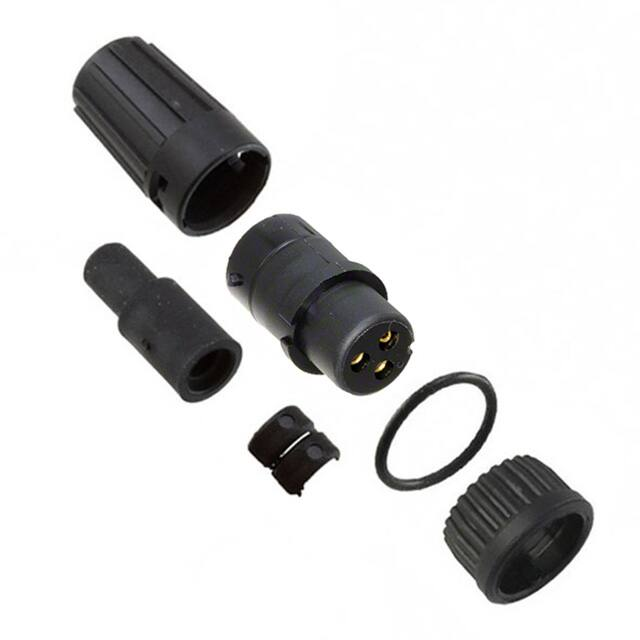

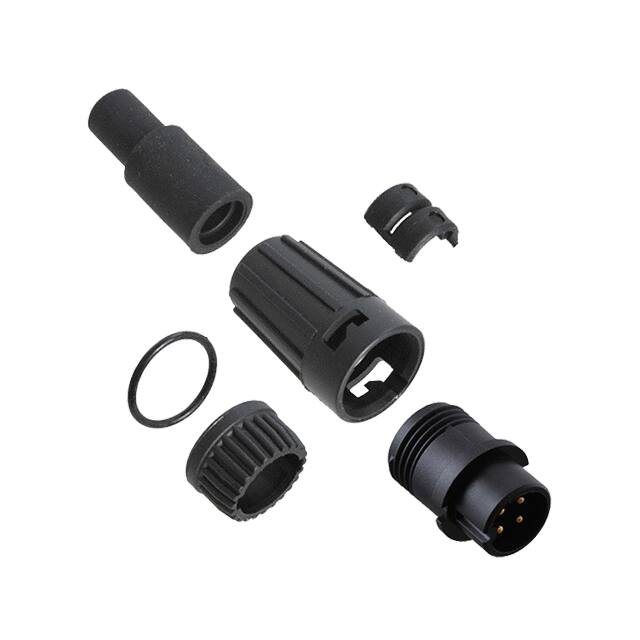

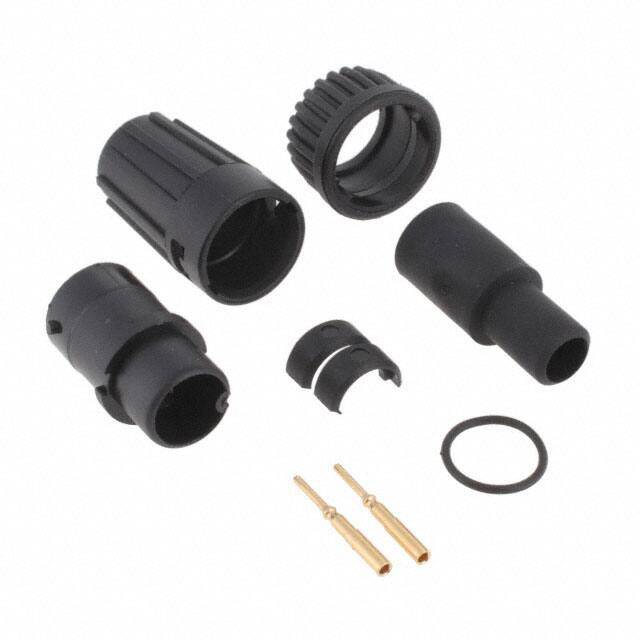

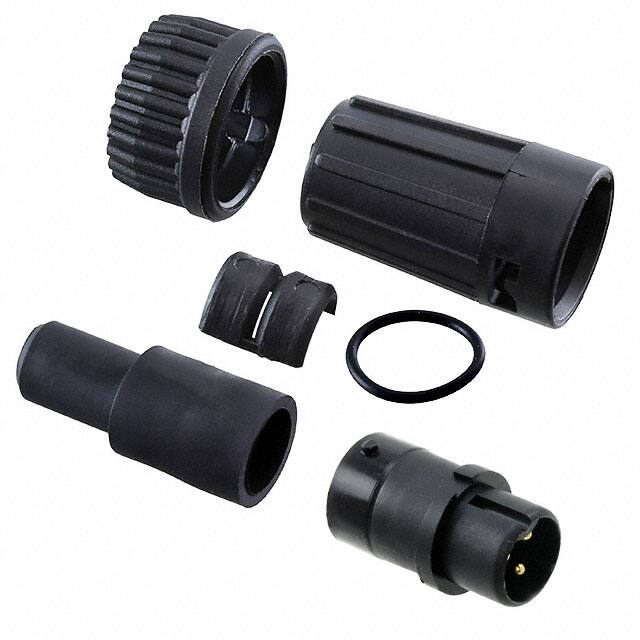

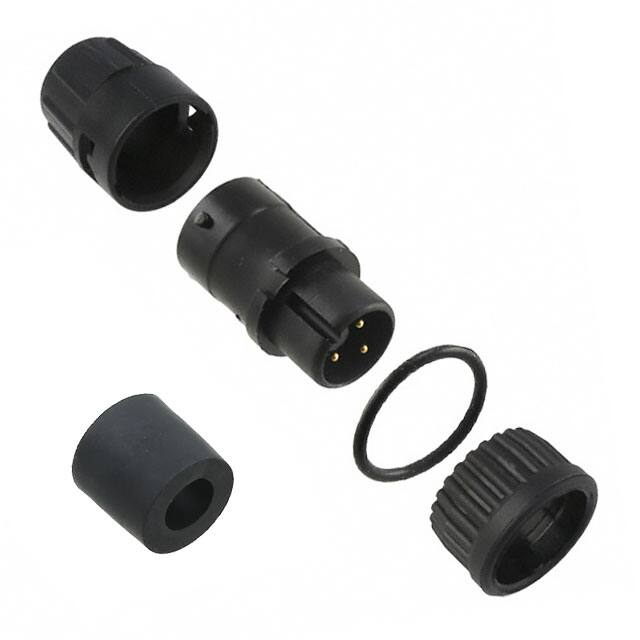

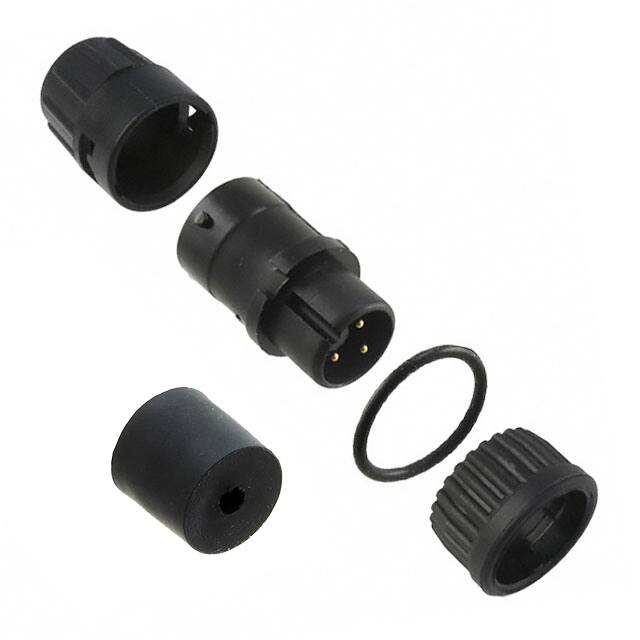

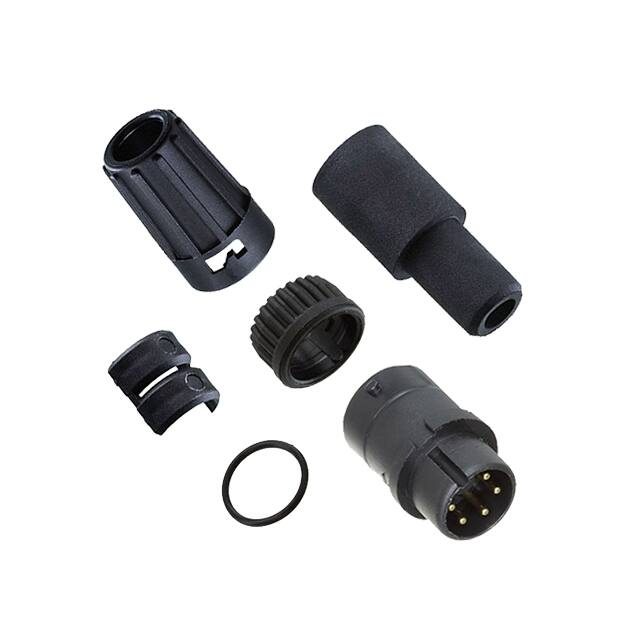

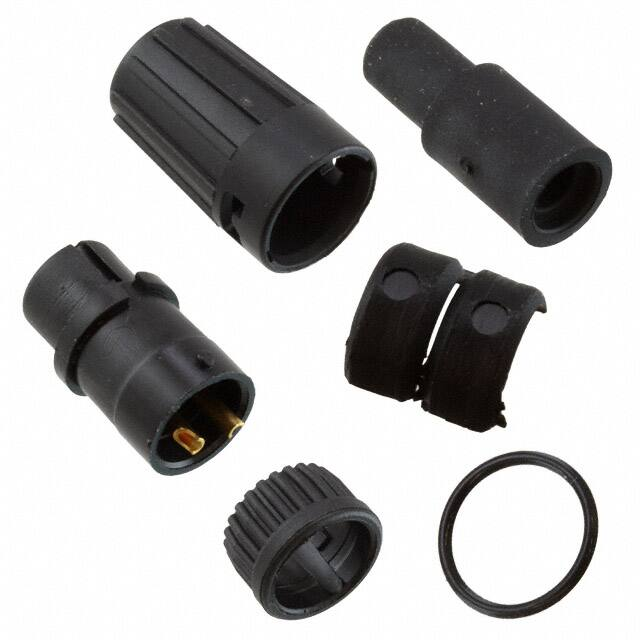

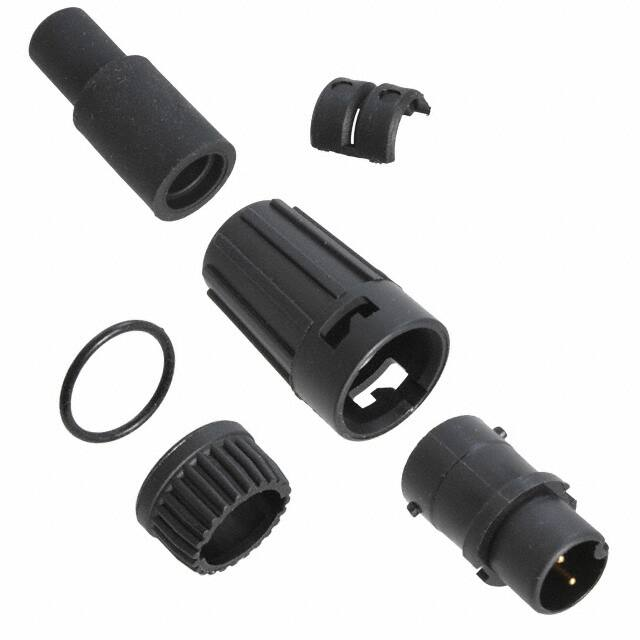

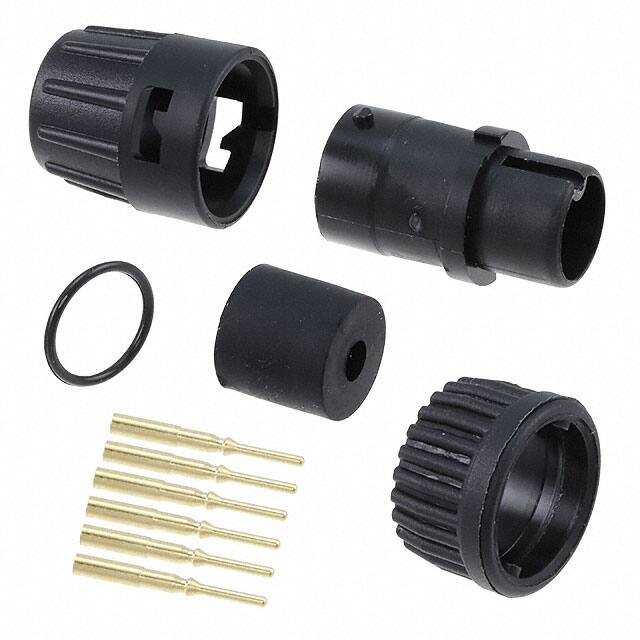

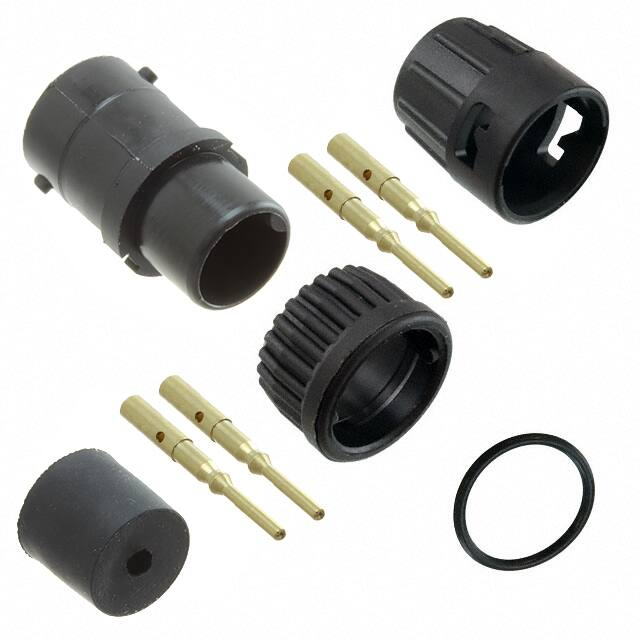

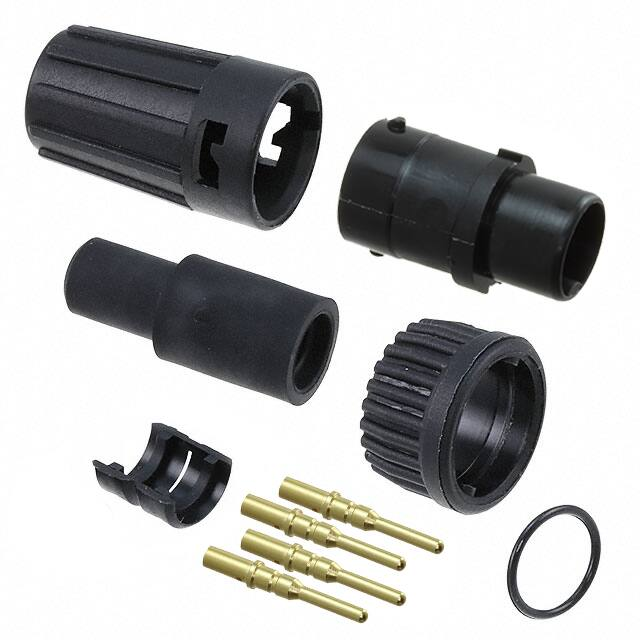

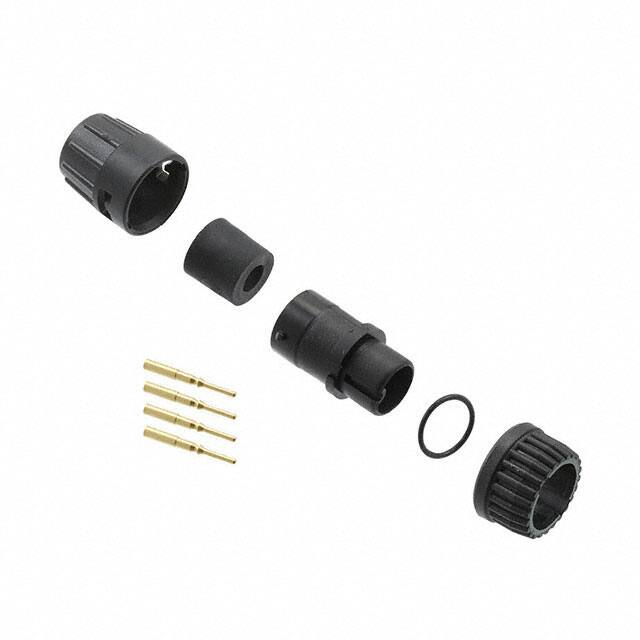

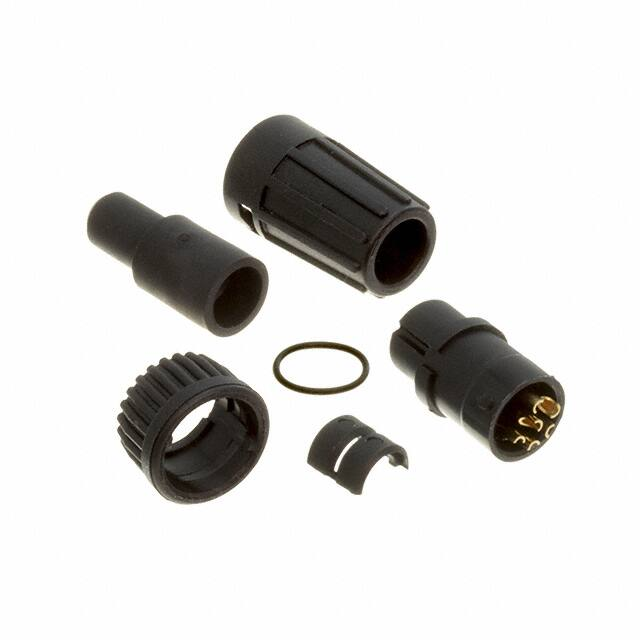

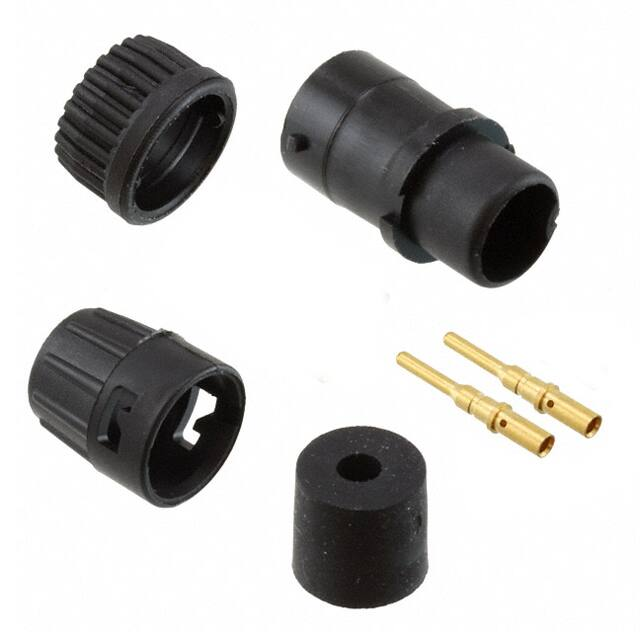

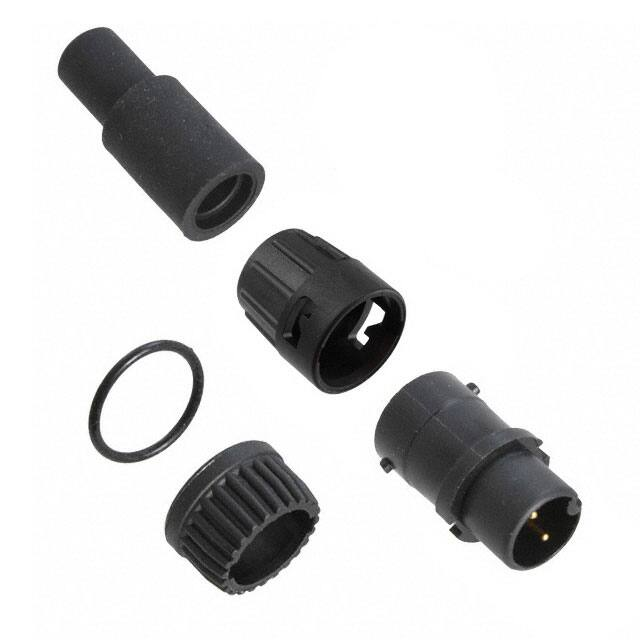

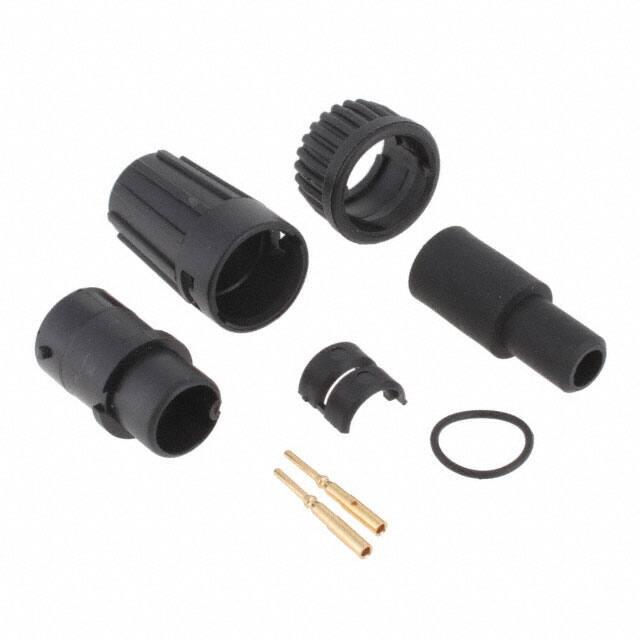

Cable Pin

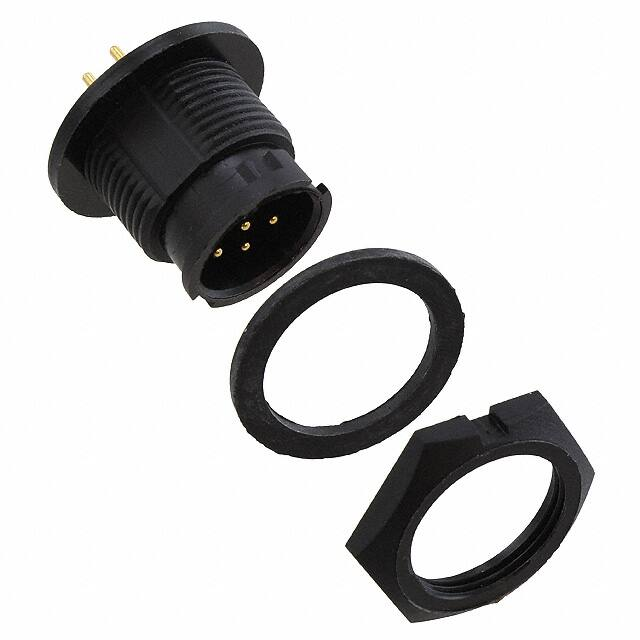

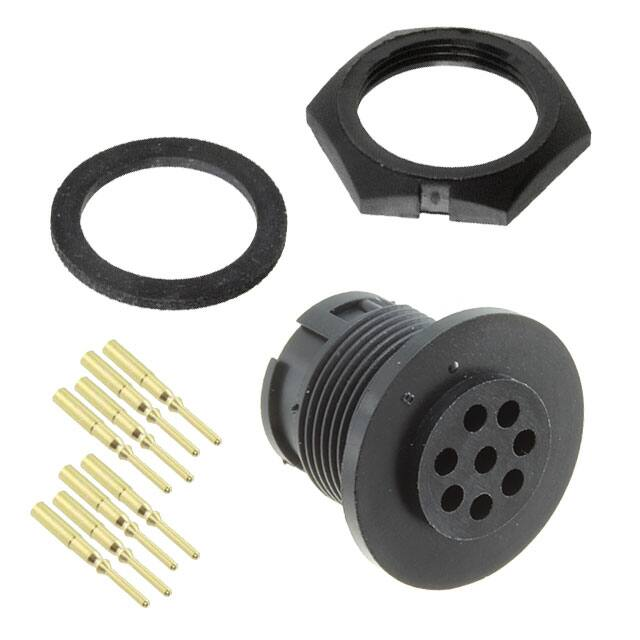

Panel Mount

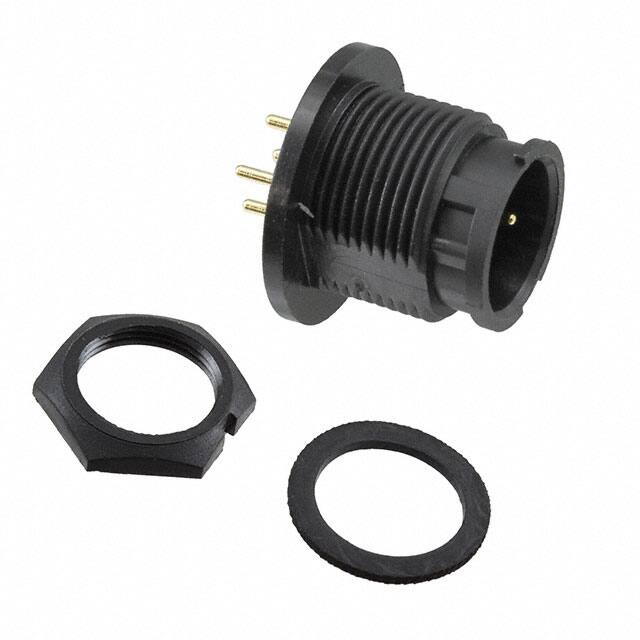

P/C Tail Panel Mount
6X8X-XPG-XXX
Matching Mates:
• Cable-Cable
7X8X-XXG-XXX
Matching Mates:
• Cable Pin
7XXX-XXG-XXX
Matching Mates:
• Cable Pin
8X8X-XSG-XXX
• Panel
6X8X-XPG-XXX
• Cable Socket
7XXX-XSG-XXX
6X8X-XPG-XXX
• Cable Socket
6X8X-XSG-XXX
6X8X-XSG-XXX
Cable Socket

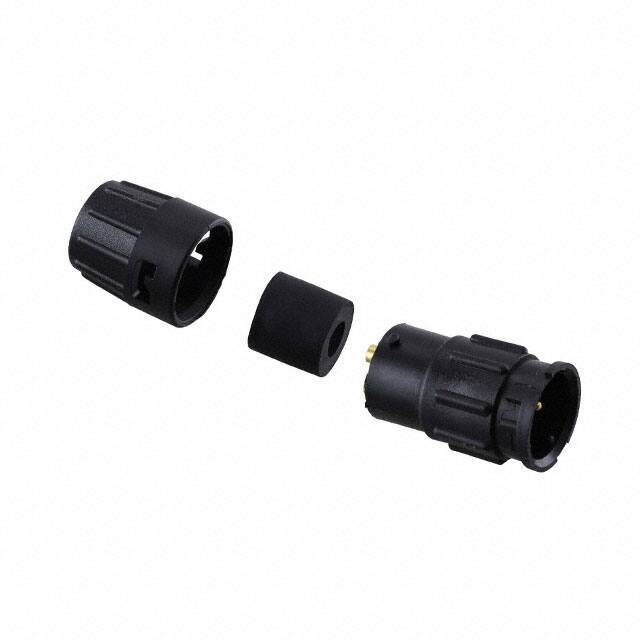

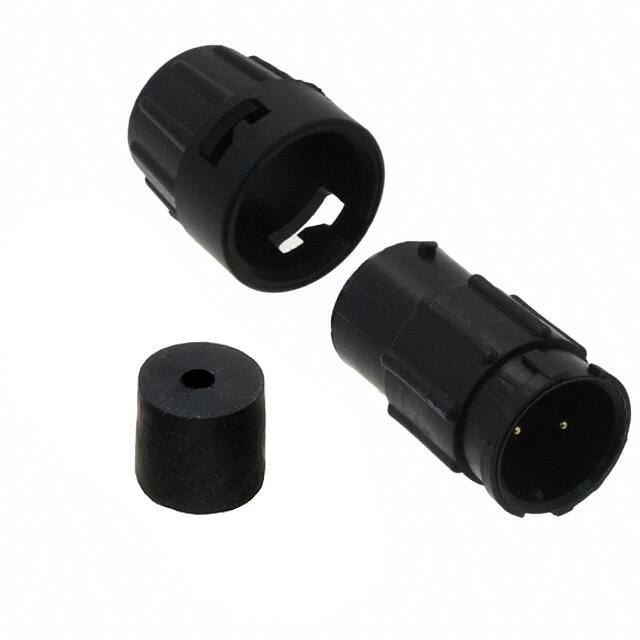

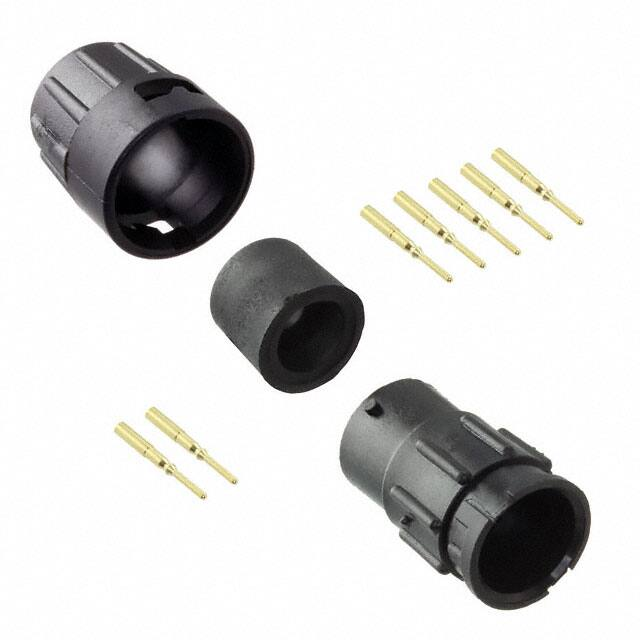

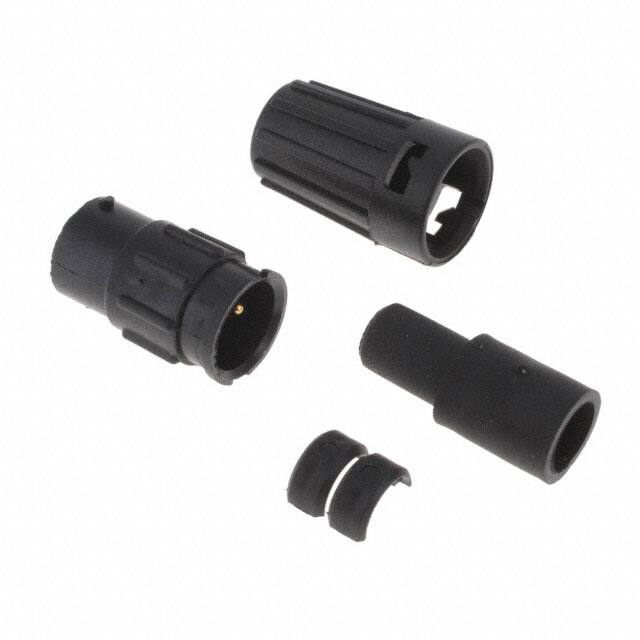

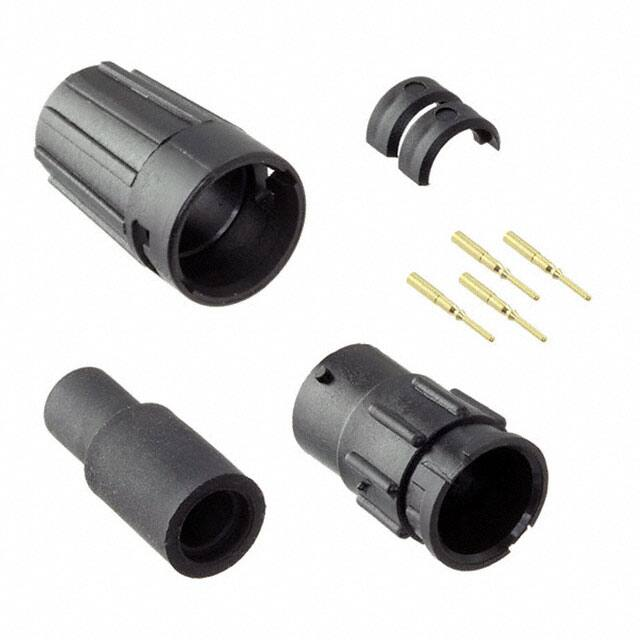

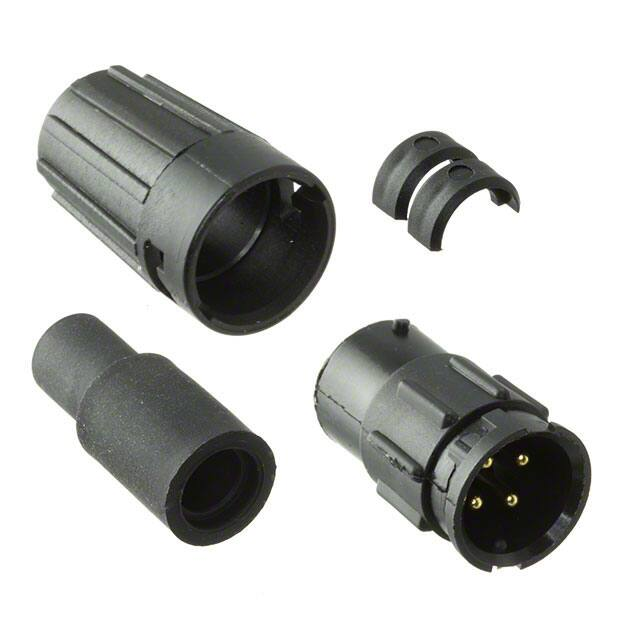

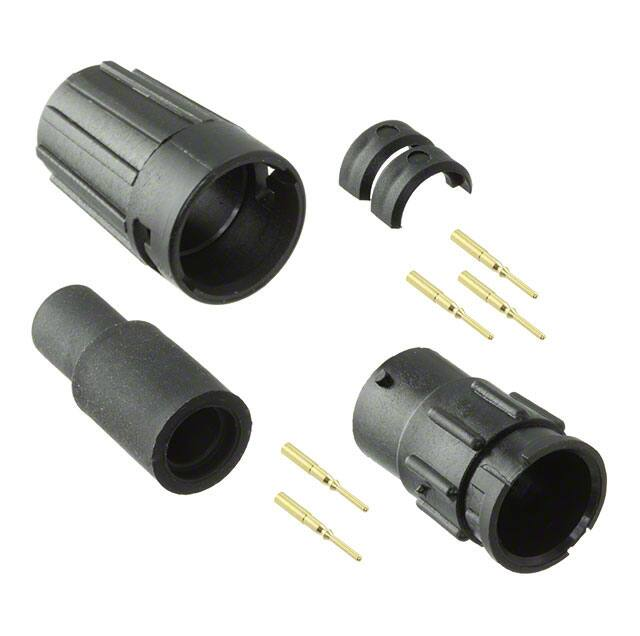

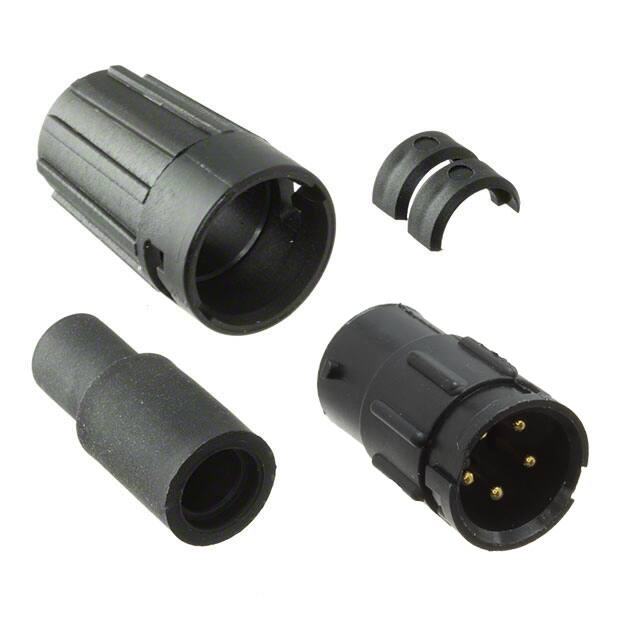

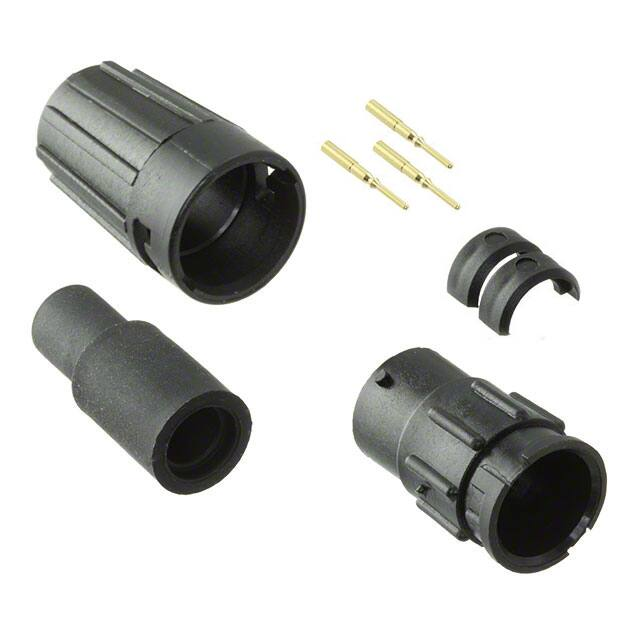

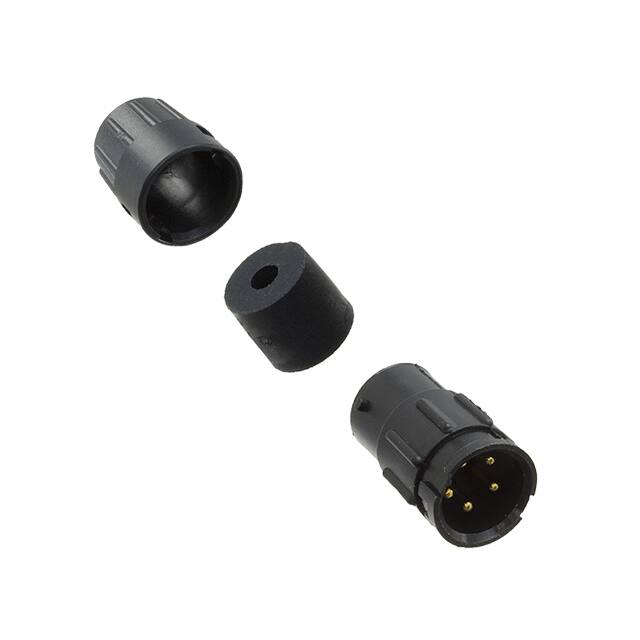

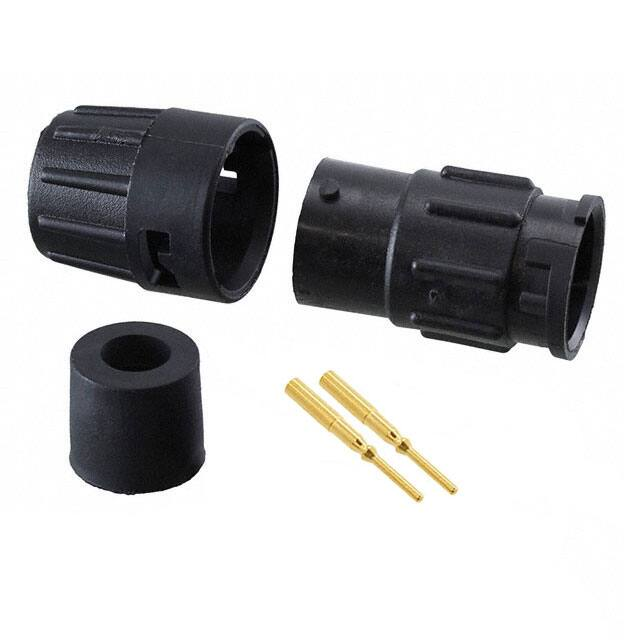

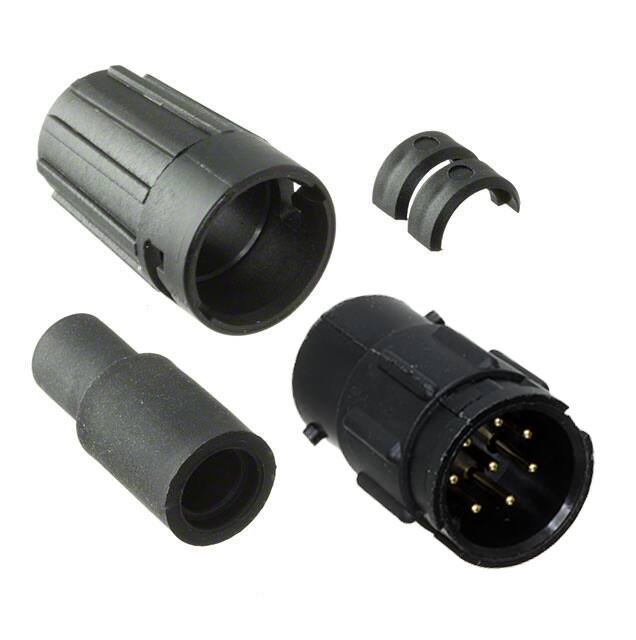

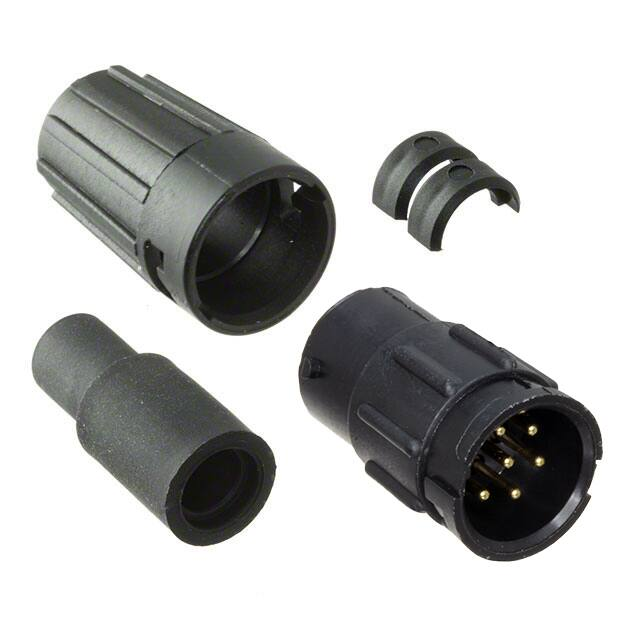

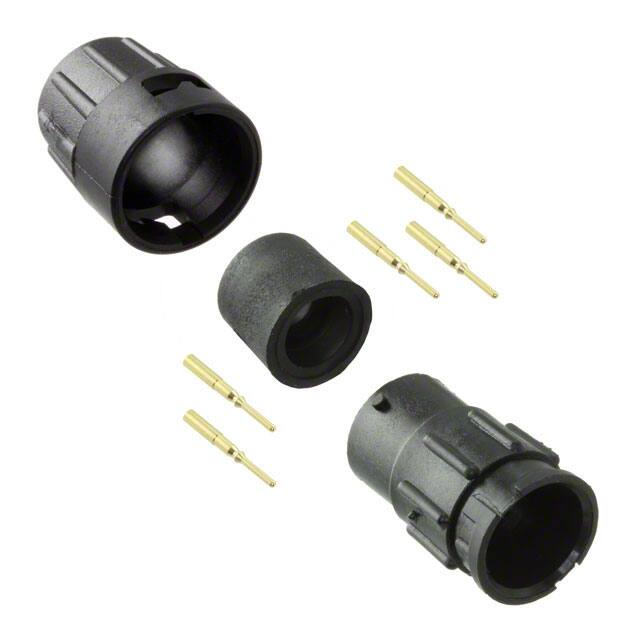

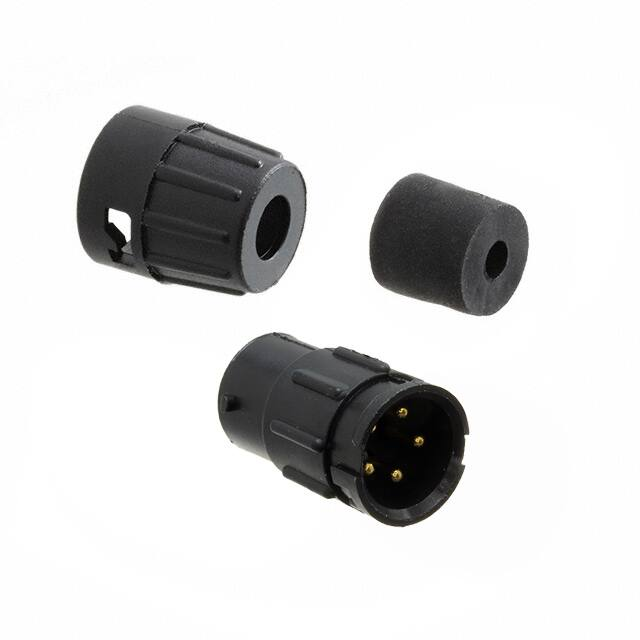

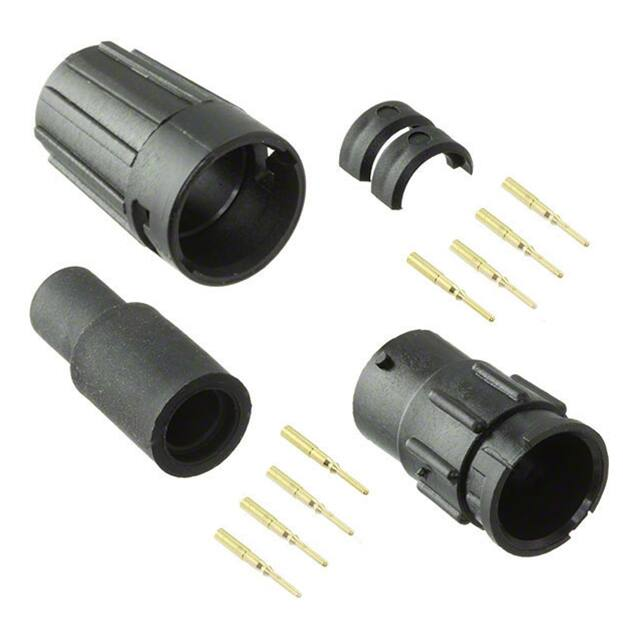

Cable to Cable
Dust Cap
6X8X-XSG-XXX
Matching Mates:
• Cable-Cable
8X8X-XXG-XXX
Matching Mates:
• Cable Pin
6295
8X8X-XPG-XXX
• Panel
6X8X-XPG-XXX
• Cable Socket
7XXX-XPG-XXX
6X8X-XSG-XXX
Winged Coupling Ring
W/6482
Molded Cable Assemblies
Cable End
®
(See pages 3 & 26)
Cable to Cable
Right Angle
601 East Wildwood, Villa Park, Illinois 60181 • Telephone (630) 834-7504 • Fax (630) 834-8540
10
®
MINI-CON-X® FIELD INSTALLABLE CONNECTORS
Dimensions
Molded Cable Assemblies
(See pages 3 & 26)
1.100 [24.9]
1.690 [42.9]
1.690 [42.9]
1.375
[34.9]
CABLE END ASSEMBLY
CABLE TO CABLE ASSEMBLY
CABLE END ASSEMBLY
STRAIGHT BOOT
0.375 [9.5] MAX. CABLE O.D.
STRAIGHT BOOT
0.375 [9.5] MAX. CABLE O.D.
90º BOOT
0.310 [7.9] MAX. CABLE O.D.
®
601 East Wildwood, Villa Park, Illinois 60181 • Telephone (630) 834-7504 • Fax (630) 834-8540
11
®
MINI-CON-X® FIELD INSTALLABLE CONNECTORS
Part Number to Order
X X XX-XXG-XXX
Grommet Code –
Cable O.D. Range:
Connector Type:
6 - Cable End
7 - Panel Mount
8 - Cable to Cable
Back Shell
Style 3
11 15 18 21 -
.09 - .14 (2.3 - 3.5)
.15 - .17 (3.8 - 4.3)
.18 - .20 (4.6 - 5.1)
.21 - .23 (5.3 - 5.8)
Back Shell
Style 5
13 16 19 22 -
.13 - .15 (3.3 - 3.8)
.16 - .18 (4.1 - 4.6)
.19 - .21 (4.8 - 5.3)
.22 - .25 (5.6 - 6.3)
Contact Size:
2 - #20 (2-8 Contacts)
3 - #16 (2-5 Contacts)
Contact Style:
80 81 82 91 92 -
Crimp (Supplied loose)
P/C Tail .187" (4.7) (Supplied assembled)
Solder Cup (Supplied assembled)
P/C Tail .280" (7.1) (Supplied assembled)*
P/C Tail .335" (8.5) (Supplied assembled)*
Back Shell Style:
Weathertight grommet grip/
seal & (1) interfacial “O” ring.
3DC - Daisy chain grommet with 3
I.D.s. (.125, .188 & .250)
5
Long back shell with extended
grommet & cable grip. Use
with crimp or solder.
3
Number of Contacts:
2, 3, 4, 5, 6, 7 & 8
Type of Contact:
300 - Panel mount with hex nut &
gasket.
3ES - 300 with Epoxy
P - Pin
S - Socket
Contact Plating:
G - Gold over Nickel (Standard)
*Available in #20 size contact only.
Consult factory for optional threaded coupling..
Consult factory for your custom design cable assemblies and connectors. (See pages 3 & 26)
Contact Arrangements
1
1
2
2
1
4
3
1
2
1
5
1
2
3
2-#16
3
3-#16
4-#16
1
1
2
5
4
5-#16*
1
6
5
2-#20
1
7
3-#20
1
8 7
2 3
4-#20
5-#20
6-#20
7-#20*
8-#20*
Contact arrangements shown are wiring view of cable end pins/sockets.
Key/keyway shown for orientation only.
*Available in connector types: cable end socket, panel mount pin, and cable to cable pin styles only.
®
601 East Wildwood, Villa Park, Illinois 60181 • Telephone (630) 834-7504 • Fax (630) 834-8540
12
®
MINI-CON-X® FIELD INSTALLABLE CONNECTORS
Specifications
Typical Specifications
Manufacturers Identifications
Description
Rating
Conductor Size
Configuration
Certification
Mini-Con-X®
Field Installable Connector & Custom Cable Assemblies
4.8 thru 13.0A, 600V
#16 contacts, 16 thru 18 AWG
#20 contacts, 20 thru 24 AWG
2 thru 5 #16 Contacts or 2 thru 8 #20 Contacts
UL Recognized File #E138878 - 250V
CSA Certified File #LR89277 - 600V
Material Specifications
Cable Pin/Socket
Backshell (Removable Twist Lock)
Grommet
Coupling Ring
Contacts
Connector Body
O-Ring
Optional
Long Backshell (Removable Twist Lock)
Winged Coupling Ring
Cable to Cable
Backshell (Removable Twist Lock)
Grommet
Contacts
Connector Body
Panel Mount
Contacts
Panel Body
Gasket
Hex Nut
Optional
Dust Cap
Mechanical Specifications
Durability
Vibration
Nylon, UL Recognized, Black
Santoprene Rubber, Black
Nylon, UL Recognized, Black
Brass, Gold over Nickel
Nylon, UL Recognized, Black
Nitrile Rubber, Black
Nylon, UL Recognized, Black (Style #5)
Nylon, UL Recognized, Black (W/6482)
Nylon, UL Recognized, Black
Santoprene Rubber, Black
Brass, Gold over Nickel
Nylon, UL Recognized, Black
Brass, Gold over Nickel
Nylon, UL Recognized, Black
Nitrile Rubber, Black
Nylon, UL Recognized, Black
Santoprene Rubber, Black (Part No. 6295)
Hex Nut Torque
Minimum 300 mate/unmate cycles without mechanical or electrical failure
Coupling rings have overriding locking feature to prevent loosening
or separation of connector
All series hex nut to withstand 10-12 inch/lb tightening torque
Electrical Specifications
Voltage
Current
600 V
See Electrical Current Rating Chart (Page 27)
Environmental Specifications
Temperature Rating
Corrosion
Weathertight
-55°C to +125°C (-67°F to +257°F)
300 Hr salt spray contacts
Consult factory with specific application
Molded Cable Assemblies
Watertight
(See Pages 3 & 26)
NEMA 6P, 13: IEC IP67
®
