FFA.1S.302.CLAC62

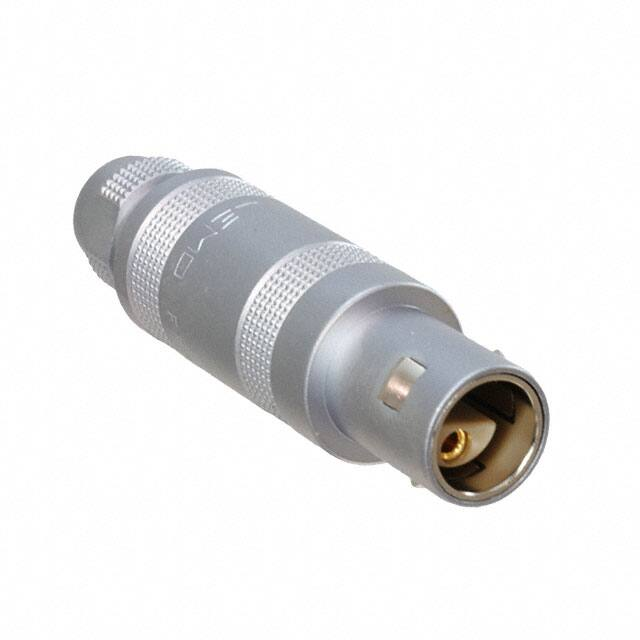

FFA.1S.302.CLAC62 www.lemo.com SUMMARY # Wires Low voltage 2 Image is for illustrative purpose only Series 1S Termination type Male solder IP rating 50 AWG wire size 28.00 - 20.00 Cable Ø 5.20 - 6.20 mm Status active Matching parts ERA.1S.302.CLL Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model FFA*: Straight plug, cable collet Keying Hermaphroditic keying (half moon insert) with male pin 1 Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 17.42 g Performance Configuration 1S.302 : 2 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 15 Amps Specifications Contact Type: Solder Contact Dia.: 1.3 mm (0.051in) Bucket Dia.: 1 mm (0.039in) Max. Solid Conductor: 0.5 mm^2 (AWG 20) Max. Stranded Conductor: 0.5 mm^2 (AWG 20) R (max): 3.6 mOhm Vtest: 1200 V (AC), 1800 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Others Endurance (Shell): 5000 mating cycles Temp (min / max): -55°C / +250°C Humidity (max): 144 hr DRAWINGS Dimensions A L M S2 mm. 12 42.5 31.5 8.5 in. 0,47 1,67 1,24 0,33 RECOMMENDED BY LEMO Tools Spanner wrench: DCD.1S.015.PA085 LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Cables 102080 PVC Grey 120184 PVC Black 120500 PVC Grey 120751 PVC Grey 220750 PVC Grey LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
