TRAPC4M1X

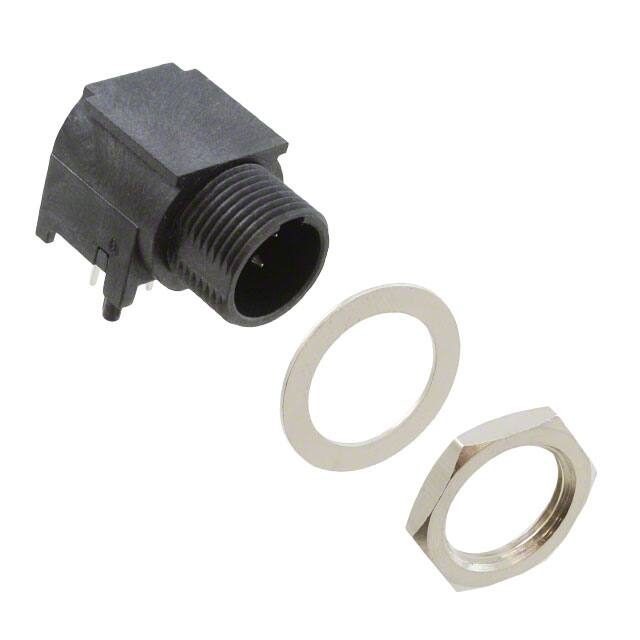

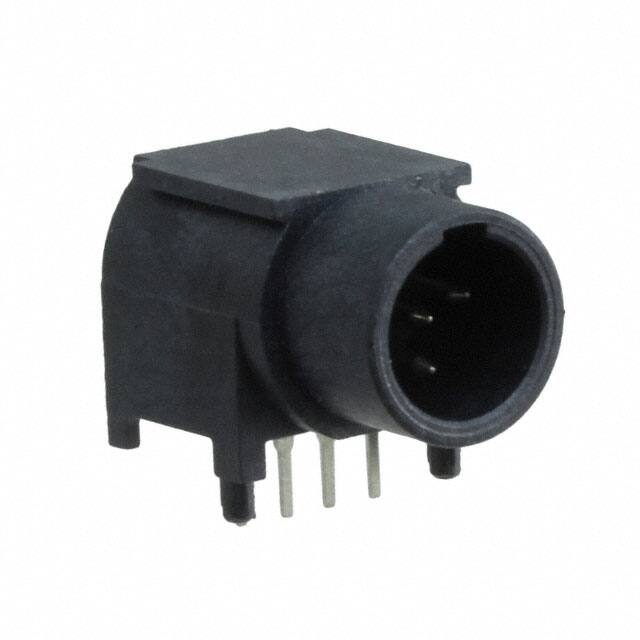

TINI Q-G CONNECTORS ® TRASM*M, TRAPC*M Series Switchcraft introduces an expansion of it’s popular TQG Series of connectors. The TRASM*M and TRAPC*M offers low profile, right angle PC board mount connectors. The TRASM*M versions are true surface mount connectors, while the TRAPC*M versions are through-hole PC mount connectors. Both versions are available in 3-8 pins. All plastic connectors, the TRASM*M and TRAPC*M series have flats on the top of the connectors to facilitate pick and place assembly. As an added option, a non-threaded bushing version is also available. See the Engineering Design Guide or our website for the complete line of Tini QG® connectors. Features and Benefits • Low profile, compact design reduces PC board space • Mates with TQG female cord plugs • Rated at 5A for 3-6 pins, 3A for 7 and 8 pin versions PRODUCT BULLETIN 550 TRASM3M Markets • Wireless microphone systems • Medical Instrumentation • Test Instrumentation Specifications Materials: Housing: Thermoplastic Contacts: Brass, tin-plated Nut and Washer: Brass, nickel-plated Electrical Current Rating: 5A for 3-6 pins, 3A for 7 and 8 Contact Resistance: 10 m Ohm max Insulation Resistance: 100 m Ohm min Dielectric Withstanding Voltage: 250VAC Mechanical Life: 2,000 cycles TRAPC3MS Ordering information T ___ RA ___ __ __ M __ __ ___ ___ __ Right Angle Reel Size 15" reel, standard tape and reel size Termination PC - Thru Hole SM - Surface Mount Optional Packaging TR - Tape and Reel (std packaging - bulk) Contact Configuration 3-8 Optional Modifier 1 - no thread Contact Gender M - Male Optional Modifier S - Small Profile (available in configurations 3 & 4 only) Tini QG
