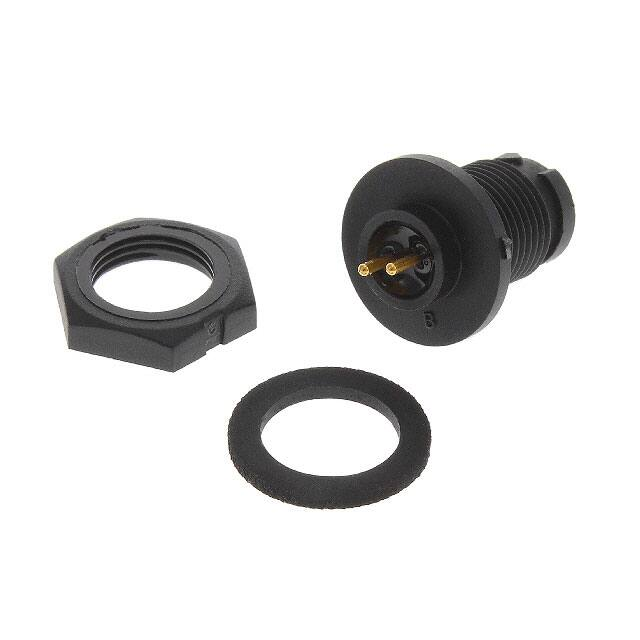

W17281-2PG-P-3ES

W17281-2PG-P-3ES

  • 厂商:

    SWITCHCRAFT

  • 封装:

    -

  • 描述:

    CONN RCPT MALE 2POS GOLD SOLDER

  • 数据手册
  • 价格&库存
W17281-2PG-P-3ES 数据手册
NOTES: 1. 2. 3. 4. ALL PARTS TO BE BULK PACKED CONTACTS TO BE INSERTED INTO HOUSING AS SHOWN. SEE DRAWING HPMCSTD FOR HOLE PATTERN. ALL DIMENSIONS ARE REFERENCE EXCEPT THOSE WITH A TOLERANCE .625 15.9 .140 3.6 .050 1.3 .545 13.8 2 #20 W17281-3PG-P-300 3 #20 .131±.015 3.3±0.4 KEY CUSTOMER PRINT KEY 2 .040 1 .620 15.7 ACROSS FLATS 1 2 1 W17281-2PG-P-300 HEX NUT MAT'L: UV PBT, BLACK 1 7/16-28 UNEF-2A MOD, THREAD W17281-2PG-P-300 CAVITY INDICATOR TYP. GASKET MAT'L: NEOPRENE, BLACK KEY WIRE VIEW (2-3) #20 PIN CONTACTS, PC TAIL MAT'L: GOLD PLATED COPPER ALLOY FACE VIEW W17281-XPG-P-300 CONTACT QTY .715 18.2 .395 10 D-FLAT PART NUMBER: ASS'Y P/N W17281-2PG-P-300 PANEL CONNECTOR, MALE MAT'L: UV PBT, BLACK KEY 1 2 2 .401±.003 10.2±0.1 3 3 WIRE VIEW W17281-3PG-P-300 FACE VIEW W17281-3PG-P-300 .430±.003 10.9±0.1 CUSTOMER APPROVAL RECOMMENDED PANEL CUT-OUT THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO CONXALL CORPORATION. ANY REPRODUCTION, DISCLOSURE, OR USE OF THIS DOCUMENT /INFORMATION IS EXPRESSLY PROHIBITED UNLESS AUTHORIZED IN WRITING BY CONXALL CORPORATION. APPROVED BY: DATE: DIMENSIONS IN BRACKETS [ ] ARE IN MILLIMETERS UNLESS INDICATED RoHS COMPLIANT MA 08-05-20 JGK 8/12/19 A REV. INIT. DATE ALL INFORMATION ILLUSTRATED IS THE PROPERTY OF "CONXALL CORPORATION." UNAUTHORIZED DUPLICATION OR DISTRIBUTION OF THIS DOCUMENT IS PROHIBITED. ALL UNITS ARE IN FEET, INCHES, FRACTION OF INCHES AND DECIMALS. = CRITICAL CHARACTERISTIC FLAG PER SPEC. XXXX RELEASED PER PDR 18004-2 DRAWING CREATED FOR PDR #18004 DESCRIPTION ORIG. DRAWN BY: DATE: 8/12/19 JGK CHECKED BY: 601 E. WILDWOOD VILLA PARK, IL 60181 TITLE: APPROVED BY: SCALE SIZE NTS B FILE: W17281-XPG-P-300 SHEET 1 OF 1 DIRECTORY: SLW PANEL MOUNT ASSEMBLY (2-3) #20 PIN CONTACTS, PC TAIL INSTA-CLICK™ MICRO-CON-X CUSTOMER: STANDARD PRODUCT PART NUMBER: W17281-XPG-P-300 REV A
