FGG.2B.306.CLAD62

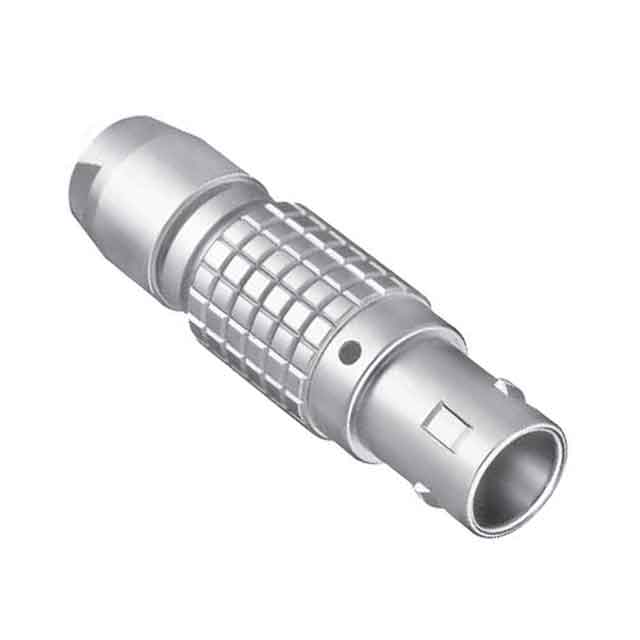

FGG.2B.306.CLAD62 www.lemo.com SUMMARY # Wires Low voltage 6 Image is for illustrative purpose only Series 2B Termination type Male solder IP rating 50 AWG wire size 28.00 - 20.00 Catalog Cable Ø 5.30 - 6.20 mm See video assembly instructions Status active Matching parts EGG.2B.306.CLL Download Request a quote Eplan PHG.2B.306.CLLD62 TECHNICAL DETAILS Mechanics Shell Style/Model FG*: Straight plug, cable collet Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 29.42 g Performance Configuration 2B.306 : 6 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 12 Amps Specifications Contact Type: Solder Contact Dia.: 1.3 mm (0.051in) Bucket Dia.: 1 mm (0.039in) Max. Solid Conductor: 0.5 mm^2 (AWG 20) Max. Stranded Conductor: 0.5 mm^2 (AWG 20) R (max): 3.6 mOhm Vtest (contact-shell): 1450 V (AC), 2050 V (DC) Vtest (contact-contact): 1350 V (AC), 1910 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Others Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr DRAWINGS Dimensions A L M S1 S2 mm. 15 50 38 13 12 in. 0,59 1,97 1,50 0,51 0,47 RECOMMENDED BY LEMO Tools Spanner wrench: DCD.2B.025.PA120 Caps: BFG.2B.100.PCSG LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Cables CMN.06.T20.062PGZE Grey CMN.06.T20.062PNZE CMN.06.T20.062QGZE TPR (medical) Grey 106220 PVC Black 12080 PVC Grey 160240 PVC Black 260250 PVC Grey LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
