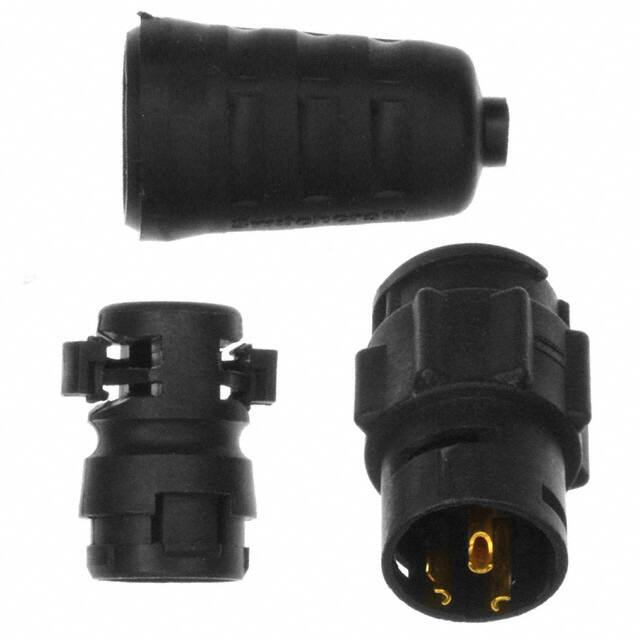

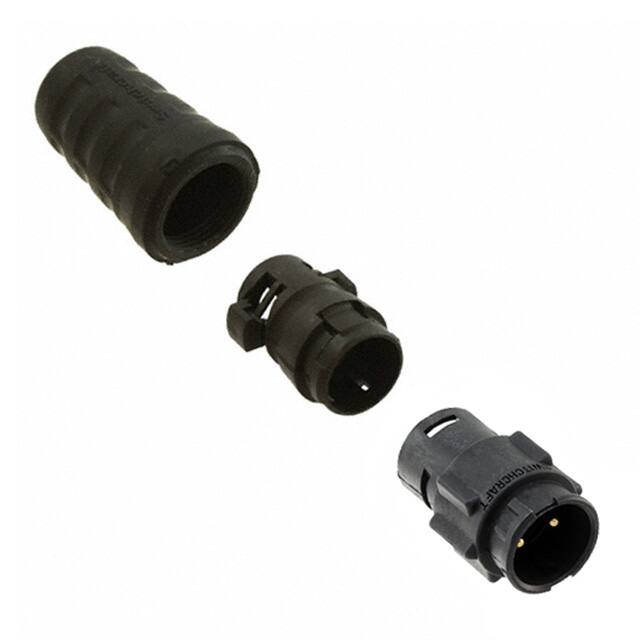

EN3L3M16X

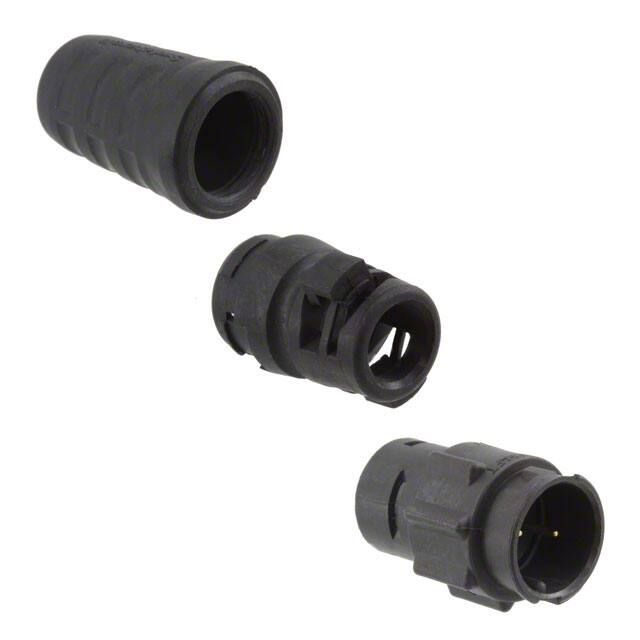

EN3® SERIES WEATHERTIGHT CONNEC TORS NEW PRODUCT BULLETIN 602 Please visit www.switchcraft.com for the most up-to-date product specifications. Made in USA. EN3® SERIES WEATHERTIGHT CONNEC TORS NEW PRODUCT BULLETIN 602 FEATURES & BENEFITS APPLICATIONS • Sealed to IP68 NEMA 250 (6P) • Any sealed data transmission • Patented grommet & o-ring free design • Military or industrial GPS location devices • Available in ribbed or winged coupling ring • Cable, panel & cable to cable options • Gold plated contacts standard • Solder, crimp & PC contact options • Straight & right angle PC contact panel connectors • Instrumentation • Medical data carts • Marine Applications • Transportation • General industrial electronic applications Please visit www.switchcraft.com for the most up-to-date product specifications. Made in USA. EN3® SERIES WEATHERTIGHT CONNEC TORS NEW PRODUCT BULLETIN 602 S p e c i f i c at i o n s Mechanical Specifications Life: Vibration: Shock: Hex Nut Torque: Coupling Locking Style Back Shell Style: Minimum 600 insertion / withdrawal cycles Mil-Std 202 Method 201 Mil-Std 202 Method 213B, condition K All series hex nut to withstand 8-10 in-lb tightening torque. Bayonet with ribbed coupling nut (winged coupling nut optional) Boot Electrical Specifications Voltage Rating: Current Rating: Insulation Resistance: Contact Resistance: 250 V AC/DC 13.0 A – 2 or 3 #16 contacts accepts 16 through 18 AWG 7.5 A – 2 through 6 #20 contacts accepts 20 through 22 AWG 6.5 A – 7 or 8 #20 contacts accepts 20 through 22 AWG 3 A – 9 through 18 #26 contacts accepts 26 through 28 AWG 100 MΩ min 20 mΩ max Environmental Specifications Operating Temperature Rating: Moisture Resistance: Insulation Resistance: Thermal Shock: Salt Atmosphere (Corrosion): Weathertight: -40ºC to +65ºC (-40ºF to +149°F) Mil-Std 202 Method 106F Mil-Std 202 Method 302 condition B Mil-Std 202 Method 107G Mil-Std 202 Method 101D condition B IEC 60529 IP16/IP18 IEC 60529 IP66/IP68 IEC 60529 IP68 NEMA 250 (6P) CFR 46 Part 110.20 Material Specifications Panel connector shells & locking disk: Thermoplastic UL94V-0 Connector shell interior: Elastomeric, Black UL 94HB Contacts: Copper Alloy, Gold over Nickel Plate Molded cable assemblies Weathertight: certifications IEC 60529 IP66/IP68 IEC 60529 IP68 NEMA 250 (6P) CFR 46 Part 110.20 UL File E319753 ; 2-8 pin cord, in-line and panel only Please visit www.switchcraft.com for the most up-to-date product specifications. Made in USA. EN3® SERIES WEATHERTIGHT CONNEC TORS NEW PRODUCT BULLETIN 602 CORD CONNECTORS CABLE TO CABLE CONNECTORS EN3® RIGHT ANGLE 2-8 POSITION MOLDED CONNECTORS Please visit www.switchcraft.com for the most up-to-date product specifications. Made in USA. EN3® SERIES WEATHERTIGHT CONNEC TORS NEW PRODUCT BULLETIN 602 PANEL CONNECTORS EN3 SERIES 2-8 POSITION STANDARD SOLDER CUP ALL POSITIONS FACE RADICALLY OUTWARD EN3P8MX SHOWN OPTION “C” EN3 SERIES 9-18 POSITION CRIMP TERMINALS EN3P2M26CX SHOWN EN3 SERIES 9-18 POSITION STANDARD SOLDER CUP ALL POSITIONS FACE UPWARD EN3P18M26X SHOWN OPTION “P” EN3 SERIES 2-8 POSITION PC TERMINALS EN3P2MPX SHOWN OPTION “C” EN3 SERIES 2-8 POSITION CRIMP TERMINALS EN3P2MCX SHOWN OPTION “P” EN3 SERIES 9-18 POSITION PC TERMINALS EN3P9M26PX SHOWN OPTION “S” EN3 SERIES 9-18 POSITION ONLY STANDARD SOLDER CUP EN3P18M26SX SHOWN RECOMMENDED PANEL CUT-OUT 0.188 MAX PANEL THICKNESS 0.003”[0.08MM] MOUNTING NUT 8-10 INCH-LBS MAX TORQUE RIGHT ANGLE PC BOARDS 2-18 CONTACT PANEL CONNECTORS OPTION “N” EN3 SERIES 2-8 POSITION NARROW PCB EN3P8MRAPCBN SHOWN (NOT AVAILABLE IN FEMALE 7 & 8 POSITION) OPTION “N” EN3 SERIES 9-18 POSITION NARROW PCB EN3P18MRAPCBN SHOWN OPTION “W” EN3 SERIES 2-8 POSITION WIDE PCB EN3P8MRAPCBW SHOWN (NOT AVAILABLE IN FEMALE 7 & 8 POSITION) OPTION “W” EN3 SERIES 9-18 POSITION WIDE PCB EN3P18MRAPCBW SHOWN Please visit www.switchcraft.com for the most up-to-date product specifications. Made in USA. EN3® SERIES WEATHERTIGHT CONNEC TORS NEW PRODUCT BULLETIN 602 EN3® ORDERING CODE EN3 SERIES ORDERING CODE ® x EN3 CONNECTOR TYPE: C - Cord P - Panel L - In-Line X - RoHS Compliant COUPLING NUT OPTION: W - Winged Coupling Nut Cord Connector Only Leave blank for standard nut # OF CONTACTS: 2-3 for #16 2-8 for #20 9-18 for #26 CABLE CLAMP OPTION: L - for 0.230" to 0.380" cable nom. O.D. and 0.750" long stripping. Leave blank for 0.160" to 0.265" cable nom. O.D. and 0.380" long stripping. GENDER: M - Male F - Female CONTACT SIZE: 16 - 16 AWG Leave blank for 20 AWG 26 - 26 AWG Notes: 7 and 8 pin not available in male Cord connector 7 and 8 pin not available in female Panel or In-Line connector PACKAGING OPTIONS: K - Kit (one unit per bag) Leave blank for Bulk CONTACT STYLE: C - Crimp P - PC tail (Panel connectors only) S - Staggered Solder Cup Leave blank for Straight Solder Cup EN3® RIGHT ANGLE PC BOARD MOUNT 2-18 CONTACT ORDERING CODE EN3 P RAPC Connector Type: P - Panel # of Contacts: 2 - 8 #20 9 - 18 #26 Gender: M - Male F - Female PCB Style: BN - Narrow PCB BW - Wide PCB BLANK - Molded EN3 Style: RAPC - Right Angle PC Notes: 7 and 8 pin not available in female Panel connector EN3® S e r i e s Acc e ss o r i e s en3 boot en3 bootl en3cap en3capc en3clampx en3ipcapx en3nut en3pqca EN3 Series, regular boot for cable diameters 0.160”-0.265” EN3 Series, Large boot for cable diameters 0.230”-0.380” EN3 Harsh Environment Panel or Cable End Cap rated to IP68, rubber lanyard style Cord plug cap for EN3 series EN3 Harsh Environment Cable clamp EN3 series, IP68 rated panel or inline cap with lock ring EN3 HARSH ENVIRONMENT HARDWARE-NUT EN3 panel adaptor, for use with EN3 quick connect/ disconnect cable assemblies Please visit www.switchcraft.com for the most up-to-date product specifications. Made in USA.
