PHG.0B.303.CLLD52

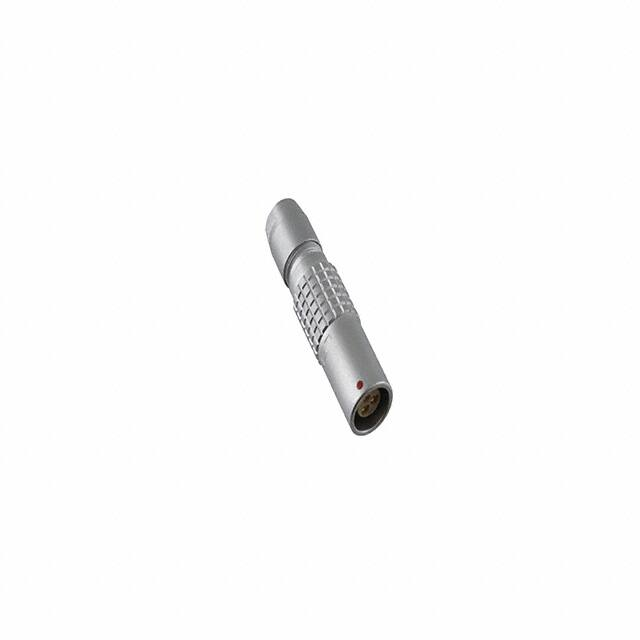

PHG.0B.303.CLLD52 www.lemo.com SUMMARY # Wires Low voltage 3 Image is for illustrative purpose only Series 0B Termination type Female solder IP rating 50 AWG wire size 28.00 - 20.00 Cable Ø 4.30 - 5.20 mm Status active Matching parts FGG.0B.303.CLAD52 Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model PH*: Free receptacle, cable collet Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 9.45 g Performance Configuration 0B.303 : 3 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 8 Amps Specifications Contact Type: Solder Contact Dia.: 0.9 mm (0.035in) Bucket Dia.: 1.0 mm (0.039in) Max. Solid Conductor: 0.56 mm^2 (AWG 20) Max. Stranded Conductor: 0.56 mm^2 (AWG 20) R (max): 4.8 mOhm Vtest (contact-shell): 900 V (AC), 1270 V (DC) Vtest (contact-contact): 1200 V (AC), 1700 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Others Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr DRAWINGS Dimensions A L S1 S2 mm. 9.5 35.5 8 7 in. 0,37 1,40 0,31 0,28 RECOMMENDED BY LEMO Tools Spanner wrench: DCD.0B.005.PA070 LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Cables 130240 PVC Black 130250 PVC Grey 30260 PVC Black 3220 PVC Black 60080 PVC Grey LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
