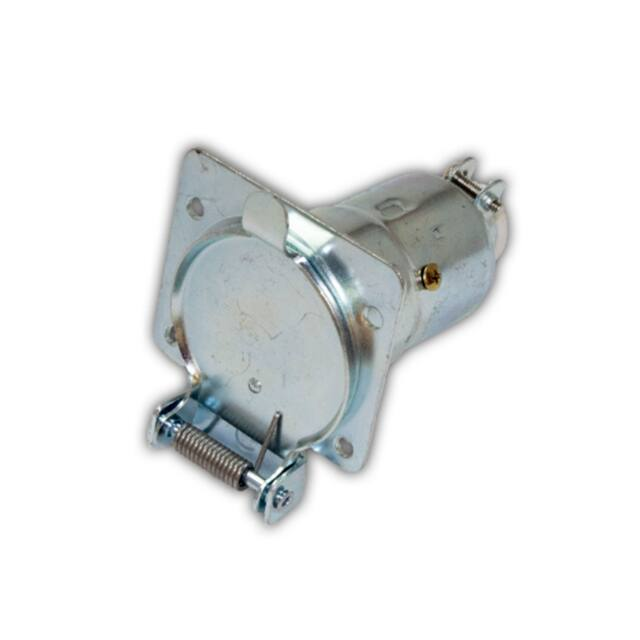

TC7W-SC2-Z

Trailer Connector TC7W-SC2-Z Mechanical Dimensions: Inches [mm] Tolerances ±0.012 [0.3] Unless Otherwise Specified Material Specifications Wiring Color Codes A.T.A & S.A.E WIRING CODES RECOMMENDED STANDARD NAME MATERIAL 1 SOCKET SHELL IRON 12 GA 2 HINGE PIN IRON Tail, License and Running Lights Green 14 GA 3 SPRING STAINLESS STELL Battery Charge Black 10 GA 4 COVER IRON Stop & Left Hand Turn Signal Red 14 GA 5 SET SCREW IRON Stop & RIght Hand Turn Signal Brown 14 GA 6 WIRE BOOT PVC Auxiliary Circuit Yellow 14 GA 7 SCREW IRON 8 7-WAY TERMINAL BRASS CIRCUITS POLE WIRING COLOR CODE RECOMMENDED WIRE GAUGE Ground Return White 10 GA Electric Brake Blue ITEM# Rev A 07/2019 Trailer Connector Rev A TC7W-SC2-Z Designed Approved Date of issue Revision Notes 07-16-2019 Initial Drawing RC Rev A 07/2019 OH
