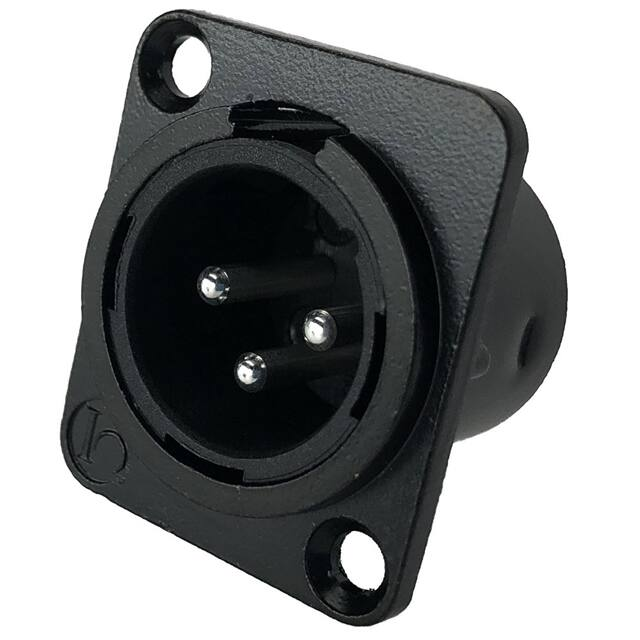

IO-XLR3-M-BK-JL

XLR CHASSIS CONNECTORS 3 PIN JL SERIES Locking 3 pin connectors with rugged metal shells for audio and lighting control. IO-XLR3-M-BK-JL IO-XLR3-F-BK-JL SPECIFICATIONS MECHANICAL PRODUCT Gender: Male (IO-XLR3-M-BK-JL) Female (IO-XLR3-F-BK-JL) Lifetime: > 1000 Mating Cycles Wiresize (Male): 2.0mm Max O.D. Wiresize (Female): 2.5mm Max O.D. Contacts: 3 Wiring: Solder Contacts ELECTRICAL Capacitance Between Contacts: ≤ 2 pF Capacitance Between Contact and Ground: ≤ 2 pF Contact Resistance: < 3 mΩ Insulation Resistance: ≥ 5000 MΩ Dielectric Strength: 1500V @ 60s Current Rating: 15 A / 125 V AC Grounding: Separate ground contact to mating connector shell and front panel Locking Device: Latch Lock Mounting Direction: Front Solderability: Complies with IEC 60068-2-20 MATERIAL Pins: Brass (IO-XLR3-M-BK-JL) Phosphor Bronze (IO-XLR3-F-BK-JL) Pin Plating: Silver Grounding Terminal: Brass ENVIRONMENTAL Grounding Terminal Plating: Tin Standard Compliance: IEC 61076-2-103 Shell: Die Cast Zinc UL Flammability: Meets UL 94 HB Shell Finish: Black (Electrocoated) Temperature Range: -40°C ~ +70° C (-40°F ~ +158°F) Push Button: Die Cast Zinc Push Button Finish: Nickel Product specifications may change without prior notification Io Audio Technologies® is a registered trademark of Knight Electronics, Inc. 10557 Metric Dr. Dallas , TX 75243 | 214-340-0265 | 800-323-2439 | Fax: 214-340-5870 | DRAWINGS IO-XLR3-M-BK-JL IO-XLR3-F-BK-J L FEATURES & APPLICATIONS JL Series XLR chassis connectors offer a sleek and robust connection in a standard "J" Size shell. This series is perfect for high-noise environments like permanent installations or design-in applications where the termination method is solder cups. The connectors have a die cast zinc housing with an electrocoated black finish which allows for great RF protection. They have precision machined, one piece, silver plated contacts and a separate tin plated ground pin which grounds to the connector housing and panel. Available in either black or nickel plated housing and in 3 or 5 pin variations. The JL Series XLR chassis connectors help prevent local RF interference from assisted listening, WiFi, and other radio transmitters close to the connectors. When coupled with quality shielded cables, a robust system for preventing the intrusion of unwanted noises is created. PART NUMBER BREAKDOWN: Panel Cutout STANDARDS & CLASSIFICATIONS IO-XLR3-M-BK-JL Series Identifier IO-XLR3-M-BK-JL Number of Pins IO-XLR3-M-BK-JL Gender IO-XLR3-M-BK-JL BK = Black Housing (Blank) = Nickel Housing IO-XLR3-M-BK-JL Series Identifier Product specifications may change without prior notification Io Audio Technologies® is a registered trademark of Knight Electronics, Inc. 10557 Metric Dr. Dallas, TX 75243 | 214-340-0265 | 800-323-2439 | Fax: 214-340-5870 | www.ioaudiotechnologies.com
