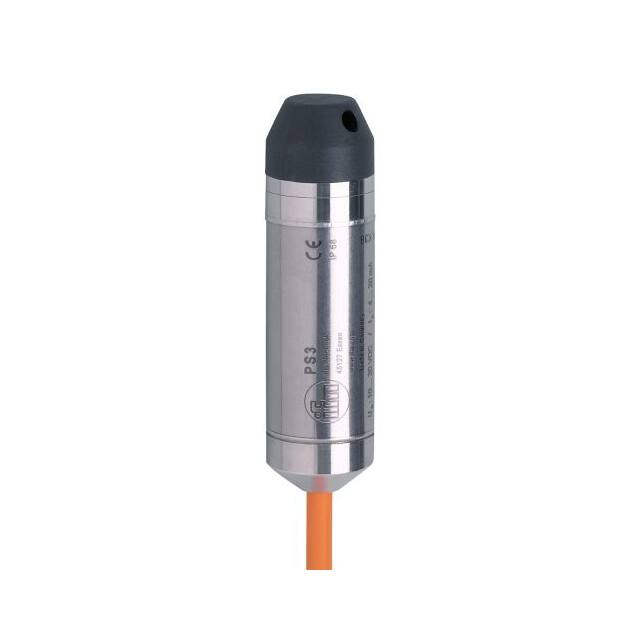

PS3617

PS3617 Hydrostatic submersible pressure transmitter SUBMERSIBLE 1BAR 30M PUR CABLE Product characteristics Output signal analogue signal Measuring range 0...1 bar 0...1000 mbar 0...14.5 psi 0...100 kPa Application Design with capillary tube for pressure compensation Application for industrial applications Media Liquids Medium temperature [°C] -10...50 Min. bursting pressure 6 bar Pressure rating 5 bar Type of pressure 87 psi 600 kPa 72.5 psi 500 kPa relative pressure Electrical data Operating voltage [V] 10...30 DC Protection class III Reverse polarity protection yes Measuring principle hydrostatic Inputs / outputs Number of inputs and outputs Number of analogue outputs: 1 Outputs Total number of outputs 1 Output signal analogue signal Number of analogue outputs Analogue current output Max. load 1 [mA] 4...20 [Ω] 700; (Ub = 24 V; (Ub - 10 V) / 20 mA) Short-circuit protection yes Measuring/setting range Measuring range 0...1 bar 0...1000 mbar 0...14.5 psi 0...100 kPa Accuracy / deviations Repeatability [% of the span] Characteristics deviation [% of the span] Linearity deviation [% of the span] Long-term stability < 0,1; (with temperature fluctuations < 10 K) < 0,5 (BFSL) /1; (incl. linearity, zero and span error (limit value setting)) < 0,2 (BFSL) < 0,2; (per year) ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PS3617-02 — 18.10.2017 — PS3617 Hydrostatic submersible pressure transmitter SUBMERSIBLE 1BAR 30M PUR CABLE [% of the span] Temperature coefficient zero point [% of the span / 10 K] < ± 0,2; (0...50 °C) Temperature coefficient span [% of the span / 10 K] < ± 0,2; (0...50 °C) Operating conditions Ambient temperature [°C] -10...50 Storage temperature [°C] -30...80 Protection IP 68 Tests / approvals MTTF [years] Pressure Equipment Directive 403 Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request Mechanical data Weight [g] Materials 2345.5 stainless steel (1.4571/316Ti ); PA Remarks Pack quantity 1 pcs. Electrical connection Cable: 30 m, PUR, Ø 7.5 mm Connection Core colours : BN = brown GY = grey WH = white ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PS3617-02 — 18.10.2017 —
