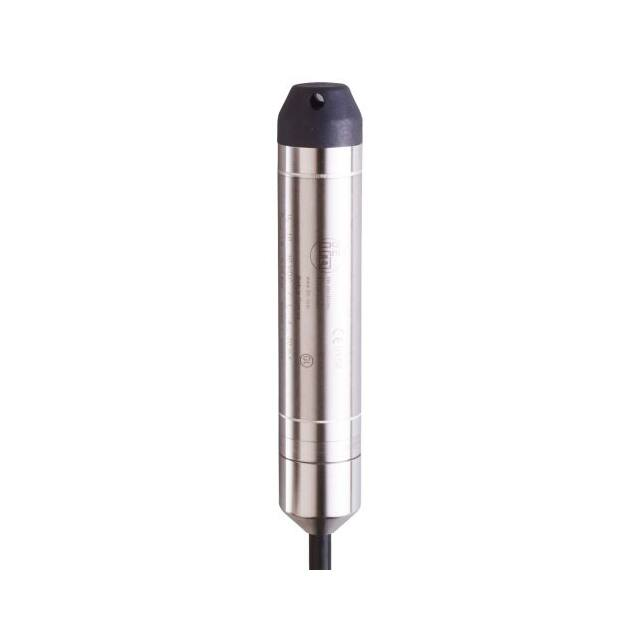

PS4506

PS4506 Hydrostatic submersible pressure transmitter SUBMERSIBLE 0,6BAR 20M FEP CABLE Product characteristics Output signal analogue signal Measuring range 0...0.6 bar 0...600 mbar 0...8.7 psi 0...60 kPa Application Design with capillary tube for pressure compensation Application for industrial applications Media Liquids Medium temperature [°C] -10...85 Min. bursting pressure 4 bar Pressure rating 3 bar Type of pressure 58 psi 400 kPa 43.5 psi 300 kPa relative pressure Electrical data Operating voltage [V] 10...30 DC Protection class III Reverse polarity protection yes Measuring principle hydrostatic Inputs / outputs Number of inputs and outputs Number of analogue outputs: 1 Outputs Total number of outputs 1 Output signal analogue signal Number of analogue outputs Analogue current output Max. load 1 [mA] 4...20 [Ω] 700; (Ub = 24 V; (Ub - 10 V) / 20 mA) Short-circuit protection yes Measuring/setting range Measuring range 0...0.6 bar 0...600 mbar 0...8.7 psi 0...60 kPa Accuracy / deviations Repeatability [% of the span] Characteristics deviation [% of the span] Linearity deviation [% of the span] Long-term stability < 0,1; (with temperature fluctuations < 10 K) < 0,25 (BFSL) / 0,5; (incl. linearity, zero and span error (limit value setting)) < 0,2 (BFSL) < 0,2; (per year) ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PS4506-00 — 23.03.2016 — PS4506 Hydrostatic submersible pressure transmitter SUBMERSIBLE 0,6BAR 20M FEP CABLE [% of the span] Temperature coefficient zero point [% of the span / 10 K] < ± 0,2; (0...50 °C) Temperature coefficient span [% of the span / 10 K] < ± 0,2; (0...50 °C) Operating conditions Ambient temperature [°C] -10...85 Storage temperature [°C] -30...80 Protection IP 68 Tests / approvals MTTF [years] Pressure Equipment Directive 403 Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request Mechanical data Weight [g] Materials 1754 stainless steel (1.4571/316Ti ); PA Remarks Pack quantity 1 pcs. Electrical connection Cable: 20 m, FEP, Ø 7.5 mm Connection 1: screen (connected to the housing) Core colours : BN = brown GN = green ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PS4506-00 — 23.03.2016 —
