PN7592

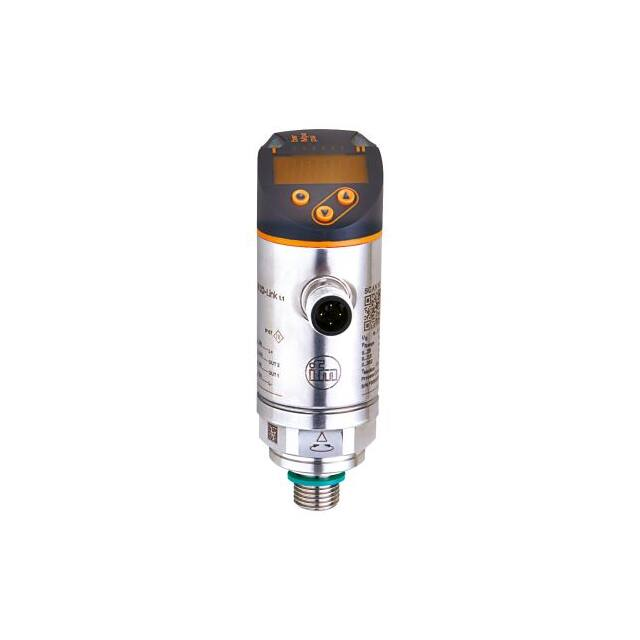

PN7592 Pressure sensor with display PN-100-SEG14-QFRKG/US/ 1 2 3 4 5 /V alphanumeric display 4-digit red/green LEDs Display unit / switching status programming button upper part of the housing can be rotated 345° Sealing Product characteristics Output signal switching signal; IO-Link; (configurable) Measuring range 0...100 bar Process connection 0...1450 psi 0...10 MPa threaded connection G 1/4 external thread internal thread:M5 Application Special feature Gold-plated contacts Measuring element ceramic-capacitive pressure measuring cell Application for industrial applications Media use in gases at pressures > 25 bar only on request Medium temperature [°C] -25...80 Min. bursting pressure 650 bar 9400 psi 65 MPa Pressure rating 300 bar 4350 psi 30 Mpa Vacuum resistance Type of pressure [mbar] -1000 relative pressure ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PN7592-01 — 28.11.2019 — PN7592 Pressure sensor with display PN-100-SEG14-QFRKG/US/ /V Electrical data Operating voltage [V] 18...30 DC; (according to EN 50178 SELV/PELV) Current consumption [mA] < 35 Min. insulation resistance [MΩ] 100; (500 V DC) Protection class III Reverse polarity protection Power-on delay time yes [s] 0.3 Integrated watchdog yes Inputs / outputs Number of inputs and outputs Number of digital outputs: 2 Outputs Total number of outputs 2 Output signal switching signal; IO-Link; (configurable) Electrical design PNP/NPN Number of digital outputs 2 Output function normally open / normally closed; (parameterisable) Max. voltage drop switching output DC [V] Permanent current rating of switching output DC [mA] 150; (200 (...60 °C) 250 (...40 °C)) Switching frequency DC [Hz] < 170 2.5 Short-circuit protection yes Type of short-circuit protection pulsed Overload protection yes Measuring/setting range Measuring range 0...100 bar 0...1450 psi 0...10 MPa Factory setting / CMPT = 2 Set point SP 1...100 bar 10...1450 psi 0.1...10 MPa 0.5...99.5 bar 5...1445 psi 0.05...9.95 MPa Min. difference between SP and rP 0.5 bar 10 psi 0.05 MPa In steps of 0.5 bar 5 psi 0.05 MPa Set point SP 0.8...100 bar 12...1450 psi 0.08...10 MPa Reset point rP 0.3...99.5 bar 5...1443 psi 0.03...9.95 MPa Min. difference between SP and rP 0.5 bar 8 psi 0.05 MPa In steps of 0.1 bar 1 psi 0.01 MPa Reset point rP Status_B High Resolution / CMPT = 3 Accuracy / deviations Switch point accuracy [% of the span] Repeatability [% of the span] Characteristics deviation [% of the span] Hysteresis deviation < ± 0,5 < ± 0,1; (with temperature fluctuations < 10 K) < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) < ± 0,25 ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PN7592-01 — 28.11.2019 — PN7592 Pressure sensor with display PN-100-SEG14-QFRKG/US/ /V [% of the span] Long-term stability < ± 0,05; (per 6 months) [% of the span] Temperature coefficient zero point [% of the span / 10 K] < ± 0,2; (-0...80 °C) Temperature coefficient span [% of the span / 10 K] < ± 0,2; (-0...80 °C) Response times Response time Delay time programmable dS, dr [ms]
