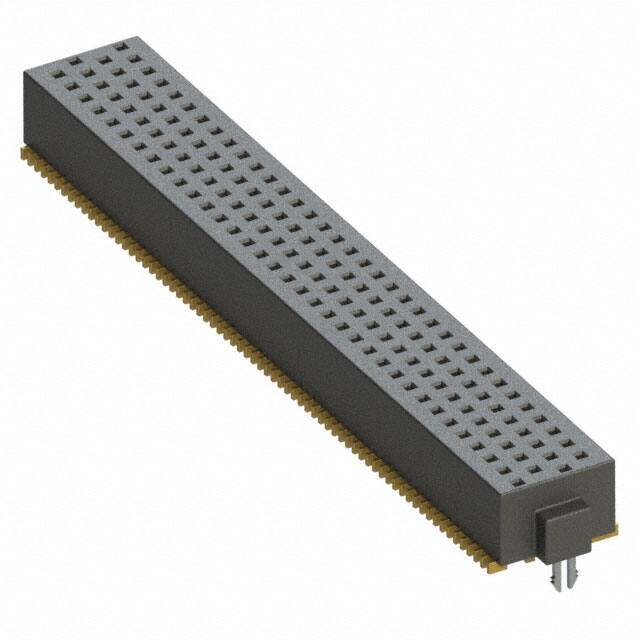

SOLC-135-02-L-Q-LC

RECOMMENDED PCB LAYOUT FOR SOLC-1XX-XX-XXX-Q-X REVISION D (NO OF POS) x .050[1.27] + .060[1.52] .040 1.02 REF (NO OF POS) x .050[1.27] + .020[0.51] .0425 1.080 (NO OF POS) x .050[1.27] - .025[0.64] B1 A1 .0250 0.635 B2 CL A2 .143 3.63 .320 8.13 .250 6.35 .100 2.54 CL .093 2.36 "A" (NPTH) (SEE TABLE 1) C2 D2 .015 0.38 D CONNECTOR OUTLINE D1 C1 FIG 1 (-20 POSITION SHOWN) ALL DIMENSIONS ARE SYMMETRICAL ABOUT THE CENTERLINE D PROPRIETARY NOTE F:\dwg\misc\mktg\footprnt\SOLC-1XX-XX-XXX-Q-X-FOOTPRINT.slddrw THIS DOCUMENT CONTAINS INFORMATION CONFIDENTIAL AND PROPRIETARY TO SAMTEC, INC. AND SHALL NOT BE REPRODUCED OR TRANSFERRED TO OTHER DOCUMENTS OR DISCLOSED TO OTHERS OR USED FOR ANY PURPOSE OTHER THAN THAT WHICH IT WAS OBTAINED WITHOUT THE EXPRESSED WRITTEN CONSENT OF SAMTEC, INC. 520 PARK EAST BLVD, NEW ALBANY, IN 47150 PHONE: 812-944-6733 FAX: 812-948-5047 e-Mail info@SAMTEC.com code 55322 SHEET 1 OF 2 RECOMMENDED STENCIL LAYOUT FOR SOLC-1XX-XX-XXX-Q-X REVISION D NOTE: STENCIL TO BE .0060 [0.152] THICK. (NO OF POS) x .050[1.27] - .025[0.64] .0250 0.635 CL .143 3.63 .320 8.13 CL .093 2.36 .015 0.38 FIG 2 (-20 POSITION SHOWN) D ALL DIMENSIONS ARE SYMMETRICAL ABOUT THE CENTERLINE PROPRIETARY NOTE F:\dwg\misc\mktg\footprnt\SOLC-1XX-XX-XXX-Q-X-FOOTPRINT.slddrw THIS DOCUMENT CONTAINS INFORMATION CONFIDENTIAL AND PROPRIETARY TO SAMTEC, INC. AND SHALL NOT BE REPRODUCED OR TRANSFERRED TO OTHER DOCUMENTS OR DISCLOSED TO OTHERS OR USED FOR ANY PURPOSE OTHER THAN THAT WHICH IT WAS OBTAINED WITHOUT THE EXPRESSED WRITTEN CONSENT OF SAMTEC, INC. 520 PARK EAST BLVD, NEW ALBANY, IN 47150 PHONE: 812-944-6733 FAX: 812-948-5047 e-Mail info@SAMTEC.com code 55322 SHEET 2 OF 2
