P0080SA

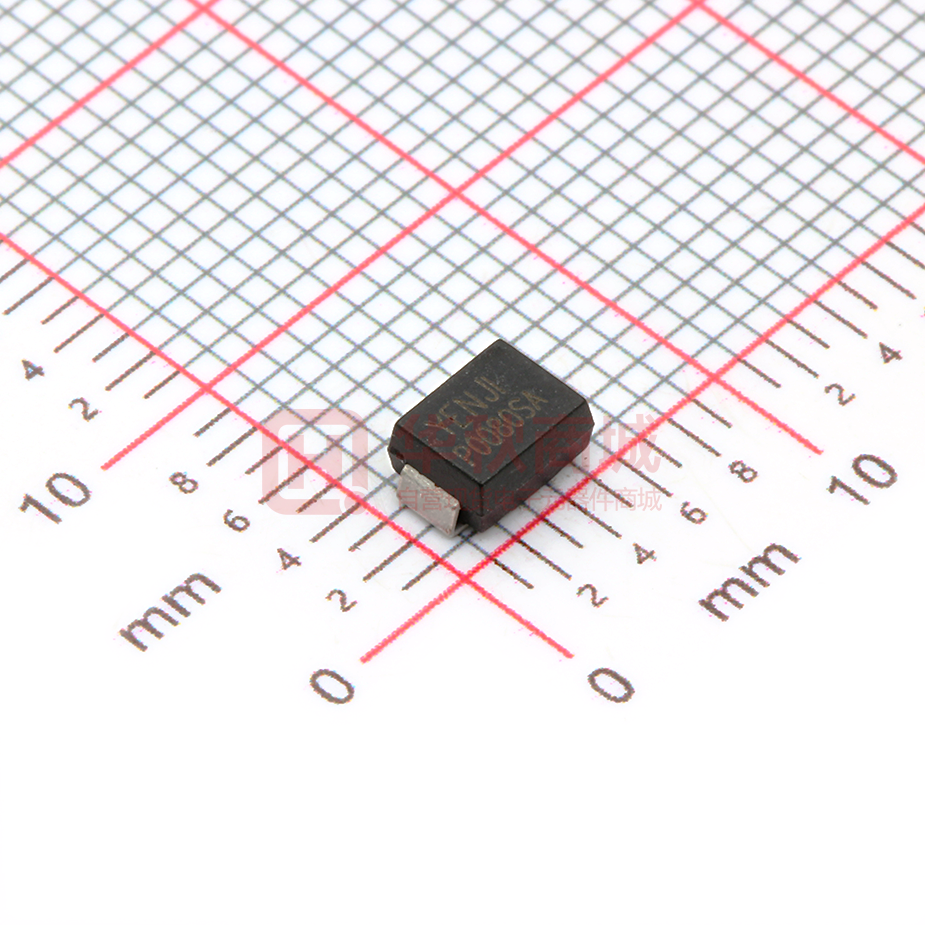

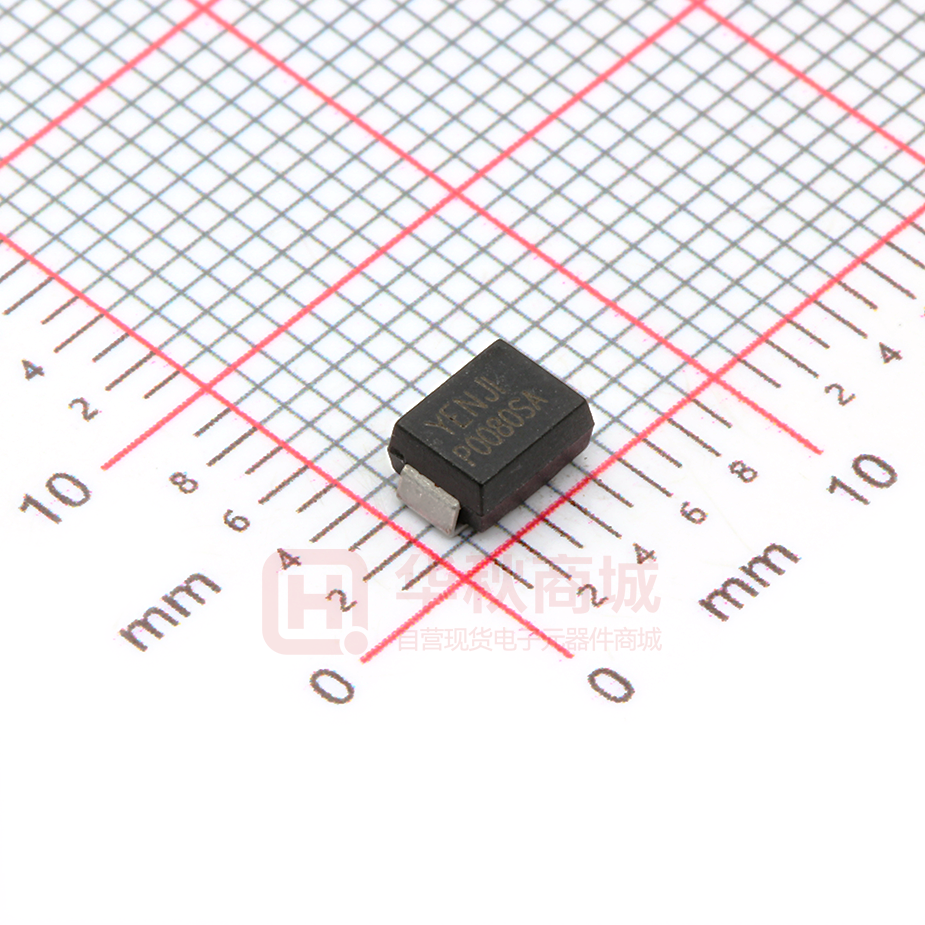

Pxxxx Sx SERIES Thyristor Surge Suppressors (TSS) Description thyristor-S Series are low capacitance devices designed to protect broadband equipment such as VOIP, DSL modems and DSLAMs from damaging overvoltage transients. The series provides a surface mount solution that enables equipment to comply with global regulatory standards while limiting the impact to broadband signals. DO-214AA/SMB Features and Benefits • Low voltagr overeshoot • Low on-state voltage • Does not degrade with use • Fails short circuit when surged in excess of ratings • Low Capacitance Applicable Global Standards • TIA-968-A • ITU K.20/21 Enhanced level* • ITU K.20/21 Basic Level • GR 1089 Inter building* • GR 1089 Inter building • IEC 6100-4-5 • YD/T 1082 • YD/T 993 • YD/T 950 Electrical Characteristics Part Number VDRM@ IDRM=5µA VS@ 100V/µS VT@ IT=2.2Amps IS IT IH V min V max V max mA max A max mA min Capacitance @1MHz, 2V bias pF min pF max P0060SA 6 25 4 800 2.2 50 25 150 P0080SA 6 25 4 800 2.2 50 25 150 P0220SA 15 32 4 800 2.2 50 25 150 P0300SA 25 40 4 800 2.2 50 15 140 P0640SA 58 77 4 800 2.2 150 40 60 P0720SA 65 88 4 800 2.2 150 35 60 P0900SA 75 98 4 800 2.2 150 25 55 P1100SA 90 130 4 800 2.2 150 30 50 P1300SA 120 160 4 800 2.2 150 25 45 P1500SA 140 180 4 800 2.2 150 25 45 P1800SA 170 220 4 800 2.2 150 25 50 P2300SA 190 260 4 800 2.2 150 30 50 P2600SA 220 300 4 800 2.2 150 25 50 P3100SA 275 350 4 800 2.2 150 20 45 P3500SA 320 400 4 800 2.2 150 20 45 1/4 Pxxxx Sx SERIES Thyristor Surge Suppressors (TSS) Electrical Characteristics VDRM@ IDRM=5µA VS@ 100V/µS VT@ IT=2.2Amps IS IT IH V min V max V max mA max A max mA min pF min pF max P0060SB 6 15 4 800 2.2 50 25 80 P0080SB 6 25 4 800 2.2 50 25 80 P0220SB 15 32 4 800 2.2 50 25 100 P0300SB 25 40 4 800 2.2 50 15 140 P0640SB 58 77 4 800 2.2 150 40 80 P0720SB 65 88 4 800 2.2 150 35 75 P0900SB 75 98 4 800 2.2 150 35 70 P1100SB 90 130 4 800 2.2 150 30 70 P1300SB 120 160 4 800 2.2 150 25 70 P1500SB 140 180 4 800 2.2 150 25 70 P1800SB 170 220 4 800 2.2 150 25 70 P2300SB 190 260 4 800 2.2 150 20 70 P2600SB 220 300 4 800 2.2 150 25 70 P3100SB 275 350 4 800 2.2 150 20 65 P3500SB 320 400 4 800 2.2 150 20 55 P0060SC 6 15 4 800 2.2 50 45 100 P0080SC 6 25 4 800 2.2 50 45 100 P0220SC 15 32 4 800 2.2 50 30 110 P0300SC 25 40 4 800 2.2 50 25 80 P0640SC 58 77 4 800 2.2 150 55 155 P0720SC 65 88 4 800 2.2 150 50 150 P0900SC 75 98 4 800 2.2 150 45 140 P1100SC 90 130 4 800 2.2 150 45 115 P1300SC 120 160 4 800 2.2 150 40 115 P1500SC 140 180 4 800 2.2 150 35 110 P1800SC 170 220 4 800 2.2 150 35 110 P2300SC 190 260 4 800 2.2 150 30 120 P2600SC 220 300 4 800 2.2 150 30 120 P3100SC 275 350 4 800 2.2 150 30 110 P3500SC 320 400 4 800 2.2 150 25 110 Part Number 2/4 Capacitance @1MHz, 2V bias Pxxxx Sx SERIES Thyristor Surge Suppressors (TSS) Surge Ratings IPP ITSM 50/60 Hz di/dt A min A/μs max 2x10 µs 8x20 µs 10x160 µs 10x560 µs 10x1000 µs A min A min A min A min A min A 150 150 90 50 45 20 500 B 250 250 150 100 80 30 500 C 500 400 200 150 100 50 500 Series Notes: 1 Current waveform in µs 2 Voltage waveform in µs - Peak pulse current rating (IPP) is repetitive and guaranteed for the life of the product. - IPP - The device must initially be in thermal equilibrium with -40°C < TJ < Thermal Considerations Package Symbol DO-214AA Parameter Value Unit TJ Operating Junction Temperature Range °C TS Storage Temperature Range °C R0JA Thermal Resistance: Junction to Ambient V-I Characteristics 90 °C/W t r x t d Pulse Waveform IPP – Peak Pulse Current – %I PP +I IT IS IH IDRM -V +V VT VDRM VS tr = rise time to peak v alue td = decay time to half value Peak Value 100 Waveform = t r x td 50 Half Value 0 0 td tr t – Time (µs) -I S Change vs. Junction Temperature Normalized DC Holding Current vs. Case Temperature 14 12 10 IH 8 6 25 °C 4 2 0 -4 -6 -8 IH (TC = 25ºC) 2.0 Ratio of Percent of V S Change – % Normalized V 1.8 1.6 1.4 1.0 0.8 0.6 0.4 -40 -20 0 -40 20 40 60 80 100 120 140 160 Junction Temperature (T J) 25°C 1.2 -20 0 20 40 60 80 100 120 140 Case Temperature (T C) - ºC – °C 3/4 160 Pxxxx Sx SERIES Thyristor Surge Suppressors (TSS) Dimensions — DO-214AA Pad Outline Case Temperature Measurement Point B D 0.110 (2.8) C A 0.079 (2.0) H E inch (millimeter) F G K Inches Dimensions 0.079 (2.0) Min Max 0.156 3.30 B 0.201 0.220 5.10 5.60 C 0.077 0.087 1.95 2.20 4.60 0.159 0.181 4.05 E 0.030 0.063 0.75 1.60 F 0.075 0.096 1.90 2.45 G 0.002 0.008 0.05 0.20 H 0.077 0.104 1.95 2.65 K 0.006 0.016 0.15 0.41 MEDIAN VOLTAGE IPP RATING Packing Options Industry Standard DO-214AA Tape & Reel Pack 2500 N/A EIA-481-D Tape and Reel Specification-DO-214AA 0.157 (4.0) 0.472 (12.0) 0.36 (9.2) 0.315 (8.0) 0.059 (1.5) DIA 12.99 (330.0) Co ver tape Dimensions are in inches (and millimeters). 0.512 (13.0) Arbor Hole Dia. Direction of Feed 0.49 (12.4) 4/4 3.95 D TYPE P = LOGO S Max 0.130 P xxx 0 S C PACKAGE TYPE Min A Part Numbering CONSTRUCTION VARIABLE Millimeters
