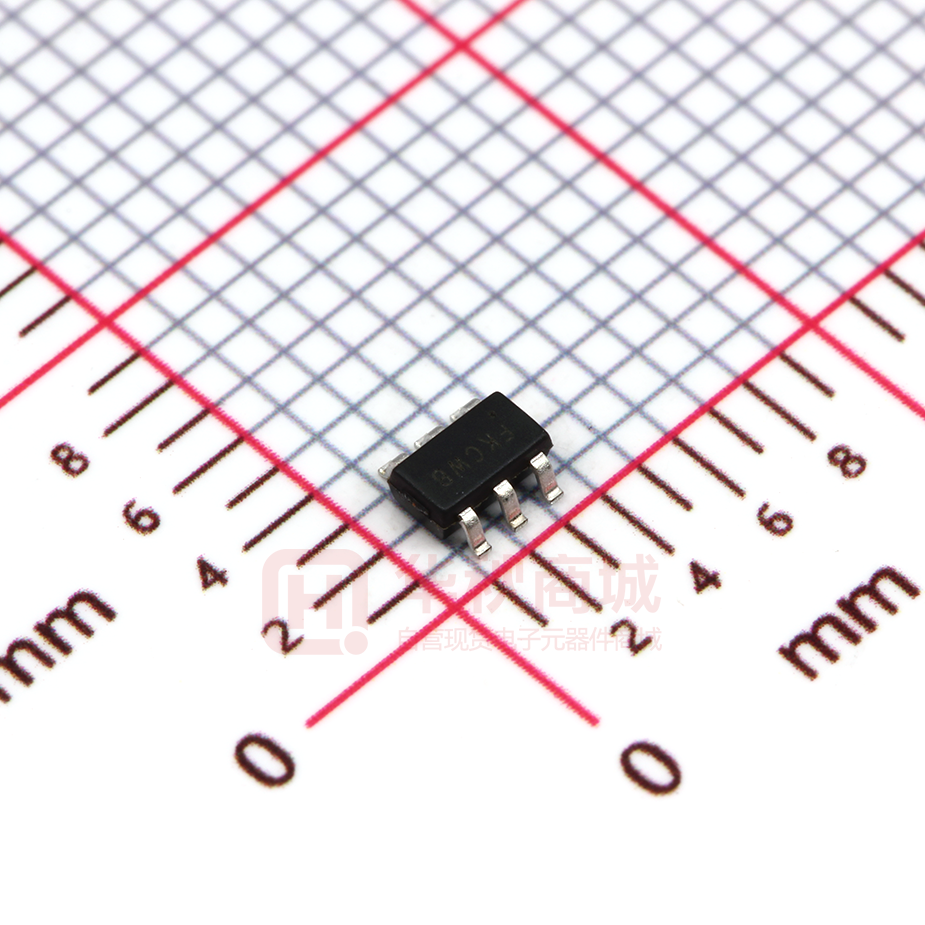

SY8032ABC

SY8032 High Efficiency 1MHz, 2.5A Continuous, 3A Peak, Synchronous Step Down Regulator General Description Features The SY8032 is a high-efficiency, high frequency synchronous step-down DC/DC regulator capable of delivering up to 2.5A output current. The SY8032 operates over a wide input voltage range from 2.7V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.  Low RDS(ON) for Internal Switches (Top/Bottom): 100mΩ/80mΩ, 2.5A  2.7-5.5V Input Voltage Range  2.5A Continuous, 3A Peak Load Current Capability  High Switching Frequency Minimizes the External Components: 1MHz  Internal Softstart Limits the Inrush Current  100% Dropout Operation  RoHS Compliant and Halogen Free  Compact Package: SOT23-6. Other Packages are Available Upon Requests Low output voltage ripple and small external inductor and capacitor sizes are achieved with greater than 1MHz switching frequency. Ordering Information Applications 芯 SY8032 □(□□)□ Package type SOT23-6 Note① ---- LCD TV Set Top Box Net PC Mini-Notebook PC Access Point Router l-F or 半 Ordering Number SY8032ABC      导 小 Temperature Code Package Code Optional Spec Code tia Typical Applications en fid on EN VIN yC R1 CIN Sil erg VOUT LX IN C1(opt.) COUT FB GND Vin=3.3V Vin=4.2V Vin=5.0V 90 L R2 Efficiency (%) ON/ OFF Efficiency vs. Load Current 95 85 80 VOUT=1.8V PG 75 0.0 0.5 1.0 1.5 2.0 2.5 3.0 Load Current (A) Figure 1.Schematic diagram SY8032 Rev.1.0B © 2018 Silergy Corp. Figure 2. Efficiency vs. Load Current Silergy Corp. Confidential- Prepared for Customer Use Only 1 All Rights Reserved. SY8032 Pinout (top view) EN 1 6 FB GND 2 5 PG 3 4 IN LX SOT23-6 Top Mark: FKxyz (device code: FK, x=year code, y=week code, z= lot number code) Pin Number Pin Description 1 Enable control. Pull high to turn on. Do not float. 2 Ground pin 3 Inductor pin. Connect this pin to the switching node of inductor. 4 Input pin. Decouple this pin to GND pin with at least 10uF ceramic cap. Power good indicator (open drain output). Low if the output < 90% of 5 regulation voltage; High otherwise. Connect a pull-up resistor to the input. Output feedback pin. Connect this pin to the center point of the output resistor 6 divider (as shown in Figure 1) to program the output voltage: VOUT=0.6×(1+R1/R2). Pin Name EN GND LX IN PG 导 小 芯 FB Absolute Maximum Ratings (Note 1) Sil erg yC on fid en tia l-F or 半 IN ----------------------------------------------------------------------------------------------------------------------------- 6.0V （ ） （ ） LX -------------------------------------------------------------------------------------------------------------- -0.3V *1 to 6V *2 All Other Pins ---------------------------------------------------------------------------------------------------- VIN + 0.6V Power Dissipation, PD @ TA = 25°C, SOT23-6 -------------------------------------------------------------------------------------------------------------- 0.6W Package Thermal Resistance (Note 2) θ JA ---------------------------------------------------------------------------------------------------------------- 140°C/W θ JC ------------------------------------------------------------------------------------------------------------------70°C/W Junction Temperature Range --------------------------------------------------------------------------------------------150°C Lead Temperature (Soldering, 10 sec.) ------------------------------------------------------------------------------- 260°C Storage Temperature Range ---------------------------------------------------------------------------------- -65°C to 150°C (*1) LX Voltage Tested Down to -3V
