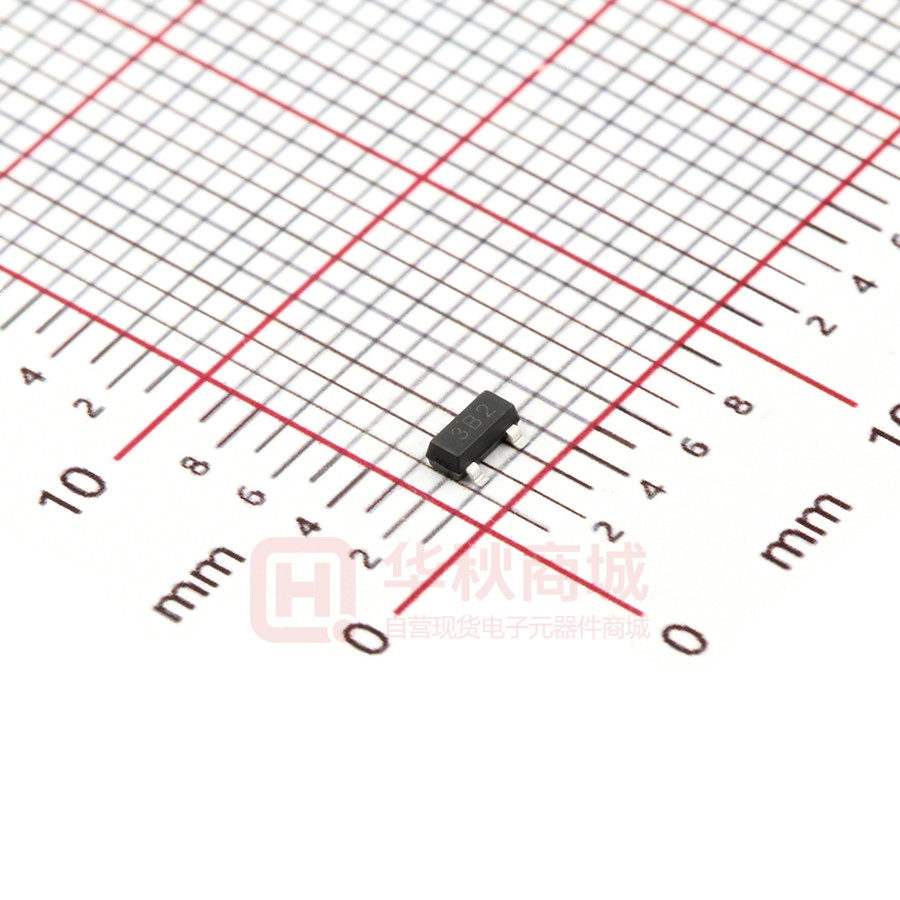

PESD3V3L2BT-N

PESD3V3L2BT-N ESD Protection Diode Array »Features ■ 400 Watts peak pulse power (tp =8/20μs) ■ Bidirectional configurations ■ Solid-state silicon-avalanche technology ■ Low clamping voltage ■ Low leakage current ■ IEC 61000-4-2 ±30kV contact ±30kV air ■ IEC 61000-4-4 (EFT) 40A(5/50ns) ■ IEC 61000-4-5 (Lightning) 24A(8/20μs) »Mechanical Data »Applications ■ Dataline ■ SOT-23 package ■ Automatic Teller Machines ■ Molding compound flammability rating: UL 94V-0 ■ Net works ■ Packaging: Tape and Reel ■ Power line ■ RoHS/WEEE Compliant »Schematic & PIN Configuration 1 1 3 3 2 2 SOT-23 (Top View) Revision 2018 www.born-tw.com 1/4 PESD3V3L2BT-N »Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp =8/20μs ) PPP 400 Watts Peak Pulse Current ( tp =8/20μs ) (note1) Ipp 24 A VESD 30 30 kV Lead Soldering Temperature TL 260(10seconds) ℃ Junction Temperature TJ -55 to + 125 ℃ Storage Temperature Tstg -55 to + 125 ℃ ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) »Electrical Characteristics Parameter Symbol Reverse Stand-Off Voltage Reverse Breakdown Voltage Conditions Min Typical Max Units 3.0 V 6.5 8.0 V 0.1 0.5 μA VRWM VBR IT=1mA 4.0 Reverse Leakage Current IR VRWM=3.0V,T=25℃ Peak Pulse Current IPP tp =8/20μs 24 A Clamping Voltage VC IPP=24A,tp=8/20μs 18.0 V Junction Capacitance Cj VR = 0V, f = 1MHz (Pin1、Pin2 to Pin 3) 110 pF 100 »Electrical Parameters (TA = 25°C unless otherwise noted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP V RWM IR V BR IT I IPP Working Peak Reverse Voltage Maximum Reverse Leakage Current @ V RWM VC VBR VRWM Breakdown Voltage @ IT IT IR IR IT VRW M VBR VC V Test Current IPP Note:. 8/20μs pulsewaveform. Revision 2018 www.born-tw.com 2/4 PESD3V3L2BT-N »TypicalCharacteristics Figure 2: Power Derating Curve 10 110 100 Percent of Rated Power for Ipp Ppp – Peak Pulse Power - Ppp(KW) Figure 1: Peak Pulse Power vs. Pulse Time 500w 8/20 µs aveform 1 0.1 0.01 0.1 1 10 100 90 80 70 60 50 40 30 20 10 0 1,000 td – Pulse Duration - µs Ipp 80 Percent 100 125 150 40 Clamping Voltage–VC (V) 90 e-1 50 40 td=Ipp/ 2 20 75 45 Waveform Paramters tr=8µs td=20µs 100 30 50 Figure 4: Clamping Voltage vs.Ipp 110 60 25 Ambient Temperature - TA (℃) Figure3: Pulse Waveform 70 0 35 30 25 20 Test Waveform Paramters tr=8µs td=20µs 15 10 5 10 0 0 0 5 Revision 2018 10 15 Time (µs) 20 25 30 0 2 4 6 8 10 12 Peak Pulse Current–IPP (A) www.born-tw.com 3/4 PESD3V3L2BT-N »Outline Drawing – SOT-23 DIMENSIONS D SYMBOL 3 E1 E 0.25 θ 1 b L 2 e A1 INCHES MAX MIN MAX 0.900 1.150 0.035 0.045 A1 0.000 0.100 A2 0.900 1.050 0.000 0.035 0.004 0.041 D 2.800 3.000 0.110 0.118 b 0.300 0.500 0.012 0.020 E 2.250 2.550 0.089 0.100 E1 1.200 1.400 0.047 0.055 e A A2 A MILLIMETER MIN 0.950 BSC 0.037 BSC L 0.300 0.500 0.012 0.020 θ 0 8 0 8○ ○ »Marking 3B2 »Ordering information Order code PESD3V3L2BT-N Revision 2018 Package SOT-23 Base qty 3k www.born-tw.com Delivery mode Tape and reel 4/4
