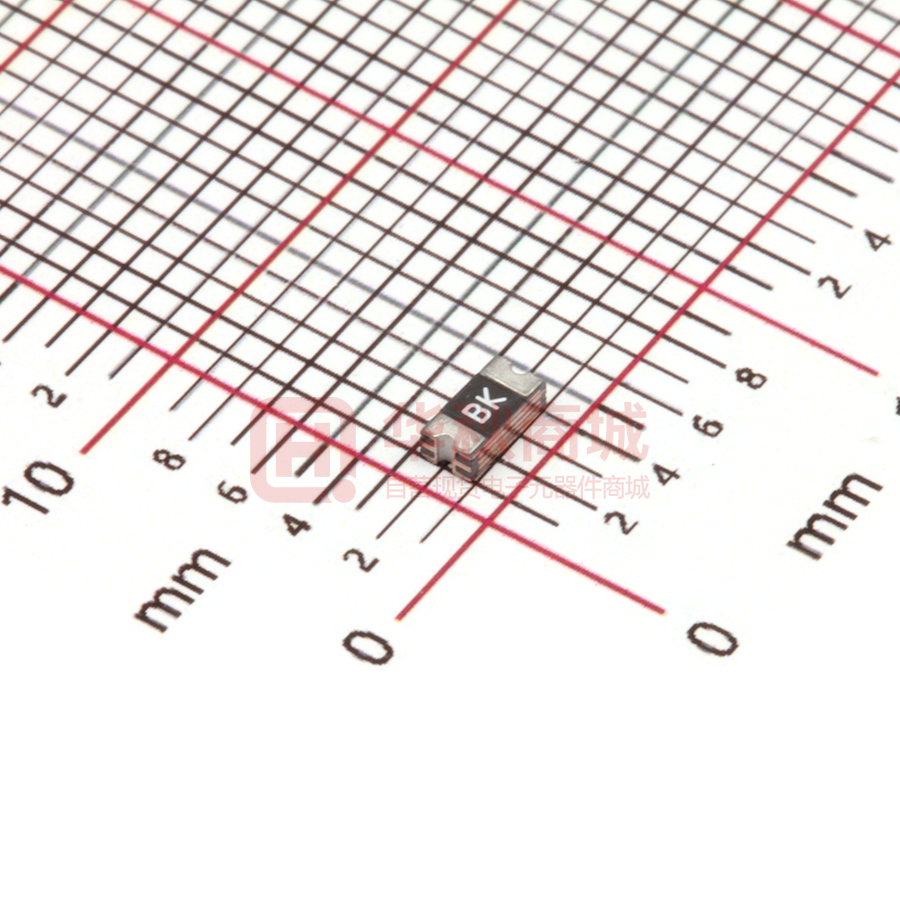

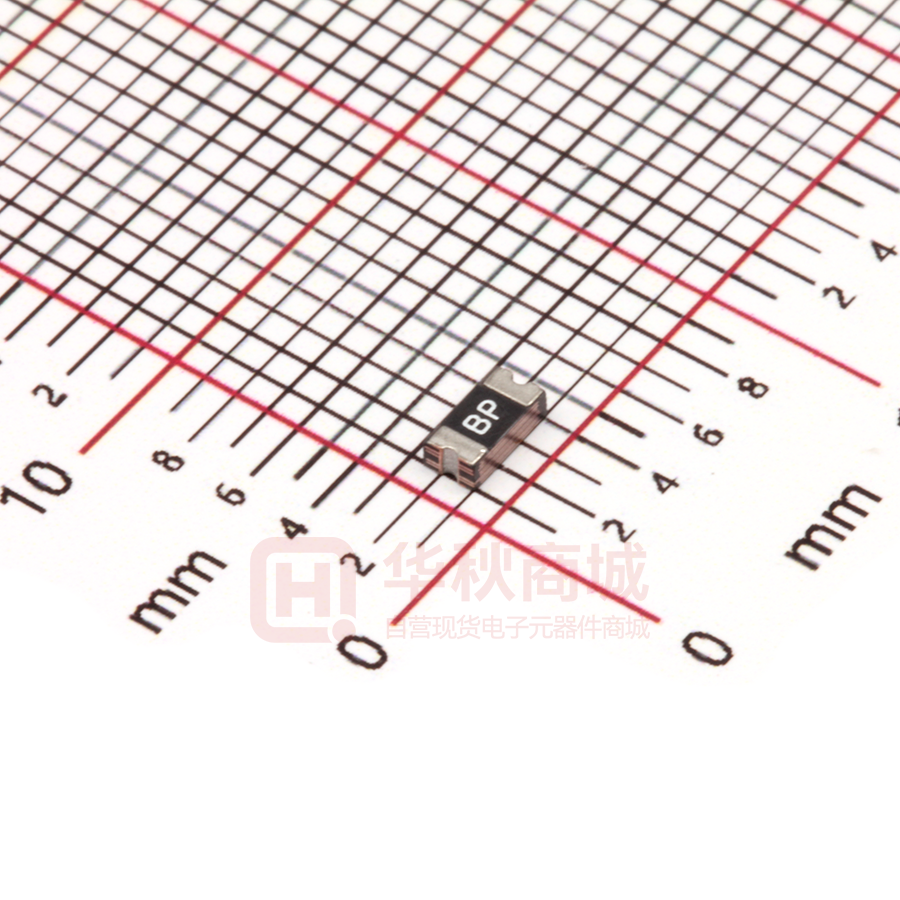

BSMD1206-200-12V

BHFUSE BSMD1206 Series Surface Mount PTC Device  Features       Size 0.12*0.06 inch /3.2*1.6 mm RoHS compliant, lead-free and halogen-free Fast response to fault current Low resistance Low-profile Compatible with high temperature solders  Applications  Computer, Mobile phones, Multimedia  Automotive, Industrial controls, Telephony and broadband  Game machines, Portable electronics, Battery  Electrical Characteristics（25℃） Part Number Ihold (A) Itrip (A) Vmax (V) Imax (A) Pd (W) Time to trip (A) (Sec) Rmin (Ω) R1max (Ω) BSMD1206-005-30V 0.05 0.15 30 40 0.4 0.25 1.50 3.60 50.0 BSMD1206-005-60V 0.05 0.15 60 40 0.4 0.25 1.50 3.60 50.0 BSMD1206-010-30V 0.10 0.25 30 40 0.4 0.50 1.00 1.60 15.0 BSMD1206-010-60V 0.10 0.25 60 40 0.4 0.50 1.00 1.60 15.0 BSMD1206-012-60V 0.12 0.29 60 40 0.4 0.50 1.00 1.60 13.0 BSMD1206-016-33V 0.16 0.37 33 40 0.4 1.00 0.30 1.00 6.00 BSMD1206-020-24V 0.20 0.46 24 40 0.6 8.00 0.10 0.35 2.70 BSMD1206-020-30V 0.20 0.46 30 40 0.6 8.00 0.10 0.35 2.70 BSMD1206-025-16V 0.25 0.50 16 40 0.6 8.00 0.10 0.35 2.50 BSMD1206-025-24V 0.25 0.50 24 40 0.6 8.00 0.10 0.35 2.50 BSMD1206-025-30V 0.25 0.50 30 40 0.6 8.00 0.10 0.35 2.50 BSMD1206-035-6V 0.35 0.75 6 40 0.6 8.00 0.10 0.25 1.50 BSMD1206-035-16V 0.35 0.75 16 40 0.6 8.00 0.10 0.25 1.50 BSMD1206-035-30V 0.35 0.75 30 40 0.6 8.00 0.10 0.25 1.50 BSMD1206-050-6V 0.50 1.00 6 100 0.6 8.00 0.10 0.15 0.70 BSMD1206-050-13.2V 0.50 1.00 13.2 100 0.6 8.00 0.10 0.15 0.70 BSMD1206-050-16V 0.50 1.00 16 100 0.6 8.00 0.10 0.15 0.70 BSMD1206-050-24V 0.50 1.00 24 40 0.6 8.00 0.10 0.15 0.70 BSMD1206-050-30V 0.50 1.00 30 40 0.6 8.00 0.10 0.15 0.70 BSMD1206-075-6V 0.75 1.50 6 100 0.6 8.00 0.20 0.09 0.50 BSMD1206-075-13.2V 0.75 1.50 13.2 100 0.6 8.00 0.20 0.09 0.50 BSMD1206-075-16V 0.75 1.50 16 100 0.6 8.00 0.20 0.09 0.50 Specifications are subject to change without notice Revision 2017 Polymer PTC Thermistor 1/8 BHFUSE BSMD1206 Series Surface Mount PTC Device Part Number Ihold (A) Itrip (A) Vmax (V) Imax (A) Pd (W) Time to trip (A) (S) Ri (Ω) R1max (Ω) BSMD1206-075-24V 0.75 1.50 24 40 0.6 8.00 0.20 0.09 0.50 BSMD1206-075-30V 0.75 1.50 30 40 0.6 8.00 0.20 0.09 0.50 BSMD1206-100-6V 1.00 1.80 6 100 0.6 8.00 0.30 0.05 0.27 BSMD1206-100-13.2V 1.00 1.80 13.2 100 0.6 8.00 0.30 0.05 0.27 BSMD1206-100-16V 1.00 1.80 16 100 0.6 8.00 0.30 0.05 0.27 BSMD1206-100-24V 1.00 1.80 24 40 0.6 8.00 0.30 0.05 0.27 BSMD1206-110-6V 1.10 2.20 6 100 0.6 8.00 0.30 0.04 0.25 BSMD1206-150-6V 1.50 3.00 6 100 0.8 8.00 0.30 0.025 0.130 BSMD1206-150-13.2V 1.50 3.00 13.2 40 0.8 8.00 0.30 0.025 0.130 BSMD1206-150-16V 1.50 3.00 16 40 0.8 8.00 0.30 0.025 0.130 BSMD1206-200-6V 2.00 3.50 6 100 0.8 8.00 1.50 0.015 0.080 BSMD1206-200-12V 2.00 3.50 12 100 0.8 8.00 1.50 0.015 0.080 BSMD1206-200-16V 2.00 3.50 16 40 0.8 8.00 1.50 0.015 0.080 BSMD1206-260-6V 2.60 5.20 6 100 0.8 8.00 2.00 0.010 0.060 BSMD1206-300-6V 3.00 6.00 6 100 1.0 8.00 4.00 0.010 0.050 BSMD1206-350-6V 3.50 7.00 6 100 1.2 10.0 5.00 0.005 0.040 Ihold = Hold current: maximum current device will pass without tripping in 25℃ still air. Itrip = Trip current: minimum current at which the device will trip in 25℃ still air. Vmax = Maximum voltage device can withstand without damage at rated current (Imax) Imax = Maximum fault current device can withstand without damage at rated voltage (Vmax) Pd typ. = Typical power dissipated from device when in the tripped state at 25℃ still air. Rmin = Minimum resistance of device in initial (un-soldered) state. R1max = Maximum resistance of device at 25℃ measured one hour after tripping or reflow soldering of 260℃ for 20 sec. Caution：Operation beyond the specified ratings may result in damage and possible arcing and flame. Specifications are subject to change without notice Revision 2017 Polymer PTC Thermistor 2/8 BHFUSE BSMD1206 Series Surface Mount PTC Device  WARNING  Users shall independently assess the suitability of these devices for each of their applications.  Operation of these devices beyond the stated maximum ratings could result in damage to the devices and lead to electrical arcing and/or fire.  These devices are intended to protect against the effects of temporary over-current or over-temperature conditions and are not intended to perform as protective devices where such conditions are expected to be repetitive or prolonged in duration.  Exposure to silicon-based oils, solvents, electrolytes, acids, and similar materials can adversely affect the performance of these PPTC devices.  These devices undergo thermal expansion under fault conditions, and thus shall be provided with adequate space and be protected against mechanical stresses.  Circuits with inductance may generate a voltage (L di/dt) above the rated voltage of the PPTC device.  Thermal Derating Curve Specifications are subject to change without notice Revision 2017  Typical Time-to-Trip At 25℃ Polymer PTC Thermistor 3/8 BHFUSE BSMD1206 Series Surface Mount PTC Device  Thermal Derating Chart Part Number Ambient operating temperature hold current(Ihold) -40℃ -20℃ 0℃ 25℃ 40℃ 50℃ 60℃ 70℃ 85℃ BSMD1206-005 0.074 0.066 0.056 0.050 0.042 0.037 0.035 0.030 0.027 BSMD1206-010 0.148 0.132 0.116 0.100 0.085 0.075 0.070 0.060 0.055 BSMD1206-012 0.18 0.16 0.14 0.12 0.10 0.09 0.08 0.07 0.06 BSMD1206-016 0.24 0.21 0.18 0.16 0.14 0.13 0.12 0.11 0.10 BSMD1206-020 0.30 0.26 0.23 0.20 0.17 0.15 0.14 0.12 0.11 BSMD1206-025 0.37 0.33 0.29 0.25 0.22 0.20 0.17 0.15 0.12 BSMD1206-035 0.50 0.45 0.40 0.35 0.30 0.27 0.24 0.21 0.15 BSMD1206-050 0.71 0.64 0.57 0.50 0.42 0.39 0.35 0.31 0.25 BSMD1206-075 1.14 1.01 0.88 0.75 0.65 0.59 0.54 0.49 0.41 BSMD1206-100 1.45 1.31 1.15 1.00 0.84 0.77 0.69 0.61 0.48 BSMD1206-110 1.60 1.45 1.30 1.10 0.95 0.80 0.72 0.66 0.55 BSMD1206-150 2.18 1.94 1.72 1.50 1.28 1.17 1.06 0.96 0.77 BSMD1206-200 2.88 2.63 2.34 2.00 1.74 1.58 1.42 1.17 0.93 BSMD1206-260 3.43 3.22 2.93 2.60 2.23 2.03 1.87 1.57 1.35 BSMD1206-300 4.05 3.66 3.36 3.00 2.50 2.28 2.00 1.62 1.38 BSMD1206-350 4.65 4.22 3.92 3.50 2.92 2.68 2.35 1.91 1.42 Specifications are subject to change without notice Revision 2017 Polymer PTC Thermistor 4/8 BHFUSE BSMD1206 Series Surface Mount PTC Device  Soldering Parameters Profile Feature Pb-Free Assembly Average Ramp-Up Rate(Tsmax to Tp) 3℃/second max Preheat -Temperature Min(Tsmin) -Temperature Max(Tsmax) -Time(Tsmin to Tsmax) 150℃ 200℃ 60~180 seconds Time maintained above: -Temperature(TL) -Time(tL) 217℃ 60~150 seconds Peak Temperature(Tp) 260℃ Ramp-Down Rate 6℃/second max Time 25℃ to Peak Temperature 8 minutes max Storage Condition 0℃~30℃,30%-60%RH  Recommended reflow methods: IR, vapor phase oven, hot air oven, N2 environment for lead-free.  Recommended maximum paste thickness is 0.25mm.  Devices can be cleaned using standard industry methods and solvents. Note 1: All temperature refer to topside of the package, measured on the package body surface. Note 2: If reflow temperatures exceed the recommended profile, devices may not meet the performance requirements.  Environmental Specifications Test Conditions Resistance change Passive aging +85°C, 1000 hrs. ±5% typical Humidity aging +85°C, 85% R.H. , 168 hours ±5% typical Thermal shock +85°C to -40°C, 20 times ±33% typical Resistance to solvent MIL-STD-202,Method 215 No change Vibration MIL-STD-202,Method 201 No change Ambient operating conditions : - 40 °C to +85 °C Maximum surface temperature of the device in the tripped state is 125 °C Specifications are subject to change without notice Revision 2017 Polymer PTC Thermistor 5/8 BHFUSE BSMD1206 Series Surface Mount PTC Device  Physical Dimensions & Recommended Pad Layout (mm) A 1.0 1.0 1.8 BF B 1.8 D Part Number E Marking Quantity BSMD1206-005-30V BZ BSMD1206-005-60V C A B C D E Min Max Min Max Min Max Min Min 3500 3.00 3.60 1.50 1.90 0.60 1.20 0.15 0.10 BZ 3500 3.00 3.60 1.50 1.90 0.60 1.20 0.15 0.10 BSMD1206-010-30V BN 3500 3.00 3.60 1.50 1.90 0.60 1.20 0.15 0.10 BSMD1206-010-60V BN 3500 3.00 3.60 1.50 1.90 0.60 1.20 0.15 0.10 BSMD1206-012-60V BN 3500 3.00 3.60 1.50 1.90 0.60 1.20 0.15 0.10 BSMD1206-016-33V BT 3500 3.00 3.60 1.50 1.90 0.40 1.00 0.15 0.10 BSMD1206-020-24V BA 3500 3.00 3.60 1.50 1.90 0.40 1.00 0.15 0.10 BSMD1206-020-30V BA 3500 3.00 3.60 1.50 1.90 0.40 1.00 0.15 0.10 BSMD1206-025-16V BA 3500 3.00 3.60 1.50 1.90 0.40 1.00 0.15 0.10 BSMD1206-025-24V BA 3500 3.00 3.60 1.50 1.90 0.40 1.00 0.15 0.10 BSMD1206-025-30V BA 3500 3.00 3.60 1.50 1.90 0.40 1.00 0.15 0.10 BSMD1206-035-6V BB 3500 3.00 3.60 1.50 1.90 0.40 1.00 0.15 0.10 BSMD1206-035-16V BB 3500 3.00 3.60 1.50 1.90 0.40 1.00 0.15 0.10 BSMD1206-035-30V BB 3500 3.00 3.60 1.50 1.90 0.40 1.00 0.15 0.10 BSMD1206-050-6V BF 3500 3.00 3.60 1.50 1.90 0.40 1.00 0.15 0.10 BSMD1206-050-13.2V BF 3500 3.00 3.60 1.50 1.90 0.40 1.00 0.15 0.10 BSMD1206-050-16V BF 3500 3.00 3.60 1.50 1.90 0.40 1.00 0.15 0.10 BSMD1206-050-24V BF 3500 3.00 3.60 1.50 1.90 0.40 1.00 0.15 0.10 BSMD1206-050-30V BF 3500 3.00 3.60 1.50 1.90 0.40 1.00 0.15 0.10 BSMD1206-075-6V BG 3500 3.00 3.60 1.50 1.90 0.50 1.00 0.15 0.10 BSMD1206-075-13.2V BG 3500 3.00 3.60 1.50 1.90 0.50 1.00 0.15 0.10 BSMD1206-075-16V BG 3500 3.00 3.60 1.50 1.90 0.50 1.00 0.15 0.10 BSMD1206-075-24V BG 3500 3.00 3.60 1.50 1.90 0.50 1.00 0.15 0.10 BSMD1206-075-30V BG 3500 3.00 3.60 1.50 1.90 0.50 1.00 0.15 0.10 BSMD1206-100-6V BH 3500 3.00 3.60 1.50 1.90 0.50 1.00 0.15 0.10 BSMD1206-100-13.2V BH 3500 3.00 3.60 1.50 1.90 0.50 1.00 0.15 0.10 Specifications are subject to change without notice Revision 2017 Polymer PTC Thermistor 6/8 BHFUSE BSMD1206 Series Surface Mount PTC Device Part Number Marking Quantity BSMD1206-100-16V BH BSMD1206-100-24V A B C D E Min Max Min Max Min Max Min Min 3500 3.00 3.60 1.50 1.90 0.50 1.00 0.15 0.10 BH 3500 3.00 3.60 1.50 1.90 0.50 1.00 0.15 0.10 BSMD1206-110-6V BH 3500 3.00 3.60 1.50 1.90 0.50 1.00 0.15 0.10 BSMD1206-150-6V BI 3500 3.00 3.60 1.50 1.90 0.50 1.00 0.15 0.10 BSMD1206-150-13.2V BI 3500 3.00 3.60 1.50 1.90 0.80 1.60 0.15 0.10 BSMD1206-200-6V BK 3500 3.00 3.60 1.50 1.90 0.70 1.30 0.15 0.10 BSMD1206-200-12V BK 3500 3.00 3.60 1.50 1.90 0.70 1.30 0.15 0.10 BSMD1206-200-16V BK 3500 3.00 3.60 1.50 1.90 0.70 1.60 0.15 0.10 BSMD1206-260-6V BP 3500 3.00 3.60 1.50 1.90 1.00 1.60 0.15 0.10 BSMD1206-300-6V BP 3500 3.00 3.60 1.50 1.90 1.00 1.60 0.15 0.10 BSMD1206-350-6V BV 3500 3.00 3.60 1.50 1.90 1.00 1.60 0.15 0.10 Specifications are subject to change without notice Revision 2017 Polymer PTC Thermistor 7/8 BHFUSE BSMD1206 Series Surface Mount PTC Device  Tape And Reel Specifications (mm) Governing Specifications BSMD1206-005-30V~ BSMD1206-050-16V BSMD1206-050-24V~ BSMD1206-075-33V BSMD1206-100-6V~ BSMD1206-350-6V W 8.0 ± 0.3 8.0 ± 0.3 8.0 ± 0.3 F 3.5 ± 0.05 3.5 ± 0.05 3.5 ± 0.05 E1 1.75 ± 0.1 1.75 ± 0.1 1.75 ± 0.1 D0 1.55 ± 0.05 1.55 ± 0.05 1.55 ± 0.05 D1 1.0 ± 0.1 1.0 ± 0.1 1.0 ± 0.1 P0 4.0 ± 0.1 4.0 ± 0.1 4.0 ± 0.1 P1 4.0 ± 0.1 4.0 ± 0.1 4.0 ± 0.1 P2 2.0 ± 0.05 2.0 ± 0.05 2.0 ± 0.05 A0 1.95 ± 0.1 1.95 ± 0.1 1.95 ± 0.1 B0 3.65 ± 0.1 3.65 ± 0.1 3.65 ± 0.1 T 0.2 ± 0.1 0.2 ± 0.1 0.2 ± 0.1 K0 0.74 ± 0.1 1.04 ± 0.1 1.35 ± 0.1 Leader min 390 390 390 Trailer min 160 160 160 Reel Dimensions  C φ178 ± 1.0 D φ60.2 ± 0.5 H 11.0 ± 0.5 W 9.0 ± 1.5 Contact information SHENZHEN HCHC ELECTRONIC CO., LTD TEL: 0755-85259917 FAX: 0755-28704432 E-MAIL: sale@hchc-elec.com Specifications are subject to change without notice Revision 2017 Polymer PTC Thermistor 8/8
