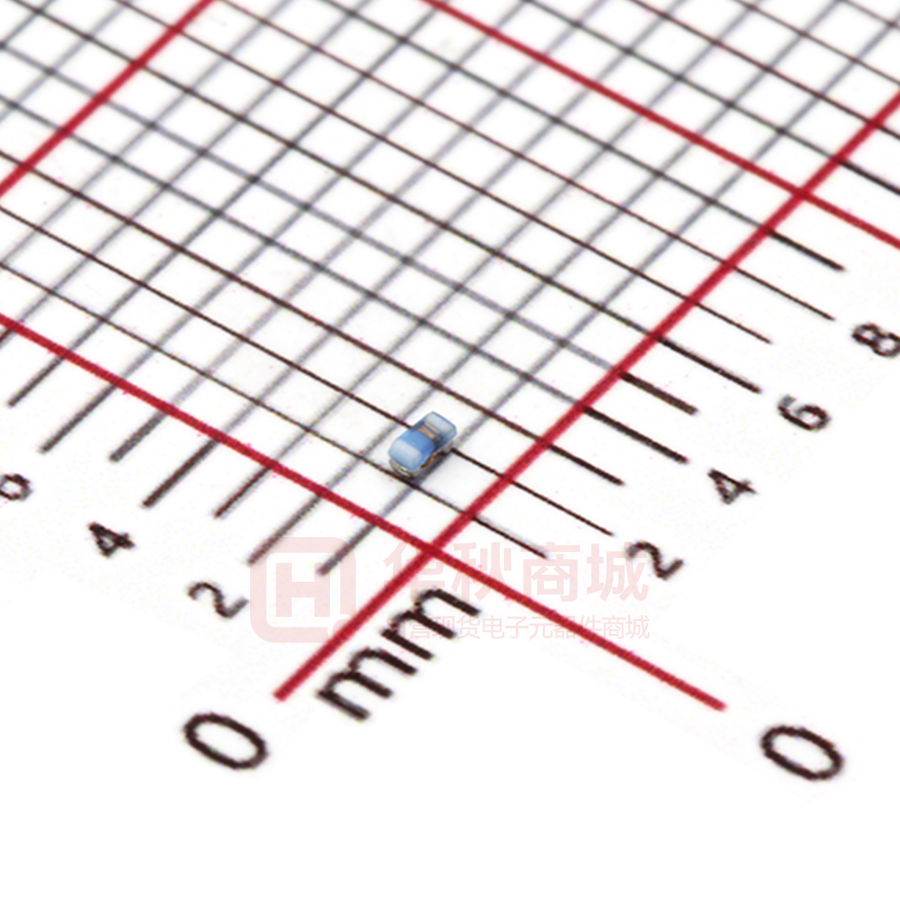

CS0402-3N9J-S

Cautions and Warnings Please be noted that this spec is only for reference if you have projects designed with the product number listed in. If you are looking for new project design-in, please find BWCS Series specification/datasheet on Chilisin website. Or you may find our sales contact for more information on old part number at your convenience. Appreciated your attention and understanding. Note: Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Wire Wound Ceramic Chip Inductors - CS Series CS Series Due to accurate wire winding technology, these chip inductors are designed for filtering, impedance matching, resonance and choke circuits for RF designer. Both standard series custom designs are available. Features Applications  RoHS Compliant  RF products for cellular phone  Ceramic body and wire wound construction provide high SRFs  GPS receiver  Exceptional Q values even at high frequencies  Base Station  Highest possible SRFs as well as excellent Q values  Repeater  The non-magnetic coil form assures utmost thermal stability,  Wireless LAN/ mouse/ keyboard/ earphone  Remote control predictability and batch consistency  CS series is standard for RF designers  Security system and other RF modules Product Identification Shape and Dimensions / Recommended Pattern CS0201 CS0402 Dimensions CS0201 CS0402 A Max B Max C Max D E F G H I J inch 0.023 0.018 0.018 - 0.015 0.004 - 0.018 0.007 0.009 mm 0.58 0.46 0.45 - 0.38 0.1 - 0.46 0.18 0.23 inch 0.047 0.028 0.026 0.010 0.020 0.009 0.022 0.026 0.014 0.018 mm 1.19 0.70 0.66 0.25 0.51 0.23 0.56 0.66 0.36 0.46 SMD Wire Wound Ceramic Chip Inductors - CS Series CS0603/0805/1008 CS1812 Dimensions CS0603 CS0805 CS1008 CS1812 A B +0.2 D E F G H I J 1.02±0.1 0.82 0.51 0.76 0.33 0.86 1.02 0.64 0.64 A Max B Max C Max D E F G H I J inch 0.093 0.068 0.06 0.028 0.05 0.02 0.04 0.07 0.04 0.03 mm 2.35 1.73 1.52 0.71 1.27 0.51 1.02 1.78 1.02 0.76 inch mm 0.115 0.11 0.083 0.046 0.08 0.02 0.06 0.10 0.04 0.05 2.92 2.79 2.1 1.16 2.03 0.51 1.52 2.54 1.02 1.27 inch 0.197 0.154 0.135 0.07 0.1 0.025 0.128 0.12 0.045 0.118 mm 4.95 3.81 3.43 1.78 2.54 0.64 3.25 3.05 1.14 3.00 mm 1.6 -0.1 C +0.2 -0.1 SMD Wire Wound Ceramic Chip Inductors - CS Series Electrical Characteristics Test Inductance Tolerance (nH) (±%) Q SRF RDC Irms Min (GHz) Typ (Ω) Max (mA) Typ CS0201-0N5□-S 0.5 10 250 4 23.5 0.02 1250 CS0201-0N6□-S 0.6 10 CS0201-1N2□-S 1.2 5 250 6 24.5 0.03 1000 250 13 17.9 0.042 CS0201-1N3□-S 1.3 870 5 250 11 17.6 0.048 820 CS0201-1N4□-S CS0201-1N5□-S 1.4 5 250 14 17 0.08 630 1.5 5 250 11 17 0.09 600 CS0201-2N2□-S 2.2 5 250 15 16.7 0.07 700 CS0201-2N3□-S 2.3 5 250 18 16.5 0.07 670 CS0201-2N4□-S 2.4 5 250 13 13 0.082 620 CS0201-2N5□-S 2.5 5 250 16 12.5 0.165 440 CS0201-3N3□-S 3.3 5 250 14 12.8 0.08 630 CS0201-3N4□-S 3.4 5 250 11 12.7 0.08 630 CS0201-3N5□-S 3.5 5 250 16 12.4 0.08 630 CS0201-3N6□-S 3.6 5 250 18 12.5 0.105 550 CS0201-3N7□-S 3.7 5 250 15 10.6 0.105 550 CS0201-3N8□-S 3.8 5 250 16 10.2 0.18 420 CS0201-3N9□-S 3.9 5 250 12 11.2 0.24 360 CS0201-4N8□-S 4.8 5 250 17 11 0.096 570 CS0201-4N9□-S 4.9 5 250 18 11.7 0.13 510 CS0201-5N0□-S 5.0 5 250 18 11.5 0.13 510 CS0201-5N1□-S 5.1 5 250 18 11.1 0.13 510 CS0201-5N2□-S 5.2 5 250 18 10 0.17 430 CS0201-5N3□-S 5.3 5 250 18 10.6 0.13 510 CS0201-5N4□-S 5.4 5 250 18 10.2 0.13 510 CS0201-5N5□-S 5.5 5 250 16 9.5 0.285 330 CS0201-6N7□-S 6.7 5 250 18 6.8 0.15 460 CS0201-6N8□-S 6.8 5 250 18 9.5 0.15 460 CS0201-6N9□-S 6.9 5 250 18 9.3 0.15 460 CS0201-7N0□-S 7.0 5 250 18 6.7 0.21 390 CS0201-7N1□-S 7.1 5 250 18 9.5 0.25 390 CS0201-7N2□-S 7.2 5 250 18 9.4 0.25 390 CS0201-7N3□-S 7.3 5 250 18 9.3 0.25 390 CS0201-7N4□-S 7.4 5 250 18 9.1 0.25 390 CS0201-7N5□-S 7.5 5 250 15 6.8 0.34 300 CS0201-7N6□-S 7.6 5 250 17 9.3 0.3 340 CS0201-7N7□-S 7.7 5 250 17 9.2 0.3 340 CS0201-7N8□-S 7.8 5 250 17 9.2 0.3 340 CS0201-7N9□-S 7.9 5 250 17 9.1 0.3 340 CS0201-8N0□-S 8.0 5 250 17 9.2 0.3 340 CS0201-8N1□-S 8.1 5 250 17 9.1 0.3 340 CS0201-8N2□-S 8.2 5 250 17 6.4 0.27 340 Part Number Frequency (MHz) Note: When ordering, please specify tolerance code. Tolerance : J=±5% , K=±10%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Irms for a 15℃ temperature rise from 25℃ ambient with current  Measure Equipment： L & Q：HP4286A/HP4287A/AgilentE4991/Keysight E4982A SRF：Agilent HP8753D/Agilent HP8722ES RDC：HP4287A/Keysight E4982A Irms：HP4284A+HP42841A/HP4285A+HP42841A Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Wire Wound Ceramic Chip Inductors - CS Series Electrical Characteristics Inductance Tolerance (nH) (±%) CS0201-8N3□-S 8.3 5 CS0201-8N4□-S 8.4 CS0201-8N5□-S 8.5 CS0201-8N7□-S Test Q SRF RDC Irms Min (GHz) Typ (Ω) Max (mA) Typ 250 17 8.9 0.3 340 5 250 15 8.9 0.38 300 5 250 15 8.9 0.38 300 8.7 5 250 15 6.3 0.38 300 CS0201-9N0□-S 9.0 5 250 15 6.4 0.38 300 CS0201-9N4□-S 9.4 5 250 16 6.4 0.4 280 CS0201-9N6□-S 9.6 5 250 16 6.2 0.4 280 CS0201-11N□-S 11 5 250 16 5.7 0.44 280 CS0201-12N□-S 12 5 250 17 5.6 0.36 300 CS0201-13N□-S 13 5 250 16 6.7 0.5 270 CS0201-14N□-S 14 5 250 16 5.1 0.5 270 Part Number Frequency (MHz) Note: When ordering, please specify tolerance code. Tolerance : J=±5% , K=±10%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Irms for a 15℃ temperature rise from 25℃ ambient with current  Measure Equipment： L & Q：HP4286A/HP4287A/AgilentE4991/Keysight E4982A SRF：Agilent HP8753D/Agilent HP8722ES RDC：HP4287A/Keysight E4982A Irms：HP4284A+HP42841A/HP4285A+HP42841A Typical L vs. Frequency Typical Q vs. Frequency 100 14 7N0 90 12N 12 12N 80 8 Q L(nH) 10 7N0 6 70 2N3 60 3N9 50 0N6 40 3N9 4 30 20 2N3 2 10 0N6 0 0 1 10 100 FREQUENCY(MHz) 1000 10000 1 10 100 FREQUENCY(MHz) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 1000 10000 SMD Wire Wound Ceramic Chip Inductors - CS Series Electrical Characteristics Inductance Tolerance (nH) (±%) CS0402-1N0□-S 1.0 10 / 5 / ±0.1nH CS0402-1N2□-S 1.2 CS0402-1N3□-S 1.3 CS0402-1N9□-S Test Q SRF RDC Irms Min (GHz) Min (Ω) Max (mA) Max 250 16 12.7 0.045 1360 10 / 5 / ±0.1nH 250 10 10.4 0.140 640 10 / ±0.1nH 250 10 10.4 0.140 640 1.9 10 / 5 / ±0.1nH 250 16 11.3 0.070 1040 CS0402-2N0□-S 2.0 10 / 5 / ±0.1nH 250 16 11.1 0.070 1040 CS0402-2N2□-S 2.2 10 / 5 / ±0.1nH 250 19 10.8 0.070 960 CS0402-2N4□-S 2.4 10 / 5 / ±0.1nH 250 15 10.5 0.068 790 CS0402-2N5□-S 2.5 10 / 5 / ±0.1nH 250 13 10.4 0.150 640 CS0402-2N7□-S 2.7 10 / 5 / ±0.1nH 250 16 10.4 0.120 640 CS0402-3N3□-S 3.3 10 / 5 / 3 250 19 7.00 0.066 840 CS0402-3N6□-S 3.6 10 / 5 / 3 250 19 6.80 0.066 840 CS0402-3N9□-S 3.9 10 / 5 / 3 250 19 6.00 0.066 840 CS0402-4N3□-S 4.3 10 / 5 / 3 250 18 6.00 0.091 700 CS0402-4N7□-S 4.7 10 / 5 / 3 250 15 4.77 0.130 640 CS0402-5N1□-S 5.1 10 / 5 / 3 250 20 4.80 0.083 800 CS0402-5N6□-S 5.6 10 / 5 / 3 250 20 4.80 0.083 760 CS0402-5N8□-S 5.8 10 / 5 / 3 250 20 4.80 0.083 760 CS0402-6N2□-S 6.2 10 / 5 / 3 250 20 4.80 0.083 760 CS0402-6N8□-S 6.8 10 / 5 / 3 250 20 4.80 0.083 680 CS0402-7N3□-S 7.3 10 / 5 / 3 250 20 4.80 0.12 680 CS0402-7N5□-S 7.5 10 / 5 / 3 250 22 4.80 0.10 680 CS0402-8N2□-S 8.2 10 / 5 / 3 250 22 4.40 0.10 680 CS0402-8N7□-S 8.7 10 / 5 / 3 250 18 4.10 0.20 480 CS0402-9N0□-S 9.0 10 / 5 / 3 250 22 4.16 0.10 680 CS0402-9N1□-S 9.1 10 / 5 / 3 250 22 4.16 0.10 680 CS0402-9N5□-S 9.5 10 / 5 / 3 250 18 4.00 0.20 480 CS0402-10N□-S 10 10 / 5 / 3 / 2 250 21 3.90 0.20 480 CS0402-11N□-S 11 10 / 5 / 3 / 2 250 24 3.68 0.12 640 CS0402-12N□-S 12 10 / 5 / 3 / 2 250 24 3.60 0.12 640 CS0402-13N□-S 13 10 / 5 / 3 / 2 250 24 3.45 0.21 440 CS0402-15N□-S 15 10 / 5 / 3 / 2 250 24 3.28 0.17 560 CS0402-16N□-S 16 10 / 5 / 3 / 2 250 24 3.10 0.22 560 CS0402-18N□-S 18 10 / 5 / 3 / 2 250 25 3.10 0.23 420 CS0402-19N□-S 19 10 / 5 / 3 / 2 250 24 3.04 0.20 480 CS0402-20N□-S 20 10 / 5 / 3 / 2 250 25 3.00 0.25 420 CS0402-22N□-S 22 10 / 5 / 3 / 2 250 25 2.80 0.30 400 CS0402-23N□-S 23 10 / 5 / 3 / 2 250 22 2.72 0.30 400 CS0402-24N□-S 24 10 / 5 / 3 / 2 250 25 2.70 0.30 400 CS0402-27N□-S 27 10 / 5 / 3 / 2 250 24 2.48 0.30 400 CS0402-30N□-S 30 10 / 5 / 3 / 2 250 25 2.35 0.35 400 Part Number Frequency (MHz) Note: When ordering, please specify tolerance code. Tolerance : B=±0.1nH , G=±2% , H=±3% , J=±5% , K=±10%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Irms for a 15℃ temperature rise from 25℃ ambient with current  Measure Equipment： L & Q：Agilent E4991A+Agilent HP16197A SRF：Agilent HP8753D/Agilent HP8722ES RDC：HP4287A Irms：HP4284A+HP42841A/HP4285A+HP42841A Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Wire Wound Ceramic Chip Inductors - CS Series Electrical Characteristics Inductance Tolerance (nH) (±%) CS0402-33N□-S 33 10 / 5 / 3 / 2 CS0402-36N□-S 36 CS0402-39N□-S 39 CS0402-40N□-S Test Q SRF RDC Irms Min (GHz) Min (Ω) Max (mA) Max 250 24 2.35 0.40 400 10 / 5 / 3 / 2 250 24 2.32 0.44 320 10 / 5 / 3 / 2 250 25 2.10 0.55 200 40 10 / 5 / 3 / 2 250 24 2.24 0.65 320 CS0402-43N□-S 43 10 / 5 / 3 / 2 250 25 2.03 0.81 100 CS0402-47N□-S 47 10 / 5 / 3 / 2 250 20 2.10 0.83 150 CS0402-51N□-S 51 10 / 5 / 3 / 2 250 25 1.75 0.82 100 CS0402-56N□-S 56 10 / 5 / 3 / 2 250 22 1.76 0.97 100 CS0402-68N□-S 68 10 / 5 / 3 / 2 250 22 1.62 1.12 100 CS0402-82N□-S 82 10 / 5 / 3 / 2 250 20 1.26 1.55 50 CS0402-R10□-S 100 10 / 5 / 3 / 2 250 20 1.16 2.00 30 CS0402-R18□-S 180 10 / 5 / 3 / 2 100 8 0.70 2.70 50 CS0402-R22□-S 220 10 / 5 / 3 / 2 100 8 0.70 4.00 50 Part Number Frequency (MHz) Note: When ordering, please specify tolerance code. Tolerance : B=±0.1nH , G=±2% , H=±3% , J=±5% , K=±10%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Irms for a 15℃ temperature rise from 25℃ ambient with current  Measure Equipment： L & Q：Agilent E4991A+Agilent HP16197A SRF：Agilent HP8753D/Agilent HP8722ES RDC：HP4287A Irms：HP4284A+HP42841A/HP4285A+HP42841A Typical L vs. Frequency Typical Q vs. Frequency 1000 100 R10 3N3 90 47N 80 70 100 L(nH) 60 Q 15N 50 15N 40 10 47N 30 R10 3N3 20 10 1 0 1 10 100 FREQUENCY(MHz) 1000 10000 1 10 100 FREQUENCY(MHz) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 1000 10000 SMD Wire Wound Ceramic Chip Inductors – CS Series Electrical Characteristics Inductance Tolerance (nH) (±%) CS0603-1N6-S 1.6 10 / 5 / ±0.1nH CS0603-1N8-S 1.8 10 / 5 / ±0.1nH CS0603-2N2-S 2.2 CS0603-3N3-S 3.3 CS0603-3N6-S Test Q SRF RDC Irms Min (MHz) Min (Ω) Max (mA) Max 250 24 12500 0.030 700 Red 250 16 12500 0.045 700 Black 10 / 5 / ±0.1nH 250 13 12500 0.250 700 Yellow 10 / 5 / 3 250 35 5900 0.045 700 Blue 3.6 10 / 5 / 3 / 2 250 22 5900 0.063 700 Red CS0603-3N9-S 3.9 10 / 5 / 3 / 2 250 22 6900 0.080 700 Brown CS0603-4N3-S 4.3 10 / 5 / 3 / 2 250 22 5900 0.063 700 Orange CS0603-4N7-S 4.7 10 / 5 / 3 / 2 250 20 5800 0.116 700 Violet CS0603-5N1-S 5.1 10 / 5 / 3 / 2 250 20 5700 0.140 700 Green CS0603-5N6-S 5.6 10 / 5 / 3 / 2 250 20 5800 0.170 700 Yellow CS0603-6N3-S 6.3 10 / 5 / 3 / 2 250 20 5700 0.140 700 White CS0603-6N8-S 6.8 10 / 5 / 3 / 2 250 27 5800 0.110 700 Red CS0603-7N5-S 7.5 10 / 5 / 3 / 2 250 28 4800 0.106 700 Brown CS0603-8N2-S 8.2 10 / 5 / 3 / 2 250 28 4700 0.109 700 White CS0603-8N7-S 8.7 10 / 5 / 3 / 2 250 28 4600 0.109 700 Yellow CS0603-9N1-S 9.1 10 / 5 / 3 / 2 250 28 4800 0.120 700 Violet CS0603-9N5-S 9.5 10 / 5 / 3 / 2 250 28 5400 0.135 700 Blue CS0603-10N-S 10 10 / 5 / 3 / 2 250 31 4800 0.130 700 Orange CS0603-11N-S 11 10 / 5 / 3 / 2 250 33 4000 0.086 700 Gray CS0603-12N-S 12 10 / 5 / 3 / 2 250 35 4000 0.130 700 Yellow CS0603-13N-S 13 10 / 5 / 3 / 2 250 30 4000 0.160 700 Black CS0603-15N-S 15 10 / 5 / 3 / 2 250 35 4000 0.170 700 Green CS0603-16N-S 16 10 / 5 / 3 / 2 250 34 3300 0.104 700 White CS0603-18N-S 18 10 / 5 / 3 / 2 250 35 3100 0.170 700 Blue CS0603-20N-S 20 10 / 5 / 3 / 2 250 38 3000 0.190 700 Red CS0603-22N-S 22 10 / 5 / 3 / 2 250 38 3000 0.190 700 Violet CS0603-23N-S 23 10 / 5 / 3 / 2 250 38 2850 0.190 700 Orange CS0603-24N-S 24 10 / 5 / 3 / 2 250 37 2650 0.135 700 Black CS0603-27N-S 27 10 / 5 / 3 / 2 250 40 2800 0.220 600 Gray CS0603-30N-S 30 10 / 5 / 3 / 2 250 37 2250 0.144 600 Brown CS0603-33N-S 33 10 / 5 / 3 / 2 250 40 2300 0.220 600 White CS0603-36N-S 36 10 / 5 / 3 / 2 250 38 2080 0.250 600 Red CS0603-39N-S 39 10 / 5 / 3 / 2 250 40 2200 0.250 600 Black CS0603-43N-S 43 10 / 5 / 3 / 2 250 39 2000 0.280 600 Orange CS0603-47N-S 47 10 / 5 / 3 / 2 200 38 2000 0.280 600 Brown CS0603-51N-S 51 10 / 5 / 3 / 2 200 38 1900 0.310 600 Brown CS0603-56N-S 56 10 / 5 / 3 / 2 200 38 1900 0.310 600 Red CS0603-68N-S 68 10 / 5 / 3 / 2 200 37 1700 0.340 600 Orange CS0603-72N-S 72 10 / 5 / 3 / 2 150 34 1700 0.490 400 Yellow CS0603-82N-S 82 10 / 5 / 3 / 2 150 34 1700 0.540 400 Green CS0603-91N-S 91 10 / 5 / 3 / 2 150 34 1400 0.580 400 Black Part Number Frequency (MHz) Note: When ordering, please specify tolerance code. Tolerance : B=±0.1nH , G=±2% , H=±3% , J=±5% , K=±10%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Irms for a 15℃ temperature rise from 25℃ ambient with current  Measure Equipment： L & Q：Agilent E4991A+Agilent HP16197A SRF：Agilent HP8753D/Agilent E4991A RDC：Chroma 16502 Irms：HP4284A+HP42841A/HP4285A+HP42841A Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Color SMD Wire Wound Ceramic Chip Inductors – CS Series Electrical Characteristics Inductance Tolerance (nH) (±%) CS0603-R10-S 100 10 / 5 / 3 / 2 CS0603-R11-S 110 10 / 5 / 3 / 2 CS0603-R12-S 120 CS0603-R15-S 150 CS0603-R16-S CS0603-R18-S Test Q SRF RDC Irms Min (MHz) Min (Ω) Max (mA) Max 150 34 1400 0.580 400 Blue 150 32 1350 0.610 300 Violet 10 / 5 / 3 / 2 150 32 1300 0.750 300 Gray 10 / 5 / 3 / 2 150 28 990 0.920 280 White 160 10 / 5 / 3 / 2 100 25 990 1.250 240 Yellow 180 10 / 5 / 3 / 2 100 25 990 1.250 240 Black CS0603-R20-S 200 10 / 5 / 3 / 2 100 25 900 2.100 200 Red CS0603-R21-S 210 10 / 5 / 3 / 2 100 27 895 2.060 200 Gray CS0603-R22-S 220 10 / 5 / 3 / 2 100 25 900 2.100 200 Brown CS0603-R24-S 240 10 / 5 / 3 / 2 100 25 900 2.200 200 Green CS0603-R25-S 250 10 / 5 / 3 / 2 100 25 822 3.550 120 Violet CS0603-R27-S 270 10 / 5 / 3 / 2 100 24 900 2.800 170 Red CS0603-R33-S 330 10 / 5 / 3 / 2 100 25 900 3.890 100 Orange CS0603-R39-S 390 10 / 5 / 3 / 2 100 25 900 4.350 100 Yellow CS0603-R47-S 470 10 / 5 / 3 / 2 100 25 500 4.500 100 Brown CS0603-R56-S 560 10 / 5 / 3 / 2 100 23 460 4.700 90 Blue Part Number Frequency (MHz) Note: When ordering, please specify tolerance code. Tolerance : B=±0.1nH , G=±2% , H=±3% , J=±5% , K=±10%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Irms for a 15℃ temperature rise from 25℃ ambient with current  Measure Equipment： L & Q：Agilent E4991A+Agilent HP16197A SRF：Agilent HP8753D/Agilent E4991A RDC：Chroma 16502 Irms：HP4284A+HP42841A/HP4285A+HP42841A Typical L vs. Frequency Typical Q vs. Frequency Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Color SMD Wire Wound Ceramic Chip Inductors – CS Series Electrical Characteristics Test Inductance Tolerance (nH) (±%) SRF RDC Irms (Ω) Max (mA) Max CS0805-2N7-S 2.7 10 / 5 / 2 250 50 CS0805-2N8-S 2.8 10 / 5 / 2 250 80 1500 7900 0.06 800 1500 7900 0.06 800 CS0805-3N0-S 3.0 10 / 5 / 2 250 Gray 65 1500 7900 0.06 800 White CS0805-3N3-S 3.3 10 / 5 / 2 CS0805-5N6-S 5.6 10 / 5 / 2 250 50 1500 7900 0.08 600 Black 250 65 1000 5500 0.08 600 Orange CS0805-6N8-S 6.8 10 / 5 / 2 250 50 1000 5500 0.11 600 Brown CS0805-7N5-S CS0805-8N2-S 7.5 10 / 5 / 2 250 50 1000 4500 0.14 600 Green 8.2 10 / 5 / 2 250 50 1000 4700 0.12 600 Red CS0805-10N-S 10 10 / 5 / 2 250 60 500 4200 0.10 600 Blue CS0805-12N-S 12 10 / 5 / 2 250 50 500 4000 0.15 600 Orange CS0805-15N-S 15 10 / 5 / 2 250 50 500 3400 0.17 600 Yellow CS0805-18N-S 18 10 / 5 / 2 250 50 500 3300 0.20 600 Green CS0805-22N-S 22 10 / 5 / 2 250 55 500 2600 0.22 500 Blue CS0805-24N-S 24 10 / 5 / 2 250 50 500 2000 0.22 500 Gray CS0805-27N-S 27 10 / 5 / 2 250 55 500 2500 0.25 500 Violet CS0805-33N-S 33 10 / 5 / 2 250 60 500 2050 0.27 500 Gray CS0805-36N-S 36 10 / 5 / 2 250 55 500 1700 0.27 500 Orange CS0805-39N-S 39 10 / 5 / 2 250 60 500 2000 0.29 500 White CS0805-43N-S 43 10 / 5 / 2 200 60 500 1650 0.34 500 Yellow CS0805-47N-S 47 10 / 5 / 2 200 60 500 1650 0.31 500 Black CS0805-56N-S 56 10 / 5 / 2 200 60 500 1550 0.34 500 Brown CS0805-68N-S 68 10 / 5 / 2 200 60 500 1450 0.38 500 Red CS0805-82N-S 82 10 / 5 / 2 150 65 500 1300 0.42 400 Orange CS0805-91N-S 91 10 / 5 / 2 150 65 500 1200 0.48 400 Black CS0805-R10-S 100 10 / 5 / 2 150 65 500 1200 0.46 400 Yellow CS0805-R11-S 110 10 / 5 / 2 150 50 250 1000 0.48 400 Brown CS0805-R12-S 120 10 / 5 / 2 150 50 250 1100 0.51 400 Green CS0805-R15-S 150 10 / 5 / 2 100 50 250 920 0.56 400 Blue CS0805-R18-S 180 10 / 5 / 2 100 50 250 870 0.64 400 Violet CS0805-R20-S 200 10 / 5 / 2 100 50 250 860 0.68 400 Red CS0805-R22-S 220 10 / 5 / 2 100 50 250 850 0.70 400 Gray CS0805-R24-S 240 10 / 5 / 2 100 44 250 690 1.00 350 Red CS0805-R25-S 250 10 / 5 / 2 100 45 250 660 1.20 350 Yellow CS0805-R27-S 270 10 / 5 / 2 100 48 250 650 1.00 350 White CS0805-R30-S 300 10 / 5 / 2 100 25 250 450 1.40 310 Orange CS0805-R33-S 330 10 / 5 / 2 100 48 250 600 1.40 310 Black CS0805-R39-S 390 10 / 5 / 2 100 48 250 560 1.50 290 Brown CS0805-R47-S 470 10 / 5 / 2 50 33 100 450 1.76 250 Violet CS0805-R51-S 510 10 / 5 / 2 25 23 50 340 1.90 230 Gray CS0805-R56-S 560 10 / 5 / 2 25 23 50 340 1.90 230 Orange CS0805-R62-S 620 10 / 5 / 2 25 23 50 220 2.20 210 Yellow CS0805-R68-S 680 10 / 5 / 2 25 23 50 188 2.20 190 Green Frequency (MHz) Q Test (MHz) Min Part Number Min Frequency (MHz) Note: When ordering, please specify tolerance code. Tolerance : G=±2% , J=±5% , K=±10%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Irms for a 15℃ temperature rise from 25℃ ambient with current  Measure Equipment： L & Q：Agilent E4991A+Agilent HP16197A SRF：Agilent HP8753D/Agilent E4991A RDC：Chroma 16502 Irms：HP4284A+HP42841A/HP4285A+HP42841A Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Color Yellow SMD Wire Wound Ceramic Chip Inductors – CS Series Electrical Characteristics Test Inductance Tolerance (nH) (±%) CS0805-R82-S 820 10 / 5 / 2 25 23 CS0805-1R0-S 1000 10 / 5 / 2 25 20 CS0805-1R2-S 1200 10 / 5 7.9 CS0805-1R8-S 1800 10 / 5 / 2 CS0805-3R3-S 3300 10 / 5 / 2 CS0805-4R7-S 4700 10 / 5 / 2 Part Number SRF RDC Irms (Ω) Max (mA) Max 50 215 2.35 180 Blue 50 100 2.50 170 Gray 18 25 100 2.50 170 White 7.9 16 7.9 80 2.50 170 Orange 7.9 15 7.9 40 4.40 90 Red 7.9 15 7.9 40 6.40 90 Yellow (MHz) Q Test (MHz) Min Frequency Min Frequency (MHz) Note: When ordering, please specify tolerance code. Tolerance : G=±2% , J=±5% , K=±10%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Irms for a 15℃ temperature rise from 25℃ ambient with current  Measure Equipment： L & Q：Agilent E4991A+Agilent HP16197A SRF：Agilent HP8753D/Agilent E4991A RDC：Chroma 16502 Irms：HP4284A+HP42841A/HP4285A+HP42841A Typical L vs. Frequency Typical Q vs. Frequency Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Color SMD Wire Wound Ceramic Chip Inductors – CS Series Electrical Characteristics Part Number Inductance Tolerance Test Frequency Q Color Coding SRF RDC Irms (MHz) Min (Ω) Max (mA) Max 1ST 2ND 3RD (nH) (±%) CS1008-10N-S 10 10 / 5 / 2 50 50 500 4100 0.08 1000 Brown Black Black CS1008-12N-S 12 10 / 5 / 2 50 50 500 3300 0.09 1000 Brown Red Black CS1008-15N-S 15 10 / 5 / 2 50 50 500 2500 0.10 1000 Brown Green Black CS1008-18N-S 18 10 / 5 / 2 50 50 350 2500 0.11 1000 Brown Gray Black CS1008-22N-S 22 10 / 5 / 2 50 55 350 2400 0.12 1000 Red Red Black CS1008-27N-S 27 10 / 5 / 2 50 55 350 1600 0.13 1000 Red Violet Black CS1008-33N-S 33 10 / 5 / 2 50 60 350 1600 0.14 1000 Orange Orange Black CS1008-39N-S 39 10 / 5 / 2 50 60 350 1500 0.15 1000 Orange White Black CS1008-47N-S 47 10 / 5 / 2 50 65 350 1500 0.16 1000 Yellow Violet Black CS1008-56N-S 56 10 / 5 / 2 50 65 350 1300 0.18 1000 Green Blue Black CS1008-68N-S 68 10 / 5 / 2 50 65 350 1300 0.20 1000 Blue Gray Black CS1008-82N-S 82 10 / 5 / 2 50 60 350 1000 0.22 1000 Gray Red Black CS1008-R10-S 100 10 / 5 / 2 25 60 350 1000 0.56 650 Brown Black Brown CS1008-R12-S 120 10 / 5 / 2 25 60 350 950 0.63 650 Brown Red Brown CS1008-R15-S 150 10 / 5 / 2 25 45 100 850 0.70 580 Brown Green Brown CS1008-R18-S 180 10 / 5 / 2 25 45 100 750 0.77 620 Brown Gray Brown CS1008-R20-S 200 10 / 5 / 2 25 45 100 700 0.84 500 Red Black Brown CS1008-R22-S 220 10 / 5 / 2 25 45 100 700 0.84 500 Red Red Brown CS1008-R27-S 270 10 / 5 / 2 25 45 100 600 0.91 500 Red Violet Brown CS1008-R33-S 330 10 / 5 / 2 25 45 100 570 1.05 450 Orange Orange Brown CS1008-R39-S 390 10 / 5 / 2 25 45 100 500 1.12 470 Orange White Brown CS1008-R47-S 470 10 / 5 / 2 25 45 100 450 1.19 470 Yellow Violet Brown CS1008-R56-S 560 10 / 5 / 2 25 45 100 415 1.33 400 Green Blue Brown CS1008-R62-S 620 10 / 5 / 2 25 45 100 375 1.40 300 Blue Red Brown CS1008-R68-S 680 10 / 5 / 2 25 45 100 375 1.47 400 Blue Gray Brown CS1008-R75-S 750 10 / 5 / 2 25 45 100 360 1.54 360 Violet Green Brown CS1008-R82-S 820 10 / 5 / 2 25 45 100 350 1.61 400 Gray Red Brown CS1008-R91-S 910 10 / 5 / 2 25 35 50 320 1.68 380 White Brown Brown CS1008-1R0-S 1000 10 / 5 / 2 25 35 50 290 1.75 370 Brown Black Red CS1008-1R2-S 1200 10 / 5 / 2 7.9 35 50 250 2.0 310 Brown Red Red CS1008-1R5-S 1500 10 / 5 / 2 7.9 28 50 200 2.3 330 Brown Green Red CS1008-1R8-S 1800 10 / 5 / 2 7.9 28 50 160 2.6 300 Brown Gray Red CS1008-2R2-S 2200 10 / 5 / 2 7.9 28 50 160 2.8 280 Red Red Red CS1008-2R7-S 2700 10 / 5 / 2 7.9 22 25 140 3.2 290 Red Violet Red CS1008-3R3-S 3300 10 / 5 / 2 7.9 22 25 110 3.4 290 Orange Orange Red CS1008-3R9-S 3900 10 / 5 / 2 7.9 20 25 100 3.6 260 Orange White Red CS1008-4R7-S 4700 10 / 5 / 2 7.9 20 25 90 4.0 260 Yellow Violet Red CS1008-5R6-S 5600 10 / 5 / 2 7.9 18 7.9 45 4.0 240 Green Blue Red CS1008-6R8-S 6800 10 / 5 / 2 7.9 18 7.9 40 4.9 200 Blue Gray Red CS1008-8R2-S 8200 10 / 5 / 2 7.9 18 7.9 25 6.0 170 Gray Red Red CS1008-100-S 10000 10 / 5 / 2 2.52 18 7.9 25 8.0 150 Brown Black Orange CS1008-150-S 15000 10 / 5 / 2 2.52 15 7.9 20 11 100 Brown Green Orange (MHz) Min Test Frequency (MHz) Note: When ordering, please specify tolerance code. Tolerance : G=±2% , J=±5% , K=±10%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Irms for a 15℃ temperature rise from 25℃ ambient with current  Measure Equipment： 1st Code 3rd Code L & Q：Agilent E4991A+Agilent HP16197A SRF：Agilent HP8753D/Agilent E4991A RDC：Chroma 16502 Irms：HP4284A+HP42841A/HP4285A+HP42841A Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 2nd Code COLOR CODING SMD Wire Wound Ceramic Chip Inductors – CS Series Typical L vs. Frequency Typical Q vs. Frequency Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Wire Wound Ceramic Chip Inductors – CS Series Electrical Characteristics Test Inductance Tolerance (uH) (±%) Q CS1812-1R0□-N 1.0 J 7.9 60 CS1812-1R2□-N 1.2 J 7.9 62 CS1812-1R5□-N 1.5 J 7.9 CS1812-1R8□-N 1.8 J CS1812-2R2□-N 2.2 J CS1812-2R7□-N 2.7 CS1812-3R3□-N CS1812-3R9□-N Test SRF RDC Irms (MHz) Min (Ω) Max (mA) Typ 50 310 1.2 480 50 230 1.2 480 65 50 210 1.6 430 7.9 68 50 190 2.0 380 7.9 63 50 170 2.2 340 J 7.9 60 50 160 3.2 300 3.3 J 7.9 60 50 145 3.8 270 3.9 J 7.9 61 50 130 5.0 240 CS1812-4R7□-N 4.7 J 7.9 60 50 115 5.4 230 CS1812-5R6□-N 5.6 J 7.9 42 50 100 5.7 220 CS1812-6R8□-N 6.8 J 7.9 32 50 90 6.6 210 CS1812-8R2□-N 8.2 J 7.9 35 50 80 7.0 200 CS1812-100□-N 10 J 7.9 27 50 70 7.7 190 CS1812-120□-N 12 J 2.5 34 10 58 8.7 180 CS1812-150□-N 15 J 2.5 32 10 48 9.6 170 CS1812-180□-N 18 J 2.5 28 10 36 10.5 160 CS1812-220□-N 22 J 2.5 28 10 34 11.5 155 CS1812-270□-N 27 J 2.5 28 10 30 12.5 150 CS1812-330□-N 33 J 2.5 20 10 20 13.5 145 Part Number Frequency Min (MHz) Frequency (MHz) Note: When ordering, please specify tolerance code. Tolerance : J=±5% Operating temperature range－40℃～125℃(Including self - temperature rise)   Irms for a 15℃ temperature rise from 25℃ ambient with current  Measure Equipment： L & Q：HP4286A/HP4287A/AgilentE4991/Keysight E4982A SRF：Agilent HP8753D/Agilent E4991A RDC：Chroma 16502 Irms：HP4284A+HP42841A/HP4285A+HP42841A Typical L vs. Frequency Typical Q vs. Frequency 80 40 35 70 270 60 25 50 Q L(nH) 1R5 30 20 3R3 40 100 100 30 15 5R6 10 5R6 270 20 3R3 10 5 1R5 0 0 1 10 100 FREQUENCY(MHz) 1000 1 10 100 FREQUENCY(MHz) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 1000 SMD Wire Wound Ceramic Chip Inductors - CS Series Packaging Specifications Tape Dimensions Tape Material Figure 1 Figure 2 Figure 3 Reel Dimensions Dimensions in mm TYPE Tape Dimensions Fig. Reel Dimensions Quantity A B T W P F K A B C D PCS / Reel CS0201 1 0.47 0.57 0.65 8 2 3.5 0.45 178 60 12 1.5 4000 CS0402 1 0.67 1.20 0.75 8 2 3.5 0.59 178 60 12 1.5 4000 CS0603 2 1.20 1.80 1.05 8 4 3.5 - 178 60 12 1.5 4000 CS0805 3 1.85 2.45 0.23 8 4 3.5 1.50 178 60 12 1.5 2000 CS1008 3 2.80 2.95 0.23 8 4 3.5 2.20 178 60 12 1.5 2000 CS1812 3 3.90 4.90 0.30 12 8 5.5 3.20 178 60 16 1.4 600
