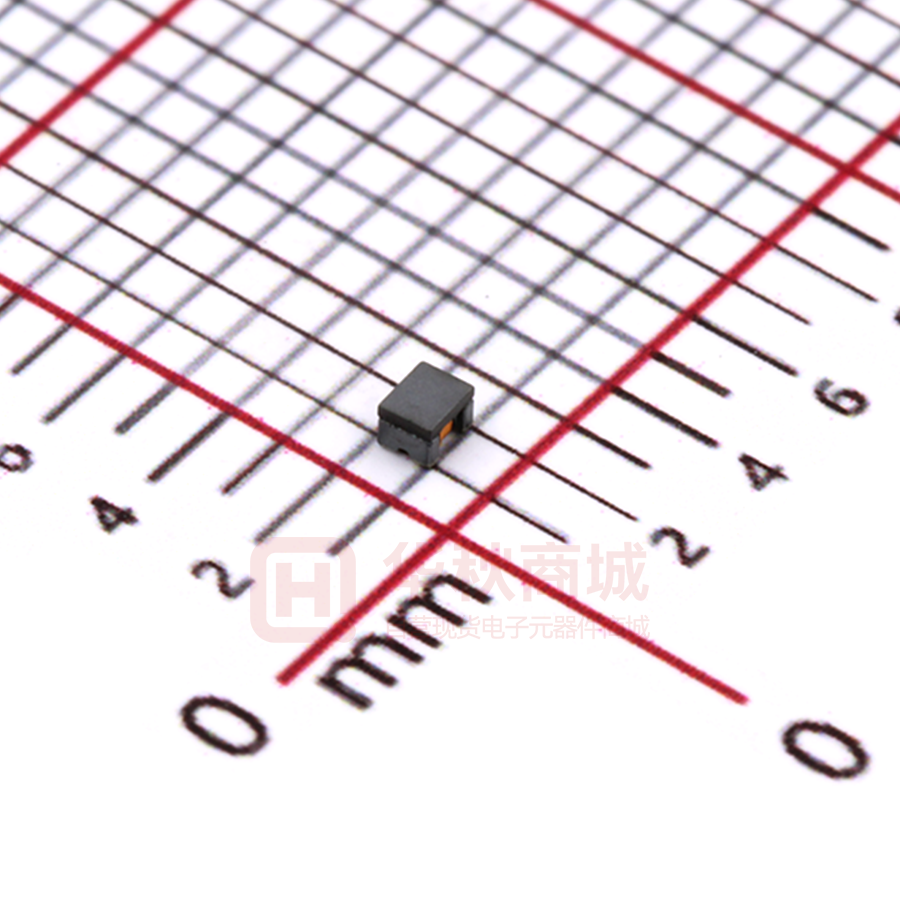

CUW11T-900M-N

Cautions and Warnings Please be noted that this spec is only for reference if you have projects designed with the product number listed in. If you are looking for new project design-in, please find BWCU_02 Series specification/datasheet on Chilisin website. Or you may find our sales contact for more information on old part number at your convenience. Appreciated your attention and understanding. Note: Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Common Mode Choke - CUW Series CUW Series For USB 2.0, IEEE1394b, LVDS Applications A full series of common mode choke is designed for excellent noise attenuation with compact sizing for use in wide range of applications. Both standard series and custom designs are available. Features Applications  RoHS Compliant  USB line for personal computers and peripheral  Miniature SMD type common mode filter for fully automated assembly  IEEE 1394 line for personal computers, DVC, STB  Wide impedance range (30Ω ~ 2200Ω) for noise suppression  LVDS, panel line for liquid display panels, graph card,etc.  Excellent solderability Product Identification  Packaging: T：Tape and Reel Shape and Dimensions Recommended Pattern CUW10/11/31 CUW21 Dimensions in mm Dimensions in mm TYPE A B C D E TYPE A B C D CUW10 1.60±0.2 0.80±0.2 1.10±0.2 0.25 0.33 CUW10 0.25 0.75 0.61 2.29 CUW11 1.25±0.2 1.00±0.2 0.8±0.1 0.32 0.33 CUW11 0.36 1.00 0.59 1.75 CUW21 2.05±0.2 1.25±0.2 1.20±0.2 0.50 0.40 CUW21 0.50 1.27 0.80 2.60 CUW31 3.20±0.2 1.60±0.2 1.90±0.2 0.50 0.60 CUW31 0.40 1.60 1.60 3.70 SMD Common Mode Choke - CUW Series Electrical Characteristics Part Number Impedance Tolerance (Ω) (±%) Test Frequency (MHz) RDC Irms (Ω) Max (mA) Max Rated Withstamd Insulation Voltage Voltage Resistance (Vdc) (Vdc) (MΩ) Min CUW10T-250M-N 25 20,25 100 0.077 500 50 125 10 CUW10T-600M-N 60 20,25 100 0.109 500 50 125 10 CUW10T-900M-N 90 20,25 100 0.142 500 50 125 10 CUW10T-121M-N 120 20,25 100 0.160 500 50 125 10 CUW10T-141M-N 140 20,25 100 0.174 500 50 125 10 CUW10T-221M-N 220 20,25 100 0.209 500 50 125 10 Note: When ordering, please specify tolerance code. Tolerance: M=±20% , Y=±25%  Operating temperature range－40℃～105℃(Including self - temperature rise)  rms for 20℃ rise from 25℃ ambient  Measure Equipment： Z：Agilent HP4287A+Agilent 16197A RDC：HP4338B or Chroma 16502 (Single Wire Test Value) Irms：HP4284A+HP42841A/HP4285A+HP42841A Insulation Resistance：Agilent HP4339B Test Instruments：HP4287A Material/Impedance Analyzer Typical Impedance vs. Frequency 1000 COMMON MODE 221 141 IIMPEDANCE(Ω) 100 121 600 900 250 10 221 1 141 250 0.1 1 900 600 121 10 NORMAL MODE 100 FREQUENCY(MHz) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 1000 SMD Common Mode Choke - CUW Series Electrical Characteristics Part Number Impedance Tolerance (Ω) (±%) Test Frequency (MHz) RDC IDC (Ω) Max (mA) Rated Withstamd Insulation Voltage Voltage Resistance (Vdc) (Vdc) (MΩ) Min CUW11T-250T-N 25 30 100 0.30 400 50 125 100 CUW11T-600M-N 60 20 100 0.40 300 50 125 100 CUW11T-670M-N 67 20 100 0.25 300 50 125 100 CUW11T-900M-N 90 20 100 0.30 250 50 125 100 CUW11T-121M-N 120 20 100 0.40 200 50 125 100 CUW11T-161M-N 160 20 100 0.43 160 50 125 100 CUW11T-201M-N 200 20 100 0.80 120 50 125 100 CUW11T-331Y-N 330 25 100 1.30 100 50 125 100 Note: When ordering, please specify tolerance code. Tolerance: M=±20% , Y=±25% , T=±30%  Operating temperature range－40℃～105℃(Including self - temperature rise)  IDC for Inductance drop 10% from its value without current  Measure Equipment： Z：Agilent HP4287A+Agilent 16197A RDC：Chroma 16502 (Single Wire Test Value) IDC：HP4284A+HP42841A/HP4285A+HP42841A Insulation Resistance：Agilent HP4339B Test Instruments：HP4287A Material/Impedance Analyzer Typical Impedance vs. Frequency 10000 Common Mode 161 IMPEDANCE(Ω) 1000 121 900 670 100 600 10 161 1 121 600 0.1 1 670 10 Normal Mode 900 100 1000 FREQUENCY(MHz) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 10000 SMD Common Mode Choke - CUW Series Electrical Characteristics Rated Withstamd Insulation Voltage Voltage Resistance (Vdc) (Vdc) (MΩ) Min 450 50 125 10 0.25 400 50 125 10 0.30 360 50 125 10 100 0.35 330 50 125 10 20 100 0.30 400 50 125 10 20 100 0.35 350 50 125 10 180 20 100 0.35 330 50 125 10 CUW21T-201M-N 200 20 100 0.35 330 50 125 10 CUW21T-221M-N 220 20 100 0.35 310 50 125 10 CUW21T-261M-N 260 20 100 0.40 300 50 125 10 CUW21T-301M-N 300 20 100 0.40 290 50 125 10 CUW21T-361M-N 360 20 100 0.45 280 50 125 10 CUW21T-371M-N 370 20 100 0.45 280 50 125 10 CUW21T-501M-N 500 20 100 0.55 170 50 125 10 CUW21T-671M-N 670 20 100 0.60 140 50 125 10 CUW21T-901M-N 900 20 100 0.60 80 50 125 10 Impedance Tolerance (Ω) (±%) CUW21T-300M-N 30 20 CUW21T-670M-N 67 CUW21T-750M-N 75 CUW21T-900M-N Test RDC IDC (Ω) Max (mA) 100 0.20 20 100 20 100 90 20 CUW21T-121M-N 120 CUW21T-161M-N 160 CUW21T-181M-N Part Number Frequency (MHz) Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－40℃～105℃(Including self - temperature rise)  IDC for Inductance drop 10% from its value without current  Measure Equipment： Z：Agilent HP4287A+Agilent 16197A RDC：Chroma 16502 (Single Wire Test Value) IDC：HP4284A+HP42841A/HP4285A+HP42841A Insulation Resistance：Agilent HP4339B Test Instruments：HP4291A Material/Impedance Analyzer Typical Impedance vs. Frequency Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Common Mode Choke – CUW Series Electrical Characteristics Rated Withstamd Insulation Voltage Voltage Resistance (Vdc) (Vdc) (MΩ) Min 370 50 125 10 0.3 370 50 125 10 0.4 340 50 125 10 100 0.4 320 50 125 10 100 0.5 310 50 125 10 20 100 0.8 260 50 125 10 1000 20 100 1.0 230 50 125 10 2200 20 100 1.2 200 50 125 10 Impedance Tolerance (Ω) (±%) CUW31T-900M-N 90 20 CUW31T-121M-N 120 CUW31T-161M-N 160 CUW31T-221M-N CUW31T-261M-N Test RDC IDC (Ω) Max (mA) 100 0.3 20 100 20 100 220 20 260 20 CUW31T-601M-N 600 CUW31T-102M-N CUW31T-222M-N Part Number Frequency (MHz) Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－40℃～105℃(Including self - temperature rise)  IDC for Inductance drop 10% from its value without current  Measure Equipment： Z：Agilent HP4287A+Agilent 16197A RDC：Chroma 16502 (Single Wire Test Value) IDC：HP4284A+HP42841A/HP4285A+HP42841A Insulation Resistance：Agilent HP4339B Test Instruments：HP4291A Material/Impedance Analyzer Typical Impedance vs. Frequency Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Common Mode Choke – CUW Series Packaging Specifications Tape Dimensions Reel Dimensions 4.0 ± 0.1 2.0 ± 0.05 1.5 +0.1/-0.0 T 1.75 ± 0.1 F BB W A K Trailer P O C Leader End O End Blank part (160mm min.) O Blank Compartments with Cover Tape and Leader (330mm min.) Dimensions in mm TYPE Tape Dimensions Reel Dimensions Quantity A B T W P F K A B C D PCS / Reel CUW10 0.95 1.70 0.24 8 4 3.5 1.15 178 60 12 1.5 2000 CUW11 1.15 1.45 0.24 8 4 3.5 1.00 178 60 12 1.5 2000 CUW21 1.50 2.25 0.24 8 4 3.5 1.35 178 60 12 1.5 2000 CUW31 1.76 3.47 0.22 8 4 3.5 2.05 178 60 12 1.5 2000
