P1
TAI-TECH

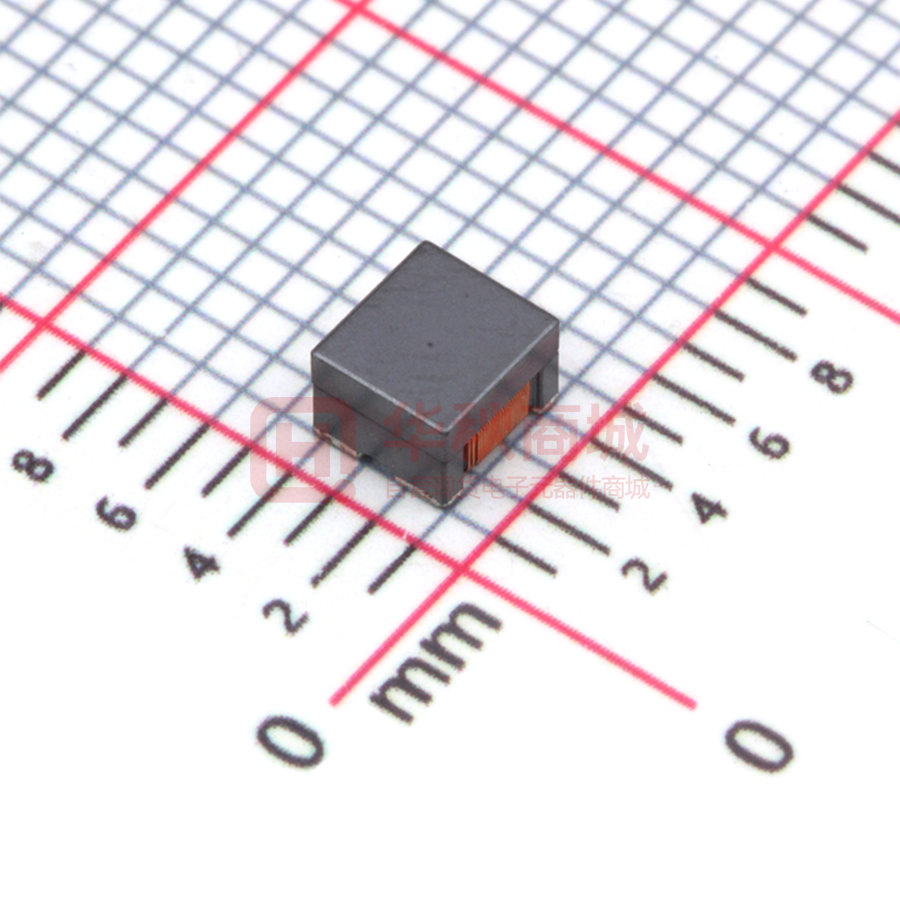

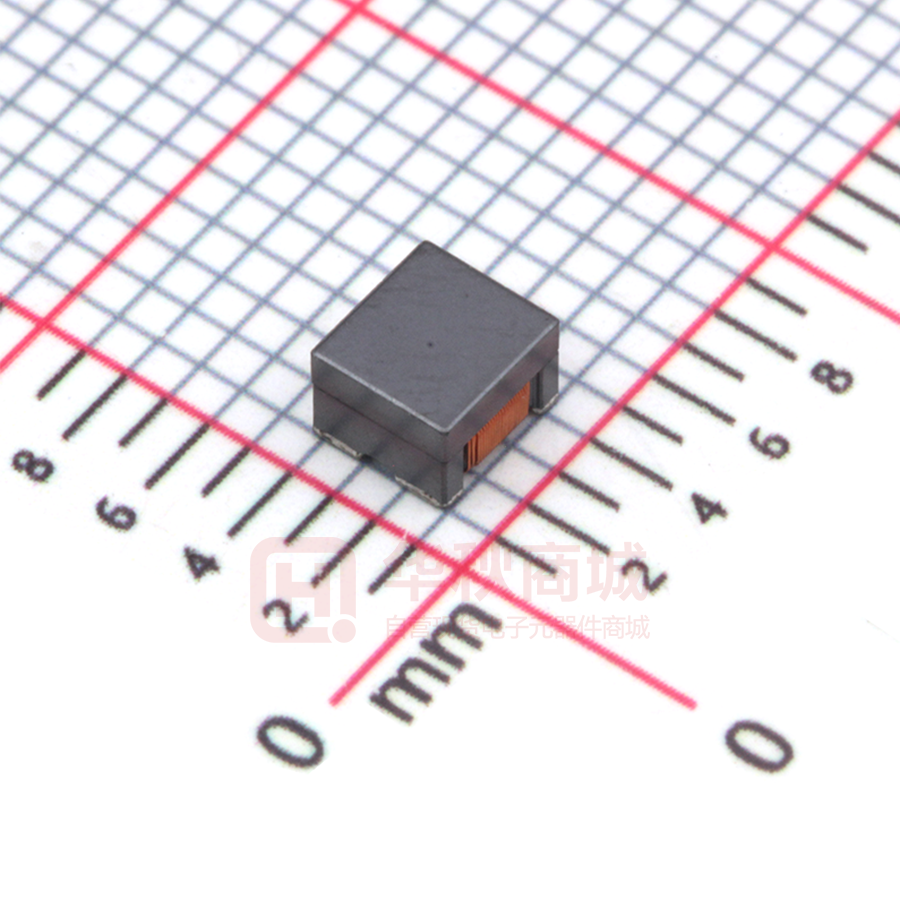

Wire Wound Type Common Mode Filter
DCM3532F2SF-800T02
ECN HISTORY LIST
REV
DATE
DESCRIPTION
APPROVED
CHECKED
DRAWN
1.0
18/07/02
新發行
楊祥忠
林志鴻
張展耀
備
註
www.tai-tech.com.tw
P2
TAI-TECH
Wire Wound Type Common Mode Filter
DCM3532F2SF-800T02
1. Features
1. High common mode impedance at high frequency effects excellent noise
Halogen
Pb
Halogen-free
Pb-free
suppression performance.
2. DCM3532F2SF series realizes small size and low profile. 3.5x3.2x2.2 mm
3. 100% Lead(Pb) & Halogen-Free and RoHS compliant.
2. Dimension
A
C
Recommended PC Board Pattern
D
D
B
D
D
Series
A(mm)
B(mm)
C(mm)
3532F2SF
3.5±0.2
3.2±0.2
2.2±0.2
D1(mm)
D2(mm)
L(mm)
H(mm)
G1(mm)
G2(mm)
4.40
3.80
2.45
0.90
0.63±0.05 1.18±0.05
Units: mm
3. Part Numbering
DCM 3532 F
A
B
C
2 S
F
D
F
E
-
800 T02
G
H
A: Series
B: Dimension
C: Material
Ferrite Core
D: Number of Lines
2=2 lines
E: Type
S=Shielded
F: Lead free
G: Inductance
H: Rated Current
800=80μH
02=200mA
4. Specification
TAI-TECH
Part Number
DCM3532F2SF-800T02
Inductance
(μH)
[100kHz]
DC
Resistance
(Ω) max.
Rated
Current
(mA)
Rated
Volt.
(Vdc)
IR
(Ω) min.
75~160
1.3
200
50
10M
www.tai-tech.com.tw
P3
TAI-TECH
100000
DCM3532F2SF-800
Common Mode
IMPEDANCE(Ohm)
10000
1000
100
10
Normal Mode
1
1
10
100
1000
FREQUENCY(MHz)
5.Schematic Diagram
6. MEASURING CIRCUITS 2LINE
7. Materials
No.
Description
Specification
a.
Upper Plate
Ferrite
b.
Core
Ferrite Core
c
Termination
Tin (Pb Free)
d
Wire
Enameled Copper Wire
www.tai-tech.com.tw
10000
P4
TAI-TECH
8. Reliability and Test Condition
Item
Performance
Operating temperature
-40~+125℃ (Including self - temperature rise)
Storage temperature
-40~+125℃ (on board)
Test Condition
Electrical Performance Test
Z(common mode)
DCR
Agilent-4291A+ Agilent -16197A
Refer to standard electrical characteristics list.
I.R.
Temperature Rise Test
Agilent-4338B
Agilent4339
Rated Current < 1A ∆T 20℃Max
1.Applied the allowed DC current.
2.Temperature measured by digital surface thermometer
Rated Current ≧1A ∆T 40℃Max
Reliability Test
Preconditioning: Run through IR reflow for 2 times.( IPC/JEDEC
J-STD-020DClassification Reflow Profiles)
Temperature:125±2℃
Life Test
Applied current:rated current
Duration:1000±12hrs
Measured at room temperature after placing for 24±2 hrs
Preconditioning: Run through IR reflow for 2 times.( IPC/JEDEC
J-STD-020DClassification Reflow Profiles
Load Humidity
Humidity:85±2﹪R.H,
Temperature:85℃±2℃
Moisture Resistance
Appearance:No damage.
Inductance:within±10% of initial value
Impedance:within±15% of initial value
RDC:within ±15% of initial value and shall not
exceed the specification value
Thermal
shock
Duration:1000hrs Min. with 100% rated current
Measured at room temperature after placing for 24±2 hrs
Preconditioning: Run through IR reflow for 2 times.( IPC/JEDEC
J-STD-020DClassification Reflow
Profiles
1. Baked at50℃ for 25hrs, measured at room temperature after
placing for 4 hrs.
2. Raise temperature to 65±2℃ 90-100%RH in 2.5hrs, and
keep 3 hours, cool down to 25℃ in 2.5hrs.
3. Raise temperature to 65±2℃ 90-100%RH in 2.5hrs, and
keep 3 hours, cool down to 25℃ in
2.5hrs,keep at 25℃ for 2 hrs then keep at -10℃ for 3 hrs
4. Keep at 25℃ 80-100%RH for 15min and vibrate at the
frequency of 10 to 55 Hz to 10 Hz, measure at
room temperature after placing for 1~2 hrs.
Preconditioning: Run through IR reflow for 2 times.( IPC/JEDEC
J-STD-020DClassification
Reflow Profiles
Condition for 1 cycle
Step1:-40±2℃ 30±5min
Step2:25±2℃ ≦0.5min
Step3:125±2℃ 30±5min
Number of cycles: 500
Measured at room temperature after placing for 24±2 hrs
Oscillation Frequency: 10~2K~10Hz for 20 minutes
Vibration
Equipment: Vibration checker
Total Amplitude:1.52mm±10%
Testing Time : 12 hours(20 minutes, 12 cycles each of 3
orientations)。
www.tai-tech.com.tw
P5
TAI-TECH
Item
Performance
Bending
Appearance:No damage.
Impedance:within±15% of initial value
Inductance:within±10% of initial value
RDC:within ±15% of initial value and shall not
exceed the specification value
Shock
Solder ability
More than 95% of the terminal electrode should
be covered with solder。
Test Condition
Shall be mounted on a FR4 substrate of the
following dimensions: >=0805 inch(2012mm):40x100x1.2mm
=0805 inch(2012mm):1.2mm
0805:1kg ,
