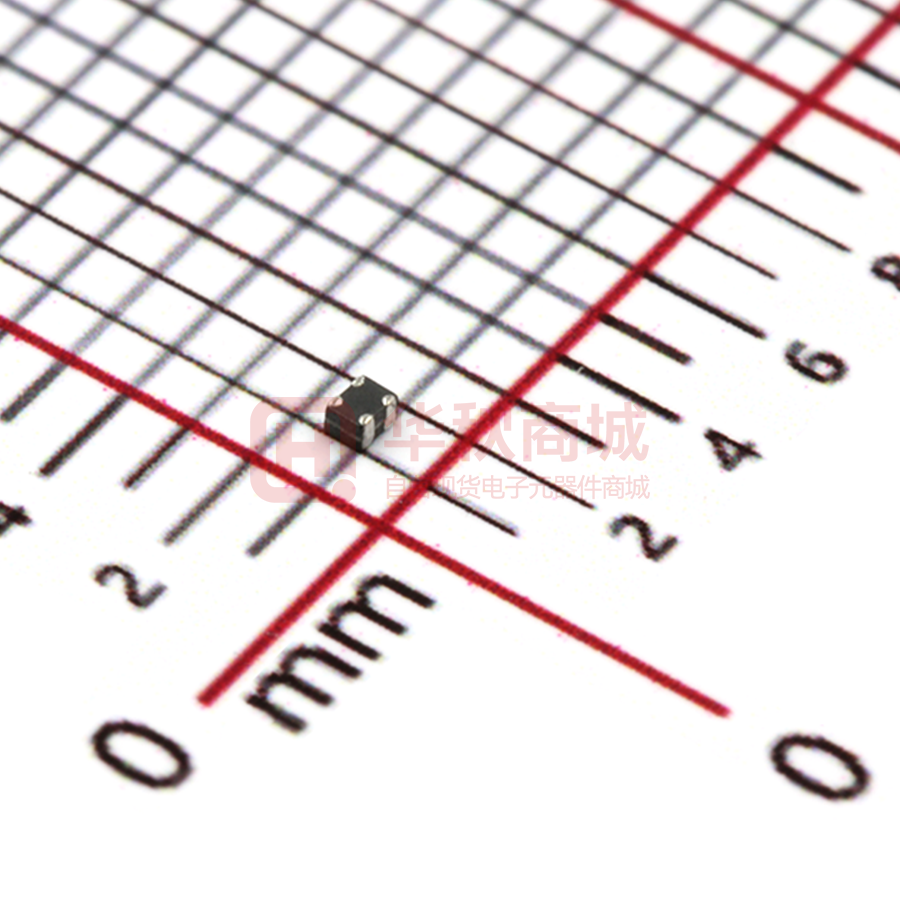

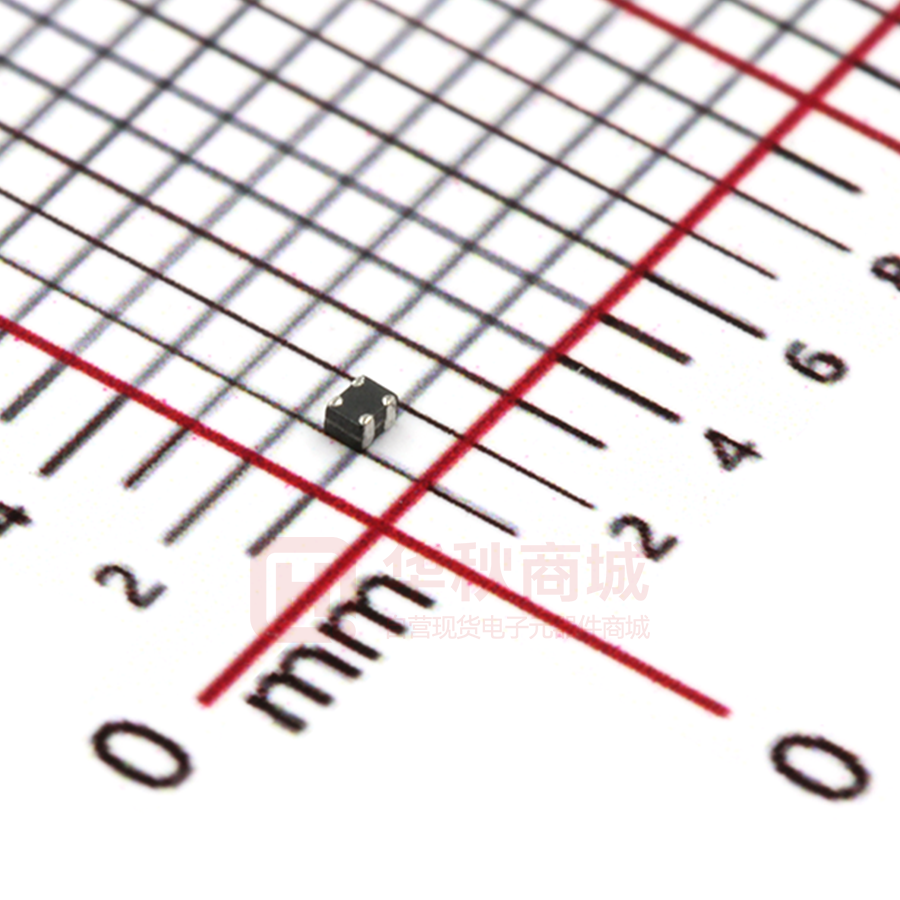

ICMF062P900MFR

ITEM P/N Page Common Mode Filter ICMF062P900MFR 1 Data Sheet - ITEM : COMMON MODE FILTER - PART NO : ICMF062P900MFR - CONDITION : 1. 2. 3. 4. ITEM P/N Page Common Mode Filter ICMF062P900MFR 2 1. GENERALS • This specification covers the engineering requirements for the ICMF062P900MFR (Common Mode Filter) 2. FEATURES • Effective for suppressing common mode noise and almost no effect for high speed differential data line • Ultra low profile (0.87ⅹ0.67ⅹ0.50mm) • Ceramic multilayer type SMD component • Non-polarized product • It is a product conforming to RoHS directive. 3. APPLICATIONS • LVDS lines in notebook computers • USB2.0, IEEE1394, DVI, HDMI lines in PDP, LCD TV, DVD Player, PC, Audio player, DSC • MDDI, MIPI in mobile phone 4. PRODUCT SPECIFICATIONS 4. 1 PART NUMBER CODE ICMF ① 06 ② 2P ③ 900 ④ M ⑤ F ⑥ R ⑦ ① Series name of ICT’s Common Mode Filter ② Dimensions, 0.87mm (L) ⅹ 0.67mm (W) ③ The Number of lines, 2P = 2 lines ④ Common Mode Impedance (at 100MHz), 90 ⅹ 100= 90Ω ⑤Tolerance of common mode impedance, M= ±25% ⑥ Type of electrode plating: F= Lead Free ⑦ Packing Type, R= Reel ITEM P/N Page Common Mode Filter ICMF062P900MFR 3 4. 2 SPECIFICATION OF ELECTRICAL CHARACTERISTICS Characteristics Common Mode Impedance Resistance Insulation Resistance Rated Current symbol ZCM RDC IRCR IR Units Ω Ω MΩ mA Test Condition @100MHz 25℃±2℃ 5V 25℃±2℃ Value 90(±25%) Max 6.0 Min 10 Max 100 CTF - Impedance Curves -Transmission characteristics (S-parameter) 0 10k Differential Mode S21 -3 -6 -9 Insertion Loss(dB) Impedance () 1k 100 -12 -15 -18 -21 -24 10 -27 -30 1 1M 10M 100M Frequency (Hz) 1G 10G -33 1M 10M 100M Frequency(Hz) 1G 10G ITEM P/N Page Common Mode Filter ICMF062P900MFR 4 4. 3 OPERATING TEMPERATURE DESCRIPTION REQUIREMENTS Operating Temperature -40℃ ∼ + 85℃ 5. Equivalent Circuit & Recommended Foot print & Stencil Mask Unit : mm [ EQUIVALENT CIRCUIT ] [ Foot print ] [ Stencil Mask ] 6. MECHANICAL PROPERTY 6. 1 Appearance and Dimension Unit : mm ITEM P/N Page Common Mode Filter ICMF062P900MFR 5 7. TEST METHOD OF ELECTRICAL PROPERTY - PIN INDEX ITEM Rdc CM Impedance DESCRIPTION Pin 1 to 3, 2 to 4 SOURCE EQUIPMENT 10mA DC Source Source Meter Pin 1-2(Short) to Pin 3-4(Short) LCR Meter (3GHz) 7. 1 Rdc (Model: KEITHLEY 2400) - Off power and On power. - Press button ‘Ω’ of MEAS. - Measure Rdc value using test fixture. Terminal Terminal 7. 2 Common Mode Impedance (Model: Agilent 4287A) - Calibrate equipment - Measure CM Impedance (at 100MHz) using test fixture. Terminal Terminal ITEM P/N Page Common Mode Filter ICMF062P900MFR 6 8. REFLOW CONDITION 8. 1 RECOMMENDED SOLDERING PROFILE (Lead-free condition) (℃ ) Dwell: max 260℃-10sec 185℃ 160℃ Δ T≤ 220℃ 130 ℃ 250℃ ΔT ≤130℃ 30~50 sec 30~50 sec Soldering Soldering Pre-heating 110 ± 10 sec Gradual Cooling 25℃ 60 sec Time (sec) 8. 2 RECOMMENDED LEAD-FREE SOLDER PASTE - Supplier : Tamura Donghwa - Main composition : Sn-Ag-Cu - Ratio of composition : 96.5%-3.0%-0.5% 8. 3 RECOMMENDED HAND SOLDER - Max Temperature: Max 380 ℃(Max 5sec) ITEM P/N Page Common Mode Filter ICMF062P900MFR 7 9. PACKING SPECIFICATION 9. 1 TAPING FIGURE 9. 2 CARRIER TAPE DIMENSIONS Unit : mm SYMBOL A B E F D0 P1 P2 P0 10P0 W T T’ DIMENSION 0.80 1.02 1.75 3.50 1.55 2.00 2.00 4.00 40.00 8.00 0.60 0.63 TOLERANCE 0.03 0.03 0.05 0.05 0.03 0.05 0.05 0.05 0.10 0.10 0.04 0.03 ITEM P/N Page Common Mode Filter ICMF062P900MFR 8 9. 3 REEL DIMENSIONS (1) Reel Materials: Polystyrene (2) Label (3) Taping - Standard Packing Quantity per Reel (178) - PE Tape: 10,000pcs / reel Unit : mm CODE A B C D E W t R DIMENSION 1782 Min. 50 130.5 200.8 3.00.5 101.5 1.30.2 1.00.2 9. 4 LABEL CODE ICMF062P900MFR K01218LA B 001 QTY 10,000 PCS ICMF062P900MFR K01218LA 0806, 2P, 90ohm - P/N : Part Number - L/N : Lot Number - C/N : Customer Number - SPEC : Size, Line numbers & CM Impedance - DATE : Date code - Q’TY : Quantity 150401 10,000 ITEM P/N Page Common Mode Filter ICMF062P900MFR 9 9. 5 REEL PACKING Part Number / Company Name MADE IN KOREA (Country of region ) (1) (2) Product box material : Card board 5 Reels in each SPQ Box (3) PQ Box contains 10 SPQ Boxes (50 Reels) Packing box + Product weight Size L x W x H(mm) Product Common Mode Filter Common Mode ESD Filter Size weight(g) /1 unit S-box + 5reel M-box + 5S-box L-box + 10S-box 185 x 70 x 185 370 x 190 x 200 380 x 370 x 200 Total(g) Chip(g) Total(g) Chip(g) Total(g) Chip(g) 0806 0.00124 643 62 3215 310 6147 620 1210 0.00480 750 96 3758 480 7503 960 2012 0.00750 804 150 4028 750 8043 1500 0806 0.00128 646 65 3230 325 6177 650 1210 0.00490 752 98 3768 490 7523 980 1608 0.00237 701 47 3515 237 7017 474 2012 0.00760 806 152 4038 760 8063 1520
