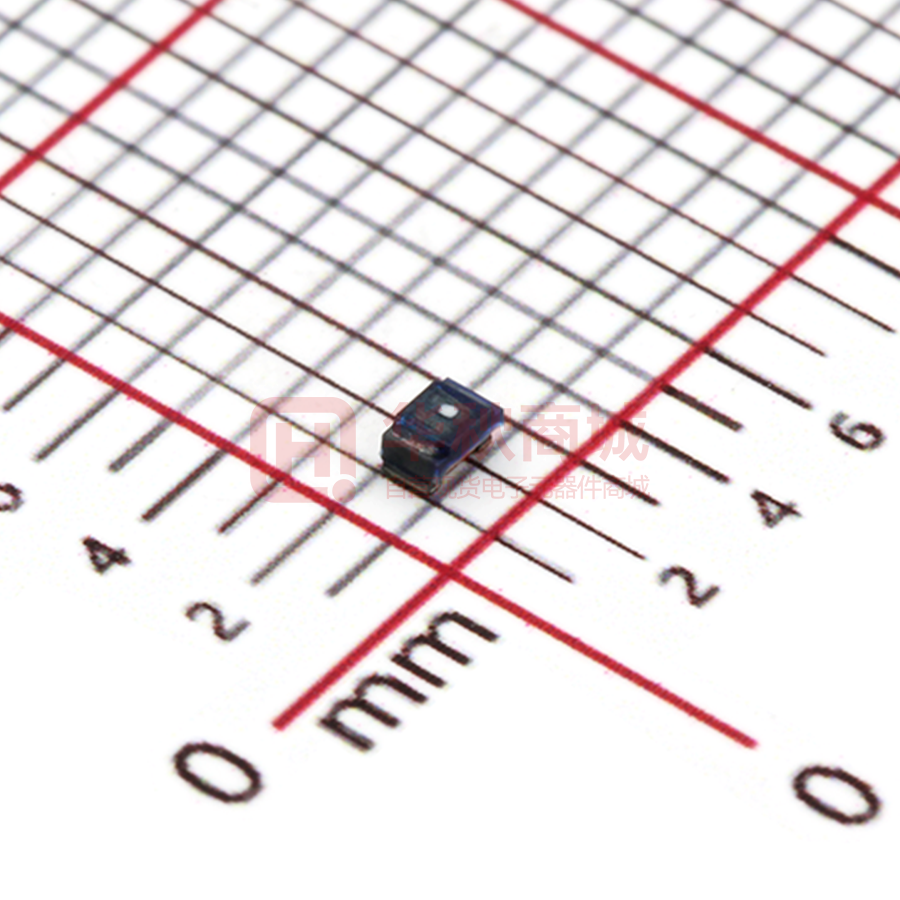

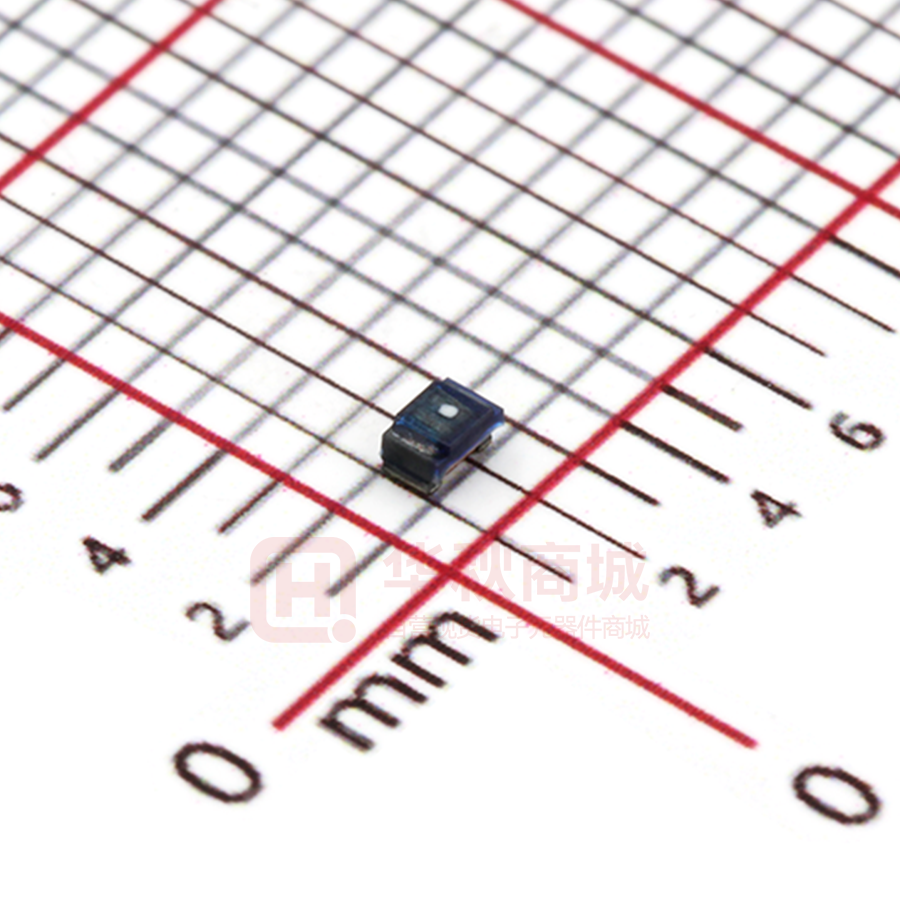

LS0603-100K-N

Cautions and Warnings Please be noted that this spec is only for reference if you have projects designed with the product number listed in. If you are looking for new project design-in, please find BWLS Series specification/datasheet on Chilisin website. Or you may find our sales contact for more information on old part number at your convenience. Appreciated your attention and understanding. Note: Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Wire Wound Ferrite Chip Inductors - LS Series LS Series LS Series is the newest in open type ferrite wire wound chip inductors. The wire wound ferrite construction supports higher SRF, lower DCR and superior Q values than other ferrite chip inductors. Features Applications  RoHS compliant  Telecom and datacom applications such as xDSL  Very strong solderability by reflow soldering and soldering iron  Cable modem  Highly accurate dimensions  Set-top box  Can be mounted automatically  CATV filter/tuner  Terminals are highly resistant to external forces  Wireless LAN, etc  Highly resistant to mechanical shocks and pressure  Highly reliable in environments of sudden temperature change and humidity  Low DCR & better Q value in ferrite series Product Identification Shape and Dimensions / Recommended Pattern LS0201 LS0402/0603/0805/1008 Dimensions in mm TYPE A Max B Max C Max D E F G H I J LS0201 0.58 0.46 0.45 - 0.38 0.12 - 0.46 0.18 0.22 LS0402 1.02±0.1 0.55±0.1 0.56±0.1 0.25 0.54 0.23 0.50 0.65 0.38 0.44 LS0603 +0.2 -0.1 +0.2 -0.1 0.38 0.86 0.33 0.76 1.02 0.64 0.64 LS0805 1.6 2.4 1.1±0.1 1.72 0.9 1.52 0.70 1.02 0.50 1.27 1.78 1.02 0.76 LS1008 2.99 2.50 2.20 0.70 1.52 0.51 2.03 2.54 1.02 1.27 SMD Wire Wound Ferrite Chip Inductors – LS Series Electrical Characteristics Part Number Inductance Tolerance Test Frequency Q SRF RDC Irms (nH) (±%) (MHz) Typ. (MHz)Min (Ω)Max. (mA)Typ. 1600 LS0201-2N2□-N 2.2 10 100 5 3000 0.09 LS0201-6N8□-N 6.8 10 / 5 100 6 2400 0.11 950 LS0201-7N8□-N 7.8 10 / 5 100 7 2500 0.11 1050 LS0201-15N□-N 15 10 / 5 100 7 2300 0.12 750 LS0201-17N□-N 17 10 / 5 100 7 2400 0.13 750 LS0201-26N□-N 26 10 / 5 100 7 2200 0.20 750 LS0201-28N□-N 28 10 / 5 100 7 2400 0.2. 700 LS0201-39N□-N 39 10 / 5 100 7 2300 0.24 580 LS0201-43N□-N 43 10 / 5 100 7 2200 0.24 600 LS0201-56N□-N 56 10 / 5 100 7 2200 0.26 550 LS0201-59N□-N 59 10 / 5 100 7 2200 0.26 500 LS0201-76N□-N 76 10 / 5 100 7 2000 0.30 500 LS0201-78N□-N 78 10 / 5 100 7 2000 0.30 500 LS0201-R10□-N 100 10 / 5 100 7 1500 0.41 430 LS0201-R13□-N 130 10 / 5 100 7 1500 0.44 400 LS0201-R16□-N 160 10 / 5 100 7 1400 0.71 350 LS0201-R20□-N 200 10 / 5 50 9 1400 0.95 260 Note: When ordering, please specify tolerance code. Tolerance : J=±5% , K=±10%  Operating temperature range－25℃～105℃(Including self - temperature rise)  Irms for a 15℃ temperature rise from 25℃ ambient with current  Measure Equipment： L & Q：HP4286A/HP4287A/AgilentE4991/Keysight E4982A SRF：Agilent E4991A RDC：HP4287A/Keysight E4982A Irms：HP4284A+HP42841A Test Instruments：Agilent E4991A Material/Impedance Analyzer Typical L vs. Frequency Typical Q vs. Frequency 1000 16 14 R20 R20 100 12 56N 10 Q L(nH) 56N 10 56N 26N 8 26N 6 2N2 6N8 1 4 2N2 2 0 0.1 1 10 100 FREQUENCY (MHz) 1000 10000 1 10 100 FREQUENCY (MHz) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 1000 SMD Wire Wound Ferrite Chip Inductors – LS Series Electrical Characteristics Inductance Tolerance Test Frequency Q SRF RDC Irms (uH) (±%) (MHz) Typ. (MHz)Typ. (Ω) Max (mA)Typ. LS0402-18N-N 0.018 10 / 5 100 10 2600 0.055 1600 LS0402-20N-N 0.020 10 / 5 100 10 2600 0.050 1600 LS0402-22N-N 0.022 10 100 10 2500 0.072 1300 LS0402-33N-N 0.033 10 / 5 100 10 2300 0.060 1400 LS0402-36N-N 0.036 10 / 5 100 10 2300 0.092 1000 LS0402-39N-N 0.039 10 / 5 100 10 2200 0.150 830 LS0402-51N-N 0.051 10 100 10 1930 0.070 1100 LS0402-56N-N 0.056 10 100 10 1900 0.125 900 LS0402-72N-N 0.072 10 / 5 100 10 1650 0.100 900 LS0402-78N-N 0.078 10 / 5 100 10 1600 0.190 850 LS0402-R10-N 0.10 10 100 9 1400 0.160 900 LS0402-R14-N 0.14 10 / 5 50 11 1220 0.260 540 LS0402-R18-N 0.18 10 50 11 1150 0.330 560 LS0402-R20-N 0.20 10 / 5 50 11 1000 0.440 400 LS0402-R22-N 0.22 10 / 5 50 11 1150 0.530 380 LS0402-R25-N 0.25 10 / 5 25 11 900 0.360 520 LS0402-R27-N 0.27 10 25 11 860 0.550 360 LS0402-R30-N 0.30 10 / 5 25 11 860 0.410 420 LS0402-R33-N 0.33 10 / 5 7.9 11 820 0.680 350 LS0402-R36-N 0.36 10 / 5 7.9 11 810 0.575 360 LS0402-R39-N 0.39 10 / 5 7.9 11 760 0.890 300 LS0402-R42-N 0.42 10 / 5 7.9 11 700 1.100 340 LS0402-R47-N 0.47 10 7.9 11 650 0.730 310 LS0402-R56-N 0.56 10 / 5 7.9 11 600 1.100 200 Part Number Note: When ordering, please specify tolerance code. Tolerance : J=±5% , K=±10%  Operating temperature range－25℃～105℃(Including self - temperature rise)  Irms for a 15℃ temperature rise from 25℃ ambient with current  Measure Equipment： L & Q：Agilent E4991A+Agilent HP16197A SRF：Agilent E4991A RDC：Chroma 16502 Irms：HP4284A+HP42841A Test Instruments：Agilent E4991A Material/Impedance Analyzer Typical L vs. Frequency Typical Q vs. Frequency 1000 16 R56 14 R56 R27 R27 12 R10 100 L(nH) R10 10 Q 56N 20N 20N 8 6 10 56N 4 2 0 1 1 10 100 FREQUENCY (MHz) 1000 10000 1 10 100 FREQUENCY (MHz) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 1000 SMD Wire Wound Ferrite Chip Inductors – LS Series Electrical Characteristics Inductance Tolerance Test Frequency Q SRF RDC IDC (uH) (±%) (MHz) Typ. (MHz) Min (Ω) Max (mA) LS0603-47N-N 0.047 10 / 5 7.9 17 1700 0.075 1500 Black LS0603-72N-N 0.072 10 / 5 7.9 17 1700 0.12 1500 Brown LS0603-R10-N 0.10 10 / 5 7.9 17 1650 0.13 1500 Red LS0603-R12-N 0.12 10 / 5 7.9 17 1350 0.15 1500 Orange LS0603-R15-N 0.15 10 / 5 7.9 17 1350 0.15 1450 Yellow LS0603-R18-N 0.18 10 / 5 7.9 17 1150 0.15 1400 Green LS0603-R22-N 0.22 10 / 5 7.9 17 1050 0.16 1350 Blue LS0603-R24-N 0.24 10 / 5 7.9 17 1050 0.19 1300 Violet LS0603-R27-N 0.27 10 / 5 7.9 17 1050 0.30 1050 Gray LS0603-R33-N 0.33 10 / 5 7.9 17 850 0.46 1200 White LS0603-R39-N 0.39 10 / 5 7.9 17 810 0.51 1200 Black LS0603-R47-N 0.47 10 / 5 7.9 17 720 0.62 1050 Brown LS0603-R56-N 0.56 10 / 5 7.9 17 600 0.44 850 Red LS0603-R68-N 0.68 10 / 5 7.9 17 600 0.52 850 Orange LS0603-R78-N 0.78 10 / 5 7.9 17 460 0.83 850 Yellow LS0603-R82-N 0.82 10 / 5 7.9 17 480 0.69 750 Green LS0603-R91-N 0.91 10 / 5 7.9 17 330 0.76 670 Black LS0603-1R0-N 1.0 10 / 5 7.9 18 310 0.81 600 Blue LS0603-1R2-N 1.2 10 / 5 7.9 17 270 0.87 550 Violet LS0603-1R5-N 1.5 10 / 5 7.9 17 270 1.06 540 Gray LS0603-1R8-N 1.8 10 / 5 7.9 17 230 1.10 520 White LS0603-2R2-N 2.2 10 / 5 7.9 17 140 1.20 500 Black LS0603-2R7-N 2.7 10 / 5 7.9 17 105 1.50 480 Brown LS0603-3R3-N 3.3 10 / 5 7.9 17 84 1.50 440 Red LS0603-3R9-N 3.9 10 / 5 7.9 17 80 1.60 430 Orange LS0603-4R7-N 4.7 10 / 5 7.9 18 69 2.10 420 Yellow LS0603-5R6-N 5.6 10 / 5 7.9 18 65 2.60 400 Green LS0603-6R8-N 6.8 10 / 5 7.9 19 55 3.10 400 Blue LS0603-7R8-N 7.8 10 / 5 7.9 17 47 3.50 400 Violet LS0603-8R2-N 8.2 10 / 5 7.9 17 42 3.80 400 Gray LS0603-100-N 10 10 / 5 7.9 19 40 4.80 300 White Part Number Note: When ordering, please specify tolerance code. Tolerance : J=±5% , K=±10%  Operating temperature range－25℃～105℃(Including self - temperature rise)  IDC for Inductance drop 10% from its value without current  Measure Equipment： L & Q：Agilent E4991A+Agilent HP16197A SRF：Agilent HP8753D/Agilent E4991A RDC：Chroma 16502 IDC：HP4284A+HP42841A/HP4285A+HP42841A Test Instruments：Agilent E4991A Material/Impedance Analyzer Typical L vs. Frequency Typical Q vs. Frequency Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Color SMD Wire Wound Ferrite Chip Inductors – LS Series Electrical Characteristics Inductance Tolerance Test Frequency Q SRF RDC IDC (uH) (±%) (MHz) Typ. (MHz) Min (Ω) Max (mA) LS0805-78N-N 0.078 10 / 5 7.9 19 1440 0.06 2000 LS0805-90N-N 0.090 10 7.9 19 1200 0.07 2000 Red LS0805-R11-N 0.11 10 / 5 7.9 19 1200 0.07 2000 Brown LS0805-R47-N 0.47 10 / 5 7.9 19 480 0.40 800 Red LS0805-R56-N 0.56 10 / 5 7.9 35 480 0.40 800 Yellow LS0805-R68-N 0.68 10 / 5 7.9 20 480 0.40 800 Orange LS0805-R91-N 0.91 10 / 5 7.9 20 400 0.69 700 Yellow LS0805-1R0-N 1.0 10 / 5 7.9 20 400 0.69 700 Yellow LS0805-1R2-N 1.2 10 / 5 7.9 20 330 0.83 700 Red LS0805-1R5-N 1.5 10 / 5 7.9 20 330 0.83 700 Green LS0805-1R8-N 1.8 10 / 5 7.9 20 300 1.00 650 Blue LS0805-2R2-N 2.2 10 / 5 7.9 20 250 1.10 650 Violet LS0805-2R7-N 2.7 10 / 5 7.9 23 200 1.25 650 Gray LS0805-3R3-N 3.3 10 / 5 7.9 23 160 1.45 650 White LS0805-3R9-N 3.9 10 / 5 7.9 23 90 1.50 600 Black LS0805-4R7-N 4.7 10 / 5 7.9 20 70 1.60 530 Brown LS0805-5R6-N 5.6 10 / 5 7.9 20 65 1.70 500 Red LS0805-6R8-N 6.8 10 / 5 7.9 20 45 1.95 470 Orange LS0805-8R2-N 8.2 10 / 5 2.5 16 45 2.10 450 Yellow LS0805-100-N 10 10 / 5 2.5 16 40 2.40 400 Green LS0805-120-N 12 10 / 5 2.5 16 38 3.20 360 Red LS0805-150-N 15 10 / 5 2.5 16 30 3.55 350 Blue LS0805-180-N 18 10 / 5 2.5 16 25 4.90 300 Orange LS0805-220-N 22 10 / 5 2.5 16 20 5.45 270 Violet LS0805-270-N 27 10 / 5 2.5 16 19 7.80 240 Gray LS0805-330-N 33 10 / 5 2.5 16 16 9.50 210 White LS0805-470-N 47 10 / 5 2.5 16 15 14.50 180 Brown Part Number Color Black Note: When ordering, please specify tolerance code. Tolerance : J=±5% , K=±10%  Operating temperature range－25℃～105℃(Including self - temperature rise)  IDC for Inductance drop 10% from its value without current  Measure Equipment： L & Q：Agilent E4991A+Agilent HP16197A SRF：Agilent E4991A RDC：HP4338B or Chroma 16502 IDC：HP4284A+HP42841A/HP4285A+HP42841A Test Instruments：Agilent E4991A Material/Impedance Analyzer Typical L vs. Frequency Typical Q vs. Frequency 50 1000 40 220 100 1R0 6R8 Q L(uH) 30 10 20 1R0 6R8 1 10 220 0 0.1 1 10 100 FREQUENCY(MHz) 1000 1 10 100 FREQUENCY(MHz) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 1000 SMD Wire Wound Ferrite Chip Inductors – LS Series Electrical Characteristics Part Number Inductance Tolerance Test Frequency Q Typ. Test Frequency SRF (uH) (±%) LS1008-1R2-N 1.2 10 / 5 7.9 55 50 350 LS1008-1R5-N 1.5 10 / 5 7.9 58 50 300 LS1008-1R8-N 1.8 10 / 5 7.9 54 50 LS1008-2R2-N 2.2 10 / 5 7.9 48 LS1008-2R7-N 2.7 10 / 5 7.9 51 LS1008-3R3-N 3.3 10 / 5 7.9 LS1008-3R9-N 3.9 10 / 5 LS1008-4R7-N 4.7 10 / 5 LS1008-5R6-N 5.6 LS1008-6R8-N RDC (MHz) Min (Ω) Max (mA) 1 0.50 1200 0.65 1200 280 0.75 50 250 50 200 58 50 7.9 37 7.9 37 10 / 5 7.9 6.8 10 / 5 LS1008-8R2-N 8.2 LS1008-100-N 10 LS1008-120-N ST ND RD 2 3 Brown Red Red Brown Green Red 1050 Brown Gray Red 0.90 950 Red Red Red 1.00 950 Red Violet Red 200 1.15 900 Orange Orange Red 7.9 170 1.25 850 Orange White Red 7.9 130 1.35 700 Yellow Violet Red 36 7.9 110 1.45 700 Green Blue Red 7.9 33 7.9 105 1.60 600 Blue Gray Red 10 / 5 7.9 40 7.9 90 1.80 550 Gray Red Red 10 / 5 7.9 40 7.9 85 2.40 500 Brown 12 10 / 5 7.9 40 7.9 80 2.40 450 Brown LS1008-150-N 15 10 / 5 7.9 35 7.9 38 2.40 450 Brown LS1008-390-N 39 10 / 5 2.5 33 2.5 26 10 170 Orange White Orange (MHz) (MHz) Note: When ordering, please specify tolerance code. Tolerance : J=±5% , K=±10%  Operating temperature range－25℃～105℃(Including self - temperature rise)  IDC for Inductance drop 10% from its value without current  Color Coding IDC Measure Equipment： L & Q：Agilent E4991A+Agilent HP16197A SRF：Agilent E4991A RDC：HP4338B or Chroma 16502 IDC：HP4284A+HP42841A/HP4285A+HP42841A Test Instruments：Agilent E4991A Material/Impedance Analyzer Typical L vs. Frequency Typical Q vs. Frequency Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Black Orange Red Orange Green Orange SMD Wire Wound Ferrite Chip Inductors - LS Series Packaging Specifications Tape Dimensions Tape Material Figure 1 Figure 2 Reel Dimensions Figure 3 Dimensions in mm TYPE Fig. Tape Dimensions Reel Dimensions Quantity A B T W P F K A B C D PCS / REEL LS0201 1 0.44 0.62 0.61 8 2 3.5 0.46 178 60 12 1.5 4000 LS0402 1 0.67 1.20 0.75 8 2 3.5 0.59 178 60 12 1.5 4000 LS0603(47N~1R8) 2 1.20 1.80 1.05 8 4 3.5 - 178 60 12 1.5 4000 LS0603(2R2~100) 2 1.23 1.9 1.05 8 4 3.5 - 178 60 12 1.5 4000 LS0805 3 1.60 2.42 0.22 8 4 3.5 1.45 178 60 12 1.5 2000 LS1008 3 2.40 2.93 0.26 8 4 3.5 2.25 178 60 12 1.5 2000
