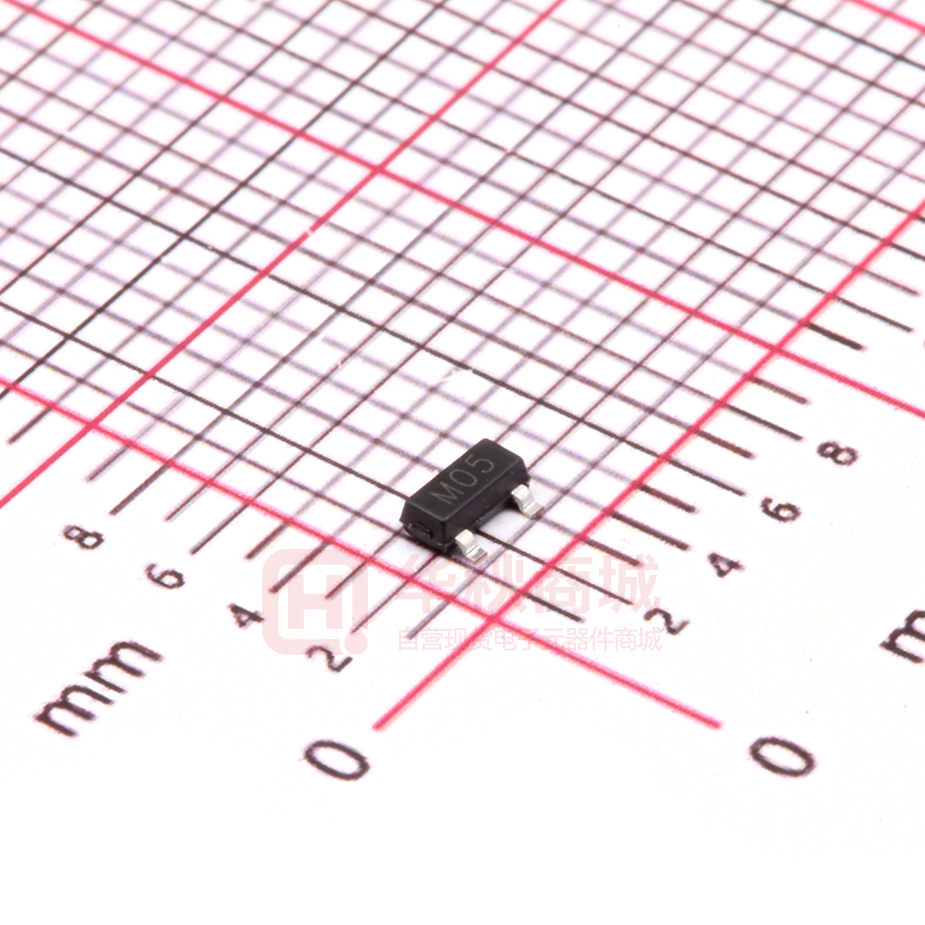

ESD05V23T-2A

ESD05V23T-2A

  • 厂商:

    SEMITEH

  • 封装:

    SOT23

  • 描述:

    5V

  • 数据手册
  • 价格&库存
ESD05V23T-2A 数据手册
Transient Voltage Suppressors Array for ESD Protection ESDXXV23T-2A Series Description SOT-23 The ESDXXV23T-2A is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Feature Functional Diagram  350 Watts Peak Pulse Power per Line (tp=8/20μs)  Protects one bidirectional line or two unidirectional lines  Low clamping voltage  RoHS Compliant  IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)  IEC61000-4-4 (EFT) 40A (5/50ns)  IEC61000-4-5 (Lightning) 12A (8/20μs) Applications  Cellular Handsets and Accessories  Portable Electronics  Industrial Controls  Set-Top Box  Instrumentation  Servers, Notebook, and Desktop PC Mechanical Characteristics  JEDEC SOT-23 Package  Molding Compound Flammability Rating : UL 94V-0  Weight 8.0 Milligrams (Approximate)  Quantity Per Reel : 3,000pcs  Reel Size : 7 inch  Lead Finish : Lead Free Mechanical Characteristics Symbol Parameter Value Units 350 W PPP Peak Pulse Power (tp=8/20μs waveform) TL Lead Soldering Temperature 260 (10sec) ºC TSTG Storage Temperature Range -55 to +150 ºC TOP Operating Temperature Range -55 to +150 ºC IEC61000-4-2 (ESD) Air Discharge ±15 Contact Discharge ±8 KV IEC61000-4-4 (EFT) 40 A IEC61000-4-5 ( Lightning ) 12 A SOCAY Electronics Corp., Ltd. Revision September 13, 2017 www.socay.com 1/3 @ SOCAY Electronics Corp., Ltd. 2017 Specifications are subject to change without notice. Please refer to www.socay.com for current information. Transient Voltage Suppressors Array for ESD Protection ESDXXV23T-2A Series Electrical Characteristics (@ 25℃ Unless Otherwise Specified ) Part Number VRWM (V) (Max.) VB (V) (Min.) IT (mA) VC @1A (Max.) (@A) IR (μA) (Max.) C (pF) (Typ.) (Max.) ESD3.3V23T-2A 3.3 4.0 1 6.5 10.9 13 100 400 ESD05V23T-2A 5 6.0 1 9.8 13.5 10 10 300 ESD08V23T-2A 8 8.5 1 13.4 16.9 8 5 250 ESD12V23T-2A 12 13.3 1 19 25.9 5 1 150 ESD15V23T-2A 15 16.7 1 24 30 4 1 100 ESD24V23T-2A 24 26.7 1 43 49 3 1 88 ESD36V23T-2A 36 40.0 1 51 76.8 2 1 60 VC Characteristic Curves Fig1. 8/20μs Pulse Waveform Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) tr 100 Peak Value IPP 80 100% TEST WAVEFORM PARAMETERS tr=8μs td=20μs Percent of Peak Pulse Current % IPP - Peak Pulse Current - % of IPP 120 60 40 td=t IPP/2 20 0 0 5 10 15 20 25 90% 10% tr = 0.7~1ns Time (ns) 30ns 30 60ns t - Time (μs) Fig3. Power Derating Curve 100 90 % of Rated Power 80 70 60 50 40 30 20 10 0 0 20 40 60 80 100 120 140 160 180 200 Ambient Temperature – TA (ºC) SOCAY Electronics Corp., Ltd. Revision September 13, 2017 www.socay.com 2/3 @ SOCAY Electronics Corp., Ltd. 2017 Specifications are subject to change without notice. Please refer to www.socay.com for current information. Transient Voltage Suppressors Array for ESD Protection ESDXXV23T-2A Series SOT-23 Package Outline & Dimensions Symbol Soldering Footprint SOCAY Electronics Corp., Ltd. Revision September 13, 2017 Millimeters Inches Min. Nom. Max. Min. Nom. Max. A 0.89 1.00 1.11 0.035 0.040 0.044 A1 0.01 0.06 0.10 0.001 0.002 0.004 b 0.37 0.44 0.50 0.15 0.18 0.020 c 0.09 0.13 0.18 0.003 0.005 0.007 D 2.80 2.90 3.04 0.110 0.114 0.120 E 1.20 1.30 1.40 0.047 0.051 0.055 e 1.78 1.90 2.04 0.070 0.075 0.081 L 0.35 0.54 0.69 0.014 0.021 0.029 HE 2.10 2.40 2.64 0.083 0.094 0.104 Symbol Millimeters Inches X 0.80 0.031 X1 0.95 0.037 Y 0.90 0.035 Z 2.00 0.079 www.socay.com 3/3 @ SOCAY Electronics Corp., Ltd. 2017 Specifications are subject to change without notice. Please refer to www.socay.com for current information.
