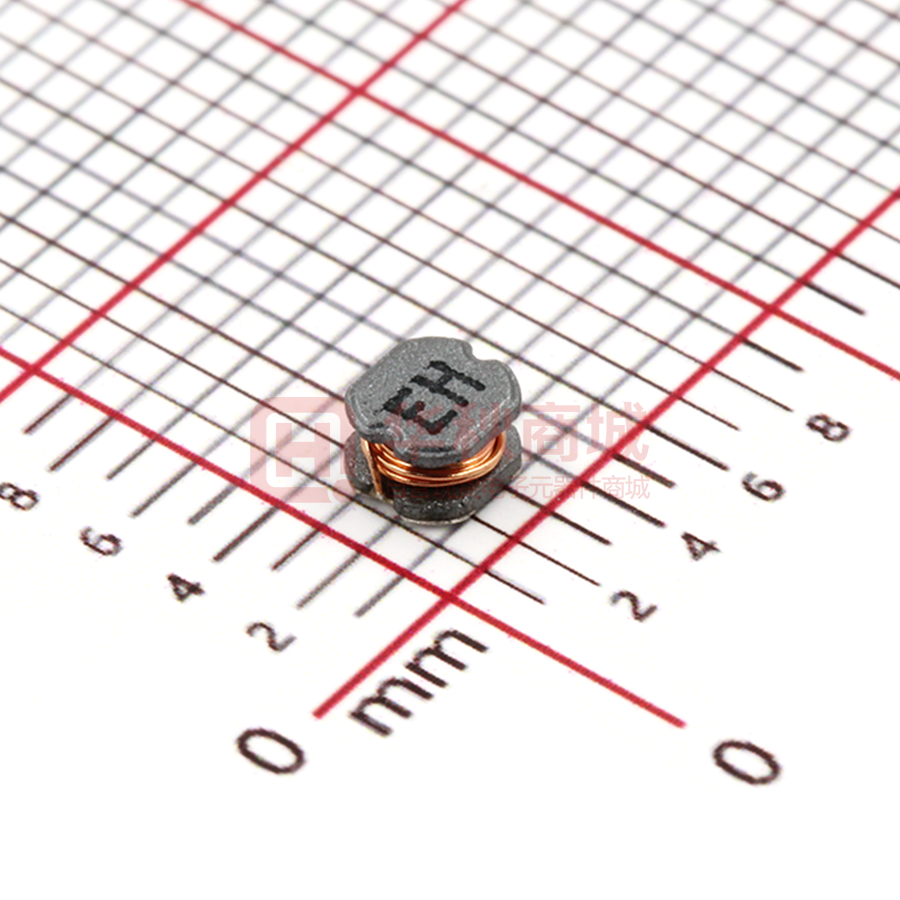

SCD03021T-4R7M-NA

Cautions and Warnings Please be noted that this spec is only for reference if you have projects designed with the product number listed in. If you are looking for new project design-in, please find BPSD Series specification/datasheet on Chilisin website. Or you may find our sales contact for more information on old part number at your convenience. Appreciated your attention and understanding. Note: Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Unshielded Power Inductors - SCD Series SCD Series Features Applications  RoHS, Halogen Free and REACH Compliance  Unshielded power inductor  Various package size and wide inductance range  Graphic cards  DC/DC converters Product Identification  Packaging: T：Tape and Reel Shape and Dimensions Recommended Pattern A B PAD LAYOUT Dimensions in mm TYPE Dimensions in mm A B C D Dim A B SCD 03015 3.3 ± 0.3 3.0 ± 0.3 1.5 ± 0.3 1.0 Typ. SCD 3015 4.5 1.0 SCD 03021 3.3 ± 0.3 3.0 ± 0.3 2.1 ± 0.3 1.0 Typ. SCD 3021 4.5 1.0 SCD 0403 4.5 ± 0.3 4.0 ± 0.3 3.2 ± 0.3 1.2 SCD 0403 5.5 1.2 SCD 0502 5.8 ± 0.3 5.2 ± 0.3 2.5 ± 0.3 2.0 Typ. SCD 0502 6.8 2.0 SCD 0503 5.8 ± 0.3 5.2 ± 0.3 3 ± 0.3 2.0 Typ. SCD 0503 6.8 2.0 SCD 0504 5.8 ± 0.3 5.2 ± 0.3 4.5 ± 0.4 1.3 SCD 0504 6.8 1.3 SCD 0703 7.8 ± 0.3 7.0 ± 0.3 3.5 ± 0.3 2.1 SCD 0703 8.8 2.1 SCD 0705 7.8 ± 0.3 7.0 ± 0.3 5.0 ± 0.3 2.1 SCD 0705 8.8 2.1 SCD 1004 10.0 ± 0.3 9.0 ± 0.3 4.0 ± 0.5 2.1 SCD 1004 11 2.1 SCD 1005 10.0 ± 0.4 9.0 ± 0.4 5.4 ± 0.4 2.1 SCD 1005 11 2.1 SCD 1006 10.0 ± 0.4 9.0 ± 0.4 6.5 ± 0.4 2.1 SCD 1006 11 2.1 SMD Unshielded Power Inductors - SCD Series Standard Specifications Stamp Inductance (H) R15 R82 1R0 1R2 1R4 1R5 1R8 2R2 2R7 3R0 0.15 0.82 1.0 1.2 1.4 1.5 1.8 2.2 2.7 3.0 SCD 03015 SCD 03021 SCD 0403 SCD 0502 SCD 0503 0.03 0.03 0.03 RDC (Ω) Max SCD SCD 0504 0703 SCD 0705 SCD 1004 SCD 1005 SCD 1006 0.0085 0.06 0.07 0.10±30% 0.09 0.11 0.11 0.13 0.14 0.033 0.035 0.038 0.042 0.047 0.052 0.04 0.05 0.06 0.07 0.03 0.03 0.03 0.04 0.020 0.023 0.03 0.02 0.02 0.02 0.02 0.02 0.025 3R3 3.3 0.11±30% 0.17 0.058 0.08 0.05 0.0314 0.03 0.022 0.038 3R5 3.5 0.030 3R8 3.8 0.022 3R9 3.9 0.19 0.076 0.09 0.06 0.03 4R7 4.7 0.15±30% 0.21 0.094 0.14 0.07 0.0372 0.04 0.04 0.040 5R6 5.6 0.15±30% 0.22 0.101 0.15 0.08 0.04 0.037 6R2 6.2 0.110 6R8 6.8 0.20±30% 0.25 0.117 0.16 0.09 0.057 0.04 0.04 0.037 7R0 7.0 0.28 8R2 8.2 0.28 0.132 0.17 0.10 0.05 0.050 100 10 0.30±30% 0.32 0.182 0.18 0.12 0.10 0.08 0.07 0.05 0.060 120 12 0.35 0.210 0.20 0.13 0.12 0.09 0.08 0.06 0.070 150 15 0.58±30% 0.40 0.235 0.22 0.15 0.14 0.10 0.09 0.07 0.080 180 18 0.48 0.338 0.25 0.22 0.15 0.11 0.10 0.08 0.090 220 22 0.71±30% 0.58 0.378 0.35 0.22 0.18 0.13 0.11 0.09 0.100 0.08 270 27 0.65 0.522 0.45 0.26 0.20 0.15 0.12 0.10 0.110 330 33 1.10±30% 0.80 0.540 0.56 0.33 0.23 0.17 0.13 0.12 0.120 390 39 1.30±30% 0.90 0.587 0.69 0.42 0.32 0.22 0.16 0.15 0.140 470 47 1.30±30% 1.19 0.844 0.72 0.50 0.37 0.25 0.18 0.17 0.170 500 50 1.22 560 56 1.27 0.937 0.84 0.55 0.42 0.28 0.24 0.20 0.190 680 68 2.20±30% 1.73 1.117 0.90 0.65 0.46 0.33 0.28 0.22 0.220 750 75 1.90 820 82 1.99 1.20 0.80 0.60 0.41 0.37 0.30 0.25 101 100 3.50±30% 2.52 2.000 1.30 0.90 0.70 0.48 0.43 0.34 0.35 121 120 2.90 1.800 1.38 1.00 0.93 0.54 0.47 0.40 0.40 151 150 3.36 2.800 1.81 1.30 1.10 0.75 0.64 0.54 0.47 181 180 5.10 3.200 1.95 1.50 1.38 1.02 0.71 0.62 0.63 221 220 10.92 5.80 4.000 3.00 2.00 1.57 1.20 0.96 0.72 0.73 271 270 7.80 3.20 2.50 1.85 1.31 1.11 0.95 0.97 331 330 5.850 3.82 3.20 2.00 1.50 1.26 1.10 1.15 391 390 4.68 3.50 2.60 1.77 1.24 1.30 471 470 5.10 4.20 3.00 1.96 1.53 1.48 1.421 561 560 8.50 4.50 4.19 2.50 2.41 1.90 1.90 681 680 10.0 6.50 4.44 2.50 2.25 821 820 12.0 7.50 5.12 2.55 102 1000 18.0 8.00 10.00 2.80 3.10 2.9 122 1200 3.5 152 1500 3.8 202 2000 6.6 222 2200 8.0 602 6000 14 822 8200 50 Note: When ordering, please specify tolerance code. Tolerance: K=±10% , M=±20%  Operating temperature range－40℃～105℃(Including self – temperature rise)  Isat for Inductance drop 10% from its value without current  Measure Equipment： Test Freq L：SCD03015: (1MHz/1V), SCD1005/1006: 1.0 ~ 8.2H(7.96MHz/1V), 10 ~ 82H (2.52MHz/1V), 100 ~ 1000H (1kHz/1V) SCD03021/0403/0502/ 0503: 0.15 ~ 8.2H(7.96MHz/1V), 10 ~ 82H (2.52MHz/1V), 100 ~ 1000H (1kHz/1V). SCD0504/0703/0705/1004: 1.0 ~ 8.2H(7.96MHz/1V), 10 ~ 82H (2.52MHz/1V), 100 ~ 1000H (1kHz/1V). L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Unshielded Power Inductors - SCD Series Standard Specifications Stamp Inductance (H) SCD 03015 SCD 03021 SCD 0403 SCD 0502 SCD 0503 R15 0.15 7.5 R82 0.82 2.200 1R0 1.0 2.080 3.80 4.50 4.50 1R2 1.2 3.50 4.20 1R4 1.4 1.860 3.30 4.00 1R5 1.5 1.800 4.10 1R8 1.8 1.800 2.91 3.30 3.70 2R2 2.2 0.79 1.390 2.60 2.94 3.50 2R7 2.7 1.320 2.43 2.50 3.20 3R0 3R3 3.3 0.73 1.250 2.15 2.35 2.80 3R5 3.5 3R8 3.8 3R9 3.9 1.200 1.98 2.20 2.60 4R7 4.7 0.65 1.130 1.70 2.00 2.50 5R6 5.6 0.60 0.910 1.60 1.80 2.40 6R2 6.2 1.50 6R8 6.8 0.77 0.850 1.41 1.70 2.20 7R0 7.0 0.820 8R2 8.2 0.820 1.26 1.40 2.00 100 10 0.45 0.740 1.15 1.20 1.80 120 12 0.640 1.05 1.18 1.75 150 15 0.30 0.600 0.92 1.15 1.70 180 18 0.540 0.84 1.10 1.60 220 22 0.25 0.500 0.76 1.00 1.50 270 27 0.430 0.71 0.86 1.40 330 33 0.20 0.400 0.64 0.76 1.10 390 39 0.17 0.370 0.59 0.75 1.00 470 47 0.17 0.360 0.54 0.73 0.90 500 50 0.330 560 56 0.310 0.50 0.55 0.85 680 68 0.13 0.300 0.46 0.52 0.80 750 75 0.290 820 82 0.280 0.50 0.65 101 100 0.10 0.250 0.40 0.40 0.60 121 120 0.200 0.38 0.36 0.58 151 150 0.190 0.30 0.30 0.43 181 180 0.170 0.25 0.26 0.41 221 220 0.07 0.160 0.15 0.25 0.38 271 270 0.140 0.21 0.35 331 330 0.21 0.18 0.28 391 390 0.16 0.26 471 470 0.15 0.20 561 560 0.14 0.19 681 680 0.13 0.18 821 820 0.07 0.15 102 1000 0.05 0.13 122 1200 152 1500 202 2000 222 2200 602 6000 822 8200 Tolerance Of Inductors  SCD03015 2.2 ~ 100H ± 20%  SCD03021 1.0 ~ 270H ± 20%  SCD0403 0.15 ~ 27H ± 20% 33 ~ 100H ±10%  SCD0502 1.0 ~ 27H ± 20% 33 ~ 1000H ±10%  SCD0503 1.0 ~ 27H ± 20% 33 ~ 1000H ±10%  SCD0504 1.0~27H±20% 33~47H ±15% 56~1000H±10% Tolerance: K = ±10% , M = ±20% Isat (A) Max SCD 0504 3.50 3.20 SCD 0703 SCD 0705 SCD 1004 SCD 1005 3.20 3.70 3.70 3.70 3.70 3.70 3.70 3.70 4.50 2.80 2.59 2.40 SCD 1006 4.20 2.30 1.60 1.80      3.70 3.50 3.30 2.60 4.50 3.10 3.00 4.33 1.44 1.40 1.30 1.23 1.11 0.97 0.88 0.80 0.72 1.44 1.39 1.24 1.12 1.07 0.94 0.85 0.74 0.68 2.70 2.30 2.00 1.80 1.60 1.50 1.30 1.20 1.10 1.10 2.38 2.13 1.87 1.73 1.60 1.44 1.26 1.20 1.10 3.50 2.60 2.45 2.27 2.15 1.95 1.76 1.50 1.37 1.28 0.68 0.61 0.64 0.59 0.94 0.85 1.01 0.91 1.17 1.11 0.58 0.52 0.48 0.40 0.38 0.35 0.29 0.28 0.26 0.12 0.10 0.08 0.05 0.03 0.54 0.51 0.49 0.40 0.36 0.31 0.29 0.28 0.78 0.72 0.66 0.58 0.51 0.49 0.42 0.40 0.36 0.34 0.32 0.29 0.85 0.74 0.69 0.61 0.56 0.53 0.45 0.42 0.38 0.35 0.32 1.00 0.97 0.89 0.78 0.72 0.66 0.57 0.52 0.48 0.42 0.33 0.28 0.24 0.20 SCD0703 SCD0705 SCD1004 SCD1005 SCD1006 0.14 0.19 10 ~ 27H ± 20% 33 ~ 330H ±10% 1.4 ~ 27H ± 20% 33 ~ 470H ±10% 10 ~ 27H ± 20% 33 ~ 560H ±10% 4.7 ~ 27H ± 20% 33 ~ 820H ±10% 6000H ~8200H±20% Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 3.80 0.82 0.60 0.50 0.60 0.40 0.40 0.27 0.20 SMD Shielded Power Inductors – SCD Series Electrical Characteristics Part Number Inductance Tolerance Q Q Frequency SRF RDC Irms Isat (H) (±%) Ref (MHz) (MHz) Typ. (mΩ) Typ. (A) Max (A) Typ. SCD1307T-1R5□-N 1.5 20 20 7.96 / 0.1V 65 5.0 9.50 20.0 SCD1307T-2R2□-N 2.2 20 22 7.96 / 0.1V 50 6.0 9.00 18.0 SCD1307T-2R7□-N 2.7 20 24 7.96 / 0.1V 40 8.0 8.20 16.0 SCD1307T-3R3□-N 3.3 20 26 7.96 / 0.1V 38 8.7 7.50 15.0 SCD1307T-4R7□-N 4.7 20 25 7.96 / 0.1V 36 10 7.00 13.0 SCD1307T-5R6□-N 5.6 20 24 7.96 / 0.1V 28 15 6.50 11.0 SCD1307T-6R8□-N 6.8 20 24 7.96 / 0.1V 26 17 6.00 10.5 SCD1307T-8R2□-N 8.2 20 24 7.96 / 0.1V 24 19 5.80 9.8 SCD1307T-100□-N 10 20 22 2.52 / 0.1V 22 21 5.60 9.2 SCD1307T-120□-N 12 20 25 2.52 / 0.1V 20 30 4.80 8.0 SCD1307T-150□-N 15 20 28 2.52 / 0.1V 17 34 4.50 7.5 SCD1307T-180□-N 18 20 28 2.52 / 0.1V 16 36 4.20 7.0 SCD1307T-220□-N 22 20 40 2.52 / 0.1V 15 47 3.60 6.5 SCD1307T-270□-N 27 20 35 2.52 / 0.1V 11 60 3.30 5.5 SCD1307T-330□-N 33 20 / 10 35 2.52 / 0.1V 10 65 3.10 5.0 SCD1307T-390□-N 39 20 / 10 28 2.52 / 0.1V 9.0 75 2.90 4.6 SCD1307T-470□-N 47 20 / 10 24 2.52 / 0.1V 7.5 82 2.70 4.2 SCD1307T-560□-N 56 20 / 10 22 2.52 / 0.1V 7.2 95 2.50 3.8 SCD1307T-680□-N 68 20 / 10 24 2.52 / 0.1V 7.0 120 2.30 3.5 SCD1307T-820□-N 82 20 / 10 18 2.52 / 0.1V 6.0 140 2.10 3.2 SCD1307T-101□-N 100 20 / 10 25 0.796 / 0.1V 5.8 180 1.90 3.0 SCD1307T-121□-N 120 20 / 10 20 0.796 / 0.1V 5.5 210 1.80 2.8 SCD1307T-151□-N 150 20 / 10 20 0.796 / 0.1V 4.5 250 1.60 2.6 SCD1307T-181□-N 180 20 / 10 18 0.796 / 0.1V 4.0 280 1.50 2.3 SCD1307T-221□-N 220 20 / 10 15 0.796 / 0.1V 3.8 360 1.30 2.1 SCD1307T-271□-N 270 20 / 10 15 0.796 / 0.1V 3.5 410 1.20 1.8 SCD1307T-331□-N 330 20 / 10 15 0.796 / 0.1V 3.2 520 1.10 1.6 SCD1307T-391□-N 390 20 / 10 12 0.796 / 0.1V 2.5 600 1.00 1.5 SCD1307T-471□-N 470 20 / 10 12 0.796 / 0.1V 2.2 720 0.90 1.4 SCD1307T-561□-N 560 20 / 10 10 0.796 / 0.1V 2.0 880 0.85 1.3 SCD1307T-681□-N 680 20 / 10 10 0.796 / 0.1V 1.6 1000 0.80 1.2 SCD1307T-821□-N 820 20 / 10 10 0.796 / 0.1V 1.5 1300 0.75 1.1 SCD1307T-102□-N 1000 20 / 10 10 0.252 / 0.1V 1.4 1600 0.65 1.0 Note: When ordering, please specify tolerance code. Tolerance: K=±10% , M=±20%  Operating temperature range－40℃～105℃(Including self - temperature rise)  Isat for Inductance drop 10% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：Agilent/ E4980 or HP4284A, 100kHz 0.1V Q：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) SRF：HP4286A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Unshielded Power Inductors - SCD Series Test Instruments：HP4294A Impedance / Material Analyzer SCD0403 SCD0504 SCD0703 Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Unshielded Power Inductors - SCD Series Test Instruments：HP4294A Impedance / Material Analyzer SCD0705 SCD1004 SCD1005 Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Unshielded Power Inductors - SCD Series Packaging Specifications Tape Dimensions Tape Material Reel Dimensions Dimensions in mm TYPE Tape Dimensions Reel Dimensions Quantity K0 D E W P P0 P2 A B C D PCS / REEL SCD03015 1.80 1.55 1.75 12 8 4 2 330 100 13 13.4 3000 SCD03021 2.50 1.55 1.75 12 8 4 2 330 100 13 13.4 3000 SCD0403 3.55 1.55 1.75 12 8 4 2 330 100 13 13.4 2000 SCD0502 3.30 1.50 1.75 16 8 4 2 330 100 13 16.0 2000 SCD0503 3.30 1.50 1.75 16 8 4 2 330 100 13 16.0 2000 SCD0504 4.8 1.55 1.75 16 8 4 2 330 100 13 16.0 1500 SCD0703 3.8 1.55 1.75 16 12 4 2 330 100 13 16.0 1000 SCD0705 5.2 1.55 1.75 16 12 4 2 330 100 13 16.0 700 SCD1004 4.5 1.55 1.75 24 12 4 2 330 100 13 24.4 700 SCD1005 5.8 1.55 1.75 24 12 4 2 330 100 13 24.4 700 SCD1006 7.0 1.55 1.75 24 12 4 2 330 100 13 24.4 500
