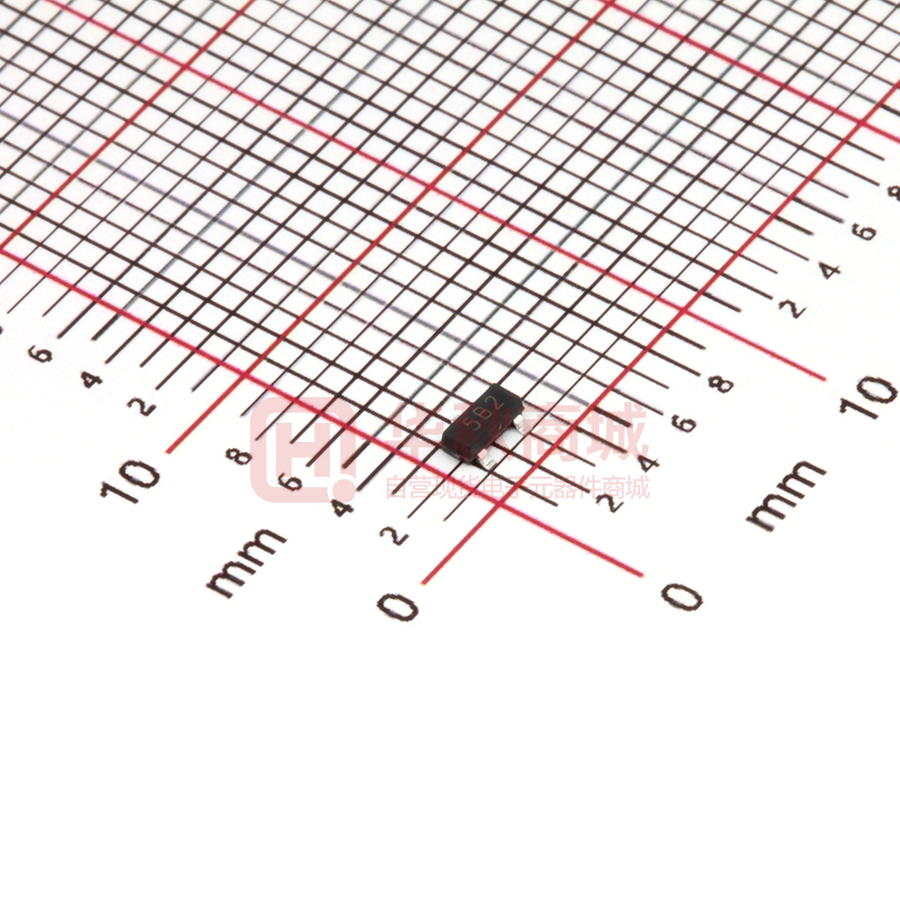

PESD5V0L2BTN

PESD5V0L2BTN ESD Protection Diode Array »Features ■ 350 Watts peak pulse power (tp = 8/20μs) ■ Bidirectional configurations ■ Solid-state silicon-avalanche technology ■ Low clamping voltage ■ Low leakage current ■ IEC 61000-4-2 ±30kV contact ±30kV air ■ IEC 61000-4-4 (EFT) 40A(5/50ns) ■ IEC 61000-4-5 (Lightning) 17A(8/20μs) »Mechanical Data »Applications ■ Dataline ■ SOT-23 package ■ Automatic Teller Machines ■ Molding compound flammability rating: UL 94V-0 ■ Net works ■ Packaging: Tape and Reel ■ Power line ■ RoHS/WEEE Compliant »Schematic & PIN Configuration 1 1 3 3 2 2 SOT-23 (Top View) Revision 2018 www.born-tw.com 1/4 PESD5V0L2BTN »Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp =8/20μs ) PPP 350 Watts Peak Pulse Current ( tp =8/20μs ) (note1) Ipp 17 A VESD 30 30 kV Lead Soldering Temperature TL 260(10seconds) ℃ Junction Temperature TJ -55 to + 125 ℃ Storage Temperature Tstg -55 to + 125 ℃ ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) »Electrical Characteristics Parameter Symbol Reverse Stand-Off Voltage Reverse Breakdown Voltage Conditions Min Typical Max Units 5 V 7.2 8.5 V 0.1 0.5 μA VRWM VBR IT=1mA 6.0 Reverse Leakage Current IR VRWM=5V,T=25℃ Peak Pulse Current IPP tp =8/20μs 22 A Clamping Voltage VC IPP=17A,tp=8/20μs 20 V Junction Capacitance Cj 75 pF VR = 0V, f = 1MHz (Pin1、Pin2 to Pin3) 65 »Electrical Parameters (TA = 25°C unless otherwise noted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP V RWM IR V BR IT I IPP Working Peak Reverse Voltage Maximum Reverse Leakage Current @ V RWM V C VBR VRWM Breakdown Voltage @ IT IT IR IR IT VRWM V BR V C V Test Current IPP Note:. 8/20μs pulsewaveform. Revision 2018 www.born-tw.com 2/4 PESD5V0L2BTN »TypicalCharacteristics Figure 2: Power Derating Curve 10 110 350w 8/20 sµaveform 1 0.1 0.01 0.1 1 10 100 100 Percent of Rated Power for Ipp Ppp – Peak Pulse Power - Ppp(KW) Figure 1: Peak Pulse Power vs. Pulse Time 90 80 70 60 50 40 30 20 10 0 1,000 0 25 td – Pulse Duration - µs Figure3: Pulse Waveform Waveform Paramters tr=8µs td=20µs 90 Percent Ipp 80 50 40 td=Ipp/ 2 20 10 5 10 15 150 16 12 10 8 Test Waveform Paramters tr=8µs td=20µs 6 4 2 0 0 125 20 e-1 30 100 18 Clamping Voltage–VC (V) 100 60 75 Figure 4: Clamping Voltage vs.Ipp 110 70 50 Ambient Temperature - TA (℃) Time (µs) 20 25 30 0 0 5 10 15 20 25 30 Peak Pulse Current–IPP (A) Revision 2018 www.born-tw.com 3/4 PESD5V0L2BTN »Outline Drawing – SOT-23 DIMENSIONS D SYMBOL 3 E1 E θ 1 b L 0.25 2 e A2 INCHES MIN MAX MIN MAX A 0.900 1.150 0.035 0.045 A1 0.000 0.100 0.000 0.004 A2 0.900 1.050 0.035 0.041 D 2.800 3.000 0.110 0.118 b 0.300 0.500 0.012 0.020 E 2.250 2.550 0.089 0.100 E1 1.200 1.400 0.047 0.055 e A MILLIMETER 0.950 BSC 0.037 BSC L 0.300 0.500 0.012 0.020 θ 0 8 0 8○ A1 ○ »Marking 5B2 »Ordering information Order code PESD5V0L2BTN Revision 2018 Package SOT-23 Base qty 3k www.born-tw.com Delivery mode Tape and reel 4/4
