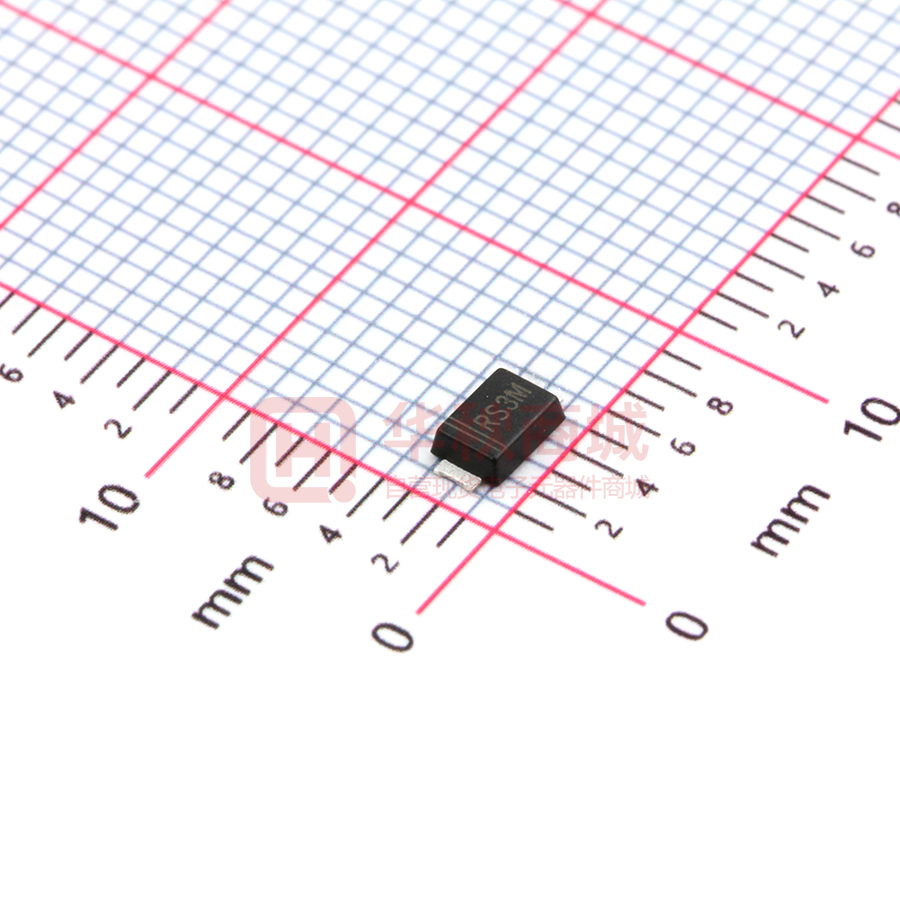

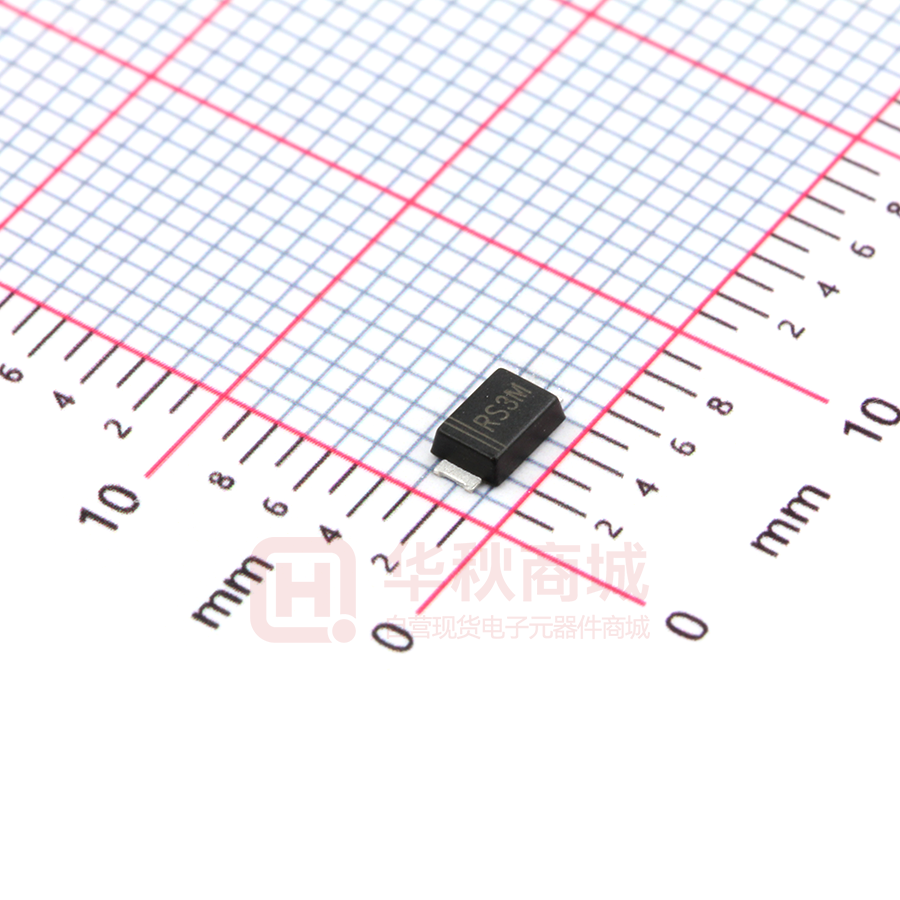

RS3MF

RS3AF THRU RS3MF Surface Mount Fast Recovery Rectifiers Reverse Voltage - 50 to 1000 V PINNING Forward Current - 3 A PIN FEATURES • For surface mounted applications • Low profile package • Glass Passivated Chip Juntion • Easy to pick and place • Fast reverse recovery time • Lead free in comply with EU RoHS 2011/65/EU directives DESCRIPTION 1 Cathode 2 Anode 1 2 Top View Marking Code： RS3A-RS3M MECHANICAL DATA • Case: SMAF • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 27mg 0.00086oz Simplified outline SMAF and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load f or capacitive load current derate by 20 %. Symbols RS3AF RS3BF RS3DF RS3GF RS3JF RS3KF RS3MF Units Maximum Repetitive Peak Reverse Voltage V RRM 50 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current at Ta = 65 °C I F(AV) 3 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) I FSM 100 A Maximum Instantaneous Forward Voltage at 3 A VF 1.3 V IR 5 200 μA Parameter Maximum DC Reverse Current at Rated DC Blocking Voltage Ta = 25 °C Ta =125 °C Maximum Reverse Recovery Time Typical Junction Capacitance 1） 2） Operating and Storage Temperature Range t rr ns Cj 60 pF T j , T stg -55 ~ +150 °C 1）Measured with I F = 0.5 A, I R = 1 A, I rr = 0.25 A 2）Measured at 1MHz and applied reverse voltage of 4V D.C REV.08 250 150 1 of 3 RS3AF THRU RS3MF Fig.2 Typical Reverse Characteristics Instaneous Reverse Current（μ A） Average Forward Current (A) Fig.1 Forward Current Derating Curve 3.5 3.0 2.4 1.8 1.2 Single phase half-wave 60 Hz resistive or inductive load 0.6 0.0 25 50 75 100 125 150 175 100 T J =125°C 10 1.0 T J =25°C 0.1 00 10 T J =25°C 1.0 0.1 pulse with 300μs 1% duty cycle 1.0 1.5 2.0 2.5 Peak Forward Surage Current (A) 100 120 140 100 T J =25°C 120 100 80 60 40 8.3 ms Single Half Sine Wave (JEDEC Method) 00 10 1.0 10 Reverse Voltage (V) 100 Number of Cycles REV.08 80 1000 0.1 Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 1 60 10 0.5 Instaneous Forward Voltage (V) 20 40 Fig.4 Typical Junction Capacitance Junction Capacitance ( pF) Instaneous Forward Current (A) Fig.3 Typical Instaneous Forward Characteristics 0.01 0.0 20 percent of Rated Peak Reverse Voltage (%) Ambient Temperature (°C) 2 of 3 100 RS3AF THRU RS3MF PACKAGE OUTLINE Plastic surface mounted package; 2 leads SMAF ∠ALL ROUND C A ∠ALL ROUND D E A V M g g pad e E A pad HE Top View A C D E e g HE max 1.1 0.20 3.7 2.7 1.6 1.2 4.9 min 0.9 0.12 3.3 2.4 1.3 0.8 4.4 max 43 7.9 146 106 63 47 193 min 35 4.7 130 94 51 31 173 UNIT mm mil Bottom View 7° The recommended mounting pad size 2.2( 86) 1.6(63) 1.8(71) 1.6(63) Unit：mm(mil) REV.08 ∠ 3 of 3
