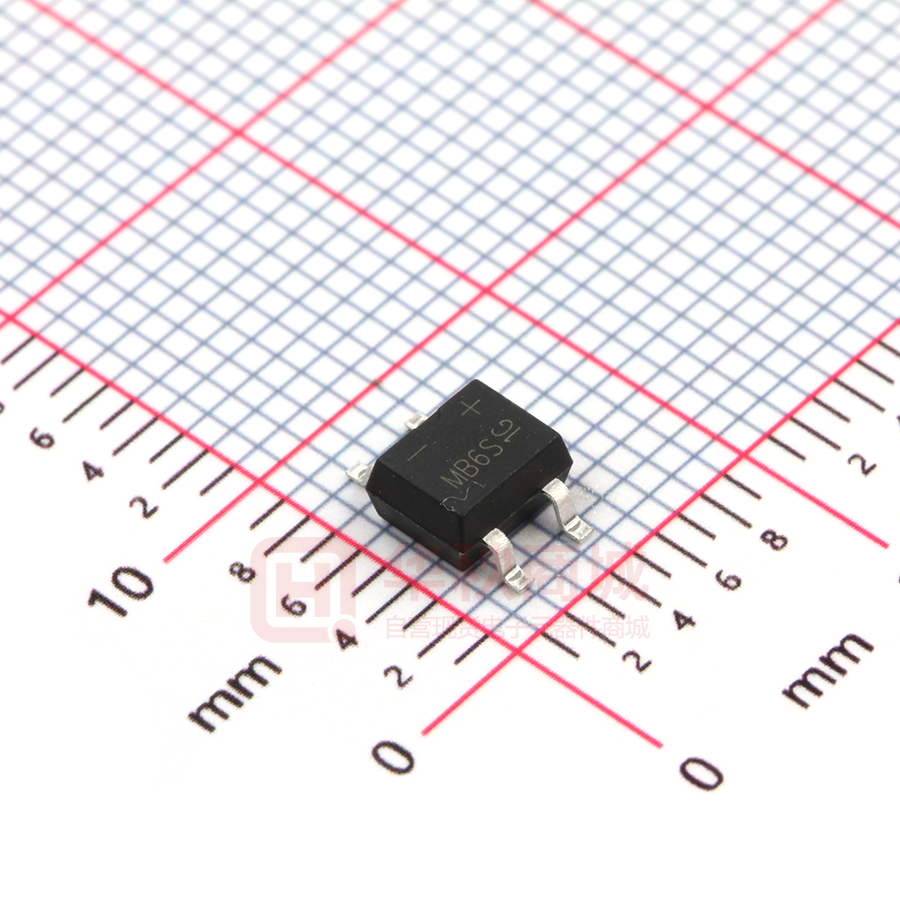

MB6SK

MB1SK THRU MB10SK 1A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER FEATURES: PINNING Glass Passivated Chip Junction PIN DESCRIPTION 1 Input Pin（~） Reverse Voltage - 100 to 1000 V 2 Input Pin（~） Forward Current - 1 A 3 Output Anode（+） High Surge Current Capability 4 Output Cathode（-） Designed for Surface Mount Application 3 MECHANICAL DATA • Case: MBS • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 100mg / 0.0035oz 4 2 1 MBS Package Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Symbols MB1SK MB2SK MB4SK MB6SK MB8SK MB10SK Units Maximum Repetitive Peak Reverse Voltage V RRM 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 100 200 400 600 800 1000 V Parameter Average Rectified Output Current at Ta = 50 °C IO 1.0 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) I FSM 35 A Maximum Forward Voltage at 1.0 A VF 1.1 V IR 5 40 μA Cj 13 pF RθJA RθJL 85 30 °C/W T j , T stg -55 ~ +150 °C Maximum DC Reverse Current at Rated DC Blocking Voltage @ T A =25 °C @ T A =125 °C Typical Junction Capacitance（Note1） Typical Thermal Resistance（Note2） Operating and Storage Temperature Range Note: 1. Measured at 1MHz and applied reverse voltage of 4 V D.C. 2. Mounted on glass epoxy PC board with 4×(5×5mm 2 ）copper pad. REV.08 1 of 3 MB1SK THRU MB10SK Fig.2 Typical Reverse Characteristics Instaneous Reverse Current（μ A） Average Rectified Output Current (A) Fig.1 Average Rectified Output Current Derating Curve 1.2 100LFM 1.0 0.8 0.6 0.4 Glass Epoxy PC Board 0.2 Resistive or Inductive Load 0.0 25 50 75 100 125 150 175 100 T J =125°C 10 1.0 T J =25°C 0.1 00 T J =25°C 1.0 0.1 pulse with 300μs 1% duty cycle 0.01 0.0 1.0 1.5 2.0 Peak Forward Surage Current (A) 80 100 100 120 140 T J =25°C 10 0.1 40 30 20 10 8.3 ms Single Half Sine Wave (JEDEC Method) 00 10 1.0 10 Reverse Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 100 Number of Cycles REV.08 60 1 0.5 Instaneous Forward Voltage (V) 1 40 Fig.4 Typical Junction Capacitance Junction Capacitance ( pF) Instaneous Forward Current (A) Fig.3 Typical Instaneous Forward Characteristics 10 20 percent of Rated Peak Reverse Voltage (%) Ambient Temperature (°C) 2 of 3 100 MB1SK THRU MB10SK PACKAGE OUTLINE Plastic surface mounted package; 4 leads MBS A ∠ALL ROUND C a L1 L d HE e D e E MBS mechanical data A C D E HE d e L L1 a max 2.6 0.22 5.0 4.1 7.0 2.7 0.7 1.7 1.1 0.2 min 2.2 0.15 4.5 3.6 6.4 2.3 0.5 1.3 0.5 max 102 8.7 197 161 276 106 28 67 43 min 94 5.9 177 142 252 91 20 51 20 UNIT ∠ mm 7° mil 6.0 236 2.5 100 0.9 35 2.4 94 REV.08 mm Unit ： (mil) 3 of 3 8
