UPZ1608E221-2R0TF

厂商：
SUNLORD(顺络)
封装：
0603
描述：

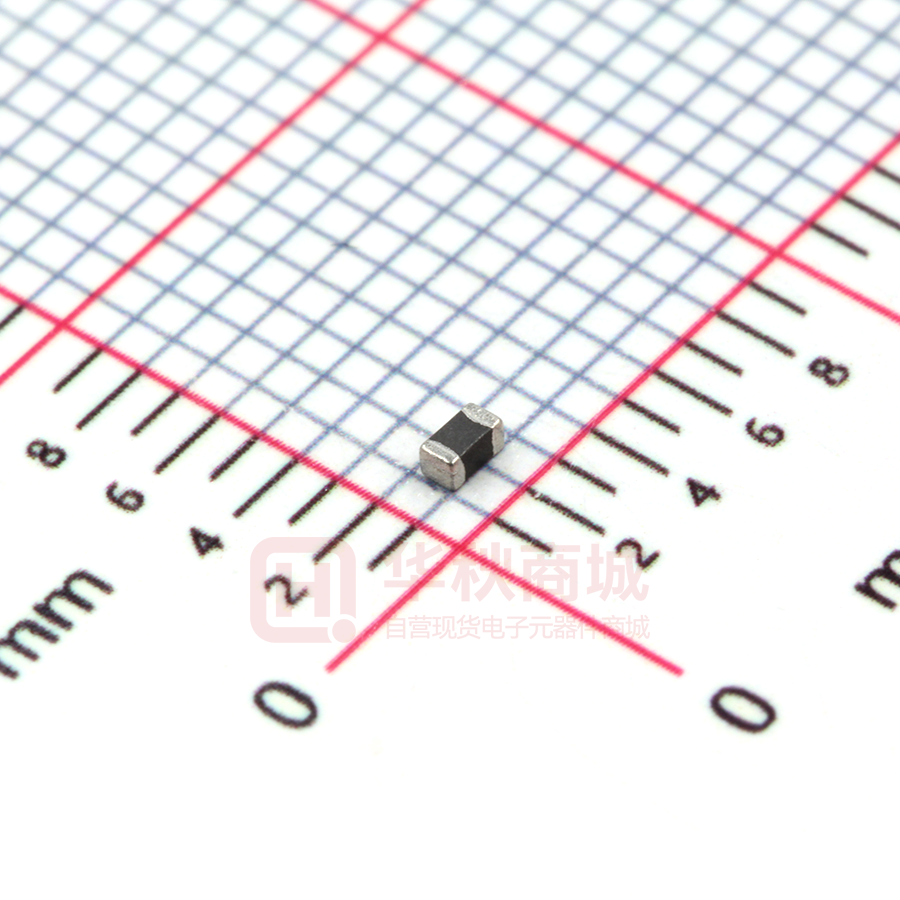

贴片磁珠 0603 220Ω@100MHz ±25% 2A

数据手册：

下载UPZ1608E221-2R0TF.pdf

立即购买

详情介绍
数据手册
价格&库存

UPZ1608E221-2R0TF 数据手册

Multilayer Chip Ferrite Bead – UPZ Series Operating Temp. : -55℃~+125℃ FEATURES Internal silver printed layers and magnetic shielded structures to minimize crosstalk Monolithic structure for excellent reliability Smaller DC resistance and larger allowable current than PZ seriesCan be used in a wide range of frequency to suppress EM ● ● ● APPLICATIONS Noise suppression for power lines or large current signal lines of electric equipments, such as communication equipments, computers, A/V equipments, etc ● PRODUCT IDENTIFICATION UPZ ① ① UPZ 1608 E 221 -2R2 T F ② ③ ④ ⑤ ⑥ ⑦ ② ③ External Dimensions (L×W) (mm) 0603 [0201] 0.6×0.3 1005 [0402] 1.0×0.5 Type Chip Ferrite Bead For Ultra Large Current 1608 [0603] 2012 [0805] 1.65×0.8 2.0×1.25 Material Code G, D, E, U, W ⑥ ④ T Nominal Impedance Example Nominal Value 300 30Ω 221 220Ω 102 1000Ω Packing Tape & Reel ⑦ ⑤ 1R5 2R2 Rated Current 1.5A 2.2A Hazardous Substance Free Products F SHAPE AND DIMENSIONS Unit: mm [inch] Type UPZ0603 [0201] UPZ1005 [0402] UPZ1608 [0603] UPZ2012 [0805] Sunlord L 0.6±0.05 [.024±0.002] 1.0±0.15 [.039±.006] 1.65±0.15 [.065±.006] 2.0 (+0.3, -0.1) [.079 (+.012, -.004)] W 0.3±0.05 [.012±.002] 0.5±0.15 [.020±.006] 0.8±0.15 [.031±.006] 1.25±0.2 [.049±.008] T 0.3±0.05 [.012±.002] 0.5±0.15 [.020±.006] 0.8±0.15 [.031±.006] 0.85±0.2 [.033±.008] Specifications subject to change without notice. Please check our website for latest information. a 0.15±0.05 [.006±.002] 0.25±0.1 [.010±.004] 0.3±0.2 [.012±.008] 0.5±0.3 [.020±.012] Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS UPZ0603 TYPE Part Number Units Symbol UPZ0603U220-1R8TF UPZ0603U330-1R5TF UPZ0603U470-1R0TF UPZ0603U800-1R0TF UPZ0603U121-R90TF Impedance Ω Z 22±25% 33±25% 47±25% 80±25% 120±25% Z Test Frequency MHz Freq. 100 100 100 100 100 Max. DC Resistance mΩ DCR 40 55 120 130 160 Max. Rated Current mA Ir 1800 1500 1000 1000 900 Impedance Ω Z 0~30 30±25% 30±25% 60±25% 80±25% 120±25% 220±25% Z Test Frequency MHz Freq. 100 100 100 100 100 100 100 Max. DC Resistance mΩ DCR 45 50 35 75 70 90 160 Max. Rated Current mA Ir 2000 1700 2200 1500 1500 1300 900 Impedance Ω Z 30±25% 60±25% 100±25% 22±25% 28±25% 70±25% 220±25% 330±25% 390±25% 470±25% 600±25% 30±25% 60±25% 100±25% 180±25% 220±25% 330±25% 600±25% 26±25% Z Test Frequency MHz Freq. 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 Max. DC Resistance mΩ DCR 60 100 150 10 10 20 50 70 120 120 150 10 20 30 50 50 80 150 7 Max. Rated Current mA Ir 1800 1200 1000 6000 6000 4000 2200 1500 1500 1500 1300 5000 3500 3000 2200 2200 1700 1000 6000 Thickness mm [inch] T 0.3±0.05 [.012±.002] UPZ1005 TYPE Part Number Units Symbol UPZ1005D100-2R0TF UPZ1005D300-1R7TF UPZ1005D300-2R2TF UPZ1005D600-1R5TF UPZ1005D800-1R5TF UPZ1005D121-1R3TF UPZ1005D221-R90TF Thickness mm [inch] T 0.5±0.15 [.020±.006] UPZ1608 TYPE Part Number Units Symbol UPZ1608G300-1R8TF UPZ1608G600-1R2TF UPZ1608G101-1R0TF UPZ1608U220-6R0TF UPZ1608U280-6R0TF UPZ1608U700-4R0TF UPZ1608U221-2R2TF UPZ1608U331-1R5TF UPZ1608U391-1R5TF UPZ1608U471-1R5TF UPZ1608U601-1R3TF UPZ1608E300-5R0TF UPZ1608E600-3R5TF UPZ1608E101-3R0TF UPZ1608E181-2R2TF UPZ1608E221-2R2TF UPZ1608E331-1R7TF UPZ1608E601-1R0TF UPZ1608W260-6R0TF Sunlord Specifications subject to change without notice. Please check our website for latest information. Thickness mm [inch] T 0.8±0.15 [.031±.006] Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS UPZ2012 TYPE Part Number Units Symbol UPZ2012D220-6R0TF UPZ2012D800-4R0TF UPZ2012U220-6R0TF UPZ2012U300-6R0TF UPZ2012U600-4R0TF UPZ2012U221-3R0TF UPZ2012E300-6R0TF UPZ2012E121-4R0TF UPZ2012E221-3R0TF UPZ2012E331-2R5TF UPZ2012E601-2R0TF UPZ2012E102-1R5TF Impedance Ω Z 22±25% 80±25% 22±25% 30±25% 60±25% 220±25% 30±25% 120±25% 220±25% 330±25% 600±25% 1000±25% Z Test Frequency MHz Freq. 100 100 100 100 100 100 100 100 100 100 100 100 Max. DC Resistance mΩ DCR 10 20 10 10 20 40 10 20 40 50 90 120 Max. Rated Current mA Ir 6000 4000 6000 6000 4000 3000 6000 4000 3000 2500 2000 1500 Thickness mm [inch] T 0.85±0.2 [.033±.008] DETAIL ELECTRICAL CHARACTERISTICS Rated Current 7 When operating temperatures exceed +85℃, derating of current is necessary for chip ferrite beads for which rated current is 1000mA and over. Please apply the derating curve shown in chart according to the operating temperature. 6 Derated Current[A] 5 4 3 2.5 2 1.7 1.5 1.2 1 0.8 0 0 85 100 50 125 150 Operating Temperature[℃] UPZ0603 TYPE UPZ0603U220-1R8TF 40 R 20 10 X Z Impedance(Ω) Z Impedance(Ω) Impedance(Ω) 120 50 30 R 30 20 10 1000 100 40 0 1 3000 R X 0 1 Z 80 X 10 0 10 100 1000 3000 1 10 100 1000 Frequency(MHz) Frequency(MHz) Frequency(MHz) UPZ0603U121-R90TF UPZ0603U800-1R0TF 240 120 Z 180 R 60 Z Impedance(Ω) Impedance(Ω) UPZ0603U470-1R0TF UPZ0603U330-1R5TF 40 R 120 60 X X 0 0 1 10 100 Frequency(MHz) Sunlord 1000 3000 1 10 100 1000 3000 Frequency(MHz) Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com 3000 DETAIL ELECTRICAL CHARACTERISTICS UPZ1005 TYPE UPZ1005D300-1R7TF UPZ1005D100-2R0TF 20 Z Z R 45 Z 10 5 Impedance(Ω ) 45 Impedance(Ω) 15 Impedance(Ω) UPZ1005D300-2R2TF 60 60 R 30 X 15 X R 30 15 X 0 10 1 1000 100 0 3000 1 10 100 Frequency(MHz) 0 3000 1 30 3000 UPZ1005D121-1R3TF Z Z 180 Impedance(Ω ) Impedance(Ω ) R 60 1000 240 120 Z 100 Frequency(MHz) 160 90 10 UPZ1005D800-1R5TF UPZ1005D600-1R5TF 120 Impedance(Ω) 1000 Frequency(MHz) R 80 40 R 120 60 X X X 0 1 10 100 1000 0 3000 1 Frequency(MHz) 10 100 1000 3000 0 1 Frequency(MHz) 10 100 1000 3000 Frequency(MHz) UPZ1005D221-R90TF 400 300 Impedance(Ω) Z R 200 100 X 0 1 10 100 1000 3000 Frequency(MHz) UPZ1608 TYPE UPZ1608G101-1R0TF UPZ1608G600-1R2TF UPZ1608G300-1R8TF 1600 600 300 Z 1200 R Impedance(Ω) Z Impedance(Ω) Impedance(Ω) 450 200 R 100 150 400 X X 10 1000 100 3000 1 10 1000 100 0 3000 1 Frequency(MHz) Frequency(MHz) UPZ1608U220-6R0TF 10 100 1000 3000 1000 3000 Frequency(MHz) UPZ1608U700-4R0TF UPZ1608U280-6R0TF 100 50 40 X R 0 0 1 Z 800 300 40 75 Z R 20 Z Impedance(Ω) Impedance(Ω) Impedance(Ω) 30 30 R 20 Z R 50 25 10 10 X X X 0 0 0 1 10 100 Frequency(MHz) Sunlord 1000 3000 1 10 100 Frequency(MHz) 1000 3000 1 10 100 Frequency(MHz) Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com DETAIL ELECTRICAL CHARACTERISTICS UPZ1608 TYPE UPZ1608U221-2R2TF UPZ1608U331-1R5TF 300 UPZ1608U391-1R5TF 400 500 Z Z 400 200 R Impedance(Ω ) Z Impedance(Ω) Impedance(Ω) 300 R 200 100 300 R 200 100 X 0 0 0 1 10 100 1000 3000 1 10 Frequency(MHz) 1000 UPZ1608E300-5R0TF 600 Z Impedance(Ω) R 300 60 45 Impedance(Ω) Z R 400 150 200 1 R 30 X 1000 100 10 Z 15 X 0 X 0 3000 1 Frequency(MHz) 10 100 1000 0 3000 1 10 100 Frequency(MHz) 300 Z Z R 25 Z Impedance(Ω ) Impedance(Ω) 120 50 3000 UPZ1608E181-2R2TF 160 75 1000 Frequency(MHz) UPZ1608E101-3R0TF UPZ1608E600-3R5TF 100 3000 Frequency(MHz) 800 450 1000 100 10 1 3000 UPZ1608U601-1R3TF UPZ1608U471-1R5TF Impedance(Ω ) 100 Frequency(MHz) 600 Impedance(Ω) 100 X X R 80 200 R 100 40 X X X 0 0 0 1 10 100 1000 3000 1 10 Frequency(MHz) 1000 100 1 3000 10 UPZ1608E221-2R2TF Z 400 Z R 600 Impedance(Ω) Impedance(Ω ) Impedance(Ω ) 300 200 300 R R 400 200 100 200 100 X X 0 1 10 100 1000 3000 Frequency(MHz) X 0 1 10 100 1000 3000 0 1 10 Frequency(MHz) 100 1000 Frequency(MHz) UPZ1608W260-6R0TF 50 Impedance(Ω) 40 Z 30 R 20 X 10 0 1 3000 800 500 Z 1000 UPZ1608E601-1R0TF UPZ1608E331-1R7TF 400 100 Frequency(MHz) Frequency(MHz) 10 100 1000 3000 Frequency(MHz) Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com 3000 DETAIL ELECTRICAL CHARACTERISTICS UPZ2012 TYPE UPZ2012D220-6R0TF UPZ2012D800-4R0TF 40 Z 40 120 R 20 10 30 Impedance(Ω ) Impedance(Ω ) 30 Impedance(Ω ) UPZ2012U220-6R0TF 160 Z R 80 20 R 10 40 X Z X X 0 0 0 1 10 100 1000 1 3000 10 100 1000 1 3000 UPZ2012U300-6R0TF 100 UPZ2012U221-3R0TF 250 80 Z R Z Impedance(Ω ) Impedance(Ω ) Z 20 3000 300 100 30 1000 Frequency(MHz) UPZ2012U600-4R0TF 40 Impedance(Ω ) 10 Frequency(MHz) Frequency(MHz) 60 R 40 200 R 150 100 10 X 20 0 1 10 100 1000 X 0 0 3000 1 10 Frequency(MHz) 1000 100 R 1000 1 10 100 1000 Z Impedance(Ω ) 600 R 150 R 400 200 R 600 300 X X 0 0 Sunlord 3000 Z 900 X 1000 1000 UPZ2012E102-1R5TF 1200 Impedance(Ω ) Z 300 100 Frequency(MHz) 800 100 10 UPZ2012E601-2R0TF UPZ2012E331-2R5TF Frequency(MHz) 1 3000 Frequency(MHz) 450 10 3000 X 0 0 3000 Frequency(MHz) 1 1000 R X 0 100 Z 200 100 50 X 10 3000 300 Z 15 1000 UPZ2012E221-3R0TF Impedance(Ω ) Impedance(Ω ) R 100 400 150 Z 1 10 Frequency(MHz) 200 45 Impedance(Ω ) 1 3000 UPZ2012E121-4R0TF UPZ2012E300-6R0TF Impedance(Ω ) 100 Frequency(MHz) 60 30 X 50 3000 1 10 100 Frequency(MHz) 1000 3000 0 1 10 100 Frequency(MHz) Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com

下载 PDF

UPZ1608E221-2R0TF

物料型号：UPZ系列，专为超大电流设计。

器件简介： - 工作温度范围：-55℃至+125℃。 - 特点包括内部银打印层和磁屏蔽结构以最小化串扰，单片结构确保了出色的可靠性，以及比PZ系列更小的直流电阻和更大的允许电流。

引脚分配：文档中未明确提供引脚分配信息，但通常这类器件为无引脚封装。

参数特性： - 提供了不同型号的铁珠，包括UPZ0603、UPZ1005、UPZ1608和UPZ2012，具有不同的尺寸和额定电流。 - 额定电流范围从1.5A至6A不等。 - 提供了不同标称阻抗值的型号，例如300Ω、221Ω、102Ω等。

功能详解： - 主要用于电力线或大电流信号线的噪声抑制，适用于通信设备、计算机、音视频设备等。

应用信息： - 用于抑制电子设备的电源线或大电流信号线的噪声。

封装信息： - 提供了多种尺寸的封装，包括0603、1005、1608和2012，以及对应的英寸尺寸。

电气特性： - 详细列出了不同型号的铁珠在100MHz测试频率下的阻抗、最大直流电阻和最大额定电流。 - 还提供了在超过+85℃操作温度下，额定电流超过1000mA的铁珠的电流降额曲线。

注意事项： - 规格如有变更，不另行通知，请访问官网获取最新信息。 - 文档最后修订日期为2021年5月15日。
