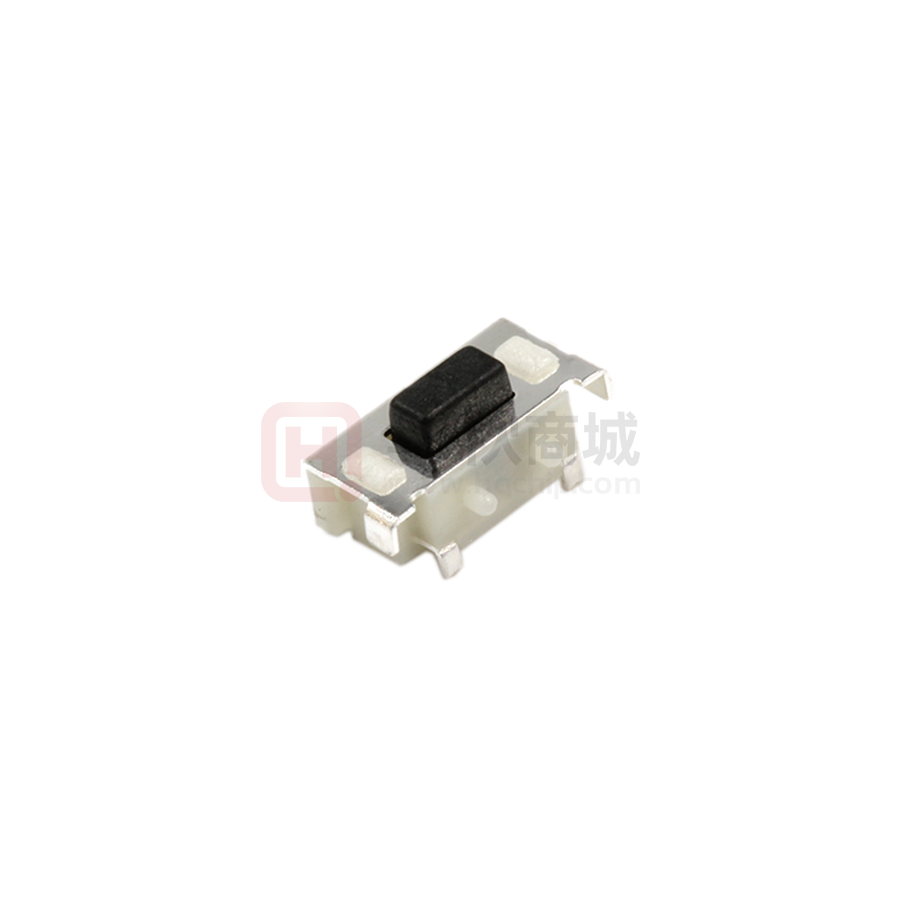

YTS-B001-1A

1 2 3 4 5 6 7 REV. RoHS ECN. NO. APPD. CAD GENERATED DRAWING. DON'T CHANGE BY HAND. H A 3.5 B 3.8 A A 2 1 CIRCUIT DIAGRAM 5 B B 4 3 2 2 1 1 C C D D Specification Rate voltage.current Contact resistance PCB.WELDING DRAWING 50mA DC12V ≤100mΩ E Operating force 160±50gf Travel 0.20±0.10mm Insulated resistance ≥100MΩ Dielectric strength PPA Button Cover Phosphor copper Silver Shrapnel Stainless steel Silver Phosphor copper Cards Life cycle ≥50000次 1 ITEM PART NAME 2 Q'TY MATERIAL 3 0.50 X.° 2° .X° 1° .X 0.30 .XX 0.10 .XX° .XXX 0.05 深圳市怡远科技有限公司 UNITS SHENZHEN YIYUAN TECHNOLOGY CO.,LTD 0.5° MAT'L FINISH PART NO. APPD: ROGER CHKD: ROC TITLE: DWG NO.: White LCP Housing ≥250VAC/1min Black X. Silver Q'TY DR: FINSH/COLOR 4 5 BILLY WANG 2020/08/21 6 7 SCALE SHEET 1/1 1/1 REV. A1 E
