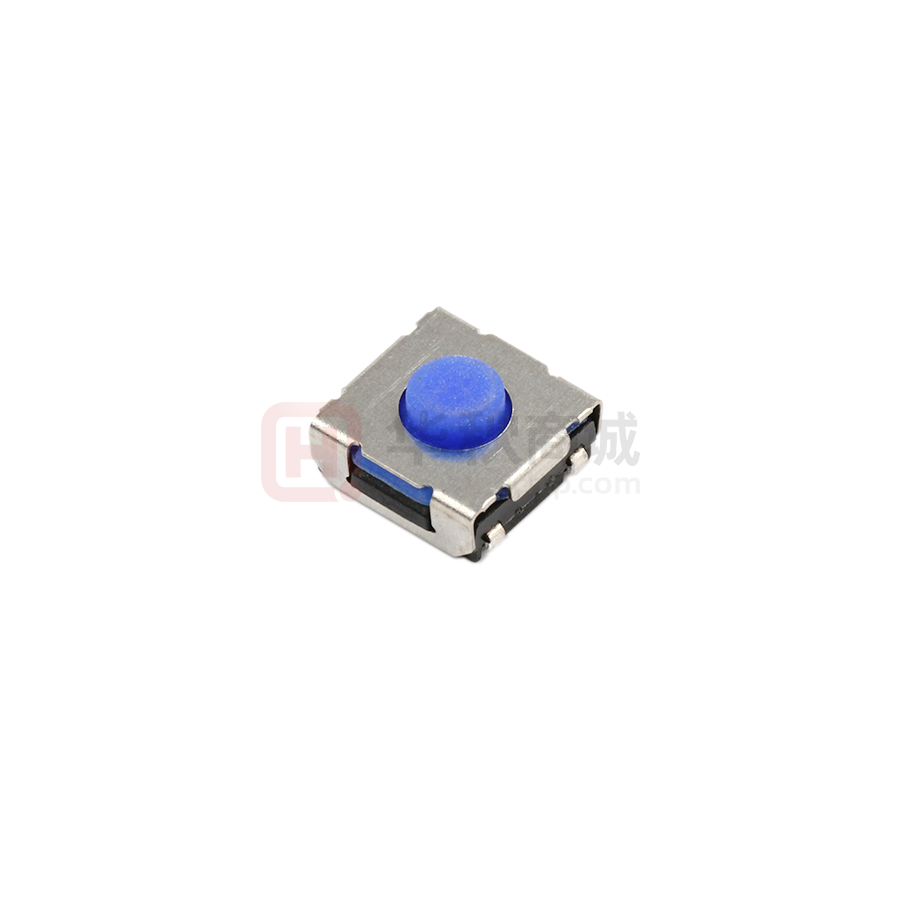

YTS-E005-2C

1 2 3 4 5 6 7 REV. RoHS ECN. NO. APPD. CAD GENERATED DRAWING. DON'T CHANGE BY HAND. A A 2 1 H B 2 1 A 2.5 B 3.1 C 3.5 D 4.3 E 4.5 F 5.0 5 B 4 4 3 3 CIRCUIT DIAGRAM 2 1 4 3 C C D D PCB.WELDING DRAWING Specification Rate voltage.current 50mA DC12V Contact resistance ≤100mΩ E Operating force 180±50gf Travel 0.20±0.10mm Insulated resistance ≥100MΩ Dielectric strength Life cycle ≥250VAC/1min ≥100000次 1 Silica gel Button ITEM White Cover Stainless steel Cleaning Shrapnel Stainless steel Silver Housing PPA Black Cards Brass Silver PART NAME 2 Q'TY MATERIAL 3 X. 0.50 X.° 2° .X 0.30 .X° 1° .XX 0.10 .XX° .XXX 0.05 SHENZHEN YIYUAN TECHNOLOGY CO.,LTD 0.5° MAT'L FINISH Q'TY PART 5 NO. APPD: ROGER CHKD: ROC DR: FINSH/COLOR 4 深圳市怡远科技有限公司 UNITS TITLE: DWG NO.: BILLY WANG 2020/08/21 6 7 SCALE SHEET 1/1 1/1 REV. A1 E
