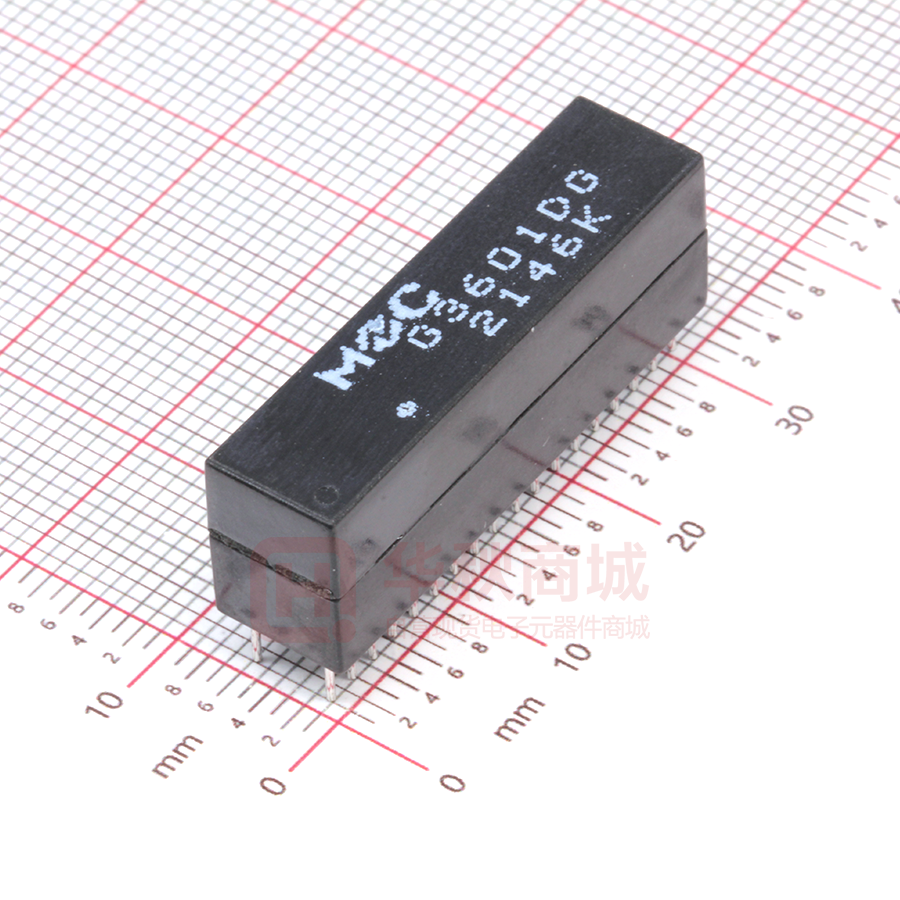

G3601DG

100/1000 BASE-T DUAL PORT THROUGH HOLE MAGNETICS Meets IEEE 802.3 & ANSI X3.263 Standards. RoHS Compliant. 100/1000 Base-T,Through-Hole Type . Operating temperature range: 0 ℃ to +70℃. Electrical Specifications @25°C Part Number OCL(uH) 100KHz,0.1Vrms, With 8mA DC Bias G3601DG CMRR (dB Min) Cross talk (dB Min) 0.5-100MHz 0.5-40MHz 10.1-100MHz 0.5-40MHz 40.1-100MHz 0.5-100MHz -1.1 -18 -18+20*log(f/30) -35 -33+20*log(f/50) -30 1CT:1CT 350uH Return Loss (dB Min) Insertion Loss (dB Max) Turns Ratio (±5%) MECHANICAL G3601DG 32.7 ∅0.8 G36XXDG YYWWX 8.4 4.8 30.26 SUGGESTED PAD LAYOUT 12.0Max 3.2 0.4 1.78 4.8 30.26 Unless otherwise specified all tolerances are:±0.25 in mm 20 19 17 18 21 22 16 15 14 1CT:1CT 23 24 13 1CT:1CT 25 26 11 12 1CT:1CT 27 28 9 1CT:1CT 29 8 10 30 31 1CT:1CT 6 7 32 5 33 4 3 1CT:1CT 34 35 2 1CT:1CT 36 1CT:1CT 1 SCHEMATICS HI-POT (Vrms) 1500
