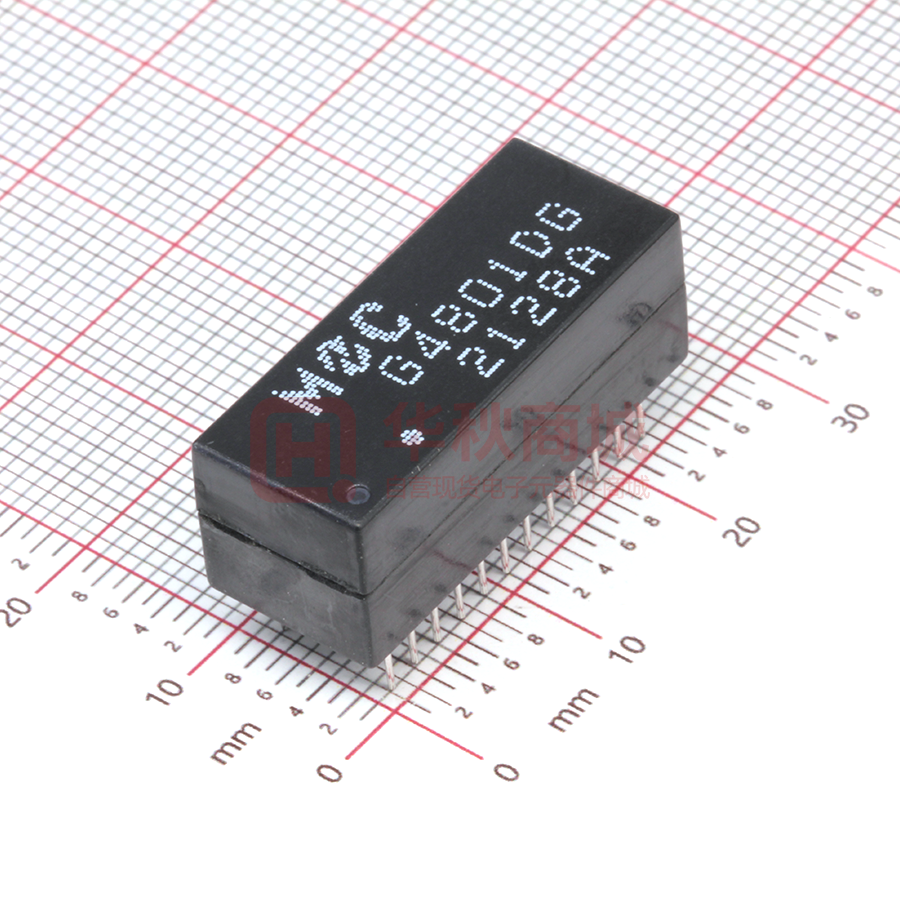

G4801DG

100/1000 BASE-T DUAL PORT THROUGH HOLE MAGNETICS Meets IEEE 802.3 & ANSI X3.263 Standards. RoHS Compliant. 100/1000 Base-T,Through-Hole Type . Operating temperature range: 0 ℃ to +70℃. Electrical Specifications @25°C Part Number OCL(uH) 100KHz,0.1Vrms, With 8mA DC Bias G4801DG 350uH Return Loss (dB Min) Insertion Loss (dB Max) Turns Ratio (±5%) 1CT:1CT Cross talk (dB Min) CMRR (dB Min) 0.5-100MHz 0.5-40MHz 10.1-100MHz 0.5-40MHz 40.1-100MHz 0.5-100MHz -1.1 -18 -18+20*log(f/30) -35 -33+20*log(f/50) -30 MECHANICAL G4801DG 28.0 ∅0.8 G48XXDG 12.0Max 8.89 5.35 1.0 YYWWX 2.0 23.0 SUGGESTED PAD LAYOUT 12.0Max 3.2 1.0 0.4 5.35 8.89 23.0 Unless otherwise specified all tolerances are:±0.25 in mm SCHEMATICS 1 2 1CT:1CT 48 47 46 15 1CT:1CT 45 44 16 43 42 41 18 3 4 5 6 7 8 1CT:1CT 9 10 11 12 1CT:1CT 13 14 17 19 20 40 21 39 38 22 37 24 23 1CT:1CT 36 35 1CT:1CT 33 32 34 1CT:1CT 31 30 29 28 1CT:1CT 27 26 25 HI-POT (Vrms) 1500
