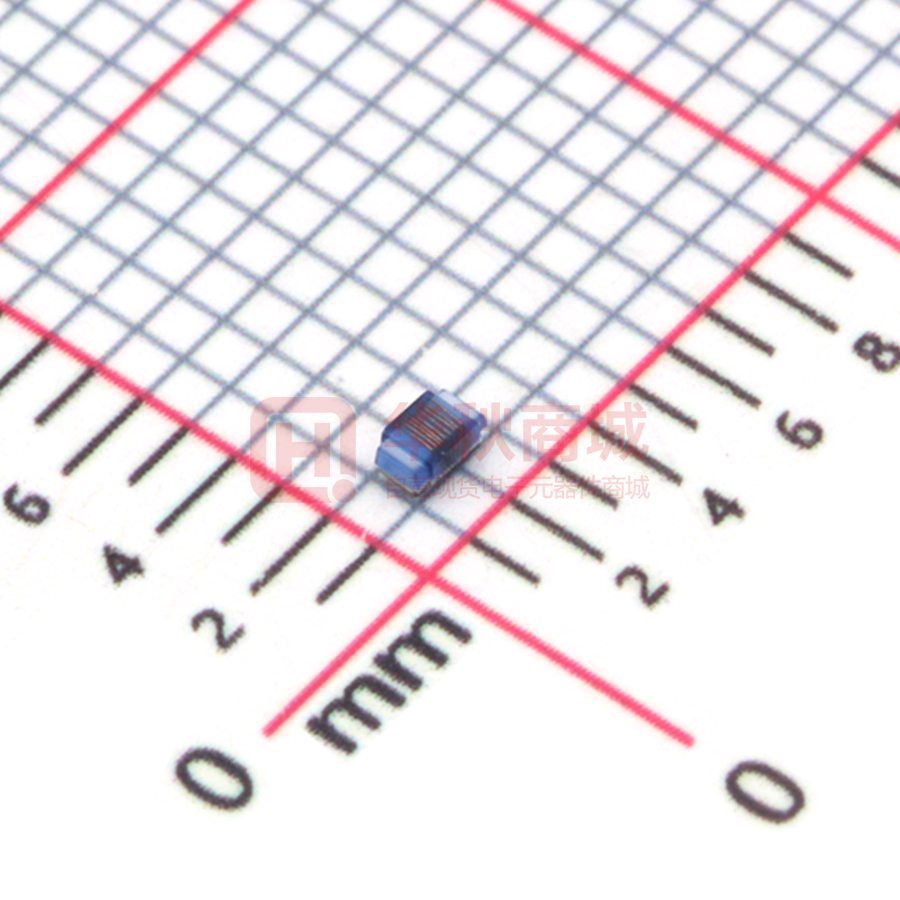

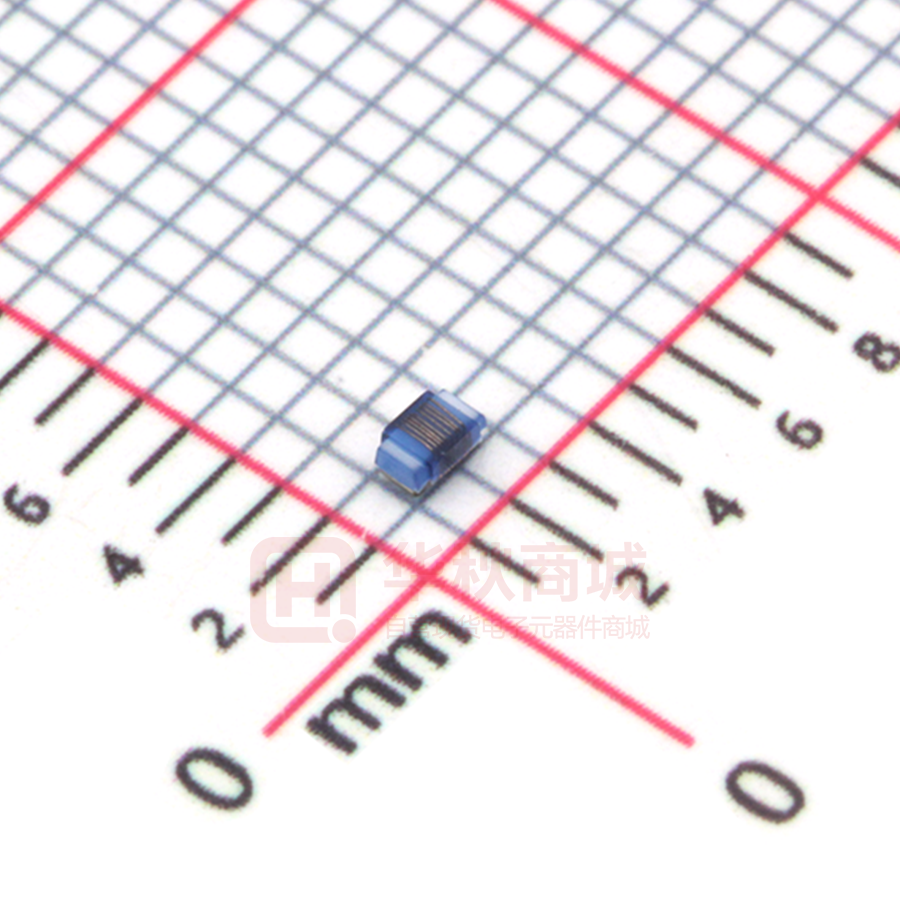

SWI0603F-43NG

P1 TAI-TECH High Frequency Winding Type Chip Inductor SWI0603F-43NG ECN HISTORY LIST REV DATE DESCRIPTION APPROVED CHECKED DRAWN 1.0 18/05/09 新 發 行 楊祥忠 徐鋒強 張展耀 備 註 www.tai-tech.com.tw P2 TAI-TECH High Frequency Winding Type Chip Inductor SWI0603F-43NG 1. Features Halogen Pb Halogen-free Pb-free 1.Ceramic core wire wound construction. 2.No batch to batch variations in inductance 3.High Reliability due to ceramic wire wound construction. 4.High frequency application. 5.Small footprint as well as low profile. 6.100% Lead(Pb) & Halogen-Free and RoHS compliant. 2. Dimensions Size A(mm) B(mm) C(mm) D(mm) E(mm) SWI0603 1.80 max. 1.20 max. 1.20 max. 0.38 ref. 0.35±0.1 Unit:mm 3. Part Numbering SWI 0603 F A B C A: Series B: Dimension C: Lead free type D: Inductance E: Inductance Tolerance - 43N G D E LxW 43N=43.0nH G=±2% 4. Specification Part Number SWI0603F-43NG Inductance (nH) 43 Tolerance G Test Frequency Q @ 250MHz Rated Current DCR SRF (Hz) min. (mA) max. (Ω) max. (MHz) min. 0.1V/250M 38 600 0.28 www.tai-tech.com.tw 2000 P3 TAI-TECH 5. Materials No. Description Specification a. Upper Plate UV Glue b. Core Ceramics Core c Termination Tin Pb Free d Wire Enameled Copper Wire 6. Reliability and Test Condition Item Performance Operating temperature -40~+125℃ (Including self - temperature rise) Storage temperature -40~+125℃ (on board) Test Condition Electrical Performance Test Inductance L Agilent-4291, Agilent-4287 Agilent-4192, Agilent-4285 Q Agilent-4291 SRF Refer to standard electrical characteristic list DC Resistance Agilent-4192 Agilent-34420A Applied the current to coils, the inductance change shall be less Rated Current than 20% to initial value. Reliability Test Preconditioning: Run through IR reflow for 2 times.( IPC/JEDEC J-STD-020DClassification Reflow Profiles) Temperature： 125±2℃ Life Test Applied current：rated current Duration：1000±12hrs Measured at room temperature after placing for 24±2 hrs Preconditioning: Run through IR reflow for 2 times.( IPC/JEDEC J-STD-020DClassification Reflow Profiles Humidity：85±2﹪R.H, Load Humidity Temperature：85℃±2℃ Duration：1000hrs Min. with 100% rated current Measured at room temperature after placing for 24±2 hrs Moisture Resistance Appearance：No damage. Impedance：within±15% of initial value Inductance：within±10% of initial value Q：Shall not exceed the specification value. RDC：within ±15% of initial value and shall not exceed the specification value e Preconditioning: Run through IR reflow for 2 times.( IPC/JEDEC J-STD-020DClassification Reflow Profiles 1. Baked at50℃ for 25hrs, measured at room temperature after placing for 4 hrs. 2. Raise temperature to 65±2℃ 90-100%RH in 2.5hrs, and keep 3 hours, cool down to 25℃ in 2.5hrs. 3. Raise temperature to 65±2℃ 90-100%RH in 2.5hrs, and keep 3 hours, cool down to 25℃ in 2.5hrs,keep at 25℃ for 2 hrs then keep at -10℃ for 3 hrs 4. Keep at 25℃ 80-100%RH for 15min and vibrate at the frequency of 10 to 55 Hz to 10 Hz, measure at room temperature after placing for 1~2 hrs. Preconditioning: Run through IR reflow for 2 times.( IPC/JEDEC J-STD-020DClassification Reflow Profiles Condition for 1 cycle Step1：-40±2℃ 30±5min Thermal shock Step2：25±2℃ ≦0.5min Step3：125±2℃ 30±5min Number of cycles： 500 Measured at room temperature after placing for 24±2 hrs Oscillation Frequency: 10～2K～10Hz for 20 minutes Vibration Equipment： Vibration checker Total Amplitude:1.52mm±10% Testing Time : 12 hours(20 minutes, 12 cycles each of 3 orientations)。 www.tai-tech.com.tw P4 TAI-TECH Item Performance Bending Shock Solder ability Appearance：No damage. Impedance：within±15% of initial value Inductance：within±10% of initial value Q：Shall not exceed the specification value. RDC：within ±15% of initial value and shall not exceed the specification value More than 95% of the terminal electrode should be covered with solder。 Test Condition Shall be mounted on a FR4 substrate of the following dimensions: >=0805 inch(2012mm):40x100x1.2mm =0805 inch(2012mm):1.2mm 0805:1kg ,
