TAI-TECH
P1

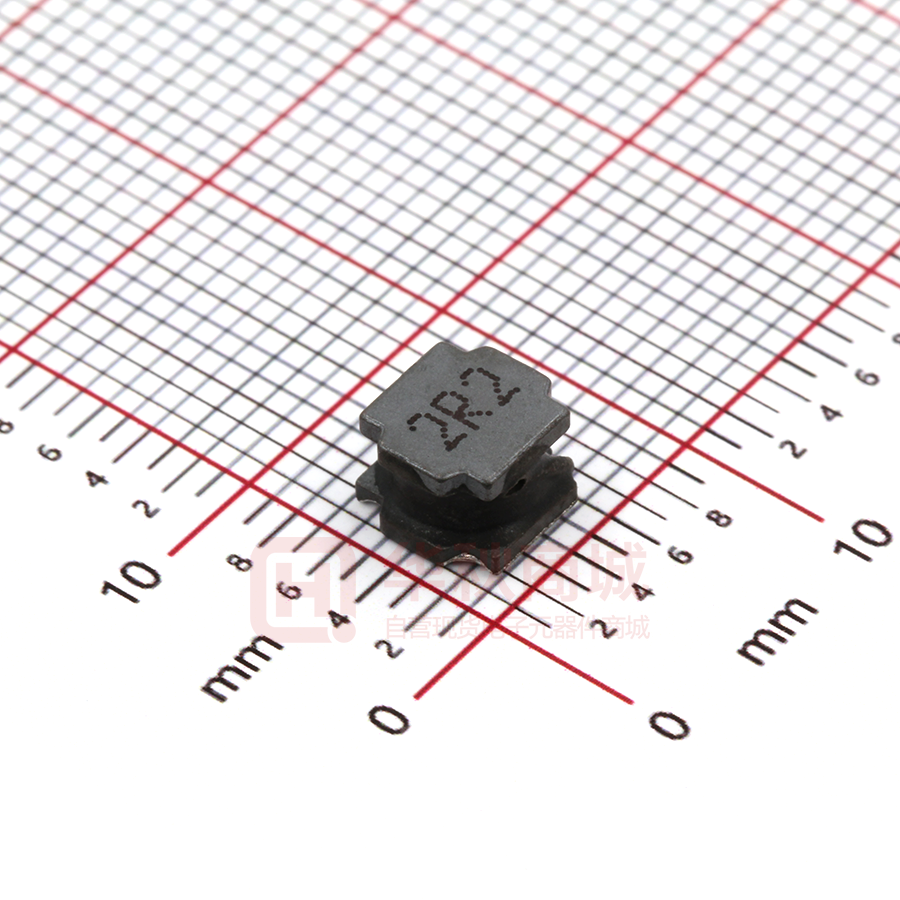

SMD Power Inductor
HPC6045NF-Series
ECN HISTORY LIST
REV
DATE
DESCRIPTION
APPROVED
CHECKED
DRAWN
1.0
16/08/11
新發行
楊祥忠
詹偉特
何秦芝
備
註
TAI-TECH
P2
SMD Power Inductor
HPC6045NF-Series
1. Features
2. Dimension
Halogen
Pb
Halogen-free
Pb-free
Recommended Land pattern
2R2
B(mm)
B’(mm)
C(mm)
D(mm)
E(mm)
HPC6045NF 6.0±0.3 6.0±0.3
Series
A(mm)
4.8±0.2
4.2±0.3
1.7±0.3
4.5±0.3 4.25±0.3
F(mm)
2R2
Y
D
E
L(mm)
G(mm)
G1(mm)
H(mm)
6.5
4.25
1.80min
4.8
3. Part Numbering
HPC
6045
NF
A
B
C
A: Series
B: Dimension
C: Type
D: Inductance
E: Inductance Tolerance
.
-
A/B*C
2R2=2.20uh 100=10uh,101=100uh,102=1000uh
M=±20%,Y=±30%.
marking direction cannot decide polarity. Color: Black, unidirectional.
magnetic shielding
TAI-TECH
P3
4. Specification
Part Number
Inductance
L0 (uH)
@0A
Rated current
Tolerance
K
L
M
Temperature current
I rms (A)
Y
Saturation current
I sat (A)
Typ
Max
Typ
Max
DCR
(mΩ) @25℃
±20%.
HPC6045NF-R36
0.36
/
/
±20% ±30%
9.00
8.50
18.00
16.50
4.80
HPC6045NF-R47
0.47
/
/
±20% ±30%
8.60
8.00
17.00
16.00
6.80
HPC6045NF-R82
0.82
/
/
±20% ±30%
8.20
7.50
14.50
13.50
8.50
HPC6045NF-1R0
1.00
/
/
±20% ±30%
8.00
7.30
13.50
12.50
10.0
HPC6045NF-1R2
1.20
/
/
±20% ±30%
7.50
7.00
12.50
11.50
10.5
HPC6045NF-1R3
1.30
/
/
±20% ±30%
7.50
7.00
12.50
11.50
10.5
HPC6045NF-1R5
1.50
/
/
±20% ±30%
7.00
6.60
12.00
11.00
11.7
HPC6045NF-1R8
1.80
/
/
±20% ±30%
6.80
6.20
11.00
10.00
12.0
HPC6045NF-2R0
2.00
/
/
±20% ±30%
6.50
5.80
10.50
9.50
13.5
HPC6045NF-2R2
2.20
/
/
±20% ±30%
6.00
5.30
9.50
8.55
15.0
HPC6045NF-2R3
2.30
/
/
±20% ±30%
5.80
5.00
9.30
8.20
16.0
HPC6045NF-3R0
3.00
/
/
±20% ±30%
5.20
4.60
8.00
7.50
20.0
HPC6045NF-3R3
3.30
/
/
±20% ±30%
5.00
4.50
7.80
7.30
21.0
HPC6045NF-3R6
3.60
/
/
±20% ±30%
4.90
4.30
7.40
6.90
22.5
HPC6045NF-4R7
4.70
/
±15% ±20% ±30%
4.50
4.00
6.80
6.20
26.0
HPC6045NF-5R6
5.60
/
±15% ±20% ±30%
4.10
3.70
6.40
5.70
31.0
HPC6045NF-6R3
6.30
/
±15% ±20% ±30%
3.80
3.50
5.90
5.30
33.0
HPC6045NF-6R8
6.80
/
±15% ±20% ±30%
3.60
3.30
5.70
5.15
34.0
HPC6045NF-8R2
8.20
/
±15% ±20% ±30%
3.40
2.90
5.10
4.50
46.0
HPC6045NF-100
10.0
±10% ±15% ±20% ±30%
3.20
2.60
4.60
4.20
52.0
HPC6045NF-150
15.0
±10% ±15% ±20% ±30%
2.80
2.20
3.80
3.30
71.0
HPC6045NF-180
18.0
±10% ±15% ±20% ±30%
2.60
2.10
3.40
2.90
80.0
HPC6045NF-220
22.0
±10% ±15% ±20% ±30%
2.30
1.90
3.30
2.70
96.0
HPC6045NF-330
33.0
±10% ±15% ±20% ±30%
1.80
1.50
2.50
2.10
145
HPC6045NF-470
47.0
±10% ±15% ±20% ±30%
1.60
1.20
2.00
1.75
200
HPC6045NF-560
56.0
±10% ±15% ±20% ±30%
1.40
1.00
1.80
1.65
230
HPC6045NF-680
68.0
±10% ±15% ±20% ±30%
1.10
0.92
1.60
1.52
305
HPC6045NF-820
82.0
±10% ±15% ±20% ±30%
0.98
0.88
1.50
1.40
365
HPC6045NF-101
100
±10% ±15% ±20% ±30%
0.92
0.82
1.33
1.25
456
HPC6045NF-121
120
±10% ±15% ±20% ±30%
0.85
0.79
1.20
1.10
500
HPC6045NF-151
150
±10% ±15% ±20% ±30%
0.75
0.70
1.10
1.00
626
HPC6045NF-181
180
±10% ±15% ±20% ±30%
0.68
0.60
1.00
0.90
745
HPC6045NF-221
220
±10% ±15% ±20% ±30%
0.60
0.50
0.88
0.77
900
HPC6045NF-331
330
±10% ±15% ±20% ±30%
0.55
0.45
0.60
0.55
1400
HPC6045NF-471
470
±10% ±15% ±20% ±30%
0.40
0.35
0.50
0.45
2050
Note:
1. All test data referenced to 25℃ ambient , Ls/Q:1MHz/1V.
2. Testing Instrument : HP4284A,CH11025,CH3302,CH1320 ,CH1320S LCR METER / Rdc:CH502BC MICRO OHMMETER.
3. Heat Rated Current (Irms) will cause the coil temperature rise approximately Δt of 40℃ (keep 1min.).
4. Saturation Current (Isat) will cause L0 to drop
30% typical. (keep quickly).
5. The part temperature (ambient + temp rise) should not exceed 125℃under worst case operating conditions.Circuit design,component,PCB trace size and
thickness,airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application.
6. Special inquiries besides the above common used types can be met on your requirement.
TAI-TECH
P4
5. Material List
b
a
c
d
NO
Items
Materials
a
Core
Ferrite Core
b
Wire
Copper Wire
c
Coating
Epoxy with magnetic
d
Solder
Lead free
6. Reliability and Test Condition
Item
Performance
Operating temperature
-40~+125℃(Including self - temperature rise)
Storage temperature
-40~+125℃ (on board)
Test Condition
Electrical Performance Test
Inductance
Refer to standard electrical characteristics list.
DCR
HP4284A,CH11025,CH3302,CH1320,CH1320S
LCR Meter.
CH502BC,Agilent33420A Micro-Ohm Meter.
Saturation Current (Isat)
△L30% typical.
Saturation DC Current (Isat) will cause L0
to drop △L(%)(keep quickly).
Heat Rated Current (Irms)
Approximately △T≦40℃
Heat Rated Current (Irms) will cause the coil temperature rise
△T(℃) without core loss.
1.Applied the allowed DC current(keep 1 min.).
2.Temperature measured by digital surface thermometer
Reliability Test
Life Test
Preconditioning: Run through IR reflow for 2 times.( IPC/JEDEC
J-STD-020DClassification Reflow Profiles)
Temperature:125±2℃(Bead)
Temperature: 85±2℃(Inductor)
Applied current:rated current
Duration:1000±12hrs
Measured at room temperature after placing for 24±2 hrs
Load Humidity
Preconditioning: Run through IR reflow for 2 times.( IPC/JEDEC
J-STD-020DClassification Reflow Profiles
Humidity:85±2﹪R.H,
Temperature:85℃±2℃
Duration:1000hrs Min. with 100% rated current
Measured at room temperature after placing for 24±2 hrs
Thermal
shock
Preconditioning: Run through IR reflow for 2 times.( IPC/JEDEC
J-STD-020DClassification
Reflow Profiles
Condition for 1 cycle
Step1:-40±2℃ 30±5min
Step2:25±2℃ ≦0.5min
Step3:105±2℃ 30±5min
Number of cycles: 500
Measured at room temperature after placing for 24±2 hrs
Appearance:No damage.
Inductance:within±10% of initial value
Q:Shall not exceed the specification value.
RDC:within ±15% of initial value and shall not
exceed the specification value
Vibration
Oscillation Frequency: 10~2K~10Hz for 20 minutes
Equipment: Vibration checker
Total Amplitude:1.52mm±10%
Testing Time : 12 hours(20 minutes, 12 cycles each of 3
orientations)。
Shock
Peak
Normal
Wave
value
duration (D)
form
(g’s)
(ms)
Shall be mounted on a FR4 substrate of the
SMD dimensions:
1500
0.5
Half-sine
following
>=0805:40x100x1.2mm
=0805:1.2mm
0805:1kg ,
