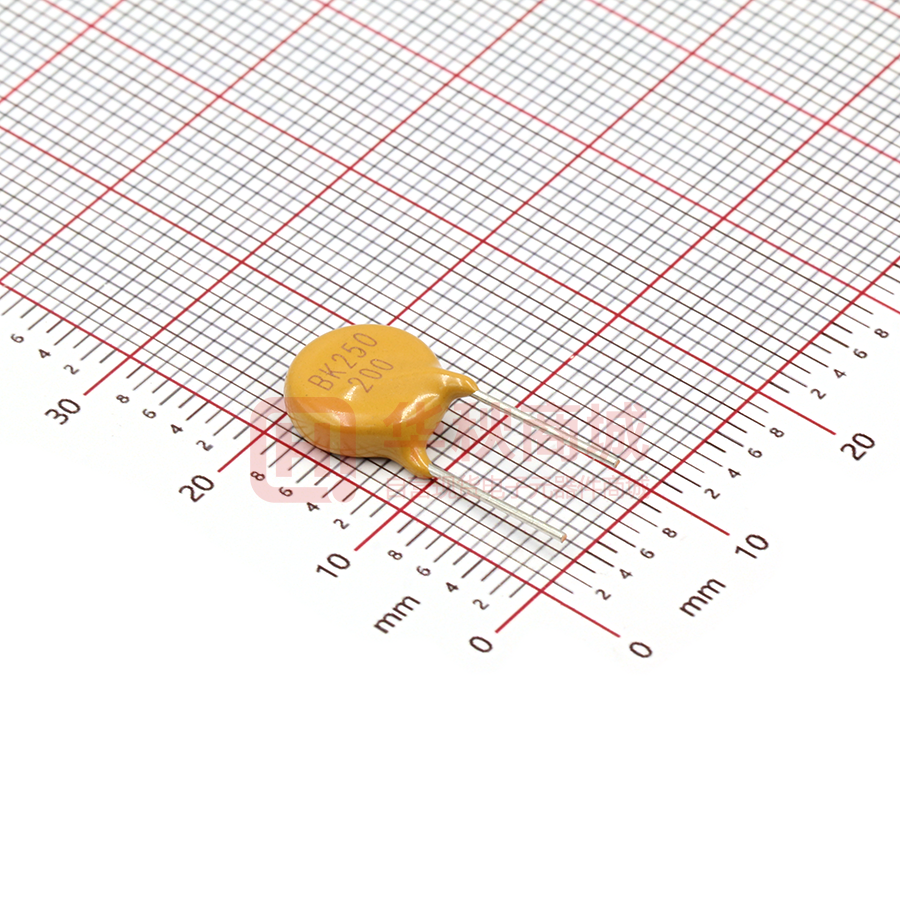

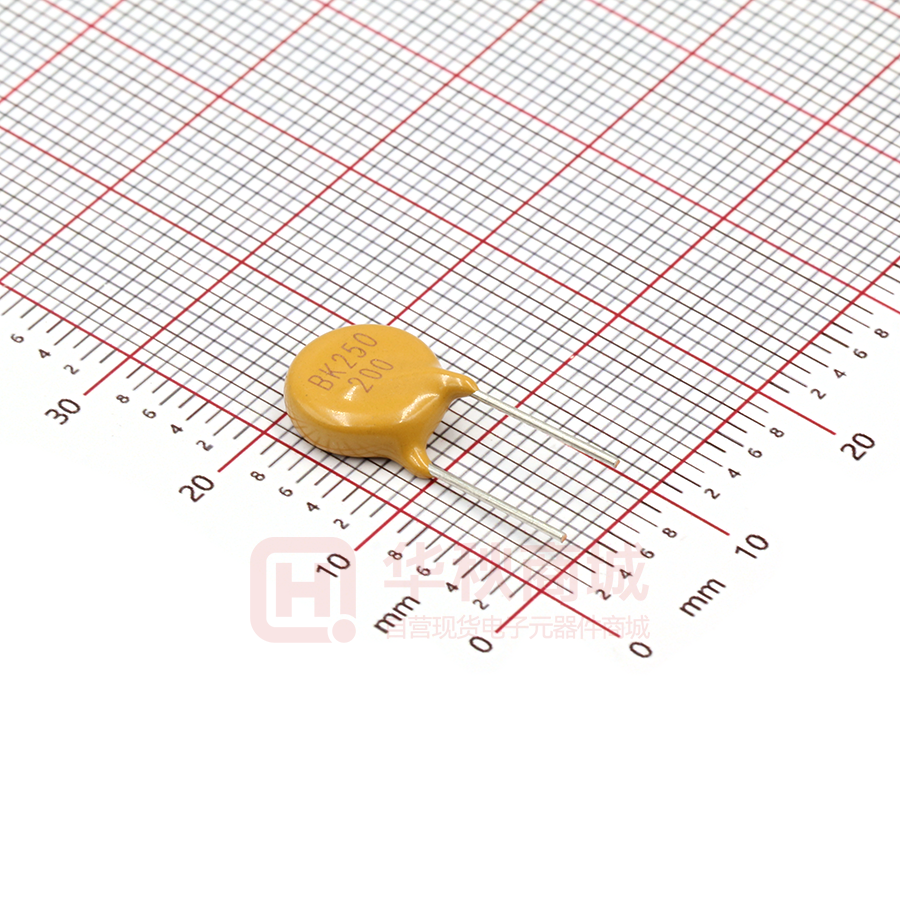

BK250-200-DZ

BK250 SERIES Positive Temperature Coefficient (PTC) Data Sheet Features ■ Radial leaded devices. ■ Over-current protection ■ High voltage surge capabilities ■ Flame retardant epoxy polymer insulating material meets UL94 V-0 requirement. ■ Available in lead-free version. ■ Meets MSL level 1, per J-STD-020 ■ Safety certification: UL: E244500 Dimensions (Unit: mm) Part Number A B C D E F Max. Max. ±0.6 Max. Typ. Min. BK250-030 6.0 8.0 5.1 4.6 0.6 7.6 DZ BK250-040 7.4 13.5 / 12.7 5.1 4.6 0.6 4.6 / 7.6 DY / DZ BK250-060 7.4 14.5 / 12.7 5.1 4.6 0.6 4.6 / 7.6 DY / DZ BK250-080 7.4 14.5 / 12.7 5.1 4.6 0.6 4.6 / 7.6 DY / DZ BK250-090 7.4 14.5 / 12.7 5.1 4.6 0.6 4.6 / 7.6 DY / DZ BK250-110 7.0 14.5 / 10.5 5.1 4.6 0.6 4.6 / 7.6 SY / SZ BK250-120 7.0 14.5 / 10.5 5.1 4.6 0.6 4.6 / 7.6 SY / SZ BK250-145 7.5 15.0 / 11.0 5.1 4.6 0.6 4.6 / 7.6 SY / SZ BK250-180 10.5 18.5 / 14.5 5.1 4.6 0.6 4.6 / 7.6 SY/SZ/DZ BK250-200 10.5 17.0 5.1 4.6 0.6 7.6 SZ / DZ BK250-400 11.2 17.0/19.5 5.1 4.6 0.8/0.6 7.6 SZ/SI BK250-600 16.0 18.0 5.1 4.6 0.8 7.6 SZ BK250-800 20.0 22.0 5.1 4.6 0.8 7.6 SZ ： Revision 13-Sep-17 Style. www.brightking.com BK250 SERIES Electrical Characteristics Part Number IH IT VMAXi IMAX RMAX RMIN Pd typ. (A) (A) (VAC) (A) (Ω) (Ω) (W) BK250-030 0.03 0.06 250 1 90.0 35.0 1.0 BK250-040 0.04 0.08 250 3 65.0 27.0 1.0 BK250-060 0.06 0.12 250 3 45.0 20.0 1.0 BK250-080 0.08 0.16 250 3 22.0 10.0 1.0 BK250-090 0.09 0.18 250 3 20.0 7.0 1.0 BK250-110 0.11 0.22 250 3 12.0 6.0 1.0 BK250-120 0.12 0.24 250 3 10.5 6.0 1.0 BK250-145 0.145 0.29 250 3 6.5 3.5 1.0 BK250-180 0.18 0.54 250 10 3.0 1.0 1.0 BK250-200 0.20 0.40 250 10 6.0 3.0 1.0 BK250-400 0.40 0.80 250 10 3.0 1.0 1.0 BK250-600 0.60 1.20 250 10 2.0 0.6 1.0 BK250-800 0.80 1.60 250 10 1.0 0.4 1.0 ·I = Hold current: maximum current device will pass without tripping in 25℃ still air. ·I = Trip current: minimum current at which the device will trip in 25℃ still air. ·V = Maximum interrupt voltage device can withstand without damage at rated current. ·I = Maximum fault current device can withstand without damage at rated voltage. ·R = Maximum resistance of device in initial (un-soldered) state. ·R = Minimum resistance of device in initial (un-soldered) state. ·Pd = Typical power dissipation from device when in the tripped state at 25℃ still air. H T MAXi MAX MAX MIN typ. Thermal Derating Chart – IH (A) ℃ Maximum Ambient Operating Temperatures ( ) Part Number -20 0 25 30 40 50 60 70 85 BK250-030 0.040 0.035 0.030 0.027 0.025 0.023 0.020 0.017 0.013 BK250-040 0.053 0.047 0.040 0.036 0.034 0.031 0.027 0.024 0.019 BK250-060 0.079 0.070 0.060 0.055 0.051 0.046 0.041 0.037 0.029 BK250-080 0.106 0.094 0.080 0.073 0.068 0.062 0.054 0.049 0.038 BK250-090 0.119 0.105 0.090 0.082 0.077 0.069 0.061 0.055 0.043 BK250-110 0.145 0.129 0.110 0.100 0.094 0.085 0.075 0.067 0.053 BK250-120 0.158 0.140 0.120 0.109 0.102 0.092 0.082 0.073 0.058 BK250-145 0.191 0.170 0.145 0.132 0.123 0.112 0.099 0.088 0.070 BK250-180 0.238 0.211 0.180 0.164 0.153 0.139 0.122 0.110 0.086 BK250-200 0.264 0.234 0.200 0.182 0.170 0.154 0.136 0.122 0.096 BK250-400 0.528 0.468 0.400 0.364 0.340 0.308 0.272 0.244 0.192 BK250-600 0.792 0.702 0.600 0.546 0.510 0.462 0.408 0.366 0.288 BK250-800 1.056 0.936 0.800 0.728 0.680 0.616 0.544 0.488 0.384 ： Revision 13-Sep-17 www.brightking.com BK250 SERIES Test Procedures and Requirement Items Test Conditions ℃ Resistance In still air @25 Time to Trip Specified current, Vmax, 25 Accept/Reject Criteria ℃ Rmin ≤ R ≤ Rmax T ≤ max. Time to trip (Ttrip) Hold Current 60 min, at IH No trip Trip Cycle Life Vmax, Imax, 100 cycles No arcing or burning Trip Endurance Vmax, 24hours No arcing or burning Time to Trip (s) Typical Time-to-Trip Charts @25℃ ℃ Storage Recommendations ■ Storage Temperature: -10℃~+40℃ ■ Relative Humidity: ≤80%RH ■ Keep away from corrosive atmosphere and sunlight. ■ Period of Storage: 1 year. ： Revision 13-Sep-17 www.brightking.com BK250 SERIES Wave Soldering Recommendation Parameters 300 ℃ 250 245 ~260 Temperature ( ) ℃ ℃ Soldering 3~5s 200 150 ℃ 100 ~130 100 ℃ Cooling 50 0 0 50 100 150 200 250 Time (s) Items Pre-Heating Zone Soldering Zone Cooling Zone Conditions Refer to the condition recommended by the flux manufacturer. Maximum ramping rate should not exceed 4 /sec. ℃ Maximum solder temperature should not exceed 260 ℃ Forced cooling Manual Soldering Recommendation Parameters Items Conditions Soldering condition The highest power of the manual soldering iron should be 30W or less, soldering temperature should not be higher than 280 . Soldering time The soldering time should be kept within 3 seconds, otherwise it might cause insulation layer cracking, and increased part resistance. Soldering position The distance on the leads between the soldering point and bottom of the PPTC body should be equal or greater than 4mm. Other The soldering iron should not contact the PPTC body except the leads. If the soldering conditions are kept to lower temperature, less time and larger distance, the outcome of the soldering will be better. ℃ Notes: 1. Before using the device must be stored in the original bags, if the storage conditions do not guarantee, the device may not be able to meet the given value. 2. The devices can’t used for reflow soldering. ： Revision 13-Sep-17 www.brightking.com BK250 SERIES Mechanical Characteristics Items Specifications Test Conditions/Methods Tensile strength No visible damage 1.0Kgf, 10 seconds Bending strength No visible damage 0.5Kgf, 90 , 3 times Vibration No visible damage Freq: 10-55Hz, Amp: 0.75mm, 1min ° Reliability Test Items Specifications Test Conditions/Methods Solder ability No visible damage Solder OK, Solder area ≥95% 245±5 , 2±1s, dipping depth=0.5inch max from the body Resistance to soldering heat No visible damage, Electrical OK, │△R/R0│ 50% 260±5 , 10+2/-0s Damp heat, steady state No visible damage, Electrical OK, │△R/R0│ 20% 40±2 , 90~95 % RH, total 48Hrs, after 4Hrs test electrical parameter Temperature cycling No visible damage, Electrical OK, │△R/R0│ 20% Ta -10+0/-1 30min, Ta 70+1/-0 30min, 5cycles, after 1hr test electrical parameter ， ≦ ≦ ≦ ℃ ℃ ℃ ＝ ℃ ＝ ℃ Packaging Bag Part Number Dimension A×B (mm) Quantity 120×150 1000pcs/bag 4000pcs/box BK250-030 BK250-040 BK250-060 BK250-080 BK250-090 BK250-110 Inner Box BK250-120 BK250-145 BK250-180 BK250-200 120×150 500pcs/bag 2000pcs/box BK250-400 BK250-600 150×200 BK250-800 ： Revision 13-Sep-17 www.brightking.com
