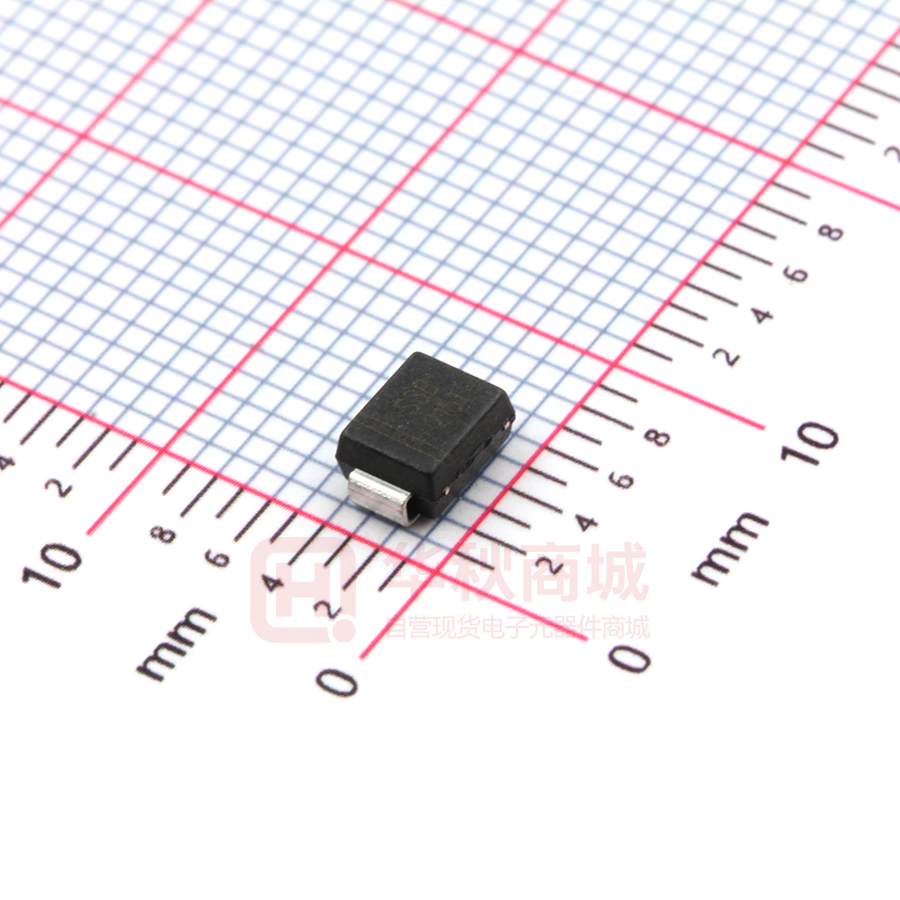

S3BB

山东晶导微电子有限公司 S3AB THRU S3MB Jingdao Microelectronics Surface Mount General Purpose Silicon Rectifiers Reverse Voltage - 50 to 1000 V PINNING Forward Current - 3 A PIN FEATURES • For surface mounted applications • Low profile package • Glass Passivated Chip Junction • Easy to pick and place • Lead free in comply with EU RoHS 2011/65/EU directives DESCRIPTION 1 Cathode 2 Anode 2 1 Top View MECHANICAL DATA • Case: SMB • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 0.055g / 0.002oz Marking Code： S3A~S3M Simplified outline SMB and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Symbols Parameter S3AB S3BB S3DB S3GB S3JB S3KB S3MB Units Maximum Repetitive Peak Reverse Voltage V RRM 50 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current I F(AV) 3 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load I FSM 90 A Maximum Instantaneous Forward Voltage at 3 A VF 1.1 V IR 5 100 μA Cj 35 pF RθJA RθJC 48 16 °C/W T j , T stg -55 ~ +150 °C Maximum DC Reverse Current T a = 25 °C at Rated DC Blocking Voltage T a =125 °C Typical Junction Capacitance Typical Thermal Resistance （1） （2） Operating and Storage Temperature Range （1）Measured at 1 MHz and applied reverse voltage of 4 V D.C （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. 2017.01 SMB-A-S3AB~S3MB-3A1KV Page 1 of 3 山东晶导微电子有限公司 S3AB THRU S3MB Jingdao Microelectronics Fig.2 Typical Instaneous Reverse Characteristics 5.0 4.0 3.0 2.0 1.0 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 175 Instaneous Reverse Current ( μ A) Average Forward Current (A) Fig.1 Forward Current Derating Curve 100 T J =150°C T J =125°C 10 T J =100°C 1.0 T J =75°C 0.1 T J =25°C 0.01 0 600 800 Fig.4 Typical Junction Capacitance Fig.3 Typical Forward Characteristic 10 Junction Capacitance ( pF) Instaneous Forward Current (A) 400 200 Instaneous Reverse Voltage (V) Case Temperature (°C) 1.0 100 T J =25°C 10 T J =25°C 0.1 0.4 1 0.6 0.8 1.0 1.2 1.4 1.6 1.8 0.1 1.0 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Peak Forward Surage Current (A) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 100 80 60 40 20 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles 2017.01 www.sdjingdao.com Page 2 of 3 山东晶导微电子有限公司 S3AB THRU S3MB Jingdao Microelectronics PACKAGE OUTLINE SMB Plastic surface mounted package; 2 leads L A A1 C A b D E E1 VM A SMB mechanical data UNIT mm mil A1 L C b 5.59 0.20 1.5 0.305 2.2 3.3 5.08 0.05 0.8 0.152 1.9 155 220 7.9 59 12 87 200 2.0 32 6 75 A E D max 2.44 4.70 3.94 min 2.13 4.06 max 96 185 min 84 130 160 E1 The recommended mounting pad size Marking Type number S3AB 2.2 (86) 2.4 (94) 2.8 (110) 2.4 (94) mm Unit ： (mil) 2017.01 JD702229B0 Marking code S3A S3BB S3B S3DB S3D S3GB S3G S3JB S3J S3KB S3K S3MB S3M Page 3 of 3
