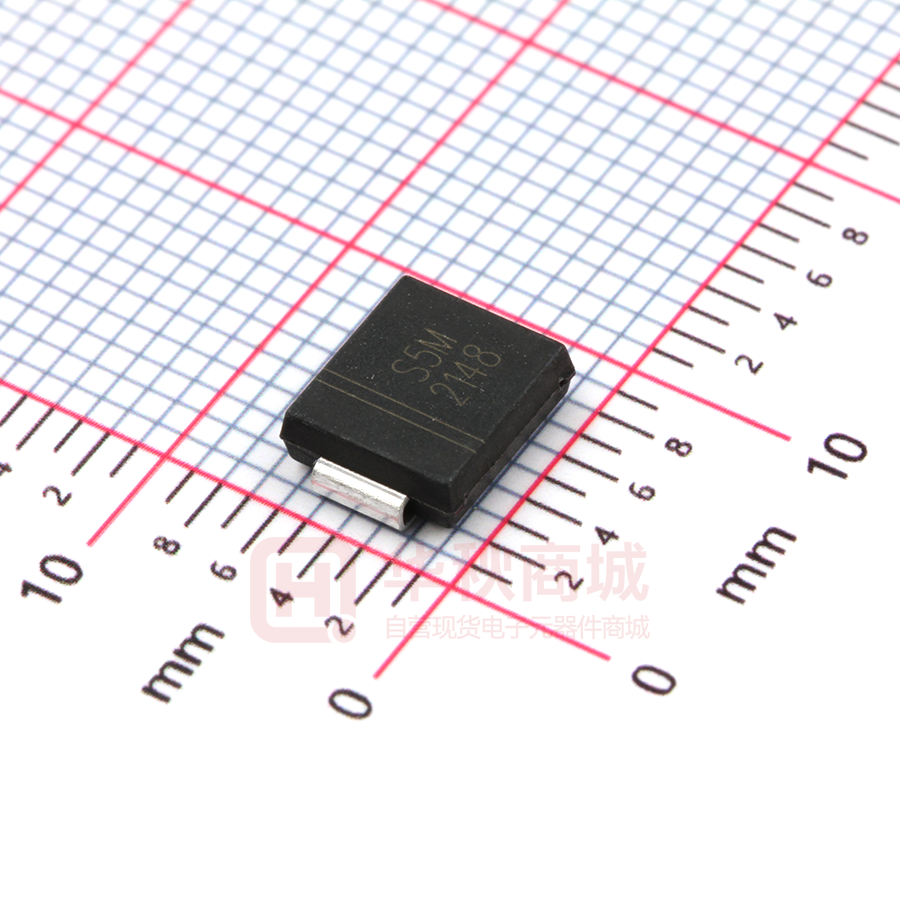

S5MC

山东晶导微电子有限公司 S5AC THRU S5MC Jingdao Microelectronics Surface Mount General Purpose Silicon Rectifiers Reverse Voltage - 50 to 1000 V Forward Current - 5 A PINNING PIN FEATURES • For surface mounted applications • Low profile package • Glass Passivated Chip Junction • Easy to pick and place • Lead free in comply with EU RoHS 2011/65/EU directives DESCRIPTION 1 Cathode 2 Anode 2 1 MECHANICAL DATA • Case: SMC • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 0.22g / 0.0077oz Top View Marking Code: S5A~S5M Simplified outline SMC and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Symbols S5AC S5BC S5DC S5GC S5JC S5KC S5MC Units Maximum Repetitive Peak Reverse Voltage V RRM 50 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current I F(AV) 5 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load I FSM 120 A Maximum Instantaneous Forward Voltage at 5 A VF 1.0 V IR 5 100 μA Cj 50 pF RθJA RθJC 35 13 °C/W T j , T stg -55 ~ +150 °C Parameter Maximum DC Reverse Current T a = 25 °C at Rated DC Blocking Voltage T a =125 °C Typical Junction Capacitance （1） Typical Thermal Resistance （2） Operating and Storage Temperature Range （1）Measured at 1 MHz and applied reverse voltage of 4 V D.C （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. 2017.01 SMC-A-S5AC~S5MC-5A1KV Page 1 of 3 山东晶导微电子有限公司 S5AC THRU S5MC Jingdao Microelectronics Fig.1 Forward Current Derating Curve Average Forward Current (A) 7.0 6.0 5.0 4.0 3.0 2.0 1.0 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 175 Instaneous Reverse Current（μ A） Fig.2 Typical Reverse Characteristics 100 T J =125°C 10 1.0 T J =25°C 0.1 00 Case Temperature (°C) 40 60 80 100 120 140 Fig.4 Typical Junction Capacitance Fig.3 Typical Forward Characteristic 10 Junction Capacitance ( pF) Instaneous Forward Current (A) 20 percent of Rated Peak Reverse Voltage (%) 1.0 T J =25°C 100 10 T J =25°C 0.1 0.4 1 0.6 0.8 1.0 1.2 1.4 1.6 1.8 0.1 1.0 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Peak Forward Surage Current (A) Fig.6 Maximum Non-Repetitive Peak Forward Surage Current 120 100 80 60 40 20 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles 2017.01 www.sdjingdao.com Page 2 of 3 山东晶导微电子有限公司 S5AC THRU S5MC Jingdao Microelectronics PACKAGE OUTLINE SMC Plastic surface mounted package; 2 leads E A A1 A C b D L E1 VM A SMC mechanical data A E D E1 A1 C L b max 2.62 7.0 6.2 8.0 0.21 0.31 1.6 3.25 min 2.00 6.5 5.6 7.6 0.05 0.15 0.9 2.75 max 103 276 244 315 8.3 12 63 128 min 79 256 220 299 2.0 5.9 35 108 UNIT mm mil Marking The recommended mounting pad size Type number 3.8 (150) S5AC 4.1 (160) 4.3 (170) 4.1 (160) Marking code S5A S5BC S5B S5DC S5D S5GC S5G S5JC S5J S5KC S5K S5MC S5M mm Unit ： (mil) 2017.01 JD702229B5 Page 3 of 3
