BEP0080TA

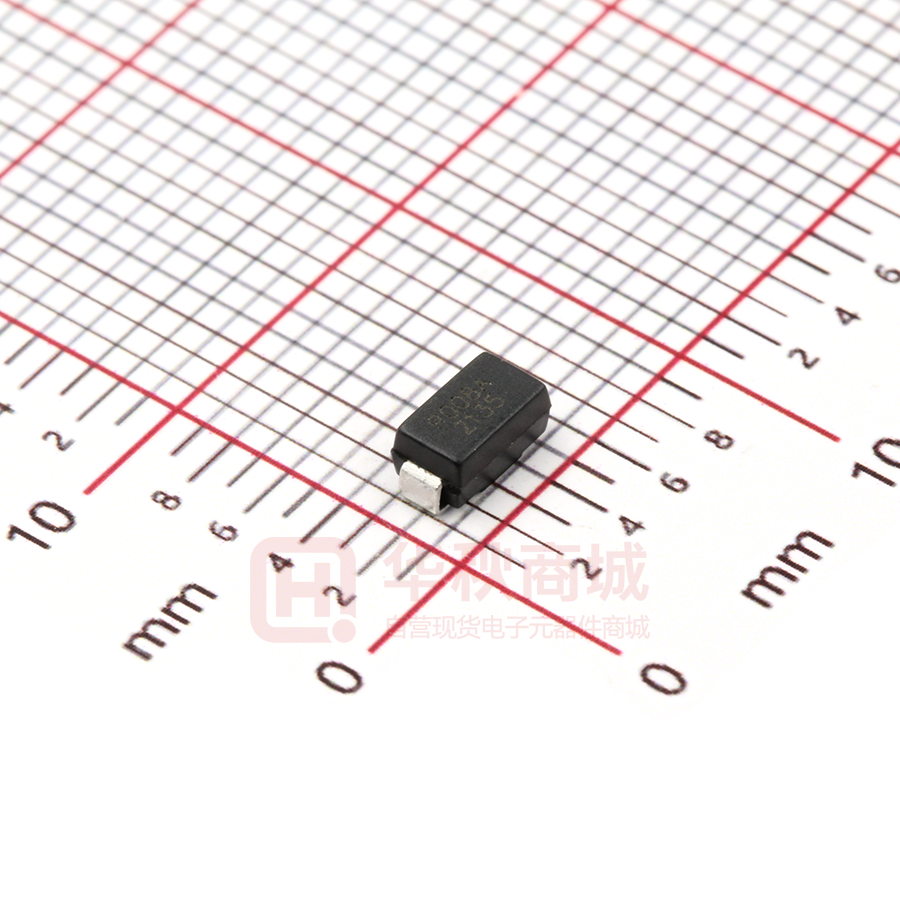

TSS-SMA Series Thyristor Surge protector TSS-SMA ROHS DESCRIPTION TSS-SMA series thyristors are a type of semi-conduct component. They are designed in applications, modems, telephones, line cards, answering machines, FAX machines, SLICs, T1/E1, xDSL, PBXs and more. FEATURES       Excellent capability of absorbing transient surge Quick response to surge voltage (ns Level) Eliminates overvoltage caused by fast rising transients Moisture sensitivity level: Level 1 Weight 69 mg (approximate) Non degenerative SMA 1 2 Symbol ABSOLUTE MAXIMUM RATINGS (TA=25ºC, RH=45%-75%, unless otherwise noted) Parameter Symbol Value Unit Tstg -60 to +150 ℃ Operating junction temperature range Tj -40 to +150 ℃ Repetitive peak pulse current IPP 35 A Storage temperature range ELECTRICAL CHARACTERISTICS (TA=25℃) Symbol Parameter VDRM Peak off-state voltage IDRM Off-state current VS Switching voltage IS Switching current VT On-state voltage IT On-state current IH Holding current CO Off-state capacitance 1/4 V-I Curve +I IT IS IH IDRM +V -V VT -I VDRM VS TSS-SMA Series Thyristor Surge protector TSS-SMA ROHS ELECTRICAL CHARACTERISTICS (TA=25℃, continued) IDRM@VDRM Part Number μA V MAX MIN BEP0080TA V ① S @I S VT@ IT IH CO② V mA V A mA pF MAX MAX MAX MAX MIN MAX 5 6 25 800 4 2.2 50 50 5 6 25 800 4 2.2 20 13 BEP0150TA 5 12 35 800 4 2.2 45 125 BEP0220TA 5 15 35 800 4 2.2 50 100 5 15 32 800 4 2.2 20 25 5 25 40 800 4 2.2 50 100 BEP0300TA-MC 5 25 40 800 4 2.2 50 25 BEP0640TA-MC 5 58 77 800 4 2.2 120 30 BEP0720TA-MC 5 65 87 800 4 2.2 120 30 BEP0900TA-MC 5 75 98 800 4 2.2 120 30 BEP1100TA-MC 5 90 130 800 4 2.2 120 30 BEP1300TA-MC 5 120 160 800 4 2.2 120 30 BEP1500TA-MC 5 140 180 800 4 2.2 120 30 BEP1800TA-MC 5 170 220 800 4 2.2 120 30 BEP2300TA-MC 5 190 260 800 4 2.2 120 25 BEP2600TA-MC 5 220 300 800 4 2.2 120 25 BEP3100TA-MC 5 275 350 800 4 2.2 120 25 BEP3500TA-MC 5 320 400 800 4 2.2 120 20 BEP3800TA-MC 5 340 450 800 4 2.2 120 20 5 6 25 800 4 2.2 50 100 5 6 25 800 4 2.2 50 25 5 6 25 800 4 2.2 50 130 5 6 25 800 4 2.2 50 40 BEP0080TA-MC BEP0220TA-MC BEP0300TA BEP0080TB BEP0080TB-MC BEP0080TC BEP0080TC-MC ① Vs is measured at 100KV/s ② Off-state capacitance is measured in VDC=2V, VRMS=1V, f=1MHz 2/4 TSS-SMA Series Thyristor Surge protector TSS-SMA ROHS SURGE RATINGS IPP (A) min Series 2×10us 8×20us 10×360us 10×1000us A 100 90 50 35 B 250 250 125 80 C 500 400 175 100 ORDERING INFORMATION BEP 008 BORN'S Semiconductor Surge Arrester 0 T A - MC Median Voltage 0:Bi-direction Package type Low Capacitor Surge Ratings : A: 2 KV(10/700us) B: 4 KV(10/700us) C:6 KV(10/700us) SOLDERING PARAMETERS -Temperature Min (Ts(min)) Pb-Free assembly (see FIG.2) +150℃ -Temperature Max(Ts(max)) +200℃ -Time (Min to Max) (ts) 60-180 secs. Reflow Condition Pre Heat Average ramp up rate (Liquid us Temp (TL) to peak) 3℃/sec. Max Ts(max) to TL - Ramp-up Rate 3℃/sec. Max -Temperature(TL) (Liquid us) +217℃ -Temperature(tL) 60-150 secs. Reflow Peak Temp (Tp) +260(+0/-5)℃ Time within 5℃ of actual Peak Temp (tp) 8-15 secs. Ramp-down Rate 6℃/sec. Max Time 25℃ to Peak Temp (TP) 8 min. Max Do not exceed +260℃ 3/4 TSS-SMA Series Thyristor Surge protector TSS-SMA FIG.1: tr × td pulse waveform ROHS FIG.2: Reflow condition %IPP tp tr = rise time to peak value td = decay time to half value 100 TP Critical Zone TL to TP Ramp-up Peak value TL tL Temperature TS(max) Half value 50 t(μs) 0 0 tr Ramp-down Preheat TS(min) 25 td FIG.3: Normalized Vs change vs. junction temperature ts time to peak temperatue (t 25℃ to peak) Time FIG.4: Normalized DC holding current vs. case temperature Percent of Vs change(%) IH(Tj)/IH(Tj=25℃) 2.0 12 1.8 1.6 8 1.4 4 25℃ 1.2 25℃ 1.0 0 0.8 -4 0.6 -8 -40 -20 0 Tj (℃) 40 60 80 20 100 120 140 160 0.4 -40 -20 TC (℃) 0 20 40 60 80 100 120 140 PACKAGE MECHANICAL DATA A Dimensions B Ref. H F G D E L J K Millimeters Min. Max. Min. Max. A 4.25 4.65 0.167 0.183 B 2.50 2.90 0.098 0.114 C 1.35 1.65 0.053 0.065 D 0.76 1.52 0.030 0.060 E 4.93 5.28 0.194 0.208 F 0.051 0.203 0.002 0.008 G 0.15 0.31 0.006 0.012 H 1.98 2.41 0.078 0.095 J 6.50 4/4 L 0.256 2.30 K DO-214AC (SMA) Inches 1.70 0.090 0.067 160
