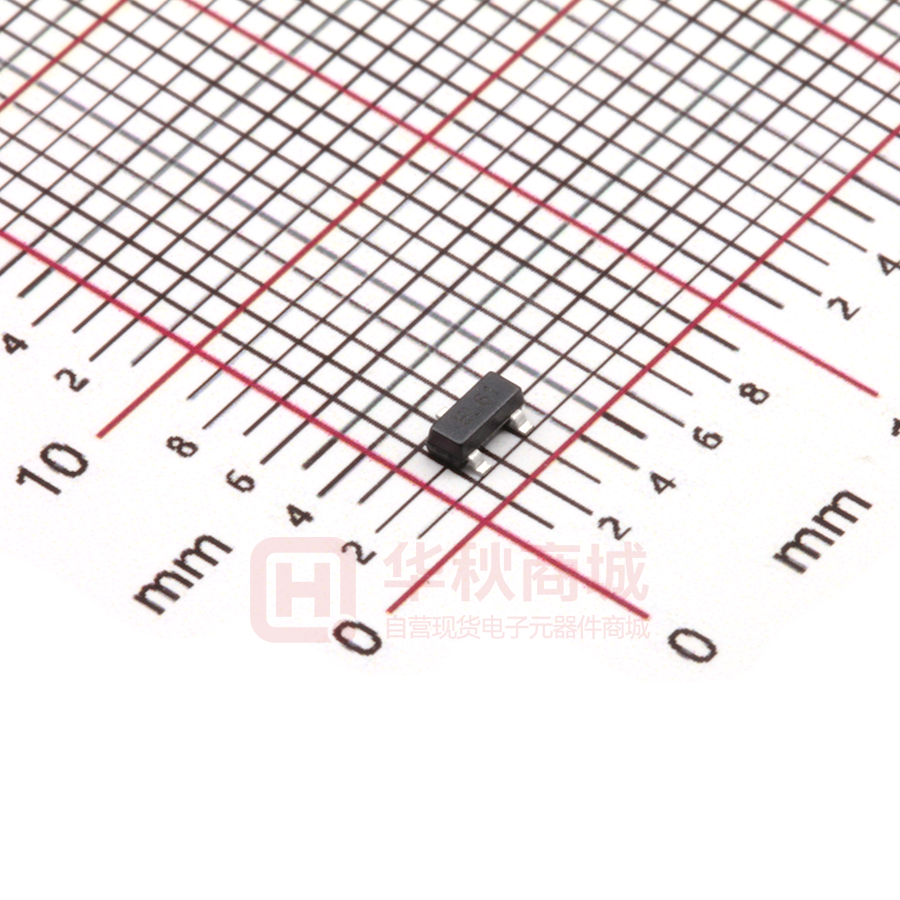

ESDA6V1L

ESDA6V1L ESD Protection Diode Array »Features ■ 300 Watts peak pulse power (tp = 8/20μs) ■ Bidirectional and unidirectionalconfigurations ■ Solid-state silicon-avalanche technology ■ Low clamping voltage ■ Low leakage current ■ Low capacitance (Cj=120 pF typ.) ■ Protection two data lines ■ IEC 61000-4-2 ±30kV contact ±30kV air ■ IEC 61000-4-4 (EFT) 40A(5/50ns) ■ IEC 61000-4-5 (Lightning) 20A(8/20μs) »Mechanical Data »Applications ■ Dataline ■ SOT-23 package ■ Automatic Teller Machines ■ Molding compound flammability rating: UL 94V-0 ■ Net works ■ Packaging: Tape and Reel ■ Power line ■ RoHS/WEEE Compliant »Schematic & PIN Configuration 1 1 3 3 2 2 SOT-23 (Top View) Revision 2018 www.born-tw.com 1/4 ESDA6V1L »Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp =8/20μs ) PPP 300 Watts Peak Pulse Current ( tp =8/20μs )(note1) Ipp 20 A VESD 30 30 kV Lead SolderingTemperature TL 260(10seconds) ℃ JunctionTemperature TJ -55 to + 125 ℃ StorageTemperature Tstg -55 to + 125 ℃ ESD per IEC 61000-4-2(Air) ESD per IEC 61000-4-2 (Contact) »Electrical Characteristics Parameter Symbol Reverse Stand-OffVoltage Conditions Min Typical Max Units 5 V 7.0 8.5 V 0.5 1 μA VRWM VBR IT=1mA Reverse LeakageCurrent IR VRWM=5V,T=25℃ Peak PulseCurrent IPP tp =8/20μs 20 A IPP=10A,tp=8/20μs 12 V IPP=20A,tp=8/20μs 16 V Reverse BreakdownVoltage 6.0 VC Clamping Voltage Cj JunctionCapacitance VR = 0V, f =1MHz (pin1、pin2 to pin3) 120 pF »Electrical Parameters (TA = 25°C unless otherwisenoted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP V RW M IR V BR IT I IF Working Peak Reverse Voltage Maximum Reverse Leakage Current @ V RW M VC VBR VRWM IR V F IT Breakdown Voltage @ IT V Test Current IPP Note:. 8/20μs pulsewaveform. Revision 2018 www.born-tw.com 2/4 ESDA6V1L »TypicalCharacteristics Figure 2: Power Derating Curve 10 110 100 Percent of Rated Power for Ipp P pp – Peak Pulse Power - Ppp(KW) Figure 1: Peak Pulse Power vs. Pulse Time 300w 8/20μs waveform 1 0.1 0.01 0.1 1 10 100 90 80 70 60 50 40 30 20 10 0 1,000 td – Pulse Duration - µs Figure3: Pulse Waveform 90 Percent Ipp 80 e-1 50 40 td=Ipp/ 2 20 100 125 150 18 Clamping Voltage–VC (V) 100 30 75 20 Waveform Paramters tr=8µs td=20µs 60 50 Ambient Temperature - TA (℃) Figure 4: Clamping Voltage vs.Ipp 110 70 25 0 16 14 12 Test Waveform Paramters tr=8µs td=20µs 10 8 6 4 10 0 2 0 5 Revision 2018 10 15 Time (µs) 20 25 30 0 1 2 3 4 5 6 Peak Pulse Current–IPP (A) www.born-tw.com 3/4 ESDA6V1L »Outline Drawing – SOT-23 DIMENSIONS D SYMBOL θ 1 L 0.25 2 e MIN MAX MIN MAX 0.900 1.150 0.035 0.045 A1 0.000 0.100 A2 0.900 1.050 0.035 0.041 D 2.800 3.000 0.110 0.118 A2 0.000 0.004 b 0.300 0.500 0.012 0.020 E 2.250 2.550 0.089 0.100 E1 1.200 1.400 0.047 0.055 e A INCHES A 3 E1 E MILLIM ETER 0.950 BSC 0.037 BSC L 0.300 0.500 0.012 0.020 θ 0 8 0 8○ ○ A1 »Ordering information Order code ESDA6V1L Revision 2018 Package SOT-23 Base qty 3k www.born-tw.com Delivery mode Tape and reel 4/4
