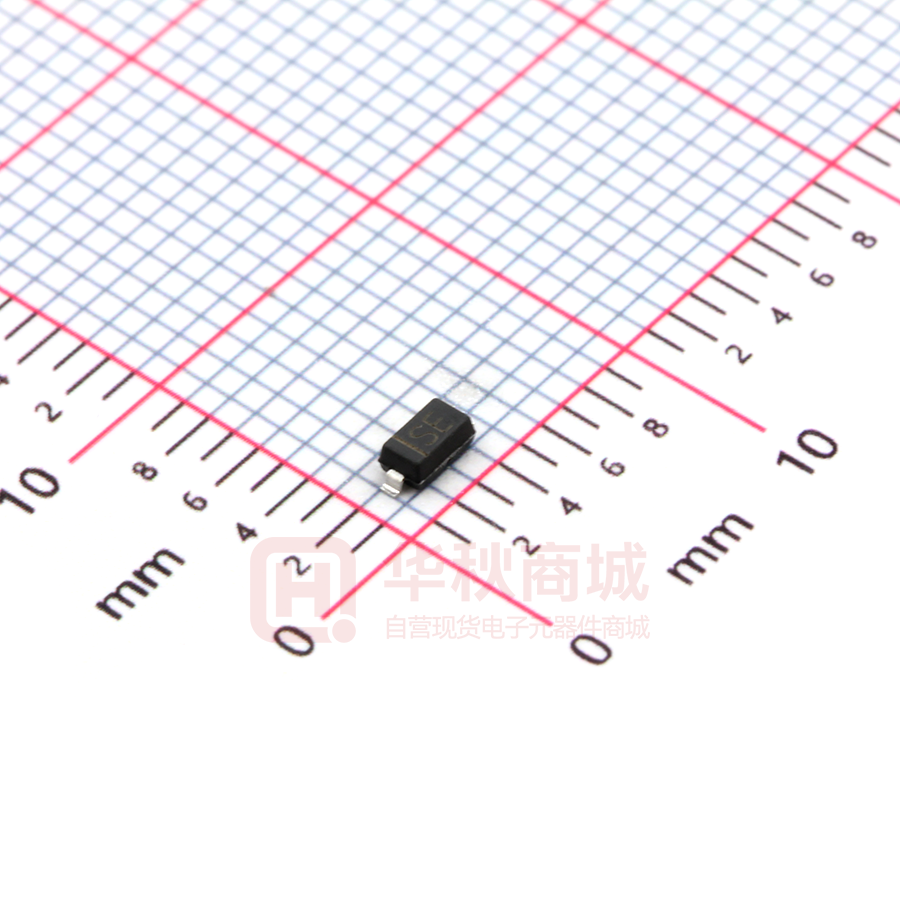

B0520-B0540W SCHOTTKY SOD123 Plastic-Encapsulate Schottky Barrier Diode SOD-123 ROHS Features  High Current Capability  Low Forward Voltage Drop Mechanical Data Marking: B0520W: SD B0530W: SE B0540W: SF     SOD-123 Small Outline Plastic Package Polarity: Color band denotes cathode end Epoxy UL: 94V-0 Mounting Position: Any Maximum Ratings & Thermal Characteristics (Ratings at 25℃ ambient temperature unless otherwise specified.) Symbol B0520W B0530W B0540W Unit Maximum repetitive peak reverse voltage VRRM 20 30 40 V Maximum RMS voltage VRMS 14 21 28 V Maximum DC blocking voltage VDC 20 30 40 V Maximum average forward rectified current IFM 0.5 A Peak forward surge current 8.3 ms single half sine-wave IFSM 5.5 A Typical thermal resistance RθJA 200 ℃/W PD 500 mW Storage temperature range TSTG -50-+150 ℃ Voltage rate of change Dv/dt 1000 V/uS Parameters Power Dissipation Electrical Characteristics ( Ratings at 25℃ ambient temperature unless otherwise specified). Parameters Symbol Maximum forward voltage VF Maximum reverse breakdown voltage VR Maximum reverse current IR Capacitance between terminals CT Rev 8: Nov 2014 Test conditions B0520W B0530W B0540W IF = 0.1A IF = 0.5A IF = 1.0A IR=250uA IR=200uA IR=20.0uA VR=10V VR=15V VR=20V VR=30V VR=40V VR = 0V, f = 1MHz 0.330 0.385 --20 ----75 --250 ----- 0.375 0.430 ----30 ----20 --130 --- --0.510 0.620 ----40 ----10 --20 170 www.born-tw.com Unit V V uA pF Page 1 of 2 B0520-B0540W SCHOTTKY SOD123 Plastic-Encapsulate Schottky Barrier Diode ROHS Characteristic Curves SOD-123 PACKAGE OUTLINE Plastic surface mounted package b D c Rev 8: Nov 2014 www.born-tw.com Page 2 of 2
