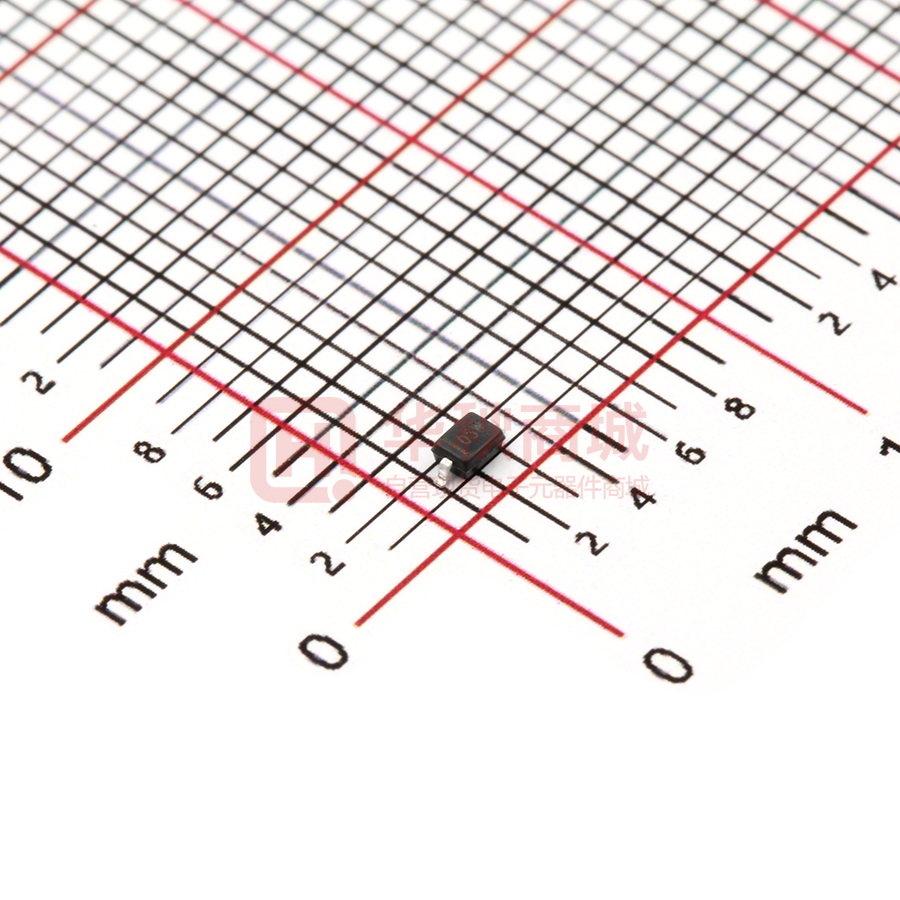

SD05T1G-N

SD05T1G-N ESD Protection Diode »Features ■ 350Watts peak pulse power (tp = 8/20μs) ■ Unidirectional configurations ■ Solid-state silicon-avalanche technology ■ Low clamping voltage ■ Low leakage current ■ IEC 61000-4-2 ±30kV contact ±30kV air ■ IEC 61000-4-4 (EFT) 40A (5/50ns) ■ IEC 61000-4-5 (Lightning) 17A (8/20μs) »Applications »Mechanical Data ■ USB Vbus, ■ SOD323 package ■ Power Line ■ Molding compound flammability rating: UL 94V-0 ■ Power management ■ Packaging: Tape and Reel ■ RoHS/WEEE Compliant »Schematic & PIN Configuration SOD-323 Revision 2018 www.born-tw.com 1/4 SD05T1G-N »Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp =8/20μs) PPP 350 Watts Peak Pulse Current ( tp =8/20μs ) (note1) Ipp 17 A VESD 30 30 kV Lead Soldering Temperature TL 260(10seconds) ℃ Junction Temperature TJ -55 to + 150 ℃ Storage Temperature Tstg -55 to + 150 ℃ ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) »Electrical Characteristics Parameter Symbol Reverse Stand-Off Voltage Conditions Typical VRWM VBR IT=1mA Reverse Leakage Current IR VRWM=5V,T=25℃ Clamping Voltage VC IPP=17A,tp=8/20μs Junction Capacitance Cj VR = 0V, f = 1MHz Reverse Breakdown Voltage Min Max Units 5.0 V 6.0 V 1 uA 17 19 V 120 135 pF »Electrical Parameters (TA = 25°C unless otherwise noted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR VBR IT I IF Working Peak Reverse Voltage Maximum Reverse Leakage Current @ V RWM VC VBR VRWM Breakdown Voltage @ IT IR VF IT V Test Current IPP Note:. 8/20μs pulsewaveform. Revision 2018 www.born-tw.com 2/4 SD05T1G-N »Typical Characteristics Figure 2: Power Derating Curve 10k 110 Percent of Rated Power for Ipp P pp – Peak Pulse Power - Ppp(W) Figure 1: Peak Pulse Power vs. Pulse Time 350w 8/20μs waveform 1000 100 10 0.1 1 10 100 100 90 80 70 60 50 40 30 20 10 0 1,000 0 td – Pulse Duration - µs Ipp 80 Percent 125 150 Test Waveform Paramters tr=8µs td=20µs 40 Clamping Voltage–VC (V) 90 e-1 50 40 td=Ipp/2 20 100 45 Waveform Paramters tr=8µs td=20µs 100 30 75 Figure 4: Clamping Voltage vs.Ipp 110 60 50 Ambient Temperature - TA (℃) Figure3: Pulse Waveform 70 25 10 35 30 25 20 15 10 5 0 0 5 Revision 2018 10 15 Time (µs) 20 25 30 0 5 10 15 25 Peak Pulse Current–IPP (A) www.born-tw.com 3/4 SD05T1G-N »Outline Drawing – SOD323 C A DIMENSIONS SYMBOL E B 1 2 MILLIMETER A MIN 1.600 MAX 1.800 MIN 0.063 MAX 0.071 B 0.250 0.350 0.010 0.014 C 2.500 2.700 0.098 D D H L L1 1.000 0.106 0.039 E 1.200 1.400 0.047 0.055 F 0.080 0.150 0.003 0.006 L F INCHES 0.475 REF 0.019REF L1 0.250 0.400 0.010 0.016 H 0.000 0.100 0.000 0.004 »Marking 1 05W Pin Style: 1. Cathode 2 2. Anode »Ordering information Order code SD05T1G-N Revision 2018 Package Base qty Delivery mode SOD323 3000 Tape and reel www.born-tw.com 4/4
