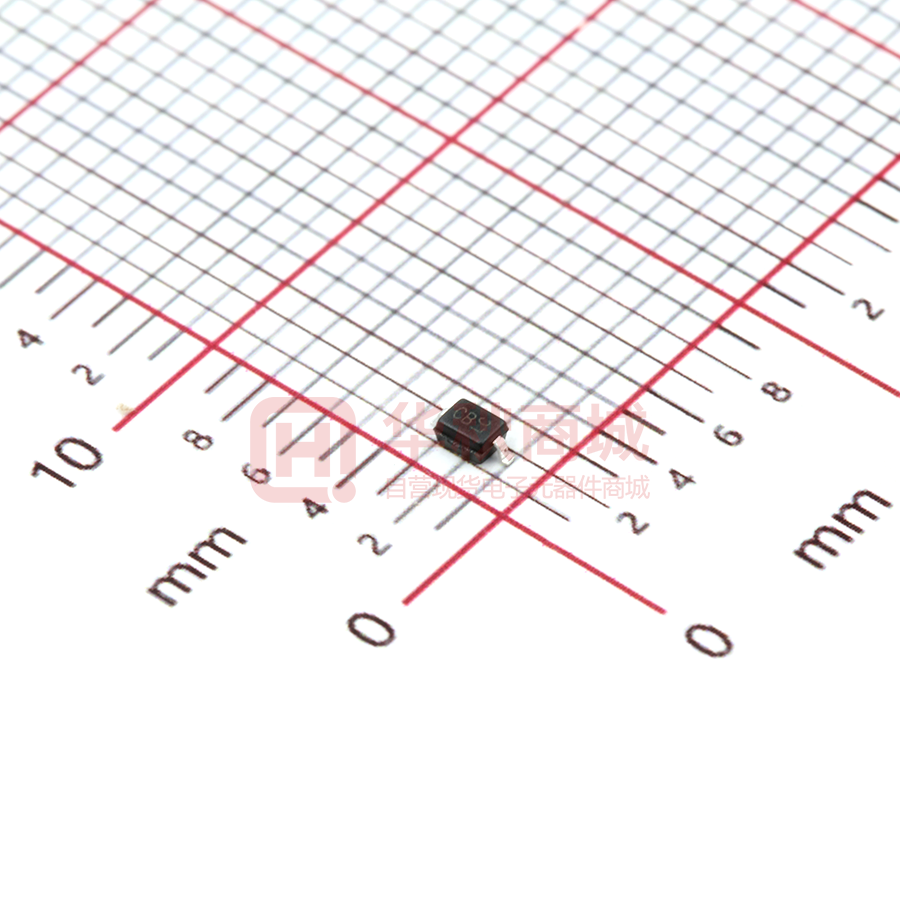

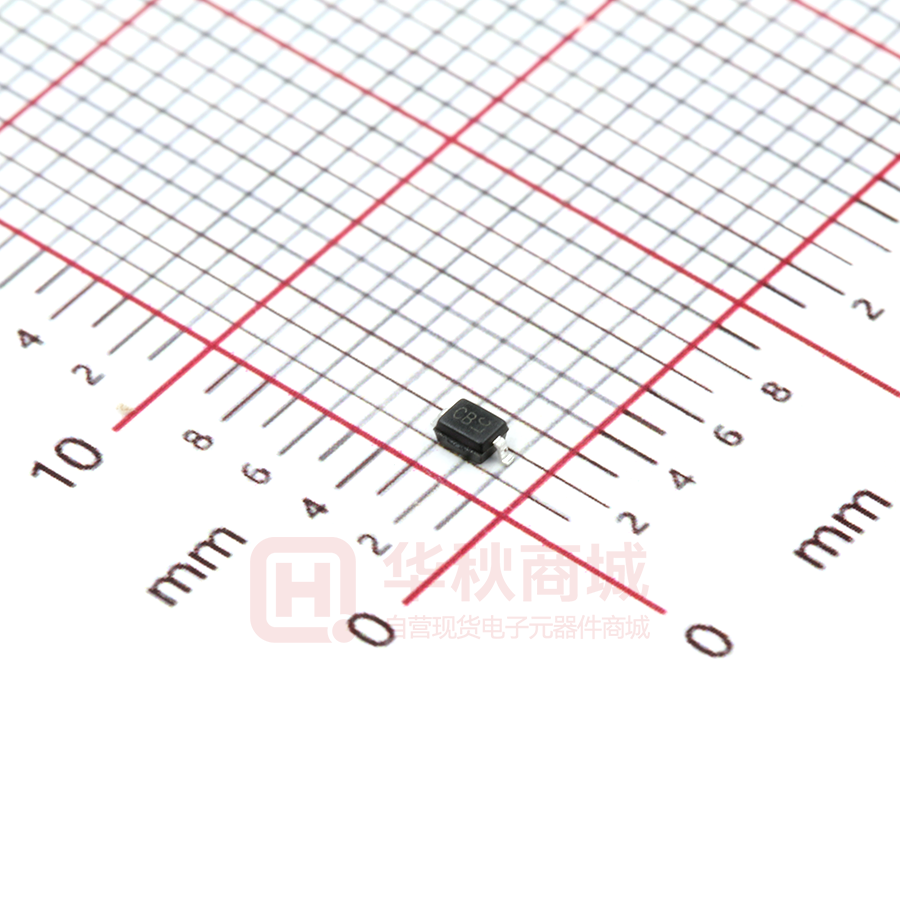

GBLC24C-N

GBLC24C-N ESD Protection Diode »Features ■ 240Watts peak pulse power (tp = 8/20μs) ■ Low clamping voltage ■ Low leakage current ■ Protection one power line ■ Low Capacitance: 1.0 pF Typical ■ IEC 61000-4-2 ±30kV contact ±30kV air ■ IEC 61000-4-4 (EFT) 40A (5/50ns) ■ IEC 61000-4-5 (Lightning) 4A (8/20μs) »Applications »Mechanical Data ■ Ethernet - 10/100/1000 Base T ■ SOD-323 package ■ Cellular Phones ■ Molding compound flammability rating: UL 94V-0 ■ Handheld - Wireless Systems ■ Packaging: Tape and Reel ■ Personal Digital Assistant (PDA) ■ RoHS/WEEE Compliant ■ USB Interface »Schematic & PIN Configuration SOD-323 Revision 2018 www.born-tw.com 1/4 GBLC24C-N »Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp =8/20μs) PPP 240 Watts Peak Pulse Current ( tp =8/20μs ) (note1) Ipp 4 A VESD 30 30 kV Lead Soldering Temperature TL 260(10seconds) ℃ Junction Temperature TJ -55 to + 150 ℃ Storage Temperature Tstg -55 to + 150 ℃ ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) »Electrical Characteristics Parameter Symbol Reverse Stand-Off Voltage Reverse Breakdown Voltage Conditions Min Typical VRWM VBR IT=1mA Reverse Leakage Current IR VRWM=24V,T=25℃ Clamping Voltage VC IPP=4A,tp=8/20μs 60 Junction Capacitance Cj VR = 0V, f = 1MHz 1.0 Max Units 24.0 V 26.7 V 1 uA V 1.5 pF »Electrical Parameters (TA = 25°C unless otherwise noted) Symbol IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR VBR IT I Parameter Working Peak Reverse Voltage Maximum Reverse Leakage Current @ V RWM V Breakdown Voltage @ IT Test Current Revision 2018 www.born-tw.com 2/4 GBLC24C-N Figure 2: Power Derating Curve 10k 110 1000 Percent of Rated Power for Ipp Ppp – Peak Pulse Power - Ppp(W) Figure 1: Peak Pulse Power vs. Pulse Time 240w 8/20μs waveform 100 10 0.1 1 10 100 100 90 80 70 60 50 40 30 20 10 0 1,000 0 25 td – Pulse Duration - µs Figure3: Pulse Waveform Percent Ipp 80 e -1 50 40 td=Ipp/2 20 0 5 Revision 2018 10 15 150 70 60 50 40 Test Waveform Paramters tr=8µs td=20µs 30 20 10 10 0 125 80 Clamping Voltage–VC (V) 90 30 100 90 Waveform Paramters tr=8µs td=20µs 100 60 75 Figure 4: Clamping Voltage vs.Ipp 110 70 50 Ambient Temperature - TA (℃) Time (µs) 20 25 30 0 1 2 3 4 5 Peak Pulse Current–IPP (A) www.born-tw.com 3/4 GBLC24C-N »Outline Drawing – SOD323 C A DIMENSIONS SYMBOL E B 1 2 MILLIMETER A MIN 1.600 MAX 1.800 MIN 0.063 MAX 0.071 B 0.250 0.350 0.010 0.014 C 2.500 2.700 0.098 0.106 D D H L 1.000 0.039 E 1.200 1.400 0.047 0.055 F 0.080 0.150 0.003 0.006 L F INCHES 0.475 REF 0.019REF L1 0.250 0.400 0.010 0.016 H 0.000 0.100 0.000 0.004 L1 1 CB LC »Marking Pin Style: 1. Cathode 2 2. Anode »Ordering information Order code GBLC24C-N Revision 2018 Package Base qty Delivery mode SOD323 3000 Tape and reel www.born-tw.com 4/4
