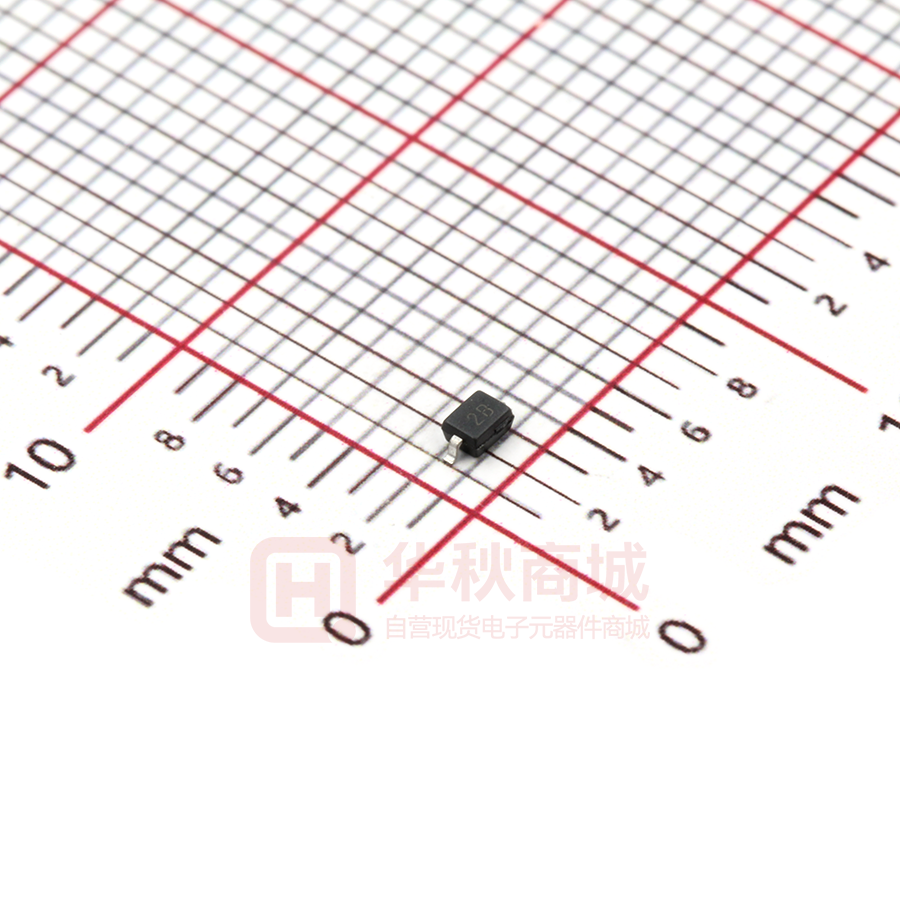

PESD5V0L1BA-N

PESD5V0L1BA-N ESD Protection Diode »Features ■ 600Watts peak pulse power (tp = 8/20μs) ■ Bidirectional configurations ■ Solid-state silicon-avalanche technology ■ Low clamping voltage ■ Low leakage current ■ IEC 61000-4-2 ±30kV contact ±30kV air ■ IEC 61000-4-4 (EFT) 40A (5/50ns) ■ IEC 61000-4-5 (Lightning) 40A (8/20μs) »Applications »Mechanical Data ■ Microprocessor based equipment ■ SOD323 package ■ Personal Digital Assistants (PDA’s) ■ Molding compound flammability rating: UL 94V-0 ■ Notebooks, Desktops, and Servers ■ Packaging: Tape and Reel ■ Portable Instrumentation ■ RoHS/WEEE Compliant ■ Pagers Peripherals »Schematic & PIN Configuration SOD-323 Revision 2018 www.born-tw.com 1/4 PESD5V0L1BA-N »Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp =8/20μs) PPP 600 Watts Peak Pulse Current ( tp =8/20μs ) (note1) Ipp 40 A VESD 30 30 kV Lead Soldering Temperature TL 260(10seconds) ℃ Junction Temperature TJ -55 to + 150 ℃ Storage Temperature Tstg -55 to + 150 ℃ ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) »Electrical Characteristics Parameter Symbol Reverse Stand-Off Voltage Reverse Breakdown Voltage Conditions Min Typical VRWM Max Units 5.0 V V VBR IT=1mA 6.0 Reverse Leakage Current IR VRWM=5V,T=25℃ Clamping Voltage VC IPP=40A,tp=8/20μs 15 V Junction Capacitance Cj VR = 0V, f = 1MHz 140 pF 1 uA »Electrical Parameters (TA = 25°C unless otherwise noted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR VBR IT I IPP Working Peak Reverse Voltage Maximum Reverse Leakage Current @ V RWM VC V BR V RWM IT IR ITIR VRWM V BR V C V Breakdown Voltage @ IT Test Current IPP Note:. 8/20μs pulsewaveform. Revision 2018 www.born-tw.com 2/4 PESD5V0L1BA-N »Typical Characteristics Figure 2: Power Derating Curve 10 110 100 Percent of Rated Power for Ipp Ppp – Peak Pulse Power - Ppp(KW) Figure 1: Peak Pulse Power vs. Pulse Time 600w 8/20µs waveform 1 0.1 0.01 0.1 1 10 100 90 80 70 60 50 40 30 20 10 0 1,000 25 0 td – Pulse Duration - µs Figure3: Pulse Waveform 125 150 16 Clamping Voltage–VC (V) 90 80 Ipp 100 18 Waveform Paramters tr=8µs td=20µs 100 Percent 75 Figure 4: Clamping Voltage vs.Ipp 110 70 e-1 60 50 Ambient Temperature - TA (℃) 50 40 30 td=Ipp/2 20 14 12 10 8 Test Waveform Paramters tr=8µs td=20µs 6 4 2 10 0 0 5 10 15 20 25 30 0 10 Time (µs) Revision 2018 20 30 40 50 60 70 Peak Pulse Current–IPP (A) www.born-tw.com 3/4 PESD5V0L1BA-N »Outline Drawing – SOD323 C A DIMENSIONS SYMBOL E B 1 2 MILLIMETER A MIN 1.600 MAX 1.800 MIN 0.063 MAX 0.071 B 0.250 0.350 0.010 0.014 C 2.500 2.700 0.098 D D H L L1 0.106 0.039 1.000 E 1.200 1.400 0.047 0.055 F 0.080 0.150 0.003 0.006 L F INCHES 0.475 REF 0.019REF L1 0.250 0.400 0.010 0.016 H 0.000 0.100 0.000 0.004 »Ordering information Order code PESD5V0L1BA-N Revision 2018 Package Base qty Delivery mode SOD323 3000 Tape and reel www.born-tw.com 4/4
