SP3030-01ETG

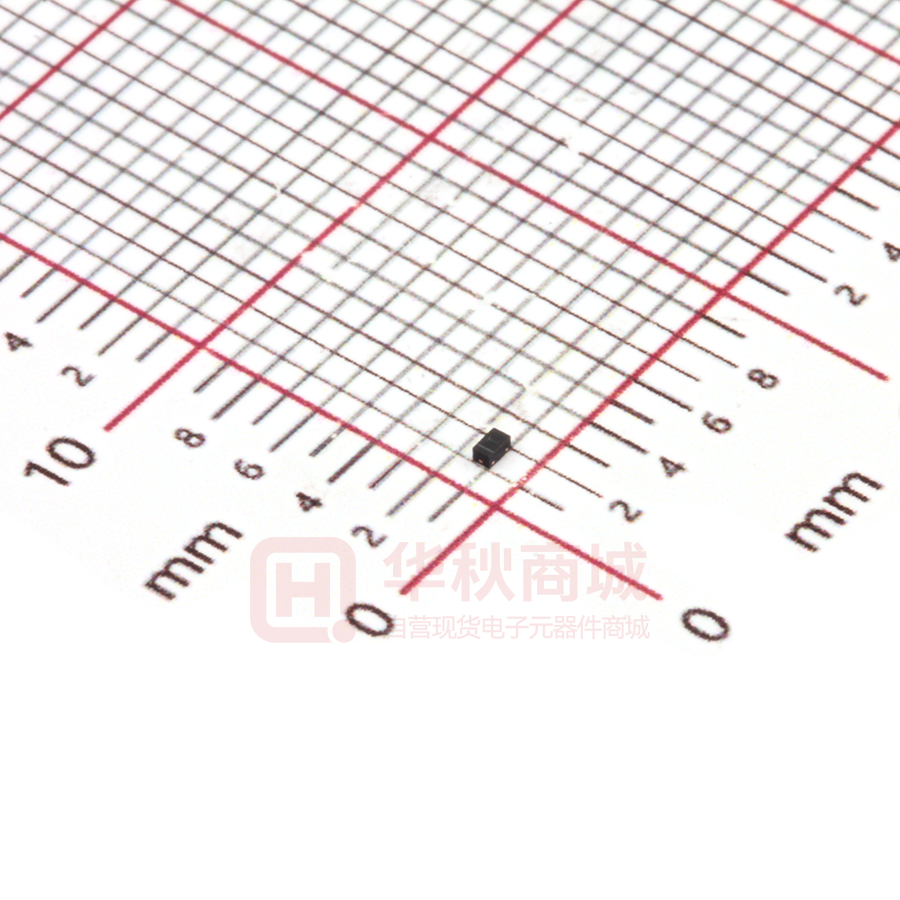

SP3030-01ETG Transient Voltage Suppressors ROHS Features Small Body Outline Dimensions: 0.039″x 0.024″(1.0 mm x 0.60 mm) Protects one I/O or power line Low Clamping Voltage Ultra Low Capacitance:0.5pF Working Voltage: 5 V Low Leakage Current DFN-2L Response Time is Typically < 1 ns IEC COMPATIBILITY (EN61000-4) IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) Mechanical Characteristics Applications DFN-2L package Laptop Computers Molding compound flammability rating: Cellular Phones UL 94V-0 Digital Cameras Marking: Marking Code Personal Digital Assistants (PDAs) Packaging: Tape and Reel per EIA 481 RoHS/WEEE Compliant Schematic & PIN Configuration DFN-2L (Top View) 1/4 SP3030-01ETG Transient Voltage Suppressors ROHS Absolute Maximum Rating Rating Symbol Value Units 8KV (contact) Electrostatic discharge Voltage (See Note1 ,2) VESD Volts 15KV (air) Operating Temperature Storage Temperature TJ -55 to + 125 °C TSTG -55 to +150 °C Electrical Parameters (T=25℃) Symbol I Parameter IF IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR VBR Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRWM VC VBR VRWM Breakdown Voltage @ IT IT Test Current IF Forward Current VF Forward Voltage @ IF V IR VF IT IPP Electrical Characteristics SP3030-01ETG Parameter Symbol Conditions VRWM 5.0 VBR IT=1mA Reverse Leakage Current IR VRWM=5V, T=25°C Clamping Voltage VC IPP=1A, tp=8/20μs Junction Capacitance Cj VR = 0V, f= 1MHz Reverse Stand-Off Voltage Reverse Breakdown Voltage Minimum Typical Maximum Units 5.5 V 6.0 V 1 μA 8.5 12.5 V 0.5 0.8 pF Note1: ESD Pulse Waveform according to IEC 61000-4-2. see Table1 and Figure4. Note2: ESD tests Setup see Figure 5. 2/4 SP3030-01ETG Transient Voltage Suppressors ROHS Typical Characteristics Figure 2: Insertion Loss Figure 1: Power Derating Curve CH S21 LOG 6 dB / REF 0 dB Percent of Rated Pow er for I pp 110 100 90 80 70 60 50 40 30 20 10 0 0 25 50 75 100 125 START.030 MHz 150 STOP 3000.000000MHz Ambient Temperature - TA (℃) Figure 3: Normalized Junction Capacitance vs. Reverse Voltage Table 1. IEC 61000-4-2 Discharge Parameters 1.1 1.0 Peak Current at 30 ns Peak Current at 60 ns (A) Test Voltage (Contact Discharge) (kV) Test Voltage (Air Discharge) (kV) (A) (A) 1 7.5 4 2 2 2 2 15 8 4 4 4 3 22.5 12 6 6 8 4 30 16 8 8 15 Level 0.9 C j(V R)/C j(V R=0) First Peak Current F=1MHz 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 00 1 2 3 4 5 Reverse Voltage -VR (V) Figure 4. IEC 61000-4-2 Waveform Ipeak Figure 5: ESD Clamping( 8kV Contact per IEC 61000-4-2) Tek Run: 2.50GS/s Sample 100% 90% I@30ns I@60ns 10% tp=0.7ns to 1ns CH1 10.0 VΩ M 20.0ns Ch1 3/4 SP3030-01ETG Transient Voltage Suppressors ROHS Outline Drawing –DFN-2L PACKAGE OUTLINE D e h h L1 2 1 L2 OL A A1 b C D e E L L1 h L1 1 b E SYMB A1 C A BOTTOM VIEW Land Pattern DFN-2L MILIMETER MIN NOM MAX 0.45 0.50 0.55 0 0.02 0.05 0.45 0.50 0.55 0.12 0.15 0.18 0.95 1.00 1.05 0.65BSC 0.55 0.60 0.65 0.20 0.25 0.30 0.05REF 0.07 0.12 0.17 1.00 0.60 0.60 0.30 0.35 0.35 Package Information 10 k/Reel Qty： 4/4
