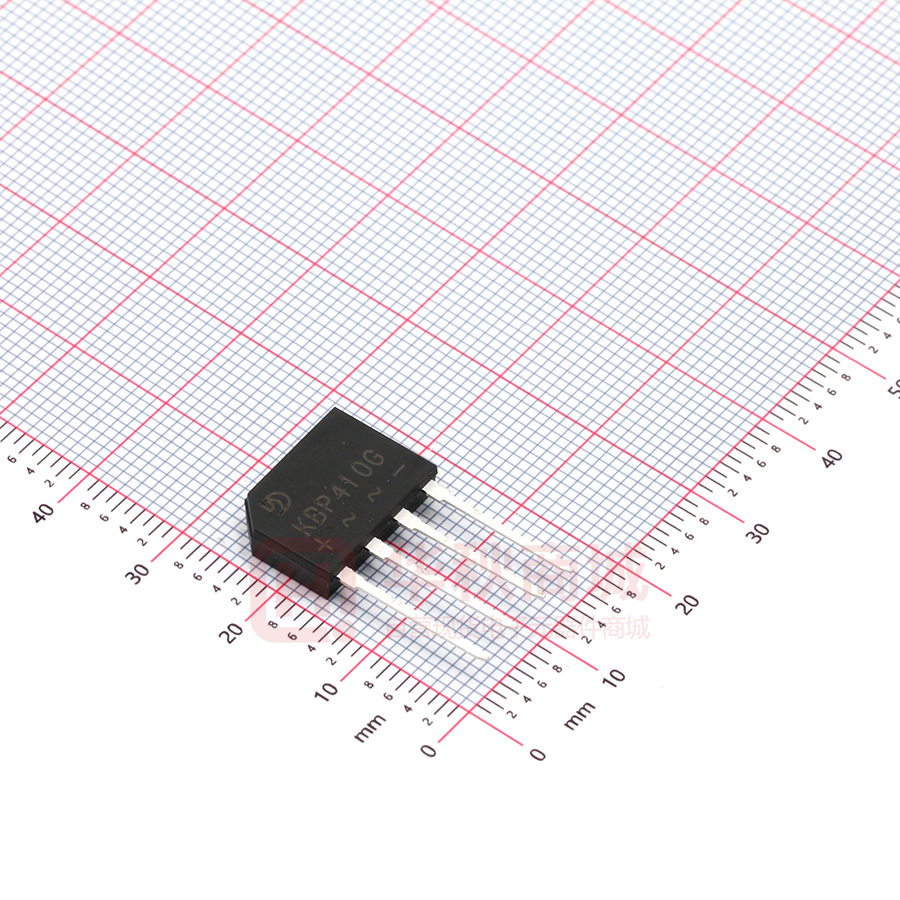

KBP410G

KBP4005G thru KBP410G 山东晶导微电子有限公司 Jingdao Microelectronics REVERSE VOLTAGE - 50 to 1000 Volts FORWARD CURRENT - 4.0 Amperes GLASS PASSIVATED BRIDGE RECTIFIERS KBP FEATURES Rating to 1000V PRV Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique The plastic material has UL flammability classification 94V#0 MECHANICAL DATA Polarity : As marked on body Weight : 0.05 ounces, 1.52 grams Mounting position : Any + ~ ~ - MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25℃ ambient temperature unless otherwise specified. CHARACTERISTICS SYMBOL KBP KBP KBP 4005G 401G 402G KBP KBP KBP KBP 404G 406G 408G 410G UNIT Maximum Repetitive Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS Voltage VRMS 35 70 140 280 420 560 700 V VDC 50 100 200 400 600 800 1000 V Maximum DC Blocking Voltage Maximum Average Forward Rectified (With heatsink) (Without heatsink) Current @TC=105°C Peak Forward Surge Current @ Tj = 25 ℃ 8.3ms single half sine-wave Peak Forward Surge Current @ TJ = 125℃ @ Tj =25 ℃ 1.0ms single half sine-wave @ TJ=125℃ Maximum Forward Voltage at 4.0A DC Maximum DC Reverse Current at rated Blocking Voltage @Tj=25°C @Tj=125°C 2 I(AV) 4.0 2.0 A IFSM 130 110 A IFSM 260 220 A VF 1.1 V IR 5.0 500 uA I t Rating for fusing (3ms≦t ≦8.3ms) I t 2 50 A S Typical Junction Capacitance per element (Note 1) CJ 40 pF RΘJC RΘJL RΘJA RΘJC RΘJL RΘJA 6 8 15 14 20 40 TJ, TSTG -55 to 150 Typical thermal resistance (Unit mounted on 75mmx75mmx1.6mm Copper plate heatsink.) Typical thermal resistance (without heatsink) Operation and Storage Temperature Range 2 °C/W °C/W °C Note : (1) Measured at 1.0MHz and applied reverse voltage of 4.0V DC. 1 Version: 0 KBP4005G thru KBP410G 山东晶导微电子有限公司 Jingdao Microelectronics FIG.1- FORWARD CURRENT DERATING CURVE FIG.2- MAXIMUM NON-REPETITIVE SURGE CURRENT 5 PEAK FORWARD SURGE CURRENT, (A) AVERAGE FORWARD CURRENT, (A) 120 With heatsink_75*75*1.6 mm Copper plate 4.5 4 3.5 3 2.5 2 Without heatsink 1.5 1 0.5 RESISTIVE OR INDUCTIVE LOAD 100 80 60 40 Pulse width 8.3ms Single Half Sine-Wave 20 0 0 0 25 50 75 100 125 150 175 1 10 CASE TEMAERATURE, (°C) FIG.3- TYPICAL JUNCTION CAPACITANCE FIG.4- TYPICAL FORWORD CHARACTERISTICS 100 INSTANTANEOUS FORWARD CURRENT, (A) 100 10 Tj=25°C, f=1MHz 1 10 Tj=125°C Tj=25°C 1 PULSE WIDTH 300us 0.1 1 10 100 0.4 REVERSE VOLTAGE, (V) 0.6 0.8 1 1.2 1.4 1.6 INSTANTANEOUS FORWARD VOLTAGE, (V) FIG.5- TYPICAL REVERSE CHARACTERISTICS 1000 INSTANTANEOUS REVERSE CURRENT, (uA) CAPACITANCE, (pF) 100 NUMBER OF CYCLES AT 60Hz Tj=125°C 100 10 Tj=100°C 1 0.1 Tj=25°C 0.01 0 20 40 60 80 100 120 PERCENT OF RATED PEAK REVERSE VOLTAGE, (%) 2 Version: 0 山东晶导微电子有限公司 Jingdao Microelectronics KBP4005G thru KBP410G KBP Package Outline Dimensions KBP DIM. A ~ ~ - MAX. 14.75 B 3.35 3.65 C 10.20 10.60 D 14.25 14.73 d 1.40 1.70 E 1.80 2.20 F 0.80 1.10 G 3.56 4.06 H 0.35 0.55 I 1.22 1.42 J 0.76 0.86 K + MIN. 14.25 2.7 x 45° (Typ) L # 3° M # 2° All Dimensions in millimeter 3 Version: 0
