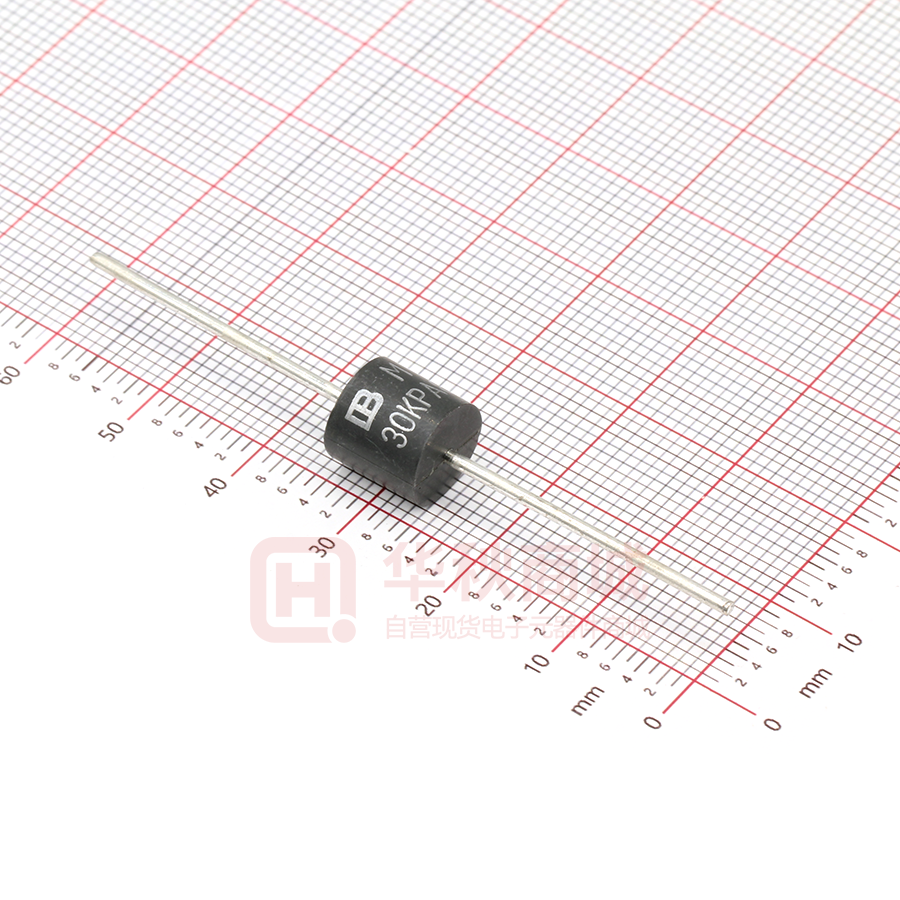

30KPA84CA

30KPA SERIES Transient Voltage Suppressors (TVS) Data Sheet Features ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ Glass passivated junction Low inductance Excellent clamping capability 30000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.05% Fast response time Typical IR less than 2μA above 40V. High Temperature soldering guaranteed: 265℃/10 seconds/.375″, (9.5mm) lead length, 5lbs (2.3kg) tension Plastic package has underwriters laboratory flammability 94V-0 Meets MSL level 1, per J-STD-020 Safety certification: UL: E244458 Mechanical Data ■ ■ ■ ■ ■ Case: Moulded plastic over glass passivated junction Terminal: Plated Axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode except bi-directional models Mounting Position: Any Weight: 2.46g Applications ■ I/O interface ■ AC/DC power supply ■ Low frequency signal transmission line (RS232, RS485, etc.) Maximum Ratings and Characteristics Ratings at 25℃ ambient temperature unless otherwise specified. Rating Symbol Value Units Peak pulse power dissipation at 10/1000μs waveform (Note1, Fig.1) PPPM Minimum 30000 Watts Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3) IPPM See Table Amps PM(AV) 8.0 Watts IFSM 400 Amps TJ,TSTG -55 to +175 ℃ Typical thermal resistance junction to lead RθJL 8 ℃/W Typical thermal resistance junction to ambient RθJA 40 ℃/W Steady state power dissipation at TL=75℃ (Fig.5) Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load, (JEDEC Method) (Note2, Fig.6) Operating junction and Storage Temperature Range. Notes: 1. Non-repetitive current pulse, per Fig.3 and derated above TA=25℃ per Fig.2. 2. 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minutes maximum. Revision：25th-Jun-19 http://brightking.yageo.com 30KPA SERIES Dimensions (P600) Millimeters Cathode Band d DIA. T Min. Max. Min. Max. L 25.40 - 1.000 - T 8.60 9.10 0.340 0.360 d 8.60 9.10 0.340 0.360 s 1.19 1.32 0.047 0.052 s DIA. L Inches Symbol L Electrical Characteristics (TA=25℃) Part Number Reverse Breakdown Stand-Off Voltage Voltage @IT Test Current Maximum Peak Reverse Clamping Pulse Leakage Voltage @IPP Current @VRWM Unidirectional Bidirectional VRWM(V) VBR(V) IT(mA) VC(V) IPP(A) IR(μA) 30KPA28A 30KPA28CA 28.0 31.28~34.57 50 50.0 606.0 5000 30KPA30A 30KPA30CA 30.0 33.51~37.04 50 55.2 548.9 5000 30KPA33A 30KPA33CA 33.0 36.90~40.78 50 58.5 517.9 5000 30KPA36A 30KPA36CA 36.0 40.20~44.43 50 61.8 490.3 5000 30KPA39A 30KPA39CA 39.0 43.60~48.19 20 67.2 450.9 2000 30KPA42A 30KPA42CA 42.0 46.90~51.84 10 72.0 420.8 1000 30KPA43A 30KPA43CA 43.0 48.00~53.05 10 73.0 415.1 1000 30KPA45A 30KPA45CA 45.0 50.30~55.59 5 77.4 391.5 250 30KPA48A 30KPA48CA 48.0 53.60~59.24 5 81.6 371.3 150 30KPA51A 30KPA51CA 51.0 57.00~63.00 5 86.4 350.7 50 30KPA54A 30KPA54CA 54.0 60.30~66.65 5 91.4 331.5 20 30KPA58A 30KPA58CA 58.0 64.80~71.62 5 92.4 327.9 20 30KPA60A 30KPA60CA 60.0 67.00~74.05 5 102.0 297.1 15 30KPA64A 30KPA64CA 64.0 71.50~79.03 5 104.0 291.3 10 30KPA66A 30KPA66CA 66.0 73.70~81.46 5 107.0 283.2 2 30KPA70A 30KPA70CA 70.0 78.20~86.43 5 109.0 278.0 2 30KPA71A 30KPA71CA 71.0 79.30~87.65 5 111.5 271.7 2 30KPA72A 30KPA72CA 72.0 80.40~88.86 5 114.0 265.8 2 30KPA75A 30KPA75CA 75.0 83.80~92.62 5 119.4 253.8 2 30KPA78A 30KPA78CA 78.0 87.10~96.27 5 129.0 234.9 2 30KPA84A 30KPA84CA 84.0 93.80~103.67 5 139.2 217.7 2 30KPA90A 30KPA90CA 90.0 100.50~111.08 5 146.4 207.0 2 30KPA96A 30KPA96CA 96.0 107.20~118.48 5 156.0 194.2 2 Revision：25th-Jun-19 http://brightking.yageo.com 30KPA SERIES Part Number Reverse Breakdown Stand-Off Voltage Voltage @IT Test Current Maximum Peak Reverse Clamping Pulse Leakage Voltage @IPP Current @VRWM Unidirectional Bidirectional VRWM(V) VBR(V) IT(mA) VC(V) IPP(A) IR(μA) 30KPA102A 30KPA102CA 102.0 113.90~125.89 5 165.6 183.0 2 30KPA108A 30KPA108CA 108.0 120.60~133.29 5 175.2 172.9 2 30KPA120A 30KPA120CA 120.0 134.00~148.11 5 194.4 155.9 2 30KPA132A 30KPA132CA 132.0 147.40~162.92 5 213.0 142.3 2 30KPA144A 30KPA144CA 144.0 160.80~177.73 5 223.2 135.8 2 30KPA150A 30KPA150CA 150.0 167.60~185.24 5 233.4 129.8 2 30KPA156A 30KPA156CA 156.0 174.30~192.65 5 245.0 123.7 2 30KPA160A 30KPA160CA 160.0 178.70~197.51 5 252.6 120.0 2 30KPA168A 30KPA168CA 168.0 187.70~207.46 5 272.4 111.2 2 30KPA170A 30KPA170CA 170.0 189.90~209.89 5 275.0 110.2 2 30KPA180A 30KPA180CA 180.0 201.10~222.27 5 290.4 104.3 2 30KPA198A 30KPA198CA 198.0 221.20~244.48 5 319.8 94.7 2 30KPA216A 30KPA216CA 216.0 241.30~266.70 5 348.6 86.9 2 30KPA240A 30KPA240CA 240.0 268.10~296.32 5 387.0 78.3 2 30KPA258A 30KPA258CA 258.0 288.20~318.54 5 416.4 72.8 2 30KPA260A 30KPA260CA 260.0 290.40~320.97 5 416.0 72.8 2 30KPA270A 30KPA270CA 270.0 301.60~333.35 5 436.2 69.5 2 30KPA280A 30KPA280CA 280.0 312.80~345.73 5 464.0 65.3 2 30KPA288A 30KPA288CA 288.0 321.70~355.56 5 469.9 64.5 2 Notes: For bidirectional type having VRWM of 60V and less, the IR limit is double. Revision：25th-Jun-19 http://brightking.yageo.com 30KPA SERIES Ratings and Characteristic Curves (T A=25℃ unless otherwise noted) Figure 2. Pulse Derating Curve Peak Pulse Power (PPP) or Current (IPP) Derating in Percentage % Figure 1. Peak Pulse Power Rating Curve PPPM - Peak Pulse Power (kW) 1000 100 10 1 1 10 100 100 75 50 25 0 0 1000 25 200 Bi-directional V=0V 10000 Cj (pF) IPPM - Peak Pulse Current, %IRSM 150 175 100000 TJ=25℃ Pulse Width(td) is defined as the point where the peak current decays to 50% of IPPM Uni-directional V=0V Peak Value IPPM 100 Half Value IPPM (IPPM/2) 1000 Uni-directional @VR 100 Bi-directional @VR 50 10/1000µs Waveform as defined by R.E.A 10 td 0 0 TJ=25℃ f=1.0MHz Vsig=50mVp-p 1 1.0 2.0 3.0 0 4.0 9 8 7 6 5 4 3 L= 0.375″(9.5mm) Lead Lengths 2 1 0 0 25 th 50 75 100 125 150 175 200 TL-Lead Temperature (℃) Revision：25 -Jun-19 100 150 200 250 300 350 Figure 6. Maximum Non-Repetitive Forward Surge Current Uni-Directional Only IFSM - Peak Forward Surve Current (A) Figure 5. Steady State Power Dissipation Derating Curve 50 VBR-Reverse Breakdown Voltage (V) t-Time (ms) PM(AV), Steady State Power Dissipation (W) 100 125 Figure 4. AC Line Protection Application Figure 3. Pulse Waveform tr=10µs 75 TA-Ambient Temperature (℃) td-Pulse Width (µs) 150 50 450 400 350 300 250 200 150 100 50 0 1 10 100 Number of Cycles at 60Hz http://brightking.yageo.com 30KPA SERIES Recommended Soldering Conditions Wave Soldering 300 Preheating Maximum Wave 265℃ Soldering Cooling Temperature (℃) 250 200 150 100 50 0 0 0.5 1 1.5 2 2.5 3 3.5 4 Time (minutes) Recommended Conditions Item Conditions Peak Temperature 265℃ Dipping Time 10 seconds Soldering 1 time Marking Code Cathode Band Logo YXXX 30KPA28A Date Code Logo YXXX 30KPA28CA Marking Code Date Code Marking Code Part Number Code 30KPA XXX C A 5% VBR Voltage Tolerance Bidirectional VRWM Voltage Series Code Revision：25th-Jun-19 http://brightking.yageo.com 30KPA SERIES Packaging Tape Z ±5° A E Symbol Dimension (mm) A 10.0±0.5 B 53.0±1.0 Z 1.2Max. T 6.0±0.4 E 0.8Max. L1-L2 1.0Max. L 250.0±5.0 W 75.0±5.0 H 114.0±5.0 L1 B L2 T E Box H L Quantity: 300PCS W Reel D 330.0±3.0 D0 16.4±2.0 D1 86.0±2.0 W1 76.0±3.0 D0 D1 D Revision：25th-Jun-19 W1 Quantity: 800PCS http://brightking.yageo.com
