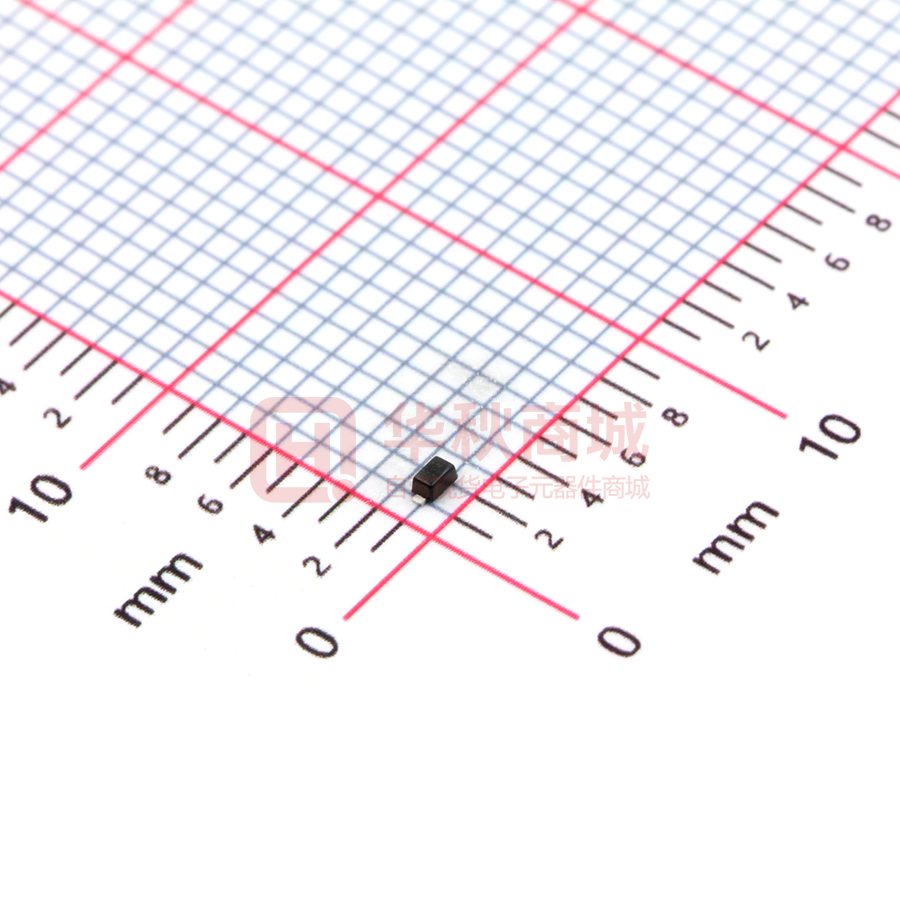

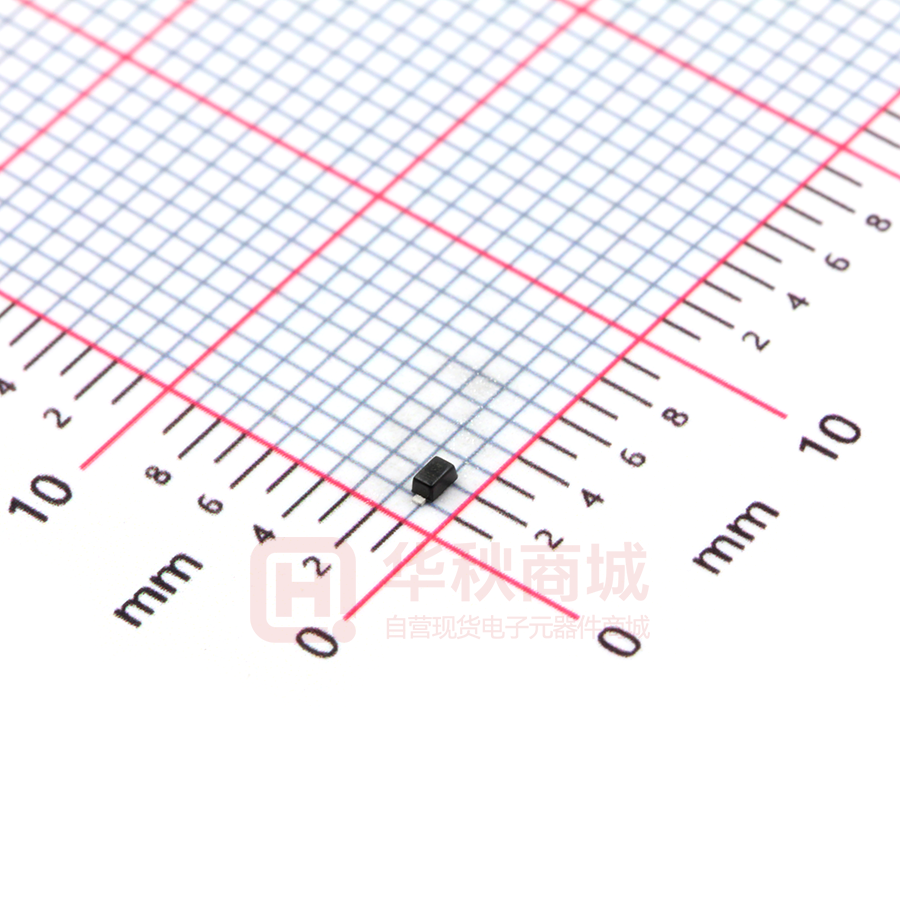

SD103AWT

SD103AWT...SD103CWT Surface Mount Schottky Barrier Diodes PINNING DESCRIPTION PIN Features 1 Cathode 2 Anode • Low Forward Voltage   1               2 Top View Marking Code: " " Simplified outline SOD-523 and symbol Absolute Maximum Ratings (Ta = 25 C) O Parameter Peak Repetitive Reverse Voltage Reverse Voltage Symbol SD103AWT SD103BWT SD103CWT SD103AWT SD103BWT SD103CWT Value Unit 40 30 20 40 30 20 VRRM VR V V Average Forward Rectified Current IF(AV) 350 mA Non-Repetitive Peak Forward Surge Current at t = 1 s IFSM 2 A Power Dissipation Ptot 200 mW Tj, Tstg - 65 to + 125 Operating and Storage Temperature Range C O Characteristics at Ta = 25 C O Symbol Min. Typ. Max. SD103AWT SD103BWT SD103CWT V(BR)R 40 30 20 - - SD103AWT SD103BWT SD103CWT IR - - 5 5 5 VF - - 0.37 0.6 V Total Capacitance at VR = 0 V, f = 1 MHz CT - 50 - pF Reverse Recovery Time at IF = IR = 200 mA, Irr = 0.1 IR, RL = 100 Ω trr - 10 - ns Parameter Reverse Breakdown Voltage at IR =10uA Reverse Leakage Current at VR =30V at VR = 20 V at VR = 10 V Forward Voltage at IF = 20 mA at IF = 200 mA Page 1 of 3 Unit V µA 11/29/2012 Page 2 of 3 11/29/2012     PACKAGE OUTLINE SOD-523 Plastic surface mounted package; 2 leads           ∠                     ALL ROUND         A       C                 HE   D                             UNIT mm     bp   E                             A     A 0.70 0.60 bp 0.4 0.3 C 0.135 0.100 D 1.25 1.15 E 0.85 0.75 HE 1.7 1.5 ∠ V   0.1 5 O 1 Page 3 of 3 11/29/2012
