TP10-2-SR

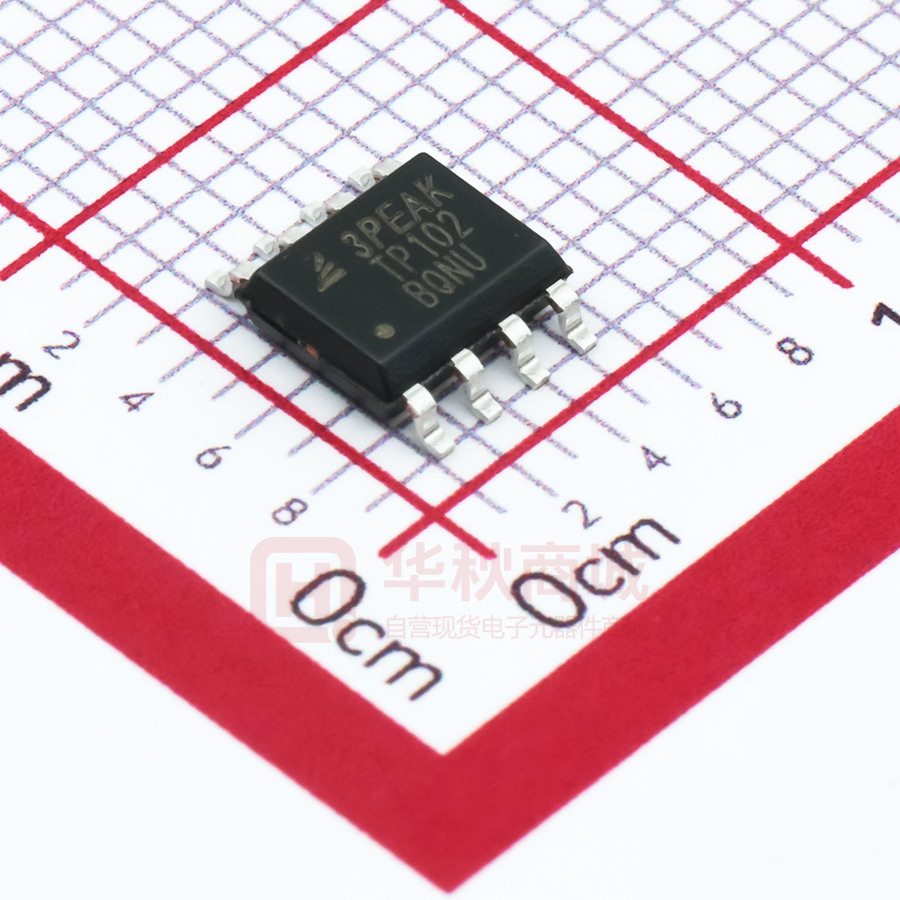

TP10 6MHz, 600μA, RRIO, Op Amps Features Description  Supply Voltage: 2.7V to 5.5V The TP10 series are CMOS dual, and quad RRIO op-amps with  Low Supply Current: 600μA per channel low offset, low power and stable high frequency response. They  Rail to Rail Input and Output  Bandwidth: 6 MHz  Slew Rate: 4.5V/μs  Excellent EMI Suppress Performance common-mode voltage range extends 300mV beyond V– and  Offset Voltage: ±3mV Maximum V+, and the outputs swing rail-to-rail. The TP10 family can be  Offset Voltage Temperature Drift: 1 μV/°C used as plug-in replacements for many commercially available  Low Noise: 19 nV/√Hz at 1kHz op-amps to reduce power and improve input/output range and  High Output Capability: 100mA  –40°C to 125°C Operation Temperature Range  Green, Popular Type Package incorporate 3PEAK’s proprietary and patented design techniques to achieve very good AC performance with 6MHz bandwidth, 4.5V/μs slew rate and low distortion while drawing only 600μA of quiescent current per amplifier. The input performance. The combination of features makes the TP10 ideal choices for motor control and portable audio amplification, sound ports, and other consumer Audio. The TP10 Op-amp is very stable, and it  TP10-2: SOP-8  TP10-4: SOP-14 is capable of driving heavy capacitive loads such as those found in LCDs. The ability to swing rail-to-rail at the inputs and outputs enables designers to buffer CMOS DACs, ASICs, or other wide Applications  E-Bike  Motor Control  Portable Audio output swing devices in single-supply systems. Pin Configuration TP10-4 TP10-2 14-Pin SOIC/TSSOP 8-Pin SOIC/MSOP -S Suffixes -S Suffixes Out A 1 ﹣In A 2 ﹢In A 3 ﹣Vs 4 A B 8 ﹢Vs 7 Out B 6 ﹣In B 5 ﹢In B Out A 1 14 Out D ﹣In A 2 13 ﹣In D A ﹢In A 3 12 ﹢In D ﹢Vs 4 11 ﹣Vs ﹢In B 5 10 ﹢In C B www.3peakic.com.cn 1 / 17 D C ﹣In B 6 9 ﹣In C Out B 7 8 Out C Rev.0.02 TP10 6MHz, 600μA, RRIO, Op Amps Table of Contents Features ........................................................................................................................................................................... 1 Applications ..................................................................................................................................................................... 1 Description....................................................................................................................................................................... 1 Pin Configuration ............................................................................................................................................................ 1 Table of Contents ............................................................................................................................................................ 2 Revision History .............................................................................................................................................................. 3 Order Information ............................................................................................................................................................ 3 Absolute Maximum Ratings Note 1 ................................................................................................................................... 4 ESD Rating ....................................................................................................................................................................... 4 Thermal Information ....................................................................................................................................................... 4 Electrical Characteristics ............................................................................................................................................... 5 Typical Performance Characteristics ............................................................................................................................ 6 Application Information .................................................................................................................................................. 9 Low Supply Voltage and Low Power Consumption ...................................................................................................................... 9 Ground Sensing and Rail to Rail Output ...................................................................................................................................... 9 Driving Large Capacitive Load ..................................................................................................................................................... 9 Tape And Reel Information ........................................................................................................................................... 10 Package Outline Dimensions ....................................................................................................................................... 11 SOIC-8 ........................................................................................................................................................................................11 MSOP-8 ..................................................................................................................................................................................... 12 SOP-14 ...................................................................................................................................................................................... 14 TSSOP-14 .................................................................................................................................................................................. 15 www.3peakic.com.cn 2 / 17 Rev.0.02 TP10 6MHz, 600μA, RRIO, Op Amps Revision History Date Revision Notes 2017/3/1 Rev.Pre Pre-Release Version 2017/7/5 Rev.0 Release Version, confirm spec limit 2017/10/28 Rev.0.01 TP10-4-TR sample is ready. Correct the max of Common-mode Input Voltage Range in Electrical Characteristics from (V+) - 0.1 to (V+) + 0.1. Re-org the structure of datasheet. Correct Operating Temperature Range in Maximum Ratings from –45 to 125°C to –40 to 125°C. 2018/1/25 Rev.0.02 TP10-2-VR sample is ready. Order Information Operating Temperature Order Number Package Marking Information MSL Transport Media, Quantity Range TP10-2-SR -40 to 125°C 8-Pin SOP TP102 3 Tape and Reel, 4000 TP10-2-VR -40 to 125°C 8-Pin MSOP TP102 3 Tape and Reel, 3000 TP10-4-SR -40 to 125°C 14-Pin SOP TP104 3 Tape and Reel, 2500 TP10-4-TR -40 to 125°C 14-Pin TSSOP TP104 3 Tape and Reel, 3000 www.3peakic.com.cn 3 / 17 Rev.0.02 TP10 6MHz, 600μA, RRIO, Op Amps Absolute Maximum Ratings Note 1 Parameters Rating Supply Voltage, (+VS)– (-VS) 7V Input Voltage (-VS) – 0.3 to (+VS) + 0.3 Differential Input Voltage ±7V Input Current: +IN, –IN ±10mA Note 2 Output Short-Circuit Duration Note 3 Infinite Maximum Junction Temperature 150°C Operating Temperature Range –40 to 125°C Storage Temperature Range –65 to 150°C Lead Temperature (Soldering, 10 sec) 260°C Note 1: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime. Note 2: The inputs are protected by ESD protection diodes to each power supply. If the input extends more than 300mV beyond the power supply, the input current should be limited to less than 10mA. Note 3: A heat sink may be required to keep the junction temperature below the absolute maximum. This depends on the power supply voltage and how many amplifiers are shorted. Thermal resistance varies with the amount of PC board metal connected to the package. The specified values are for short traces connected to the leads. ESD Rating Symbol Parameter Condition Minimum Level Unit HBM Human Body Model ESD MIL-STD-883H Method 3015.8 8 kV CDM Charged Device Model ESD JEDEC-EIA/JESD22-C101E 2 kV Thermal Information Package Type θJA θJC Unit SOP-8 158 43 °C/W SOP-14 120 36 °C/W www.3peakic.com.cn 4 / 17 Rev.0.02 TP10 6MHz, 600μA, RRIO, Op Amps Electrical Characteristics All test condition is VS = 5V, TA = 25°C, RL = 2kΩ, CL =100pF, unless otherwise noted. Symbol Parameter Conditions Min Typ Max Unit 5.5 V 900 μA Power Supply VS Supply Voltage Range 2.7 IQ Quiescent Current per Amplifier PSRR Power Supply Rejection Ratio 600 VS = 2.7V to 5.5V 70 -3 95 dB Input Characteristics VOS Input Offset Voltage VCM = 0V to 3V VOS TC Input Offset Voltage Drift TA = -40°C to 125°C 2 μV/°C TA = 25 °C 1 pA IB Input Bias Current TA = 85 °C 25 pA 1 pA Differential Mode 10 pF Common Mode 10 pF 100 dB IOS Input Offset Current CIN Input Capacitance Av RLOAD = 10kΩ Open-loop Voltage Gain Common-mode Input 80 3 mV Voltage VCMR (V-) - 0.1 (V+) + 0.1 V Range CMRR Common Mode Rejection Ratio VCM = 0V to 3V Xtalk Channel Separation 70 100 dB f = 1kHz, RL = 2kΩ 110 dB RLOAD = 10kΩ 5 Output Characteristics VOH, VOL Maximum Output Voltage Swing ISC Output Short-Circuit Current IO Output Current 1V Output Drop Voltage 15 mV 100 mA 50 mA 6 MHz 4.5 V/μs AC Specifications GBW Gain-Bandwidth Product SR Slew Rate AV = 1, VOUT = 1.5V to 3.5V, CLOAD = 60pF, RLOAD = 1kΩ Settling Time, 0.1% AV = 1, 2V Step, CLOAD = 60pF, 0.8 μs Settling Time, 0.01% RLOAD = 1kΩ 1 μs PM Phase Margin RLOAD = 1kΩ, CLOAD = 60pF 60 ° GM Gain Margin RLOAD = 1kΩ, CLOAD = 60pF 15 dB tS Noise Performance EN Input Voltage Noise f = 0.1Hz to 10Hz 8 μVPP eN Input Voltage Noise Density f = 1kHz 19 nV/√Hz iN Input Current Noise f = 1kHz 2 fA/√Hz THD+N Total f = 1kHz, AV =1, RL = 2kΩ, VOUT 0.003 % Harmonic Noise www.3peakic.com.cn Distortion and = 1Vp-p 5 / 17 Rev.0.02 TP10 6MHz, 600μA, RRIO, Op Amps Typical Performance Characteristics VS = 5V, VCM = 2.5V, RL = Open, unless otherwise specified. Figure 1. Unity Gain Bandwidth vs. Temperature Figure 2. Open-Loop Gain and Phase Figure 3. Supply Current vs. Temperature Figure 4. Short Circuit Current vs. Temperature Figure 5. Quiescent Current vs. Supply Voltage Figure 6. Offset Voltage vs. Common-Mode Voltage www.3peakic.com.cn 6 / 17 Rev.0.02 TP10 6MHz, 600μA, RRIO, Op Amps Figure 7. CMRR vs. Frequency Figure 8. CMRR vs. Temperature Figure 9. Power-Supply Rejection Ratio Figure 10. PSRR vs. Temperature Figure 11. Input Voltage Noise Spectral Density Figure 12. 0.1 Hz to 10 Hz Input Voltage Noise www.3peakic.com.cn 7 / 17 Rev.0.02 TP10 6MHz, 600μA, RRIO, Op Amps 2V/div 2V/div Gain= +1 RL= 10kΩ Time (500μs/div) Figure 13. EMIRR IN+ vs. Frequency Figure 14. Large-Scale Step Response Figure 15. Negative Over-Voltage Recovery Figure 16. Positive Over-Voltage Recovery Figure 17. Negative Output Swing vs. Load Current Figure 18. Positive Output Swing vs. Load Current www.3peakic.com.cn 8 / 17 Rev.0.02 TP10 6MHz, 600μA, RRIO, Op Amps Application Information Low Supply Voltage and Low Power Consumption The TP10 family of operational amplifiers can operate with power supply voltages from 2.7 V to 5.5 V. Each amplifier draws only 600 μA quiescent current. The low supply voltage capability and low supply current are ideal for portable applications demanding high capacitive load driving capability and stable wide bandwidth. The TP10 family is optimized for wide bandwidth low power applications. They have an industry leading high GBWP to power ratio and are unity gain stable for any capacitive load. When the load capacitance increases, the increased capacitance at the output pushed the non-dominant pole to lower frequency in the open loop frequency response, lowering the phase and gain margin. Higher gain configurations tend to have better capacitive drive capability than lower gain configurations due to lower closed loop bandwidth and hence higher phase margin. Ground Sensing and Rail to Rail Output The TP10 family has excellent output drive capability, delivering over 100 mA of output drive current. The output stage is a rail-to-rail topology that is capable of swinging to within 10mV of either rail. Since the inputs can go 300 mV beyond either rail, the op-amp can easily perform ‘true ground’ sensing. The maximum output current is a function of total supply voltage. As the supply voltage to the amplifier increases, the output current capability also increases. Attention must be paid to keep the junction temperature of the IC below 150°C when the output is in continuous short-circuit. The output of the amplifier has reverse-biased ESD diodes connected to each supply. The output should not be forced more than 0.5V beyond either supply, otherwise current will flow through these diodes. Driving Large Capacitive Load The TP10 family of OPA is designed to drive large capacitive loads. Refer to Typical Performance Characteristics for “Phase Margin vs. Load Capacitance”. As always, larger load capacitance decreases overall phase margin in a feedback system where internal frequency compensation is utilized. As the load capacitance increases, the feedback loop’s phase margin decreases, and the closed-loop bandwidth is reduced. This produces gain peaking in the frequency response, with overshoot and ringing in output step response. The unity-gain buffer (G = +1V/V) is the most sensitive to large capacitive loads. When driving large capacitive loads with the TP10 OPA family (e.g., > 200 pF when G = +1V/V), a small series resistor at the output (RISO in Figure 3) improves the feedback loop’s phase margin and stability by making the output load resistive at higher frequencies. Riso Vout Vin Cload www.3peakic.com.cn 9 / 17 Rev.0.02 TP10 6MHz, 600μA, RRIO, Op Amps Tape And Reel Information Order Number Package D1 W1 A0 B0 K0 P0 W0 Pin1 Quadrant TP10-2-SR 8-Pin SOIC 330.0 17.6 6.4 5.4 2.1 8.0 12.0 Q1 TP10-4-SR 14-Pin SOIC 330.0 21.6 6.5 9.0 2.1 8.0 16.0 Q1 www.3peakic.com.cn 10 / 17 Rev.0.02 TP10 6MHz, 600μA, RRIO, Op Amps Package Outline Dimensions SOIC-8 Table 1. Symbol www.3peakic.com.cn 11 / 17 Dimensions Dimensions In Millimeters In Inches Min Max Min Max A 1.350 1.750 0.053 0.069 A1 0.100 0.250 0.004 0.010 A2 1.350 1.550 0.053 0.061 B 0.330 0.510 0.013 0.020 C 0.190 0.250 0.007 0.010 D 4.780 5.000 0.188 0.197 E 3.800 4.000 0.150 0.157 E1 5.800 6.300 0.228 0.248 e 1.270TYP L1 0.400 1.270 0.016 0.050 θ 0° 8° 0° 8° 0.050TYP Rev.0.02 TP10 6MHz, 600μA, RRIO, Op Amps MSOP-8 Dimensions Dimensions In In Millimeters Inches Min Max Min Max A 0.800 1.200 0.031 0.047 A1 0.000 0.200 0.000 0.008 A2 0.760 0.970 0.030 0.038 b 0.30 TYP 0.012 TYP C 0.15 TYP 0.006 TYP D 2.900 e 0.65 TYP E 2.900 3.100 0.114 0.122 E1 4.700 5.100 0.185 0.201 L1 0.410 0.650 0.016 0.026 θ 0° 6° 0° 6° Symbol E E1 A A2 e b D 3.100 0.114 0.122 0.026 A1 R1 R θ L1 www.3peakic.com.cn L L2 12 / 17 Rev.0.02 TP10 6MHz, 600μA, RRIO, Op Amps www.3peakic.com.cn 13 / 17 Rev.0.02 TP10 6MHz, 600μA, RRIO, Op Amps SOP-14 Dimensions In Millimeters Symbol MIN 1.35 1.60 1.75 A1 0.10 0.15 0.25 A2 1.25 1.45 1.65 A3 0.55 0.65 0.75 b 0.36 b1 0.35 c 0.16 c1 0.15 0.20 0.25 D 8.53 8.63 8.73 E 5.80 6.00 6.20 E1 3.80 3.90 4.00 L 14 / 17 MAX A e www.3peakic.com.cn NOM 0.49 0.40 0.45 0.25 1.27 BSC 0.45 0.60 L1 1.04 REF L2 0.25 BSC 0.80 R 0.07 R1 0.07 h 0.30 θ 0° θ1 6° 8° 10° θ2 6° 8° 10° θ3 5° 7° 9° θ4 5° 7° 9° 0.40 0.50 8° Rev.0.02 TP10 6MHz, 600μA, RRIO, Op Amps TSSOP-14 Dimensions In Millimeters E1 E A A2 e Symbol c D MIN TYP MAX A - - 1.20 A1 0.05 - 0.15 A2 0.90 1.00 1.05 b 0.20 - 0.28 c 0.10 - 0.19 D 4.86 4.96 5.06 E 6.20 6.40 6.60 E1 4.30 4.40 4.50 e L A1 R1 R 0.65 BSC 0.45 0.60 L1 1.00 REF L2 0.25 BSC 0.75 R 0.09 - - θ 0° - 8° θ L1 www.3peakic.com.cn L L2 15 / 17 Rev.0.02 TP10 6MHz, 600μA, RRIO, Op Amps www.3peakic.com.cn 16 / 17 Rev.0.02 TP10 6MHz, 600μA, RRIO, Op Amps 3PEAK and the 3PEAK logo are registered trademarks of 3PEAK INCORPORATED. All other trademarks are the property of their respective owners. www.3peakic.com.cn 17 / 17 Rev.0.02
