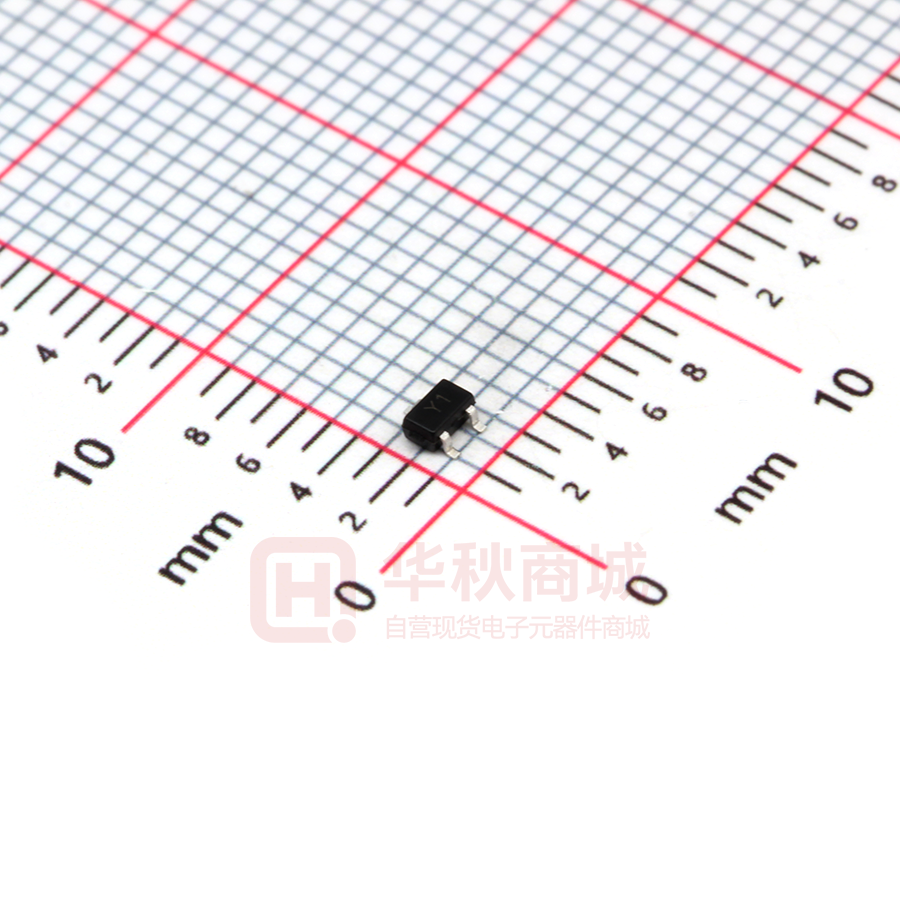

SS8050W

SS8050W TRANSISTOR (NPN) SOT–323 FEATURES Complimentary to SS8550W 1. BASE 2. EMITTER 3. COLLECTOR MARKING: Y1 MAXIMUM RATINGS (TA=25℃ unless otherwise noted) Symbol Parameter Value Units VCBO Collector-Base Voltage 40 V VCEO Collector-Emitter Voltage 25 V VEBO Emitter-Base Voltage 5 V IC Collector Current -Continuous 1.5 A PC Collector Power Dissipation 0.2 W Tj Junction Temperature 150 ℃ Tstg Storage Temperature -55-150 ℃ ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified) Parameter Symbol Test conditions MIN TYP MAX UNIT Collector-base breakdown voltage V(BR)CBO IC= 100μA, IE=0 40 V Collector-emitter breakdown voltage V(BR)CEO IC= 0.1mA, IB=0 25 V Emitter-base breakdown voltage V(BR)EBO IE=100μA, IC=0 5 V Collector cut-off current ICBO VCB=40V, IE=0 0.1 μA Collector cut-off current ICEO VCB=20V, IE=0 0.1 μA Emitter cut-off current IEBO VEB= 5V, IC=0 0.1 μA hFE(1) VCE=1V, IC= 100mA 120 hFE(2) VCE=1V, IC= 800mA 40 400 DC current gain Collector-emitter saturation voltage VCE(sat) IC=800mA, IB= 80mA 0.5 V Base-emitter saturation voltage VBE(sat) IC=800mA, IB= 80mA 1.2 V fT Transition frequency VCE=10V, IC= 50mA f=30MHz 100 MHz CLASSIFICATION OF hFE(1) Page 1 of 3 RANK L H J RANGE 120–200 200–350 300–400 5/30/2011 Typical Characteristics Page 2 of 3 SS8050W 5/30/2011 SOT-323 Package Outline Dimensions Symbol A A1 A2 b c D E E1 e e1 L L1 θ Page 3 of 3 Dimensions In Millimeters Max. Min. 0.900 1.100 0.000 0.100 0.900 1.000 0.200 0.400 0.080 0.150 2.000 2.200 1.150 1.350 2.150 2.450 0.650 TYP. 1.200 1.400 0.525 REF. 0.260 0.460 0° 8° Dimensions In Inches Min. Max. 0.035 0.043 0.000 0.004 0.035 0.039 0.008 0.016 0.003 0.006 0.079 0.087 0.045 0.053 0.085 0.096 0.026 TYP. 0.047 0.055 0.021 REF. 0.010 0.018 0° 8° 5/30/2011
