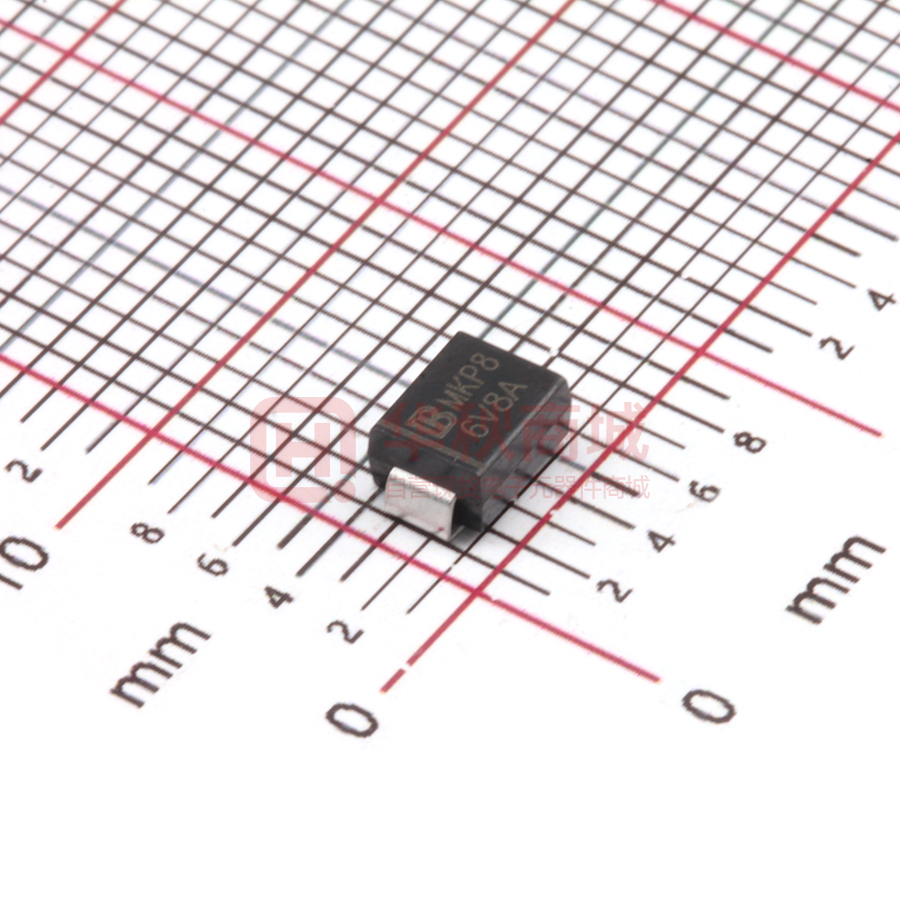

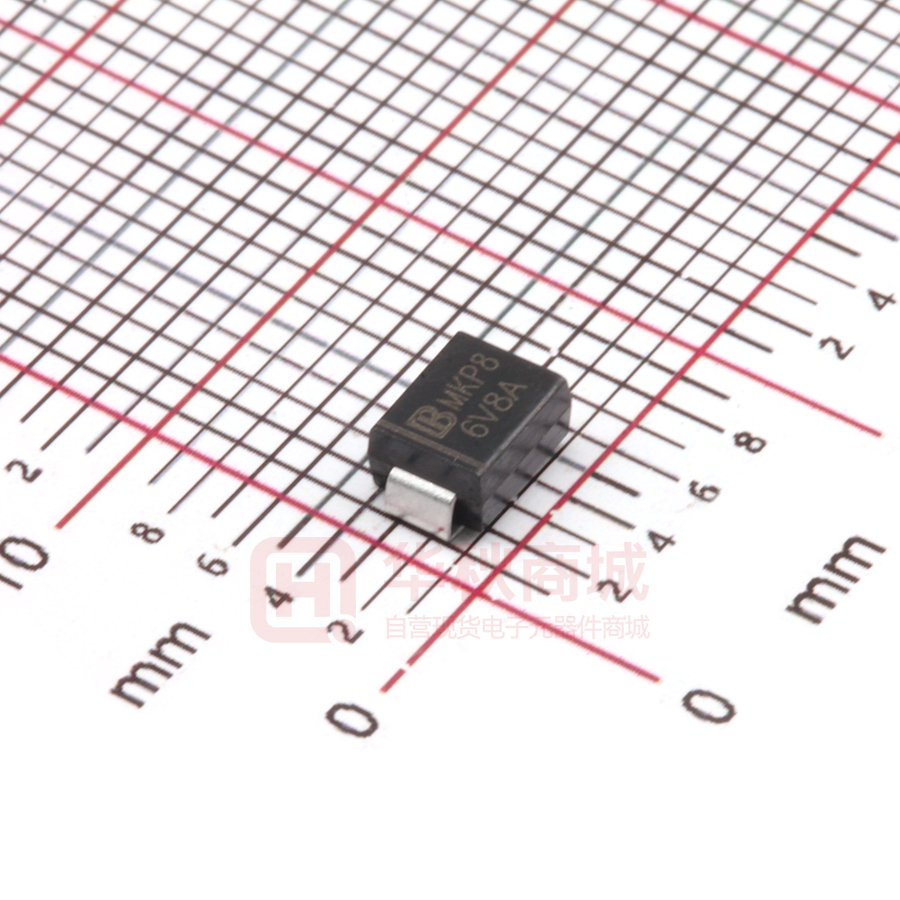

P6SMB6.8A

P6SMB SERIES Transient Voltage Suppressors (TVS) Data Sheet Features ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ For surface mounted applications in order to optimize board space Low profile package Built-in strain relief Glass passivated junction Low inductance Excellent clamping capability 600W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01% Fast response time Typical IR less than 1μA above 12V High Temperature soldering: 260℃/10 seconds at terminals Plastic package has underwriters laboratory flammability 94V-0 Meets MSL level 1, per J-STD-020 Safety certification: UL: E244458 Mechanical Data ■ ■ ■ ■ ■ Case: JEDEC DO-214AA. Molded plastic over glass passivated junction Terminal: Solder plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode except bi-directional models Standard Packaging: 12mm tape (EIA STD RS-481) Weight: 0.10g Applications ■ I/O interface ■ AC/DC power supply ■ Low frequency signal transmission line (RS232, RS485, etc.) Maximum Ratings and Characteristics Ratings at 25℃ ambient temperature unless otherwise specified. Rating Symbol Value Units Peak pulse power dissipation at 10/1000μs waveform (Note1, Note2, Fig.1) PPPM Minimum 600 Watts Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3) IPPM See Table Amps PM(AV) 5.0 Watts IFSM 100 Amps TJ,TSTG -55 to +150 ℃ Typical thermal resistance junction to lead RθJL 20 ℃/W Typical thermal resistance junction to ambient RθJA 100 ℃/W Steady state power dissipation at TA=50℃ (Fig.5) Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load, (JEDEC Method) (Note3, Fig.6) Operating junction and Storage Temperature Range. Notes: 1. Non-repetitive current pulse, per Fig.3 and derated above TA=25℃ per Fig.2. 2. Mounted on 5.0mm×5.0mm (0.03mm thick) copper pads to each terminal. 3. 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minutes maximum. Revision:TVS-P6SMB SERIES-001(A1) 1/6 http://brightking.pulseelectronics.com P6SMB SERIES Dimensions (SMB/DO-214AA) Millimeters Cathode Band D1 D L H1 H d Inches Symbol T1 T Min. Max. Min. Max. L 4.06 4.57 0.160 0.180 D 3.30 3.94 0.130 0.155 D1 1.95 2.20 0.077 0.086 T 5.21 5.59 0.205 0.220 T1 0.76 1.52 0.030 0.060 d - 0.203 - 0.008 H 2.15 2.65 0.085 0.104 H1 2.13 2.47 0.084 0.097 Electrical Characteristics (TA=25℃) Part Number Device Marking Code Reverse Stand-Off Voltage Breakdown Voltage @IT Test Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VRWM Unidirectional Bidirectional UNI BI VRWM(V) VBR(V) IT(mA) VC(V) IPP(A) IR(μA) P6SMB6.8A P6SMB6.8CA 6V8A 6V8C 5.80 6.45~7.14 10 10.5 58.1 1000 P6SMB7.5A P6SMB7.5CA 7V5A 7V5C 6.40 7.13~7.88 10 11.3 54.0 500 P6SMB8.2A P6SMB8.2CA 8V2A 8V2C 7.02 7.79~8.61 10 12.1 50.4 200 P6SMB9.1A P6SMB9.1CA 9V1A 9V1C 7.78 8.65~9.55 1 13.4 45.5 50 P6SMB10A P6SMB10CA 10A 10C 8.55 9.50~10.50 1 14.5 42.1 10 P6SMB11A P6SMB11CA 11A 11C 9.40 10.50~11.60 1 15.6 39.1 5 P6SMB12A P6SMB12CA 12A 12C 10.20 11.40~12.60 1 16.7 36.5 5 P6SMB13A P6SMB13CA 13A 13C 11.10 12.40~13.70 1 18.2 33.5 1 P6SMB15A P6SMB15CA 15A 15C 12.80 14.30~15.80 1 21.2 28.8 1 P6SMB16A P6SMB16CA 16A 16C 13.60 15.20~16.80 1 22.5 27.1 1 P6SMB18A P6SMB18CA 18A 18C 15.30 17.10~18.90 1 25.2 24.2 1 P6SMB20A P6SMB20CA 20A 20C 17.10 19.00~21.00 1 27.7 22.0 1 P6SMB22A P6SMB22CA 22A 22C 18.80 20.90~23.10 1 30.6 19.9 1 P6SMB24A P6SMB24CA 24A 24C 20.50 22.80~25.20 1 33.2 18.4 1 P6SMB27A P6SMB27CA 27A 27C 23.10 25.70~28.40 1 37.5 16.3 1 P6SMB30A P6SMB30CA 30A 30C 25.60 28.50~31.50 1 41.4 14.7 1 P6SMB33A P6SMB33CA 33A 33C 28.20 31.40~34.70 1 45.7 13.3 1 Revision:TVS-P6SMB SERIES-001(A1) 2/6 http://brightking.pulseelectronics.com P6SMB SERIES Electrical Characteristics (TA=25℃) Part Number Device Marking Code Reverse Stand-Off Voltage Breakdown Voltage @IT Test Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VRWM Unidirectional Bidirectional UNI BI VRWM(V) VBR(V) IT(mA) VC(V) IPP(A) IR(μA) P6SMB36A P6SMB36CA 36A 36C 30.80 34.20~37.80 1 49.9 12.2 1 P6SMB39A P6SMB39CA 39A 39C 33.30 37.10~41.00 1 53.9 11.3 1 P6SMB43A P6SMB43CA 43A 43C 36.80 40.90~45.20 1 59.3 10.3 1 P6SMB47A P6SMB47CA 47A 47C 40.20 44.70~49.40 1 64.8 9.4 1 P6SMB51A P6SMB51CA 51A 51C 43.60 48.50~53.60 1 70.1 8.7 1 P6SMB56A P6SMB56CA 56A 56C 47.80 53.20~58.80 1 77.0 7.9 1 P6SMB62A P6SMB62CA 62A 62C 53.00 58.90~65.10 1 85.0 7.2 1 P6SMB68A P6SMB68CA 68A 68C 58.10 64.60~71.40 1 92.0 6.6 1 P6SMB75A P6SMB75CA 75A 75C 64.10 71.30~78.80 1 103.0 5.9 1 P6SMB82A P6SMB82CA 82A 82C 70.10 77.90~86.10 1 113.0 5.4 1 P6SMB91A P6SMB91CA 91A 91C 77.80 86.50~95.50 1 125.0 4.9 1 P6SMB100A P6SMB100CA 100A 100C 85.50 95.00~105.00 1 137.0 4.5 1 P6SMB110A P6SMB110CA 110A 110C 94.00 105.00~116.00 1 152.0 4.0 1 P6SMB120A P6SMB120CA 120A 120C 102.00 114.00~126.00 1 165.0 3.7 1 P6SMB130A P6SMB130CA 130A 130C 111.00 124.00~137.00 1 179.0 3.4 1 P6SMB150A P6SMB150CA 150A 150C 128.00 143.00~158.00 1 207.0 2.9 1 P6SMB160A P6SMB160CA 160A 160C 136.00 152.00~168.00 1 219.0 2.8 1 P6SMB170A P6SMB170CA 170A 170C 145.00 162.00~179.00 1 234.0 2.6 1 P6SMB180A P6SMB180CA 180A 180C 154.00 171.00~189.00 1 246.0 2.5 1 P6SMB200A P6SMB200CA 200A 200C 171.00 190.00~210.00 1 274.0 2.2 1 P6SMB220A P6SMB220CA 220A 220C 185.00 209.00~231.00 1 328.0 1.9 1 P6SMB250A P6SMB250CA 250A 250C 214.00 237.00~263.00 1 344.0 1.8 1 P6SMB300A P6SMB300CA 300A 300C 256.00 285.00~315.00 1 414.0 1.5 1 P6SMB350A P6SMB350CA 350A 350C 300.00 332.00~368.00 1 482.0 1.3 1 P6SMB400A P6SMB400CA 400A 400C 342.00 380.00~420.00 1 548.0 1.1 1 P6SMB440A P6SMB440CA 440A 440C 376.00 418.00~462.00 1 602.0 1.0 1 P6SMB480A P6SMB480CA 480A 480C 408.00 456.00~504.00 1 658.0 0.9 1 P6SMB510A P6SMB510CA 510A 510C 434.00 485.00~535.00 1 698.0 0.9 1 P6SMB530A P6SMB530CA 530A 530C 450.00 503.50~556.50 1 725.0 0.8 1 P6SMB540A P6SMB540CA 540A 540C 459.00 513.00~567.00 1 740.0 0.8 1 P6SMB550A P6SMB550CA 550A 550C 467.00 522.50~577.50 1 760.0 0.8 1 Notes: For bidirectional type having VRWM of 10V and less, the IR limit is double. Revision:TVS-P6SMB SERIES-001(A1) 3/6 http://brightking.pulseelectronics.com P6SMB SERIES Ratings and Characteristic Curves (T A=25℃ unless otherwise noted) Figure 2. Pulse Derating Curve Peak Pulse Power (PPP) or Current (IPP) Derating in Percentage % Figure 1. Peak Pulse Power Rating Curve PPPM - Peak Pulse Power (kW) 100 10 1 0.2×0.2″(5.0×5.0mm) Copper Pad Area 0.1 1 100 10 100 80 60 40 20 0 0 1000 Figure 3. Pulse Waveform 150 175 Bi-directional V=0V 1000 Cj (pF) IPPM - Peak Pulse Current, %IRSM 125 Uni-directional V=0V Uni-directional @VR Half Value IPPM (IPPM/2) 100 50 10/1000µs Waveform as defined by R.E.A Bi-directional @VR 10 TJ=25℃ f=1.0MHz Vsig=50mVp-p td 0 0 1.0 2.0 3.0 1 4.0 t-Time (ms) IFSM - Peak Forward Surve Current (A) 5 4 3 2 1 0 25 50 75 100 125 150 175 100 1000 120 100 80 60 40 20 0 1 10 100 Number of Cycles at 60Hz TA-Ambient Temperature (℃) Revision:TVS-P6SMB SERIES-001(A1) 10 Figure 6. Maximum Non-Repetitive Forward Surge Current Uni-Directional Only 6 0 1 VBR-Reverse Breakdown Voltage (V) Figure 5. Steady State Power Dissipation Derating Curve PM(AV), Steady State Power Dissipation (W) 100 10000 Peak Value IPPM 100 75 Figure 4. Typical Junction Capacitance TJ=25℃ Pulse Width(td) is defined as the point where the peak current decays to 50% of IPPM tr=10µs 50 TA-Ambient Temperature (℃) td-Pulse Width (µs) 150 25 4/6 http://brightking.pulseelectronics.com P6SMB SERIES Recommended Soldering Conditions Reflow Soldering Critical Zone TL to TP tP TP Ramp-up TL tL Temperature TS max TS min Ramp-down tS Preheat 25 t 25℃ to Peak Time Recommended Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3℃/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (tS) 150℃ 200℃ 60-180 seconds TS max to TL -Ramp-up Rate 3℃/second max. Time maintained above: -Temperature (TL) -Time (tL) 217℃ 60-150 seconds Peak Temperature (TP) 260℃ Time within 5℃ of actual Peak Temperature (tP) 20-40 seconds Ramp-down Rate 6℃/second max. Time 25℃ to Peak Temperature 8 minutes max. Marking Code Cathode Band YXXX YXXX 6V8A Logo 6V8C Date Code Logo Marking Code Revision:TVS-P6SMB SERIES-001(A1) Date Code Marking Code 5/6 http://brightking.pulseelectronics.com P6SMB SERIES Part Number Code P6SMB XXX C A 5% VBR Voltage Tolerance Bidirectional VBR Voltage Series Code Ordering Code for Different Package 7 inch reel package: Add suffix “/TR7” at the end of the part number, such as P6SMBJ150A/TR7 13 inch reel package: Add suffix “/TR13” at the end of the part number, such as P6SMBJ250CA/TR13 Packaging Tape P0 Symbol Dimension (mm) W 12.00±0.20 P0 4.00±0.10 P1 8.00±0.10 P2 2.00±0.10 D0 Φ1.55 ±0.10 D1 Φ1.5±0.10 K0 E 1.75±0.10 SECTION B-B F 5.50±0.10 A0 A0 3.86±0.15 SECTION A-A B0 5.65±0.10 K0 2.75±0.15 T 0.25±0.05 D2 Φ178.0±2.0 D3 Φ50.0Min. D4 Φ13.0±0.5 W1 16.0±2.0 P1 P2 D0 B T E F A A W B D1 7” Reel D4 D3 W1 D2 13” Reel Quantity: 500PCS W2 H D6 B0 D5 D5 Φ330.0±2.0 D6 Φ13.5±0.5 H 2.5±1.0 W2 16.0±2.0 Quantity: 3000PCS Revision:TVS-P6SMB SERIES-001(A1) 6/6 http://brightking.pulseelectronics.com
